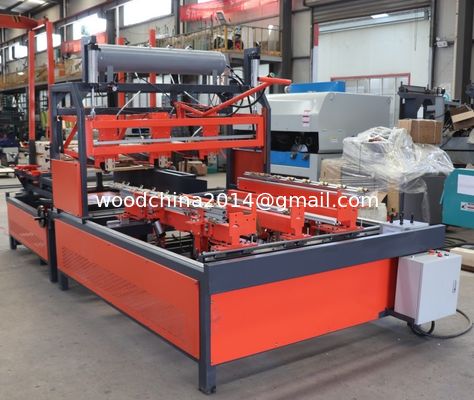

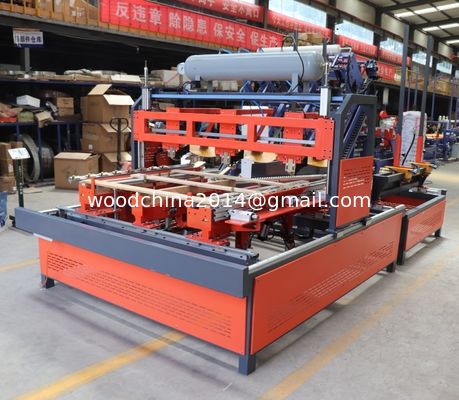

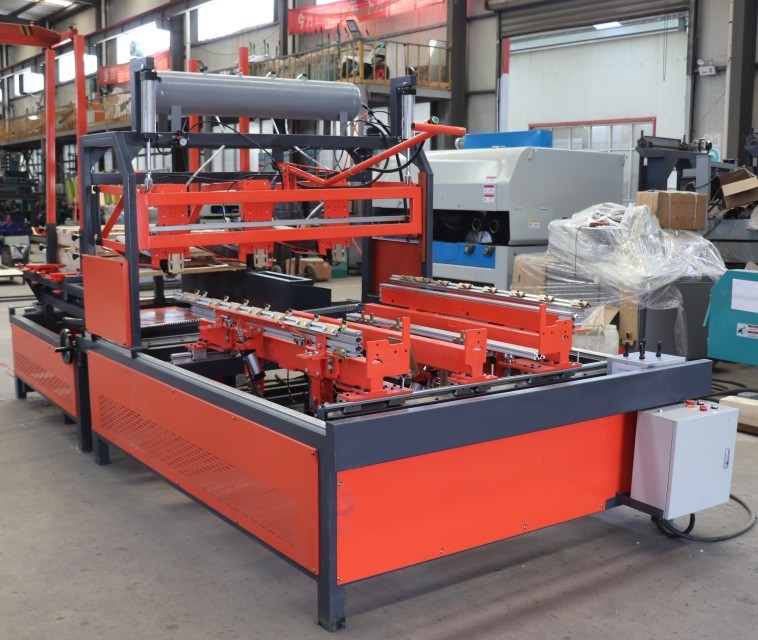

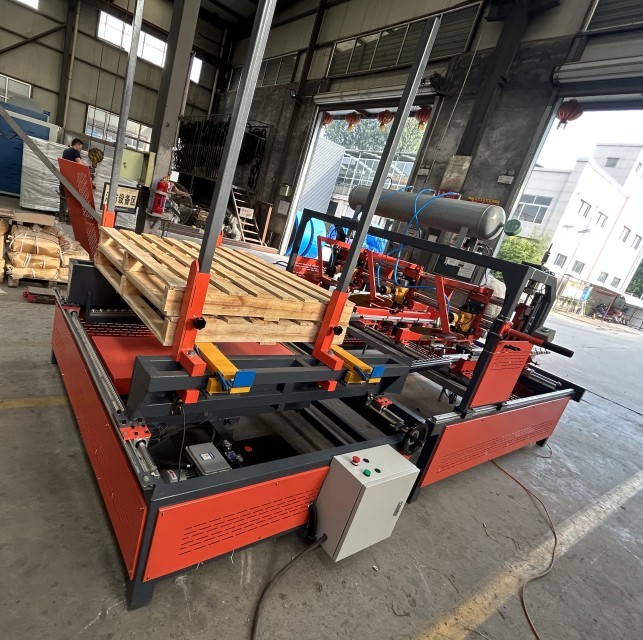

Semi-Automatic Wooden Pallet Nailing Machine with Palletizer wood pallet nailing machine
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | AWPN-1500,PT-1500,AEPN-1300 |
| Minimum Order Quantity | 1 SET Pallet nailing machine Automatic |
| Price | US $4,200 - 21,500 / Set |
| Packaging Details | container loading of Pallet nailing machine |
| Delivery Time | within 20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000sets/year of Pallet nailing machine |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Semi-Automatic Pallet Nailing Machine With Stacker | Pallet Length | 60cm To 130cm |
|---|---|---|---|
| Wood Pallet Width | 800-1300mm | Capacity | 1-2pcs /min |
| Operating Pressure | 0.8MPA | Number Of Coil Nail Guns | 3pc |
| Qty Of Beams | 3beams | Pallet Type | American Tray |
| Stacker Working Mode | Pneumatic | Weight | 2000kgs |
| After-sales Service Provided | Online Support,Free Spare Parts,commissioning And Training |
Product Description

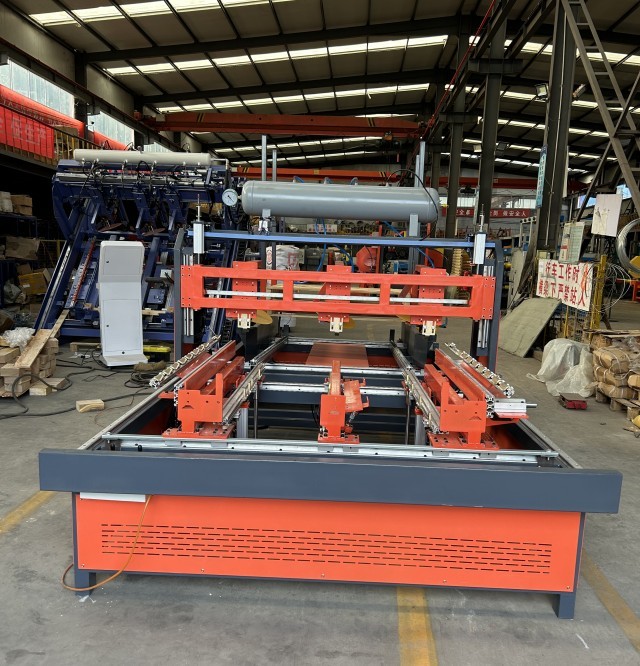

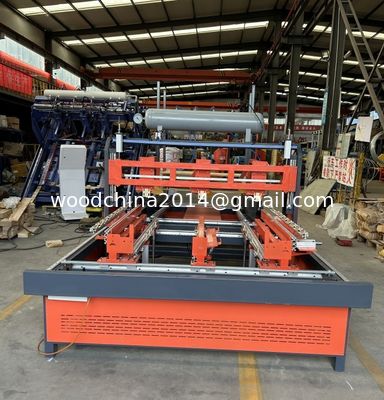

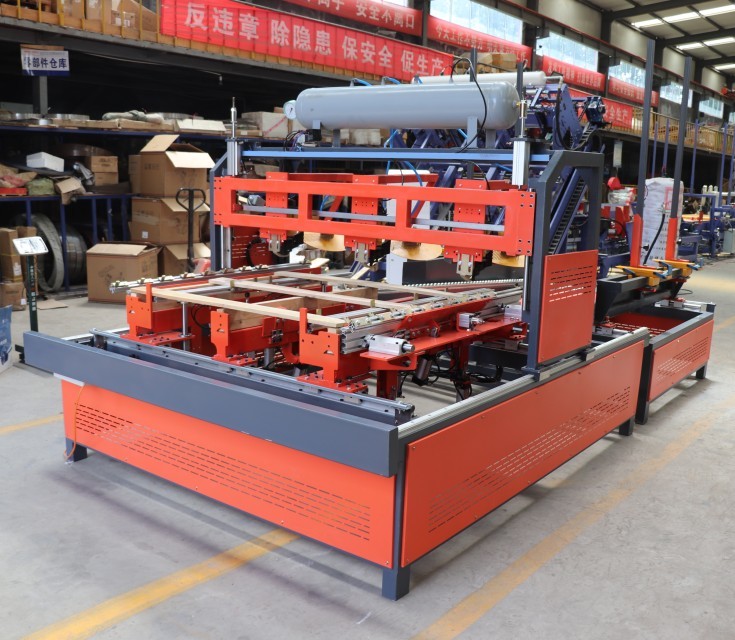

Semi-Automatic Pallet machine Wooden Pallet Nailing Machine with palletizer
Semi-Automatic Pallet Nailing Machine with Palletizer
Technical data :
| Model | AWPN-1500 |
| Wood pallet length | 600-1300mm |
| Wood pallet width | 800-1700mm |
| Feeding mode | Hand pull |
| Palletizing mode | Automatic |
| Operational mode | Pneumatic operation |
| Voltage | 380V,480V or other |
| Air pressure | 0.8MPA |
| Tank size | 0.2 cubic |
| Nail gun speed | 7 times /second. |
| Production efficiency | 1-2pcs /min |
| Apply a nail | Less than 90mm |
| Number of nail guns | 3P OR 4P |
| Palletizing quantity | 10P |
| Weight | 2000kg |
A universal pneumatic nailing table, Pneumatico PT-1500 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Instruction:
- Easy to use One operator can build 210-230 pallets within 8 hours
- Compact design Total footprint 3.3 m² (35.5 ft²)
- Universal Adjustable worktop allows production of:
- Pallets on 2, 3, 4, or 5 stringers
- Efficient Quickly switch to any size pallet
- Pneumatic clamp Easily centers the blocks
- Pneumatic lift Raises pallet to minimize operator lifting
- Overhead roller track Nail guns can move freely during work
- Bottom template Template to build pallet legs
- Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
- Unique Diagonal table adjustment reduces work by 50%
- Only 2 Allen keys required to adjust the table
Technical specifications:
| Model | PT-1700 | PT-3400 |
| Wood pallet length | 600-1300mm | 700-1500mm |
| Wood pallet width | 800-1700mm | 900-3400mm |
| Operational mode | Pneumatic operation | Pneumatic operation |
| Air pressure | 0.8MPA | 0.8MPA |
| Production efficiency | 30-40pcs /h | 20-30pcs /h |
| Number of beams | 3p (or customized) | 5p (or customized) |
| Number of nail guns |
1P (CN70) American Stanley staple gun |
1P (CN70) American Stanley staple gun |
| Weight | 440kg | 840kg |
| Size | 2250*980*1900mm | 4050*1050*2100mm |

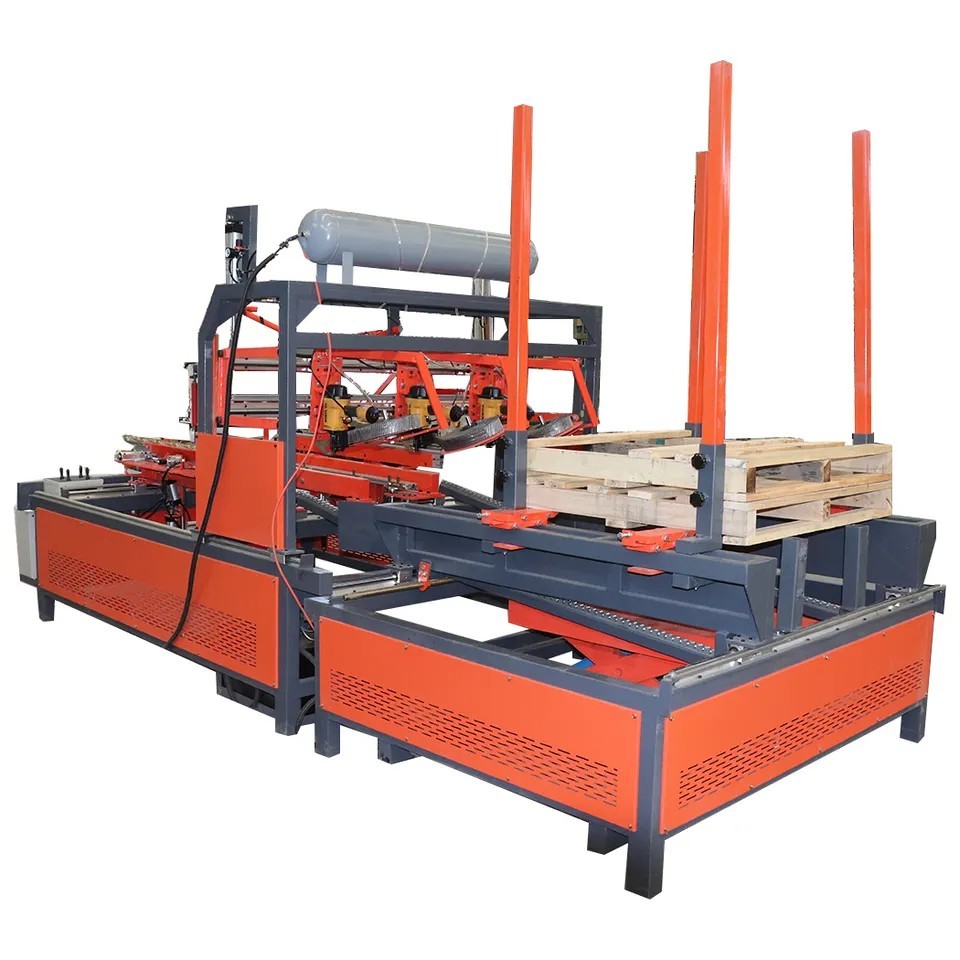

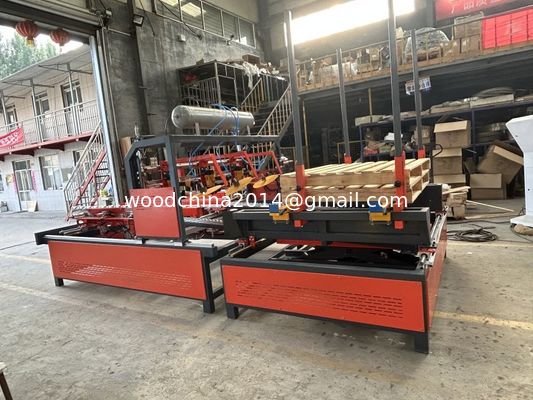

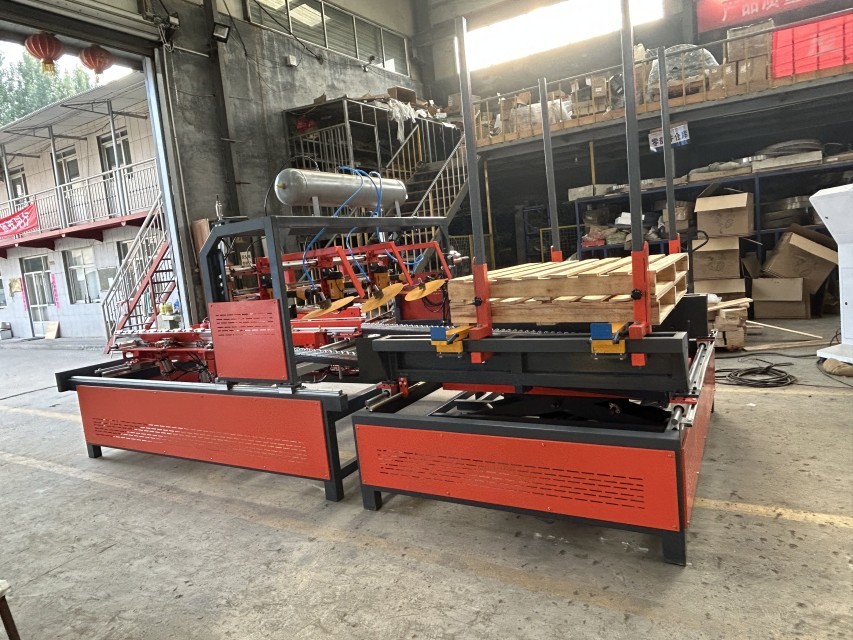

Automatic Wood Pallet Nailing Machine with Automatic palletizer
-- USA and National Style Wooden Pallets
-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data
| Model | AWPN-1300 |
| Wood pallet length | 600-1300mm |
| Wood pallet width | 800-1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 220V/ 2kw Servo motor |
| Air pressure | 0.8MPA |
| Tank size | 0.2 cubic |
| Nail gun speed | 7 times /second. |
| Production efficiency | 1-2pcs /min |
| Apply a nail | Less than 90mm |
| Number of nail guns | 3P OR 4P |
| Weight | 2000kg |
