Wood shaving machine for horse beddings south africa wood sawdust machine,mini wood shaving machine
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | SHBH500-2,SHBH500-4,SHBH500-6 |
| Minimum Order Quantity | 1 SET |
| Price | US $ 3,900 - 12,600 / Set |
| Packaging Details | wooden pallet or iron frame packing |
| Delivery Time | within 14 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 200 Sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Application | Make Wood Shavings |
|---|---|---|---|
| Production Capacity | 250-4000kg/hour | Warranty | 12 Months |
| Voltage | 380V/3phase/50hz Or As Customer Needs | Power(W) | 7.7kw-50KW |
| Weight | 1500kgs | Raw Materials | Wood, Log, Tree Branch, Offcuts, Scraps, Etc |
| Axle Quantity | 1 - 6 Pcs | Blade Quantity | 4-48 Pcs |
Product Description
China wood shaving machine,wood shavings making machine, wood shavings press baler
Wood Shaving Machine
- Process wood sticks,twigs,branches,wood scraps into shaving.
- Adjust the size and thickness of the wood shaving.
- It is the material for Plywood,furniture or paper factory.
- Add as filler to prevent damage when transport some fragile items.
- Use as nest shavings filler in poultry or animal breeding.
- Bio-energy ignition material.
Technical Specifications:
| Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
| Processing wood max. length(mm) | 800 | 1400 | 1400 |
| Processing max. width/diameter(mm) | 500 | 500 | 500 |
| Shaft quantity | 2 | 4 | 6 |
| Blade (pcs) | 8 | 16 | 24 |
| Motor speed (rpm) | 3500 | 3500 | 3500 |
| Bin length (mm) | 800 | 1400 | 1400 |
| Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
| Shaving depth (mm) | 0.2-1 | 0.2-1 | 0.2-1 |
| Shavings output | 500KG/H | 1000KG/H | 1500KG/H |
| Machine weight | 950kgs | 1800kgs | 2200kgs |
|
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; |
|||
Detailed Images:

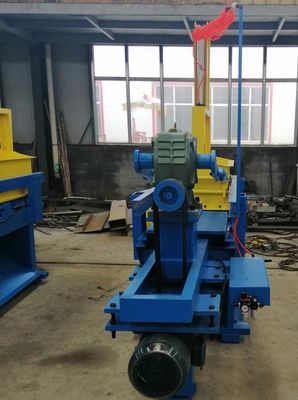

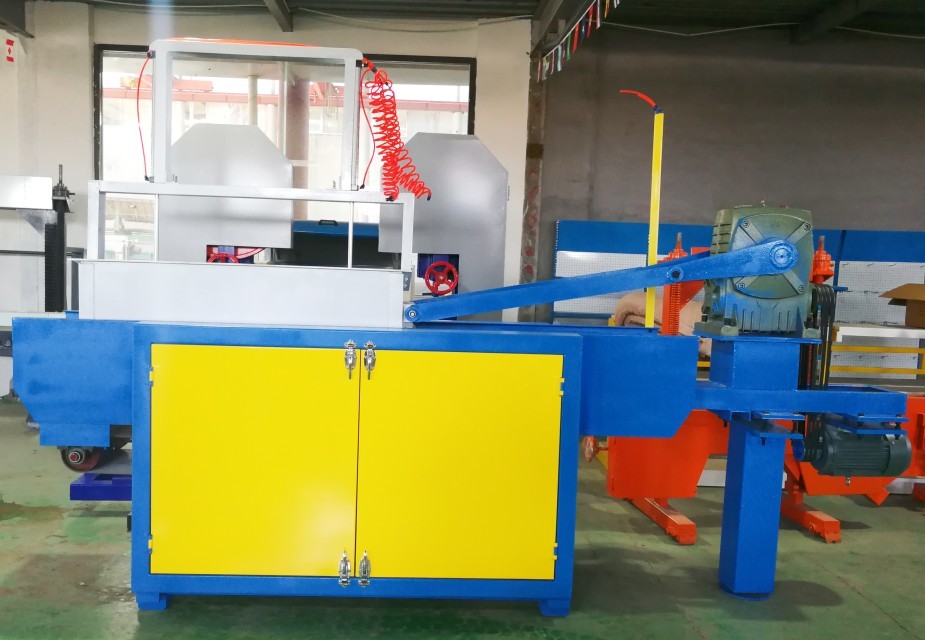

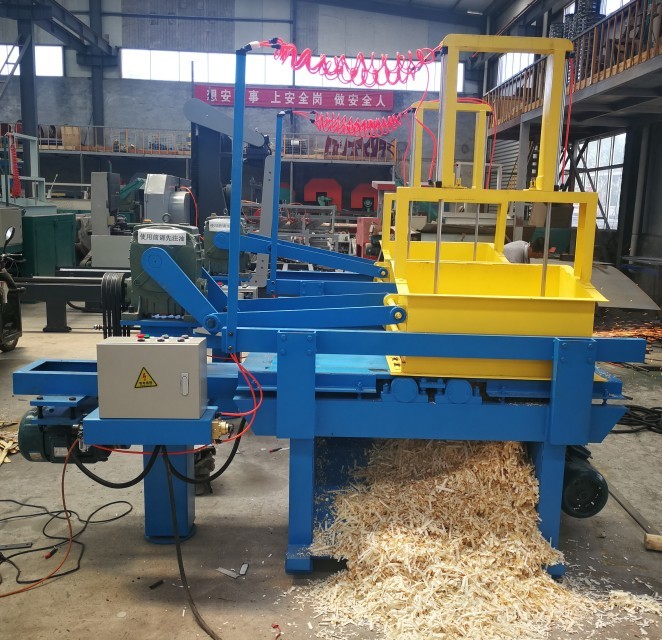

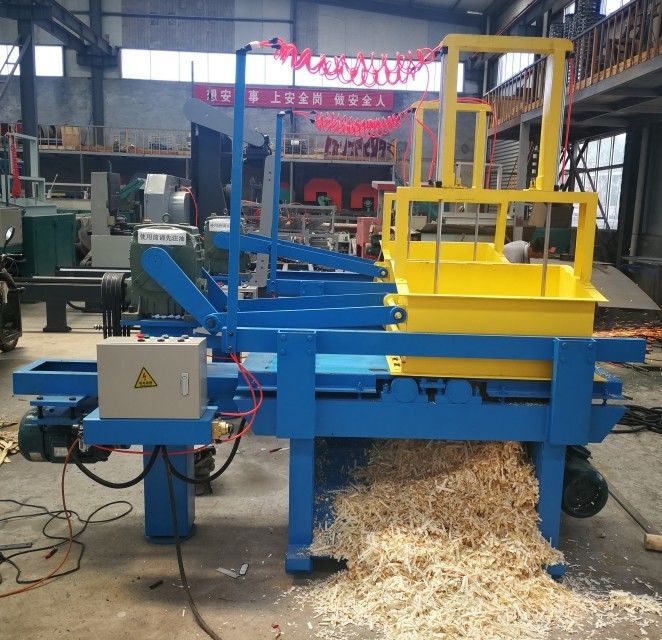

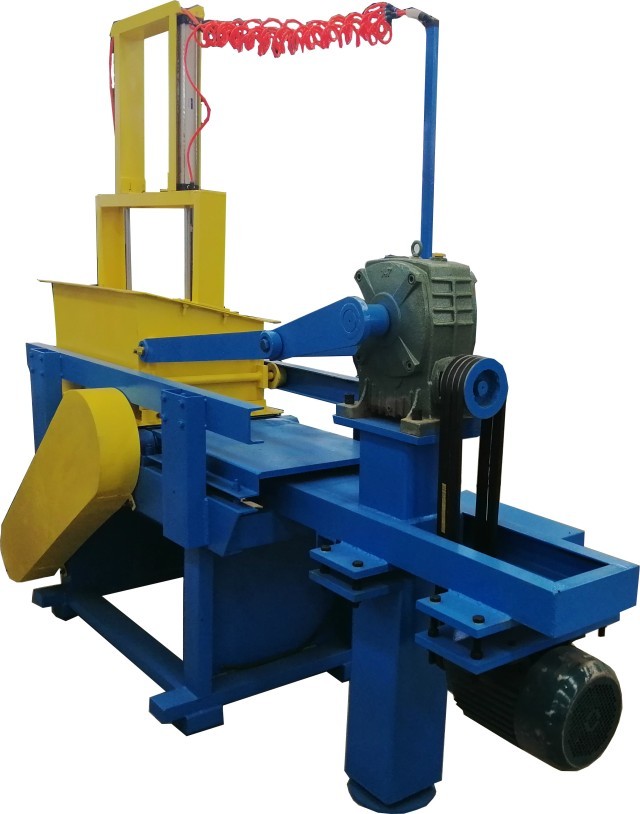

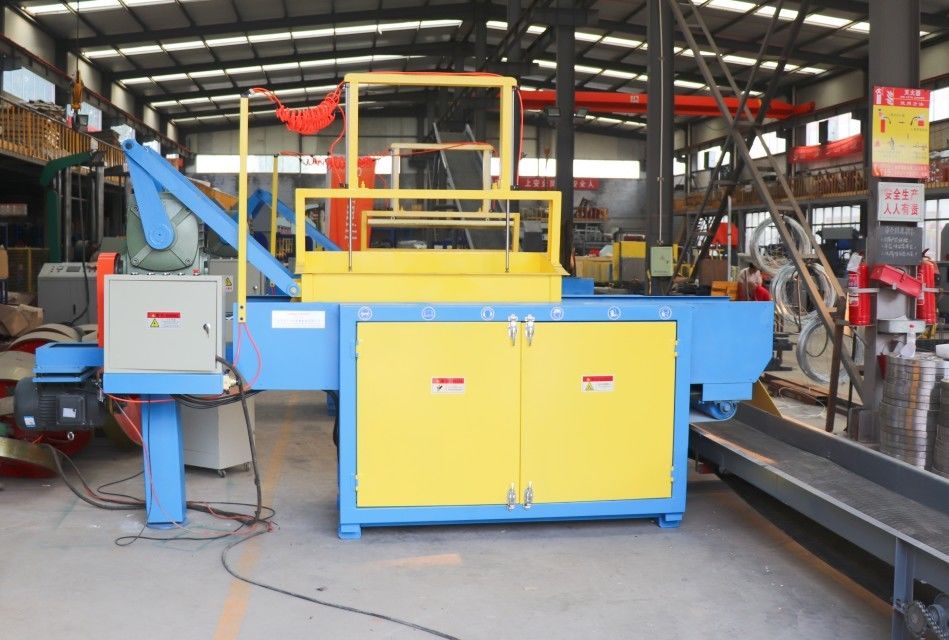

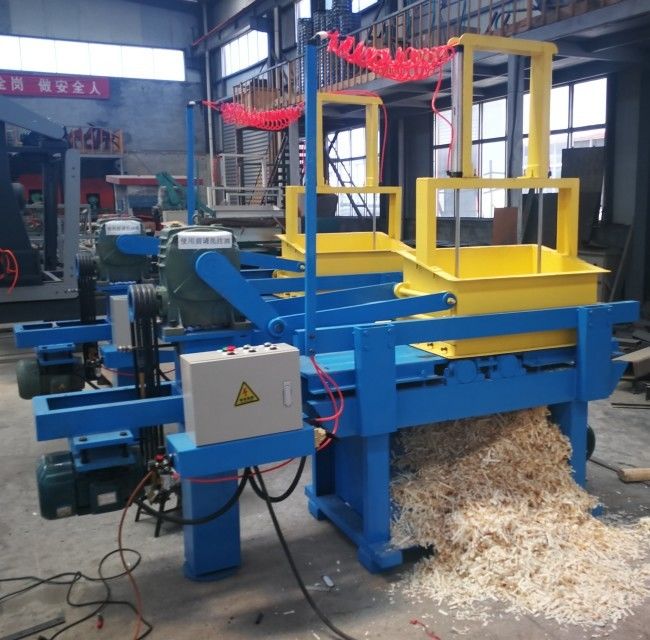

Model SHBH500-6

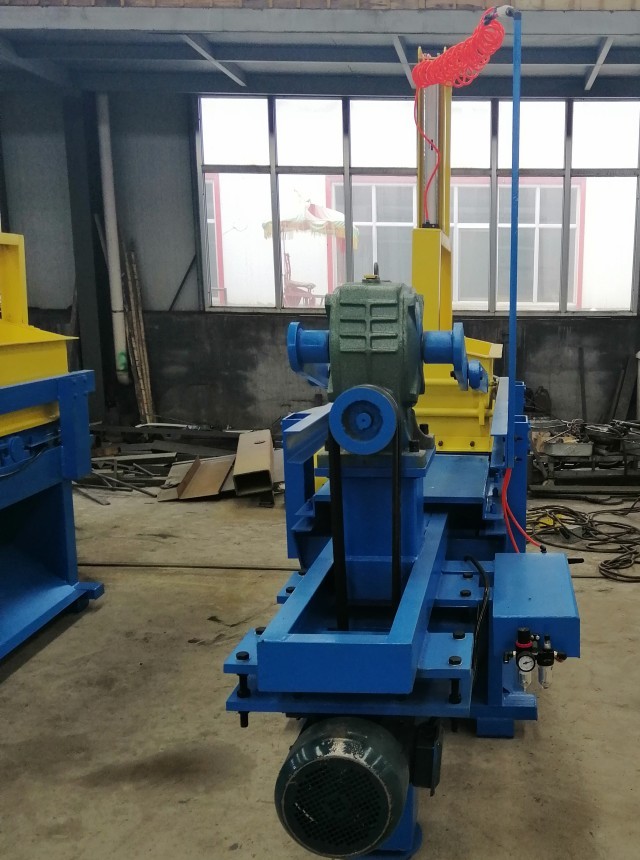

Model SHBH500-2
Blade
Spiral shaft and blade
Wood Shavings/sawdust for poultry farms
Wood Shavings/sawdust for pets animals
Related Machines:
Wood shavings/sawdust press baler
Technical data:
| Model | SHDB-20 | SHDB-1 |
| Main electric motor | 22KW | 22KW |
| Hydraulic pump | 25VQ25 | 25VQ25 |
| Hydraulic valve | LQ32 | LQ32 |
| Hydraulic oil tank | ɸ140 &ɸ160 | ɸ80&ɸ125&ɸ63 |
| Electrical System | PLC control | PLC control |
| Operation system | manual +automatic | manual +automatic |
| Filter | 400L/min | 400L/min |
| Cooling system | air cooling | air cooling |
| Heating system | 3kw | 3kw |
| Oil tank | 500L | 260L |
| bale size | 40x60x20cm | 350*130*60mm |
| bale weight | 15 to 20kgs/bag | 1kg/bag |
| Capacity | 60-80bags/hour | 200bags/hour |
Shavings Dryer
