Sawmill for sale, Portable Sawmill used Multiple Heads Sawmill Resaw Bandsaw width max. 640mm
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | DT300-1,DT300-2,DT300-3,DT300-5,DT300-6 |
| Minimum Order Quantity | 1 SET |
| Price | US $14,200-37,700 / Set |
| Packaging Details | container loading |
| Delivery Time | within 20days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Resaw Machine | Condition | New |
|---|---|---|---|
| Style | Horizontal | Sawing Wood Max. Width | 300mm |
| Sawing Wood Thickness | 260mm | Saw Wheel Diameter | 700MM |
| Motor Power | 15kw X 2set, 3sets, 5sets... | Weight | 900kg-4000kgs |
| Voltage | 380V/50HZ/3PH Or As Customer Needs | Applicable Industries | Manufacturing Plant,woodworking |
| After-sales Service Provided | Online Support,Video Technical Support,commissioning And Training | Warranty | 12 Months |
Product Description
Multiple Heads Band Saw Resaw Wood Cutting Machine, Wood Resaw equipment

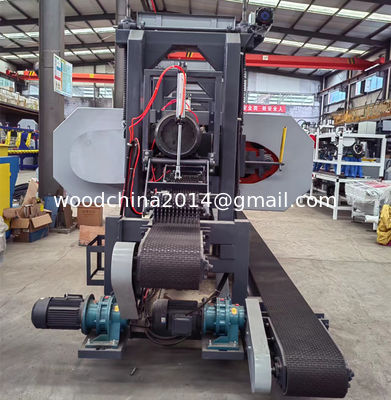

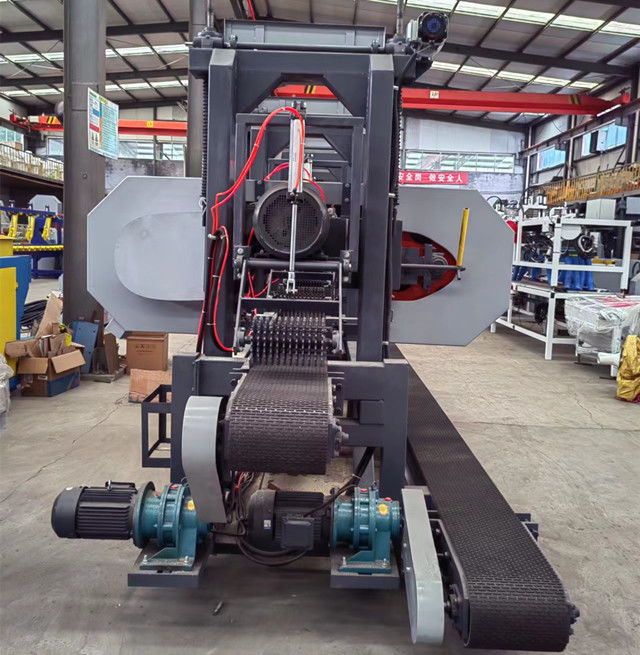

Multiple Heads Horizontal Resaw Band Saws
- This machine is easy-operated,high efficiency and easy-installed.
- The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
- Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
Technical data
| Technical specifications | DT300-1 | DT300-2 | DT300-3 | DT300-5 | DT300-6 |
| Sawing width | 300mm | 300mm | 300mm | 300mm | 300mm |
| Minimum wood thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Maximum wood height | 260mm | 260mm | 260mm | 260mm | 260mm |
| Band wheel diameter | 700mm | 700mm | 700mm | 700mm | 700mm |
| Saw motor | 15kw | 15kw x 2 | 15kw x 3 | 15kw x 5 | 15kw x 6 |
| Saw machine length | 3500mm | 4500mm | 5800mm | 8500mm | 11000 |
| Weight | 900kg | 1500kg | 2200kg | 3500kg | 5000kg |
| Feeding | Variable frequency speed adjustable conveyor | ||||

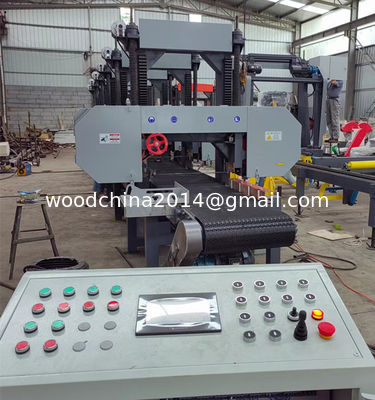

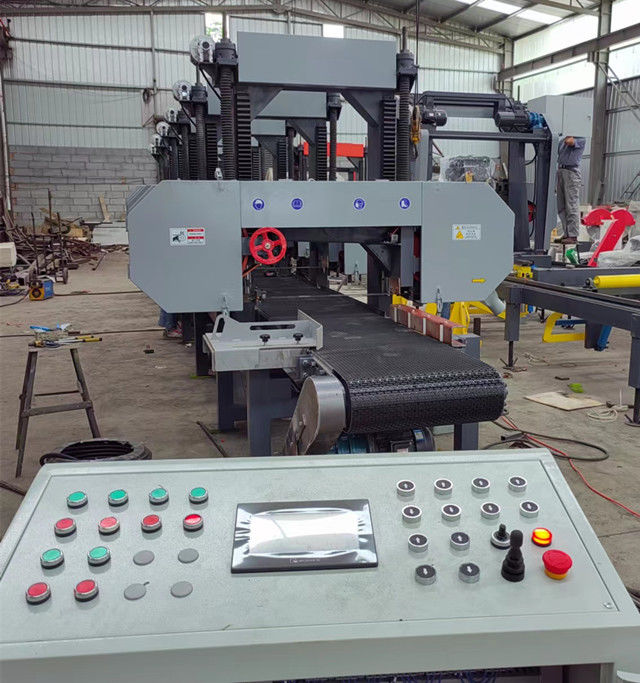

| Operation | Touching screen auto setworks for sawn thickness | ||||

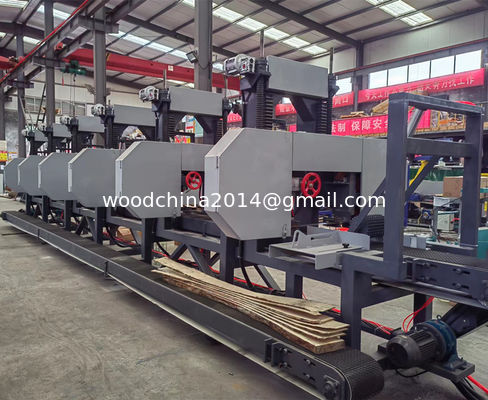

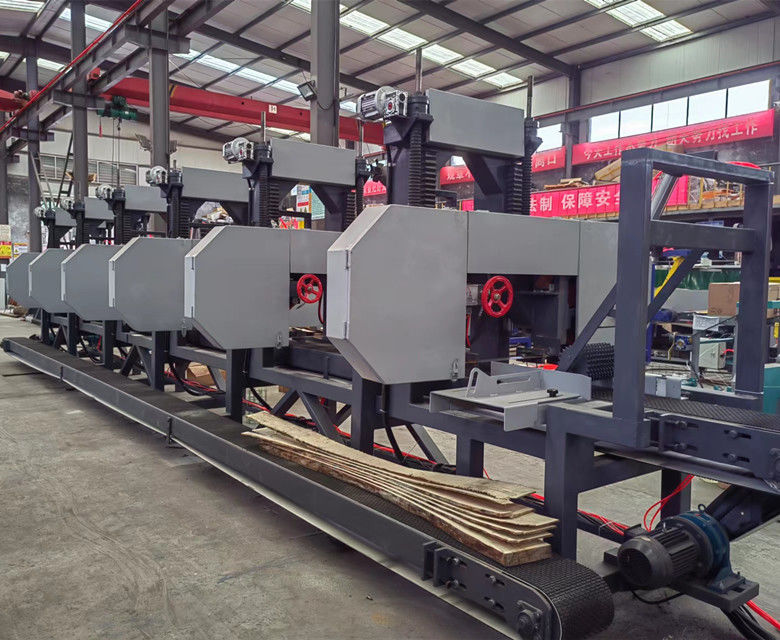

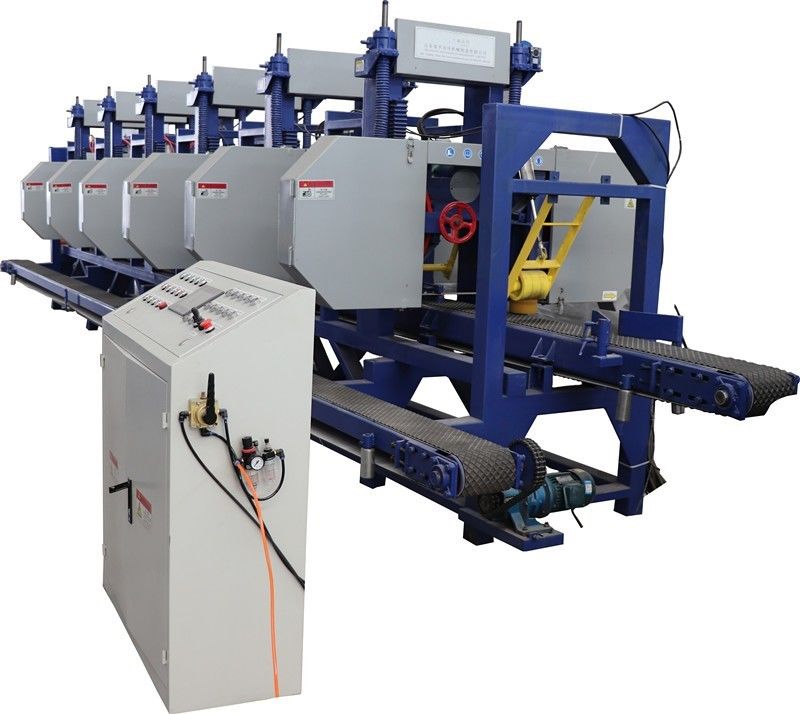

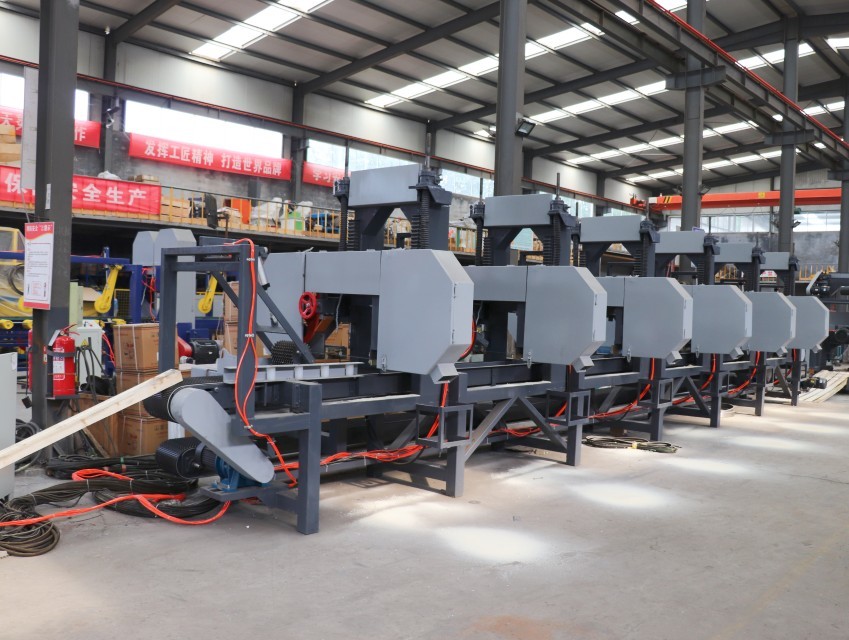

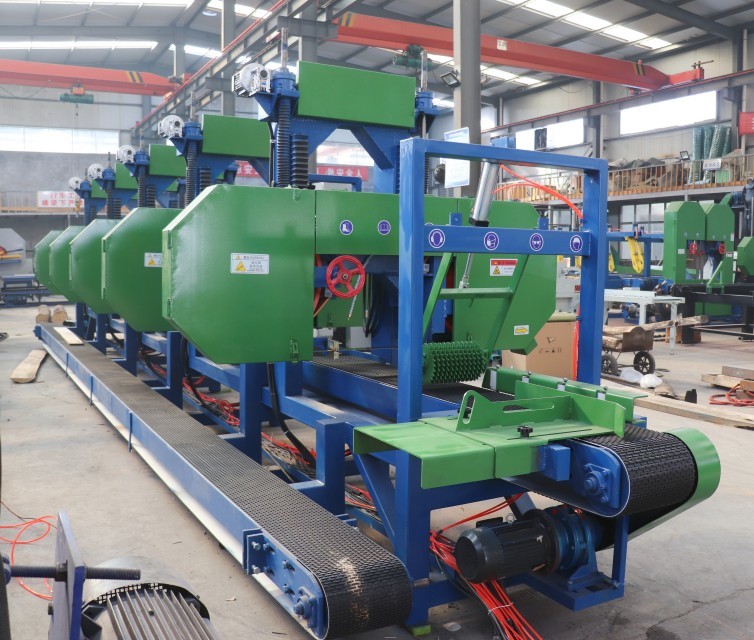

Detailed Image -6heads reaw equipment
Optional - board returning conveyor

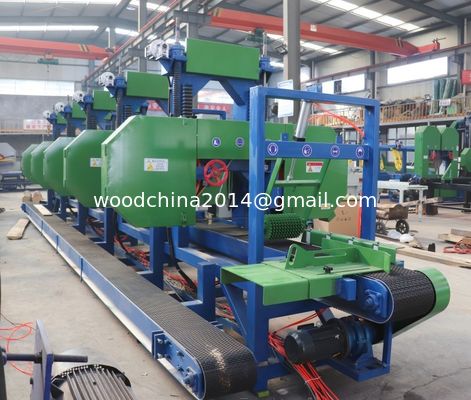

5heads reaw equipment
4heads reaw equipment
Container loading
Optional - max. sawing width upto 640mm
Related Saw Machine
TWIN BANDSAW FOR LOG EDGES CUTTING
Designed to receive logs and make two vertical cuts removing a slab from either side of the log.
· Ideal to cut pine, eucalyptus, and teak.
· High-precision cutting.
· Laterally-supported chain.
· High-production continuous feed system.
· Produces up to 4,000 m³ per month.
· Highly efficient use of wood, with the finest cut on the market.
· Motorization and control panel included.
· Automatic feed
Technical Specifications:
| Technical data | SLS350 | SLS500 |
| Maximum log diameter | 350mm | 500mm |
| Minimum log diameter | 100mm | 100mm |
| Wood length | 1000 to 3000mm | 1000 to 3000mm |
| Feed speed | 9-25m/min (inverter) | 9-25m/min (inverter) |
| Conveyor length | 7000mm | 3500mm x 2 |
| Band wheel diameter | 700mm | 760mm |
| Width of saw blade | 50-80mm | 50-100mm |
| Length of saw blade | 4850 | 5200mm |
| Thickness of saw blade | 0.9mm | 0.9mm |
| Saw motor | 2x18.5kw | 2x22kw |
| Feed motor | 5.5kw | 4kw x 2 |
| Sawn sizing control | Touching screen auto setworks | Touching screen auto setworks |
Photos
Log Cutting Multiple Blade Ripsaw
Maximum cut log diameter can reach 500mm(20'')
Specifications:
