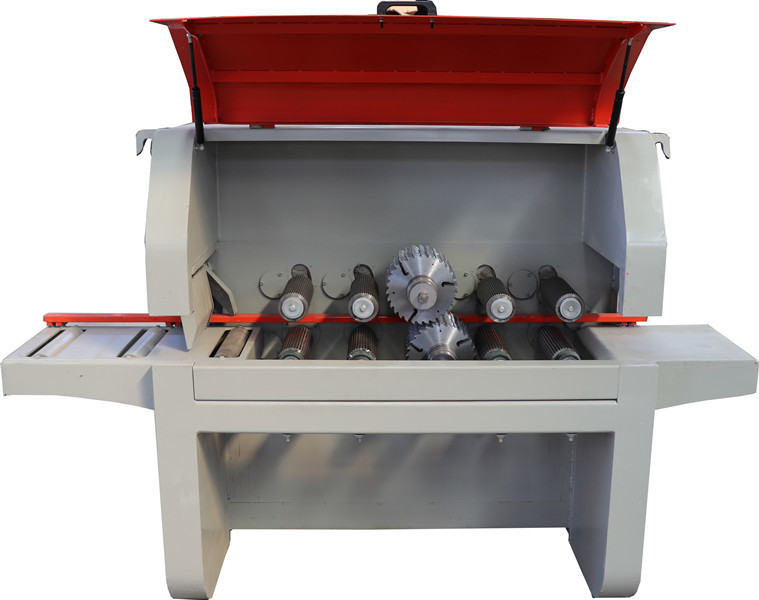

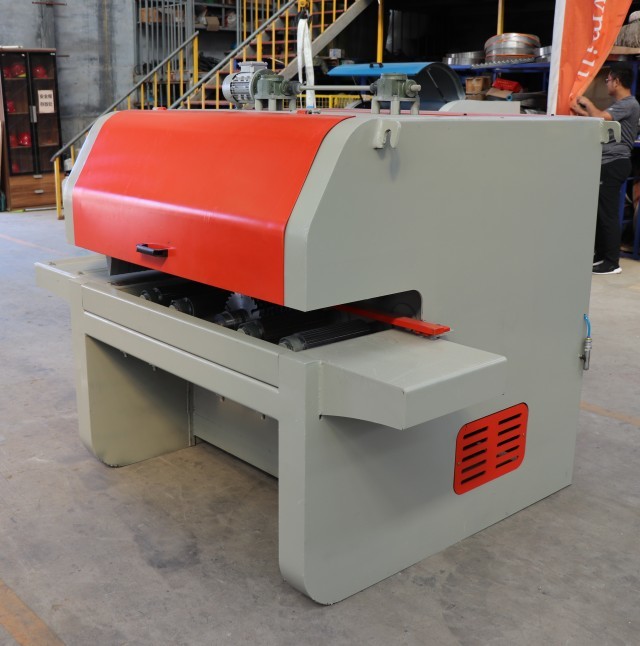

Double Shaft Multi Blade Rip Saw Circular Sawmill For Square Wood Cutting
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | SH80-300, SH120-300,SH250-400,SH290-400,SH150-400, etc |
| Minimum Order Quantity | 1 SET Multi Rip Saw |
| Price | US $3,300 - 12,000 / Set |
| Packaging Details | Iron frame packing or luo packings for multi rip saw |
| Delivery Time | within 20 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Multi Rip Saw | Power | 18.5kw X 2sets To 75kw X 2sets |
|---|---|---|---|
| Max. Sawing Width | 400mm | Max. Sawing Height | 300mm |
| Feeding | Variable Frequency Speed Adjustable Auto Feeding | Blade Cooling | Spindle Center Watering For Blade Cool |
| Blade Arrangement | Up/down | Main Shaft Diameter | 50mm To 100mm |
| Warranty | 12 Months | ||
| High Light | Double Shaft Multi Rip Saw Machine,Multi Blade Rip Saw Circular Sawmill,Square Wood Cutting Circular Sawmill |
||
Product Description
Multiple Blade Circular Sawmill Wood Saw Machine for Panel Cutting
Double Spindle Panel Cutting Multiple Blades Rip Saw
1.Used for Lumber/Panels/Planks Cutting
2.Max. cutting depth/thciness is upto 160mm
3.Max. cutting width is upto 400mm
4.Big motor power, fit for hardwood cutting
5.Blades is placed on up/down abrod/spindle .
6.We present one set discs on your cutting thickness
Specifications:
Multi Blades Rip Saw- For wood panels/pkank cutting
Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type
Related Ripsaw Machine
Multi Blades Rip Saw for wood boards cutting
Introduction:
- with Infrared positioning
- for board edges cutting
- sawing planks into small pcs
- easy usage, no installation
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 230mm | 230mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |
Photos:
Single Spindle Multi Rip Saw
- Technical data
| Model | BC150 | BC200 | BC300 |
| Max Sawing Wood Width | 150mm | 200mm | 300mm |
| Max Sawing Wood Thickness | 2-65mm | 2-65mm | 2-65mm |
| Min Sawing Wood Length | 200mm | 200mm | 200mm |
| Saw Blade Diameter | 250mm | 250mm | 250mm |
| Main Motor Power | 11kw | 15kw | 18.5kw |
| Pneumatic Press Roller,Variable Frequency Speed Adjustable Feeding | |||
| Model | BC380 | BC400 | BC600 |
| Max Sawing Wood Thickness | 15-50mm | 8-30mm | 15-50mm |
| Max Sawing Wood Width | 380mm | 400mm | 600mm |
| Min Sawing Wood Length | 450mm | 450mm | 450mm |
| Saw Blade Diameter | 230*50mm | 150*35mm | 230*60mm |
| Motor Power | 7.5KW | 4KW | 18.5KW |
