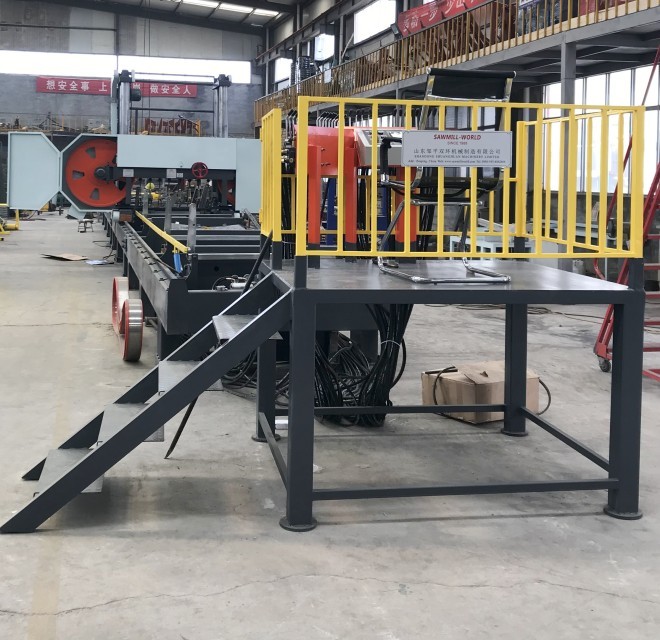

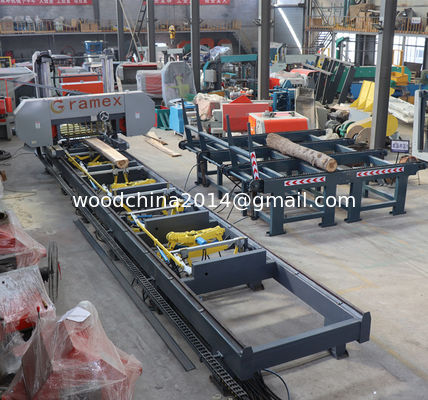

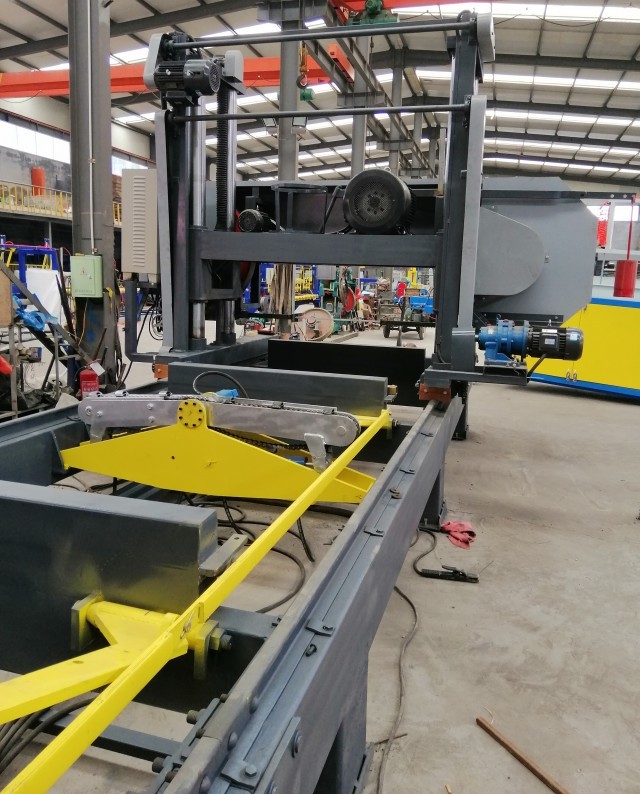

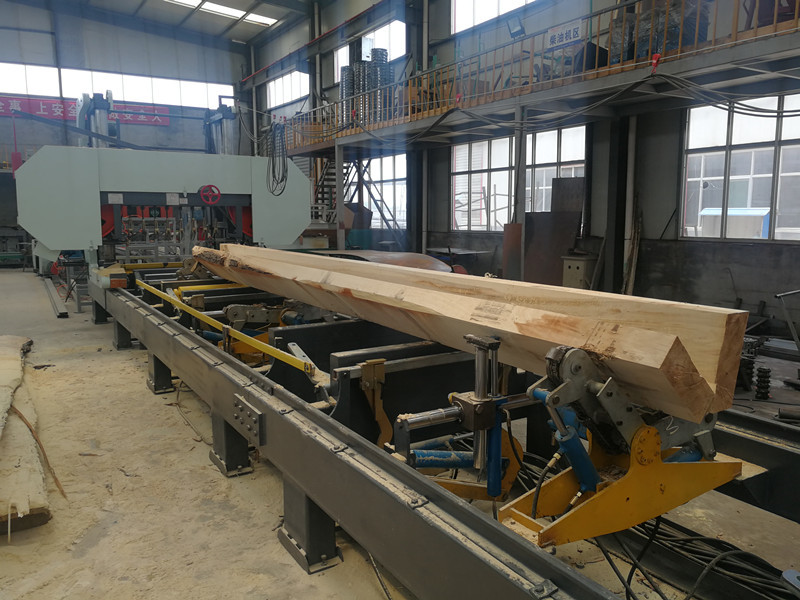

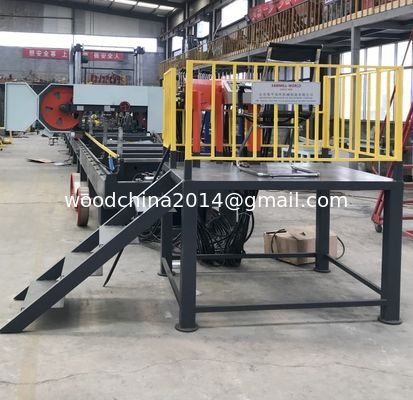

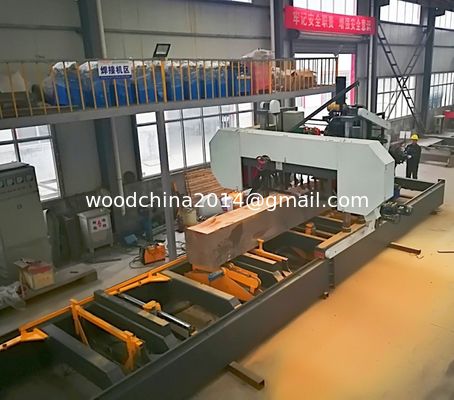

MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw

  • MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw
  • MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw
  • MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw
  • MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw
  • MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw
  • MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number MJH1200E,MJH1500E
Minimum Order Quantity 1 SET
Price US $41,000 - 51,000 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Heavy Duty Hydraulic Automatic Band Sawmill Max. Sawing Log Diameter 1500mm
Max. Sawing Log Length 4500mm Or Extend Sawmill Track Saw Wheel Diameter 1070mm
Band Saw Blade Width 125mm, 150mm Saw Head Up/down Electric 2.2kw
Band Saw Blade Tension Electric Operation Touching Screen Auto Setworks
Main Motor Power 37kw, 45kw Cutting Speed 10-15meters/minute
High Light

Automatic Wood Cutting Sawmill

,

Fully Automatic Hydraulic Horizontal Band Saw

,

Electric Wood Cutting Sawmill
Leave a Message
Product Description

Heavy Duty Hydraulic Horizontal Band Sawing Machine For Large Wood

Heavy Duty Hydraulic Automatic Wood Cutting Horizontal Band Sawmill

Combined with Hydraulic automation technology, the heavy duty hydraulic horizontal band sawmill realizes all digital intelligent control . Chinese and English operating systems, automatic rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate .

Key features:

  • Fast return speed & servo controlled blade positioning,
  • Fast automatic control preventing operator delays,
  • High speed hydraulic log manoeuvring functions,
  • Precision made machine with top quality components.

Technical Data:


Model
MJH1200E
MJH1500E

Max Sawing Wood Diameter
1200mm
1500mm

Saw Wheel Diameter
1000mm
1070mm

Max Sawing Wood Thickness
400mm
400mm

Standard Sawing Wood Length
4500mm
4500mm

Electric Motor Power
37kw
45kw

Up/Down Electric Motor
2.2kw
2.2kw

Forward/Backward Electric Motor
3kw
3kw

Band Saw Blade Width
125-150mm
125-150mm

Band Saw Blade Tension
Electric

Machine Length
7000mm
7000mm

Weight
7000kg
8500kg

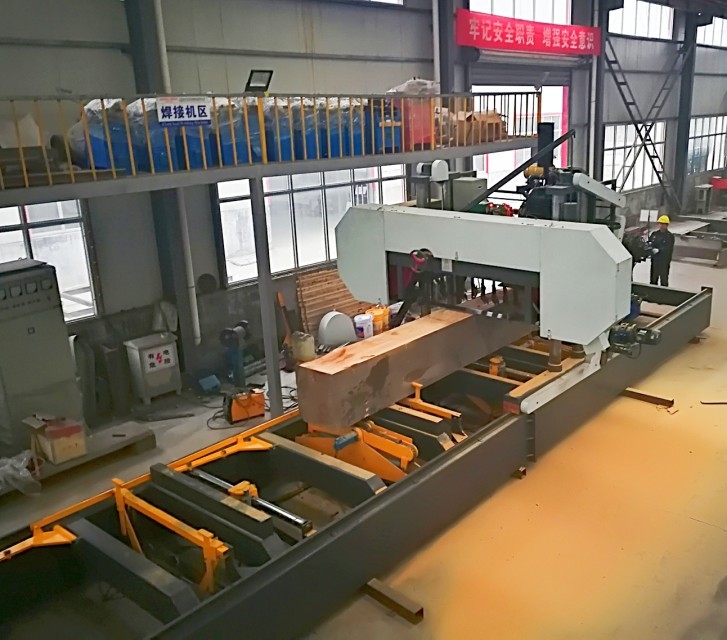

MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw 0

MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw 1MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw 2

MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw 3

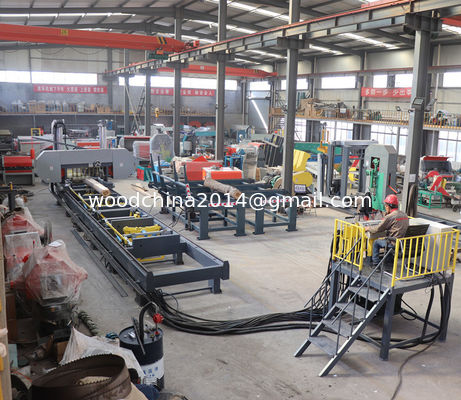

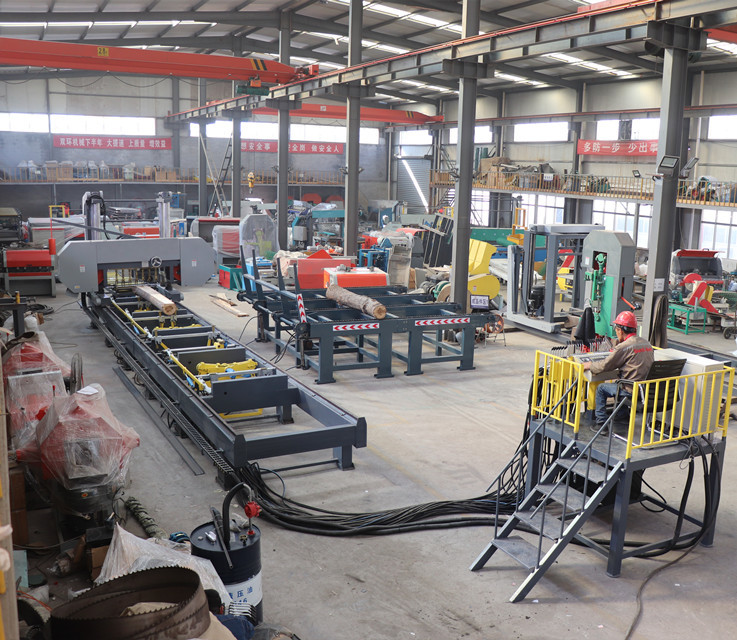

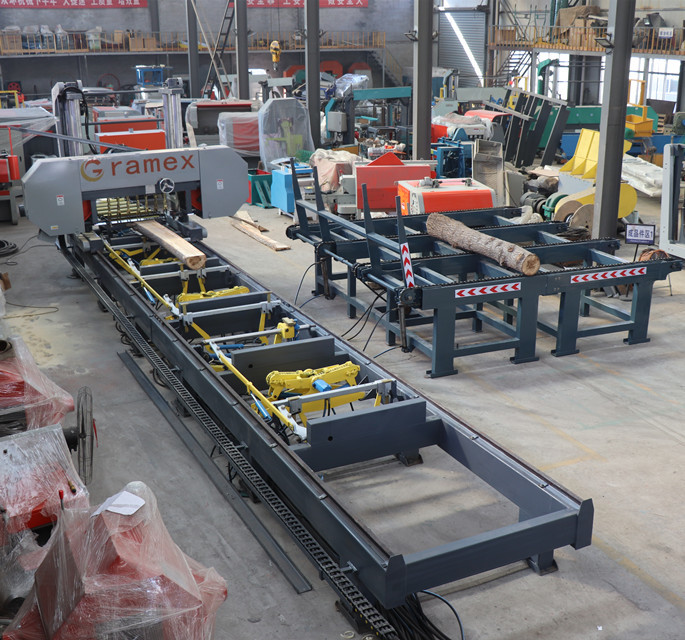

Hydraulic Large Sawmill Automatic Production Line - we design it as customer needs

MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw 4

Optional - Log Loading Rack

MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw 5

Optional - Board Roller Conveyor

MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw 6

Related Saw Machines:

Heavy Duty Double Shaft Multi Blades Rip Saw for planks/lumber

Specifications:

Model SH100-400 SH120-400 SH160-400 SH200-400 SH250-400 SH270-400 SH290-400
Sawing width 350-400mm 350-400mm 350-400mm 350-400mm 350-400mm 350-400mm 350-400mm
Sawing thickness 40-100mm 50-120mm 70-160mm 90-200mm 110-250mm 130-270mm 150-290mm
Motor 30kw*2 37kw*2 37/45kw 37/45kw 45kw*2 45/55kw 55KW*2
Saw Blade Diameter 180MM 230mm 255mm 230mm 280mm 280mm 380mm
Spindle Diameter 70mm 70mm 70mm 80mm 80mm 80mm 100mm
Weight 2330kg 2450kg 2480kg 2550kg 2580kg 2620kg 2700kg
MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw 7
MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw 8

Multi Blades Rip Saw

Introduction:

  • with Infrared positioning
  • for board edges cutting
  • sawing planks into small pcs
  • easy usage, no installation

Technical data :

Model HW500 HW800
Sawing thickness 15-50mm 15-50mm
Sawing width 500mm 800mm
Circular blade diameter 230mm 230mm
Electric motor 15KW 18.5KW
Blade qty 1P-6P 1P-10P
Rotation speed 3500/min 3500/min































Photos:

MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw 9MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw 10
