Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine

  • Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine
  • Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine
  • Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine
  • Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine
  • Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine
  • Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001,CE
Model Number PB200, SLDJ-1300-3
Minimum Order Quantity 1 SET Wooden pallet block nailing machine
Price US $7,800 - 12,400 / Set
Packaging Details export packing or film wrapped container loading
Delivery Time within 20 days
Payment Terms T/T, Western Union
Supply Ability 1000sets/year ofWooden pallet block nailing machine

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wooden Pallet Block Nailing Machine Condition New
Power(w) 7.5KW，2.2KW*2，1KW Voltage 380V,3 Phase Or As Customer Needs
Capacity 5-6m3/day Raw Material Length 1000-3000mm
Board Length 40-200mm Cutting Height 40-120mm
Cutting Width 40-100mm Nail Gun 1-3 Pcs (adjustable)
Warranty 1 Year After-sales Service Provided Commissioning And Training, Video Technical Support
High Light

Integrated Wooden Pallet Cutting Machine

,

Wooden Pallet Foot Pier Production Line

,

Wooden Pallet Nailing Integrated Machine
Leave a Message
Product Description

Wooden pallet block nailing machine

  • Technical data
Model PB200
Working mode Automatic feeding ,automatic nailing and cutting
Operating mode Touch screen control
Operational mode Pneumatic operation
Motor power 7.5KW,2.2KW*2,1KW
Raw material length 1000-3000mm
Block Length 40-200mm
Cutting height 40-120mm
Cutting width 40-100mm
Cutting blade 350-400mm
Number of planer 2
Nail quantity 1-3 pcs (adjustable)
Working Efficiency 5-6m3/day
Voltage 380V/3 Phase
Weight 1200Kg
Dimension 5400*1400*1600mm
  • Detailed Images

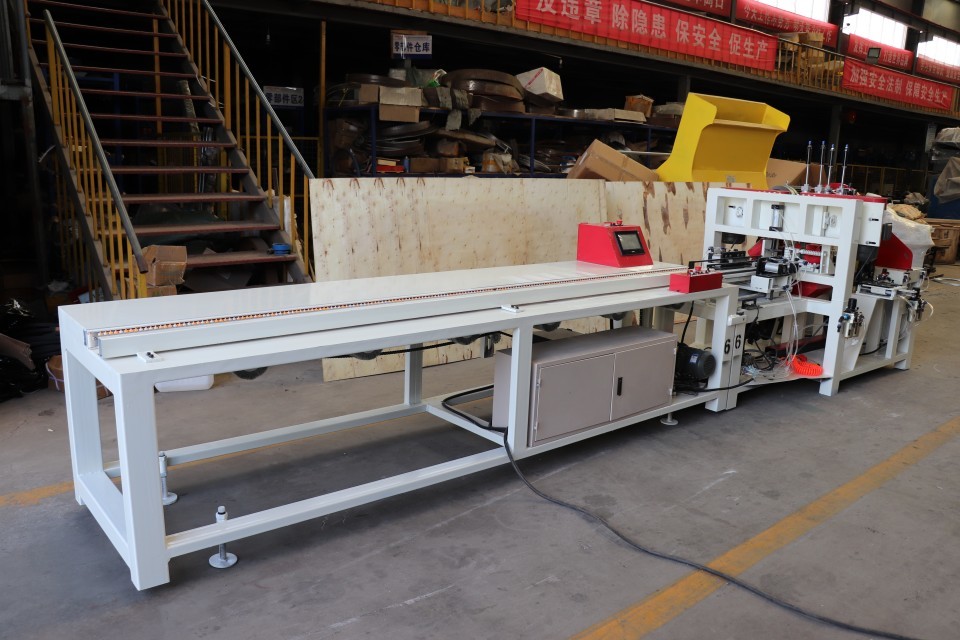

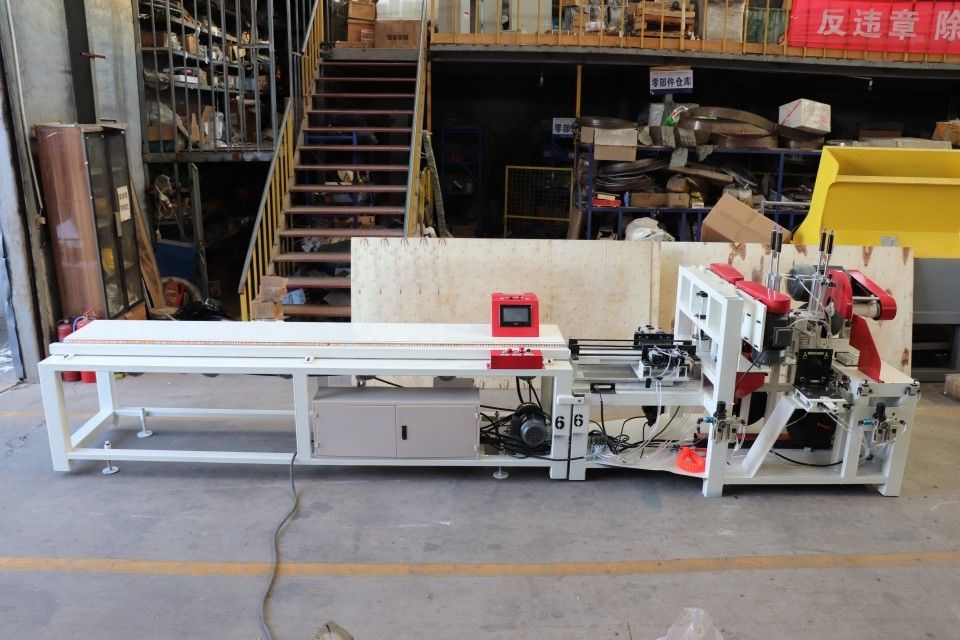

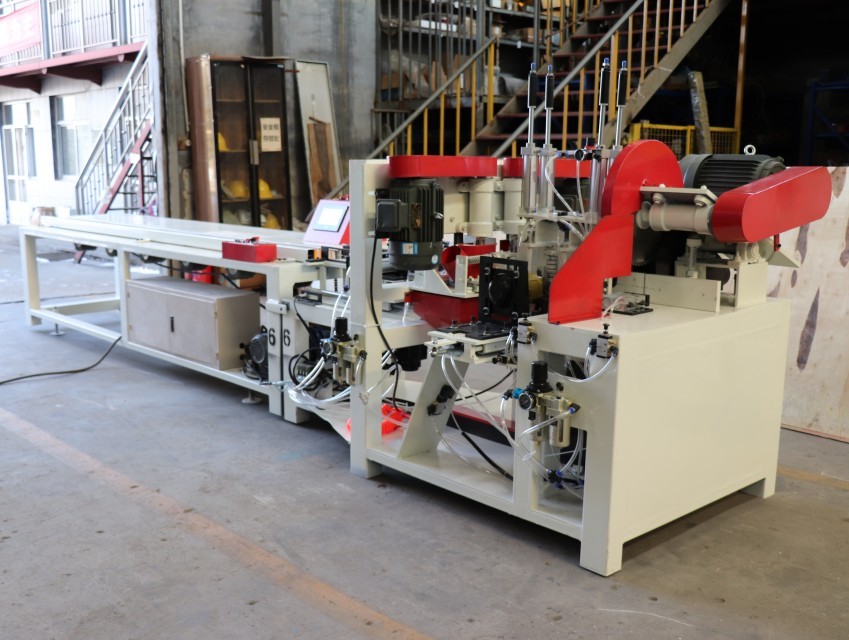

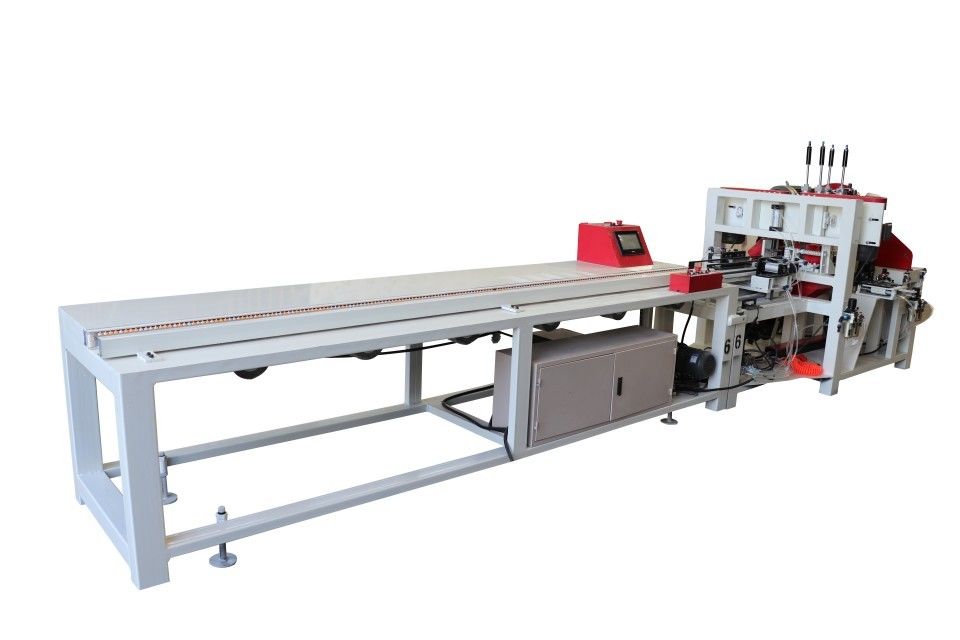

Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine 0Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine 1



Related Hot Selling Machines

European wood pallet pier automatic connecting nailing machine

  • Technical data
Model SLDJ-1300-3
Block width 60-150mm
Board Length 600-1300mm
Nail gun Stanley BOSTITCH Stitch gun70mm*3
Air pressure 0.8MPA
Nail gun speed 4-8 s/time
Motor power 1.1KW Servomotor
Capacity 600P/H
Voltage 220V(Customized)
Operating mode Touch screen
Production mode Manual discharge/automatic pin pier
Machine size 2500*1800*2100mm
  • Images

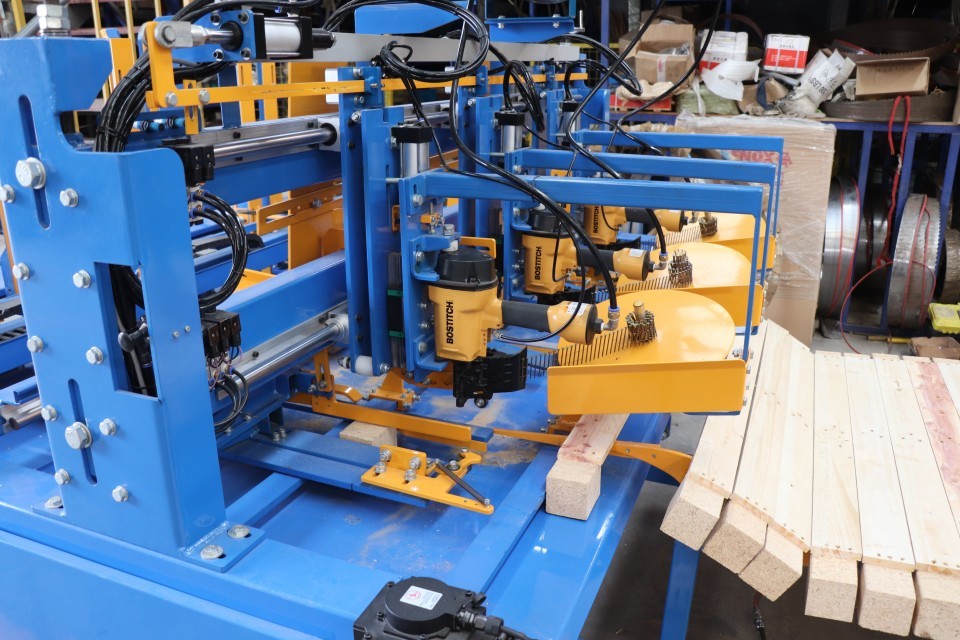

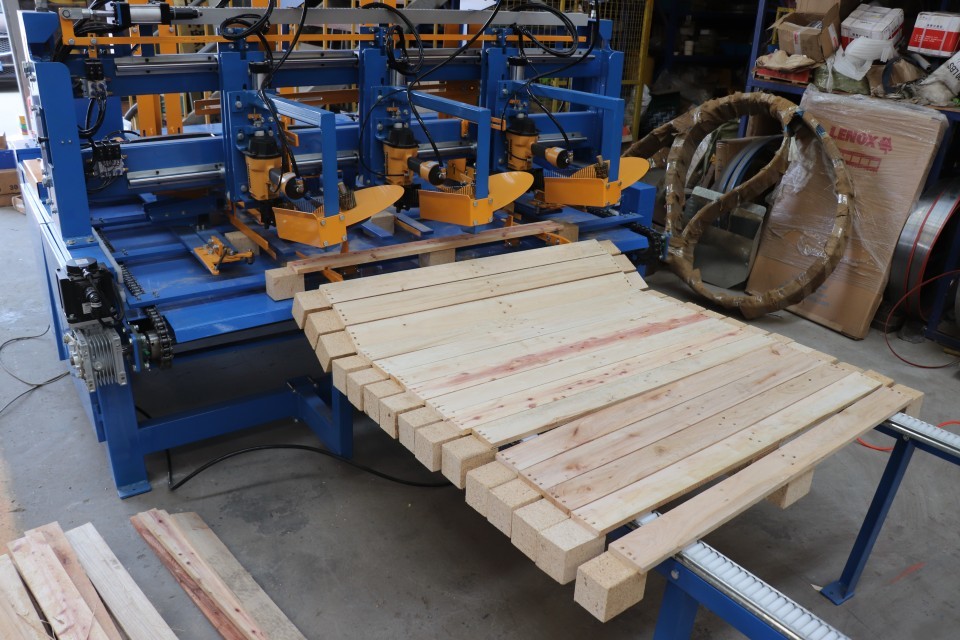

Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine 2Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine 3

Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine 4

  • Euro Pallet Production Line

Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine 5

Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine 6



  • Wood block multi-blade saw

Model BM-1250
Cutting Length 1250mm
Cutting Thickness 100mm
Cutting Width 200mm
Saw Diameter 355mm
Motor 30kw
Weight 1600kg



Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine 7Wooden Pallet Foot Pier Making Machine Foot Pier Production, Nailing And Cutting Integrated Machine 8
