Factory Price Automatic Wood Pallet Block Saw Cutting Machine / Wood Block Cutter
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001,CE |
| Model Number | PB200, SLDJ-1300-3 |
| Minimum Order Quantity | 1 SET Wooden pallet block nailing machine |
| Price | US $7,800 - 12,400 / Set |
| Packaging Details | export packing or film wrapped container loading |
| Delivery Time | within 20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000sets/year ofWooden pallet block nailing machine |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wooden Pallet Block Nailing Machine | Condition | New |
|---|---|---|---|
| Power(w) | 7.5KW，2.2KW*2，1KW | Voltage | 380V,3 Phase Or As Customer Needs |
| Capacity | 5-6m3/day | Raw Material Length | 1000-3000mm |
| Board Length | 40-200mm | Cutting Height | 40-120mm |
| Cutting Width | 40-100mm | Nail Gun | 1-3 Pcs (adjustable) |
| Warranty | 1 Year | After-sales Service Provided | Commissioning And Training, Video Technical Support |
| High Light | Wood Pallet Block Saw Cutting Machine,Automatic Wooden Pallet Block Nailing Machine,Wood Pallet Block Cutter |
||
Product Description
Wooden pallet block nailing machine
- Technical data
| Model | PB200 |
| Working mode | Automatic feeding ,automatic nailing and cutting |
| Operating mode | Touch screen control |
| Operational mode | Pneumatic operation |
| Motor power | 7.5KW,2.2KW*2,1KW |
| Raw material length | 1000-3000mm |
| Block Length | 40-200mm |
| Cutting height | 40-120mm |
| Cutting width | 40-100mm |
| Cutting blade | 350-400mm |
| Number of planer | 2 |
| Nail quantity | 1-3 pcs (adjustable) |
| Working Efficiency | 5-6m3/day |
| Voltage | 380V/3 Phase |
| Weight | 1200Kg |
| Dimension | 5400*1400*1600mm |

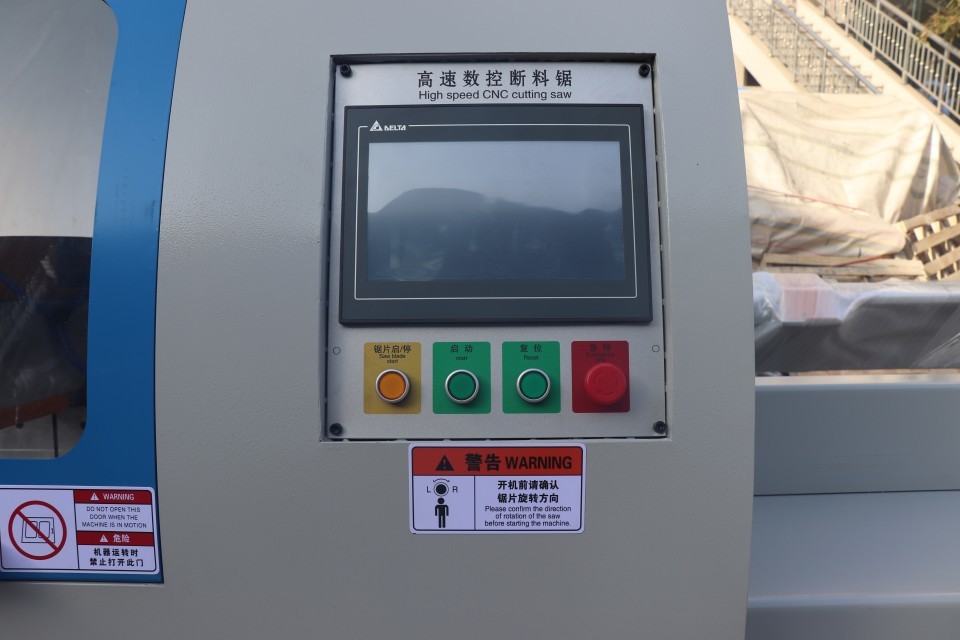

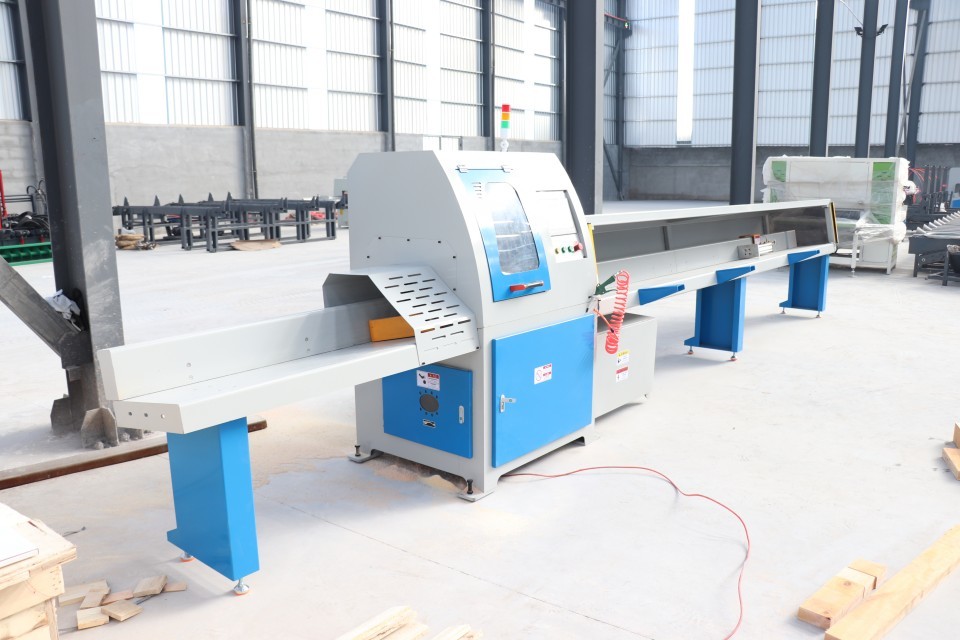

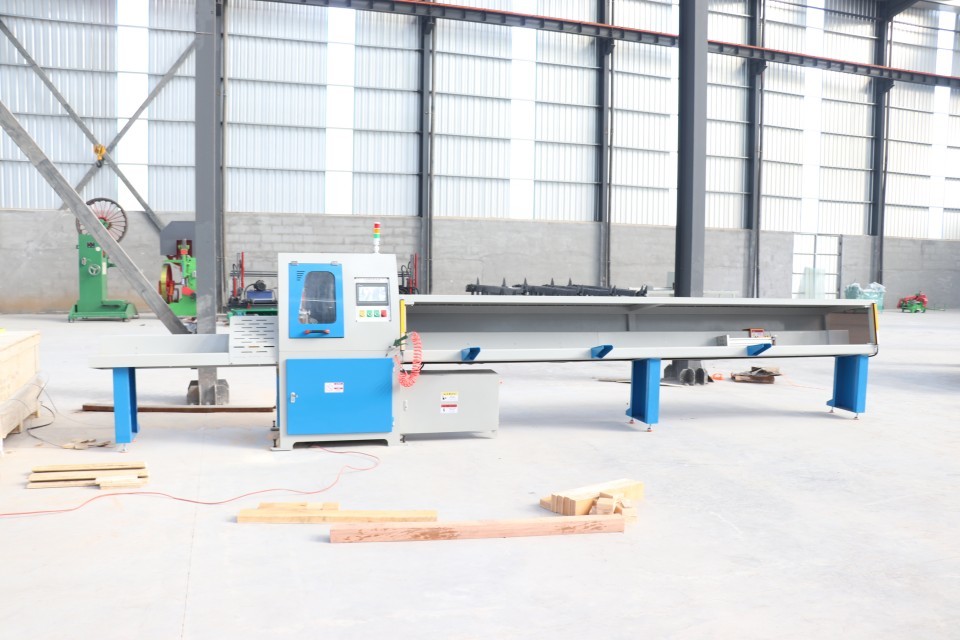

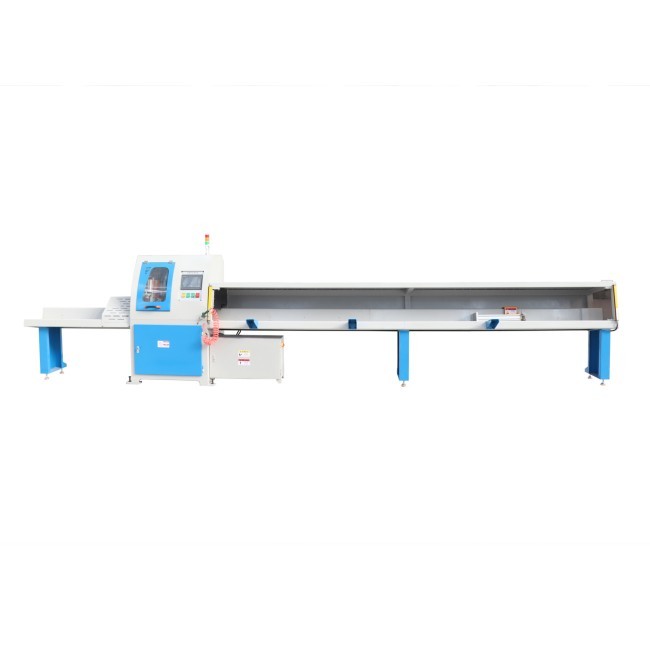

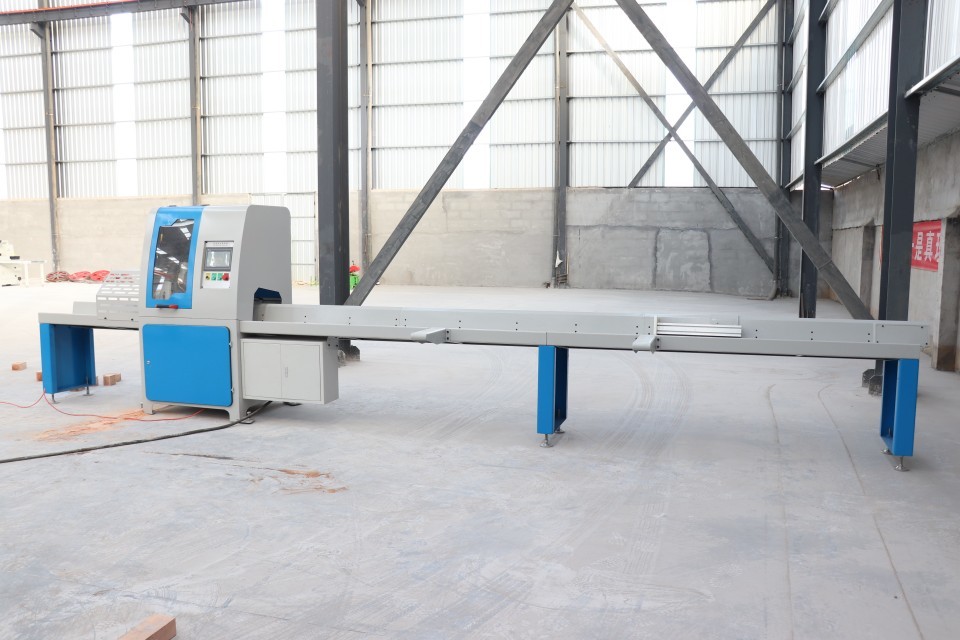

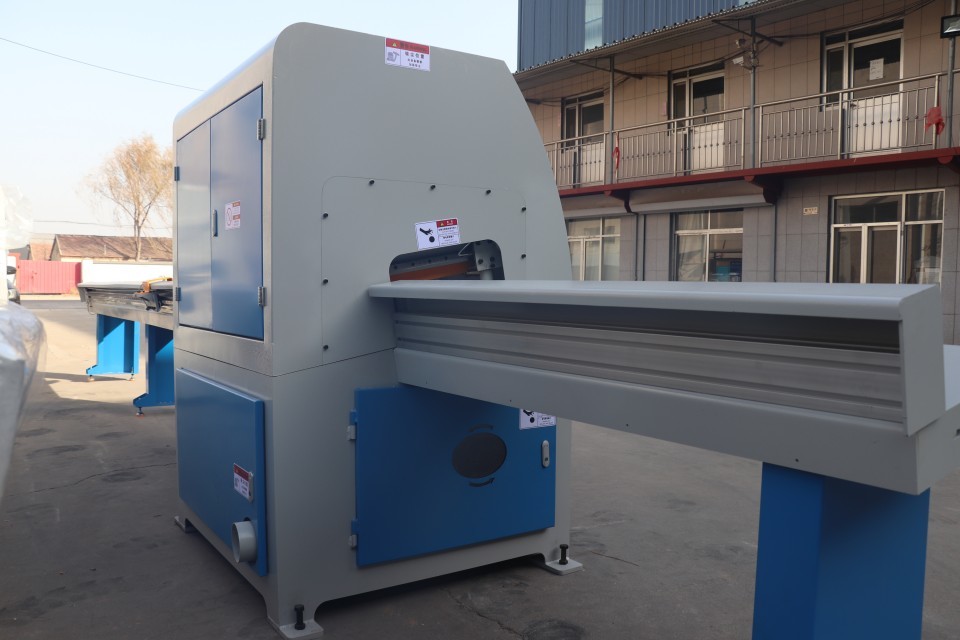

- Detailed Images
Related Hot Selling Machines
European wood pallet pier automatic connecting nailing machine
- Technical data
| Model | SLDJ-1300-3 |
| Block width | 60-150mm |
| Board Length | 600-1300mm |
| Nail gun | Stanley BOSTITCH Stitch gun70mm*3 |
| Air pressure | 0.8MPA |
| Nail gun speed | 4-8 s/time |
| Motor power | 1.1KW Servomotor |
| Capacity | 600P/H |
| Voltage | 220V(Customized) |
| Operating mode | Touch screen |
| Production mode | Manual discharge/automatic pin pier |
| Machine size | 2500*1800*2100mm |
- Images
- Euro Pallet Production Line
-
Wood block multi-blade saw
| Model | BM-1250 |
| Cutting Length | 1250mm |
| Cutting Thickness | 100mm |
| Cutting Width | 200mm |
| Saw Diameter | 355mm |
| Motor | 30kw |
| Weight | 1600kg |
-
Automatic European pallet nailing machine
| Model | AEPN-1300 |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 800-1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 2kw Servo motor |
| Air pressure | 0.8MPA |
| Nail gun speed | 7 times /second. |
| Production efficiency | 1-2pcs /min |
| Number of nail guns | 6P CN70,CN58 |
| Weight | 2000kg |
