Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SHYM200,SHYM250, SHYM300, SHYM350,SHYM400,SHYM450
Minimum Order Quantity 1 SET
Price USD3000-USD15000/set
Packaging Details wooden pallet or iron frame export pallet
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 100sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Multi Rip Saw Usage Woodworking
Type Rip Saw Feeding Type Auto Feeding
Blade Arrange Up/down Voltage 380V/3phase/50HZ Or As Cusmer Needs
Power 22KW*2-75KW*2 Max. Sawing Log Diameter 80MM-500MM
Warranty 12 Months After-sales Service Provided Engineers Available To Service Machine Overseas
Leave a Message
Product Description

Multiple Blade Circular Sawmill Multiple Rip Saw Mill for Round Logs or Lumber Cutting

Log Cutting Multiple Blade Ripsaw

Maximum cut log diameter can reach 500mm(20'')



Specifications:

Model
SHYM150
SHYM200
SHYM240
SHYM260
SHYM285
SHYM330
Sawing Log Diameter
20-150mm
60-200mm
80-240mm
100-260mm
130-285mm
150-330mm
MinSawing Log Length
600mm
600mm
600mm
600mm
600mm
600mm
Main Motor power
18.5KW*2
22KW*2
30KW*2
30/37KW
30/37KW
37KW*2
Spindle Diameter
50mm
50mm
60mm
60mm
60mm
70mm
Saw Blade Diameter
255mm
305mm
355mm
380mm
405mm



450mm
Weight
1570KG
1720KG
2200KG
2300KG
2350KG
2550KG
Model
SHYM340
SHYM360
SHYM400
SHYM430
SHYM480
Sawing Log Diameter
150-340mm
170-360mm
180-400mm
200-430mm
250-480mm
Min Sawing Log Length
600mm
600mm
600mm
600mm
600mm
Main Motor power
45KW/55KW
55KW*2
55KW*2
75KW*2
75KW*2
Spindle Diameter
80mm
80mm
80mm
100mm
100mm
Saw Blade Diameter
480mm
500mm
550mm
600mm
650mm
Weight
2650KG
2680KG
3500KG
3880KG
4100KG

Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 0



Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 1

Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 2

Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 3



Double Spindle Panel Cutting Multiple Blade Rip Saw

Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 4

Double Shaft Multi Blades Rip Saw for planks/lumber

Specifications:

Model SH60-300 SH80-300 SH100-300 SH120-300 SH150-300
Max. Sawing width 250-300mm 250-300mm 250-300mm 250-300mm 250-300mm
Max. Sawing thickness 60mm 30-80mm 40-100mm 50-120mm 60-150mm
Motor 18.5KW/22KW 22KW*2 22KW*2 22KW*2 30KW*2
Blade Diameter 150MM 180mm 210mm 230mm 255mm
Spindle Diameter 50mm 50mm 50mm 50mm 50mm
Weight 1190kg 1260kg 1420kg 1560kg 1620kg



Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 5Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 6

Double Shaft Multi Blades Rip Saw for planks/lumber

Specifications:

Model SH100-400 SH120-400 SH160-400 SH200-400 SH250-400 SH270-400 SH290-400
Sawing width 350-400mm 350-400mm 350-400mm 350-400mm 350-400mm 350-400mm 350-400mm
Sawing thickness 40-100mm 50-120mm 70-160mm 90-200mm 110-250mm 130-270mm 150-290mm
Motor 30kw*2 37kw*2 37/45kw 37/45kw 45kw*2 45/55kw 55KW*2
Saw Blade Diameter 180MM 230mm 255mm 230mm 280mm 280mm 380mm
Spindle Diameter 70mm 70mm 70mm 80mm 80mm 80mm 100mm
Weight 2330kg 2450kg 2480kg 2550kg 2580kg 2620kg 2700kg
Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 7
Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 8
Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 9
Water Cooling  System



Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 10

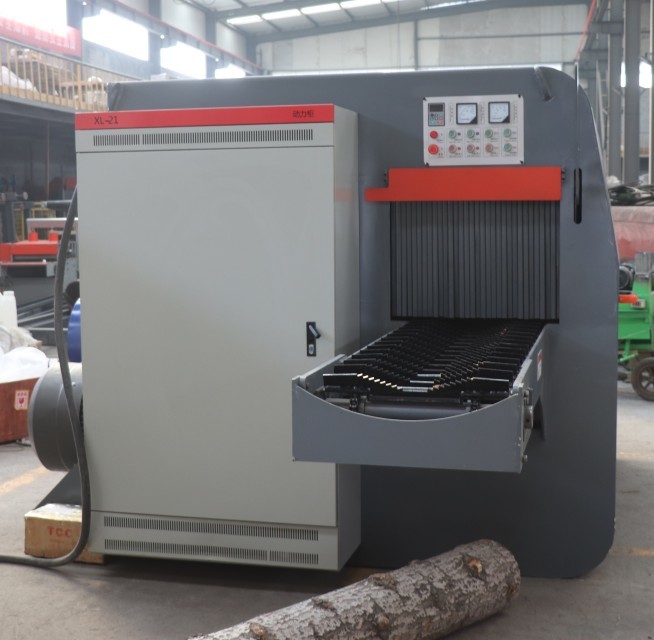

Control Panel

Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 11

Packing

Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 12Round Log Timber Multiple Multi Blade Rip Saw wWood Cutting Saw Machine 13
