Horizontal Band Resaw Wood Working Machine Wood Saw Mill /resaw band saws for sale

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SHJM800, SHJM400, SHJM650, SHJM1000
Minimum Order Quantity 1 SET
Price US $5,000-9,550 / Set
Packaging Details Iron frame packing or container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 3500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Precision Band Sawmill Type Band Saw
Power(W) 22KW/3phase Max. Sawing Width 800mm
Height From Blade To Bed 110mm Saw Blade Width 27mm To 60mm
Feeding Automatic Warranty 1 Year
Feeding Speed 0.1 To 30meter/min After-sales Service Provided Video Technical Support
Leave a Message
Product Description

Precision Wood Cutting Horizontal Resaw Band Saws For Sale



1. No need installation, easy working with high efficienty, high precision.

2. Used to saw wood board/lumber into thin lumber/timber.

3. Re-saw working.

  • Technical data
Model SHJM-400 SHJM-650 SHJM-800 SHJM-1000
Saw wheel diameter 600MM 700MM 700MM 700MM
Max. processing width 400MM 650MM 800MM 1000MM
Max. processing height 110MM 110MM 110MM 110MM
Sawn min.thickness 2MM 2MM 2MM 2MM
Feeding speed 0.1-30m/min 0.1-30m/min 0.1-30m/min 0.1-30m/min
Main motor power 15KW 18.5KW 22KW 30KW
Feeding motor power 0.75KW 0.75KW 1.5KW 1.5KW
Sawn sizes setting CNC digital CNC digital CNC digital CNC digital
Machine weight 1850kgs 2550kgs 2750kgs 3150kgs

Detailed Image

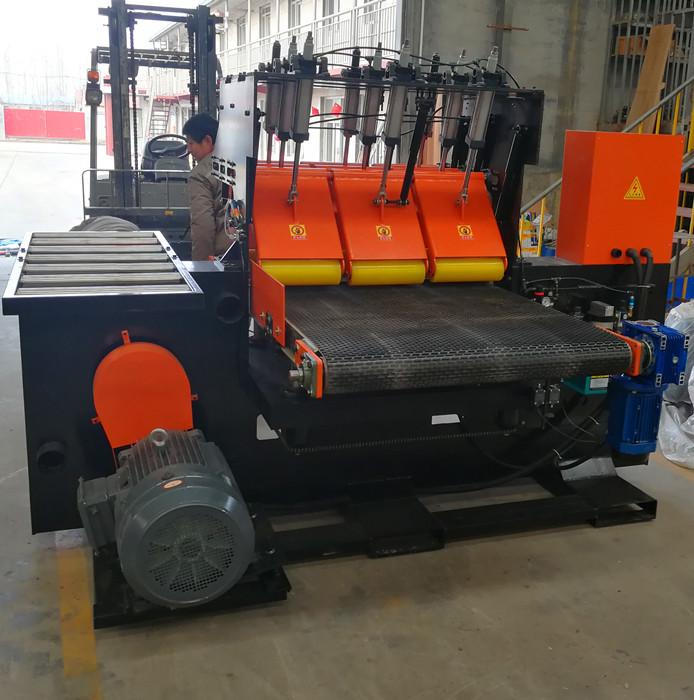

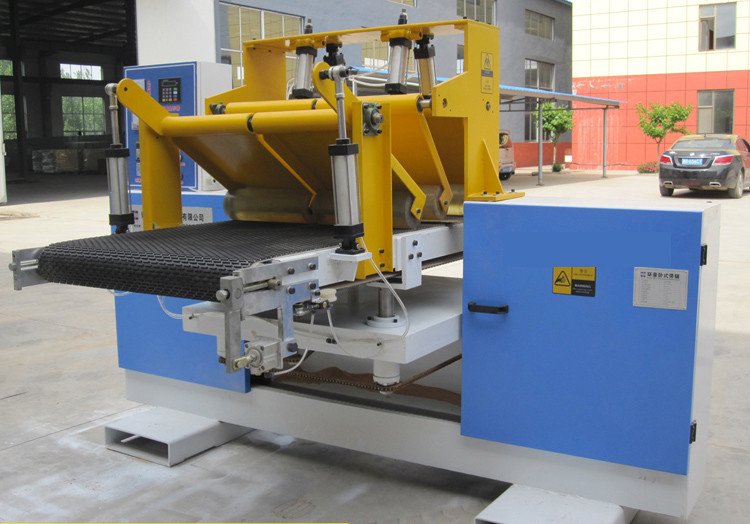

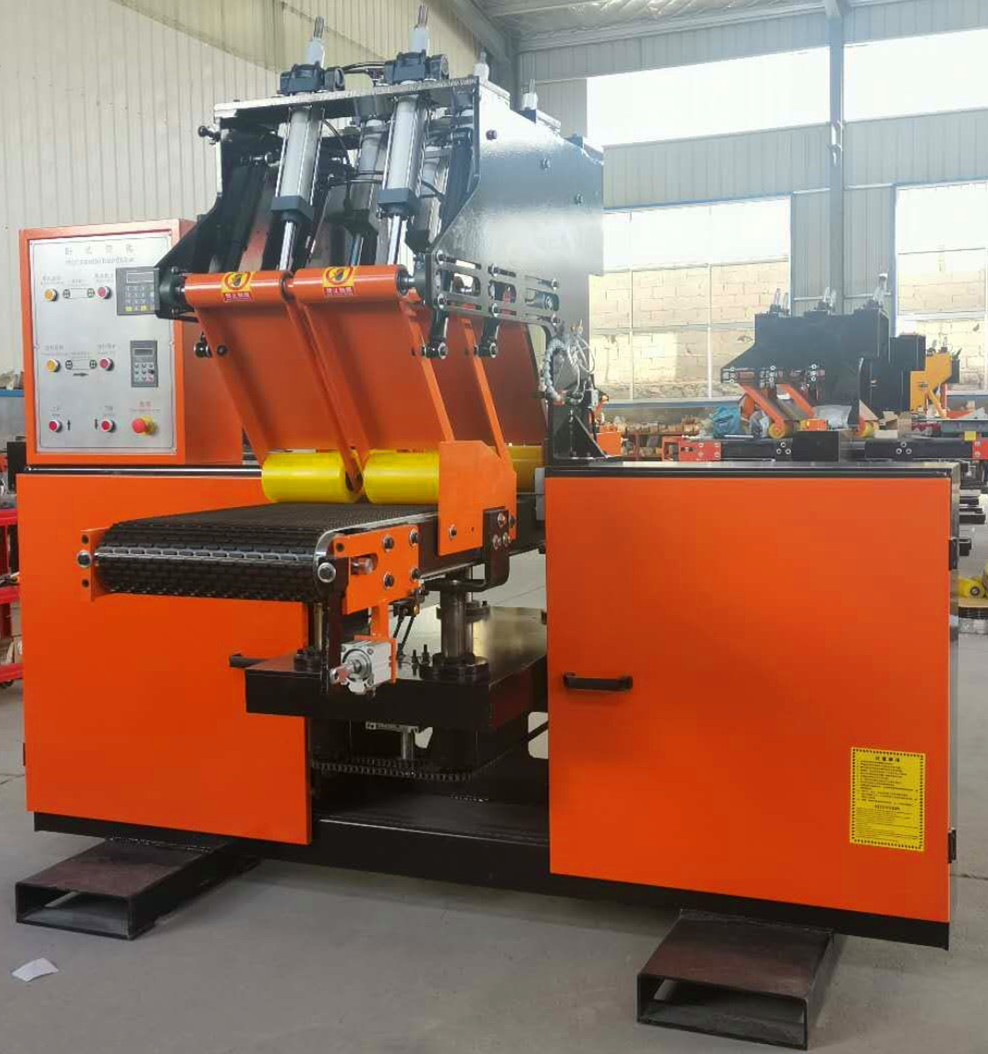

Horizontal Band Resaw Wood Working Machine Wood Saw Mill /resaw band saws for sale 0Horizontal Band Resaw Wood Working Machine Wood Saw Mill /resaw band saws for sale 1Horizontal Band Resaw Wood Working Machine Wood Saw Mill /resaw band saws for sale 2

Related Saw Machine

Portable Horizontal Band Sawmill (Electric Model )

  • Portable horizontal band saw which is easy to install and operate.
  • Finished with Carbide band saw blade for hard wood cutting .
  • The sawing kerf is small, reduce the waste to high output.
  • The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .

Technical data:

Specifications:



Model

MJ700E MJ1000E MJ1300E MJ1600E



Max. Sawing Wood Diameter

700MM 1000MM 1300MM 1600MM



Saw Wheel Diameter

600MM 700MM 700MM 700MM



Sawn Thickness

2-250MM 2-300MM 2-300MM 2-300MM



Sawing Wood Length MM

1300-4500 1300-4500 1300-4500 1300-4500



Main Motor Power

15KW 18.5KW 22KW 30KW



Lifting Motor Power

1.5KW 1.5KW 1.5KW 1.5KW



Total Weight (KG)

1100 1100 1300 1500



Horizontal Band Resaw Wood Working Machine Wood Saw Mill /resaw band saws for sale 3Horizontal Band Resaw Wood Working Machine Wood Saw Mill /resaw band saws for sale 4

CNC Horizontal Band Sawmill

Horizontal Band Resaw Wood Working Machine Wood Saw Mill /resaw band saws for sale 5
