Home ProductsEdgers & Slab Saw

Edge Trimming Cutting Saw Plywood Edge Saw Circular Saw multi blade ripsaw For Wood

Edge Trimming Cutting Saw Plywood Edge Saw Circular Saw multi blade ripsaw For Wood

    • Edge Trimming Cutting Saw Plywood Edge Saw Circular Saw multi blade ripsaw For Wood
    • Edge Trimming Cutting Saw Plywood Edge Saw Circular Saw multi blade ripsaw For Wood
    • Edge Trimming Cutting Saw Plywood Edge Saw Circular Saw multi blade ripsaw For Wood
    • Edge Trimming Cutting Saw Plywood Edge Saw Circular Saw multi blade ripsaw For Wood
    • Edge Trimming Cutting Saw Plywood Edge Saw Circular Saw multi blade ripsaw For Wood
    • Edge Trimming Cutting Saw Plywood Edge Saw Circular Saw multi blade ripsaw For Wood
  • Edge Trimming Cutting Saw Plywood Edge Saw Circular Saw multi blade ripsaw For Wood

    Product Details:

    Place of Origin: shandong province
    Brand Name: SH
    Certification: ISO
    Model Number: EG600A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $5,000 - 9,000 / Set
    Packaging Details: export iron frame packing
    Delivery Time: within 15 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Type: Circular Saw Max. Sawing Height: 70mm
    Max. Sawing Width: 600mm Condition: New
    Voltage: 380V/50HZ/3phase Or As Customer Needs Power(W): 15kw
    Feeding: Automatic Feeding Conveyor Warranty: 1 Year

    Twin Blades Wood Board Edger/border cutting machine

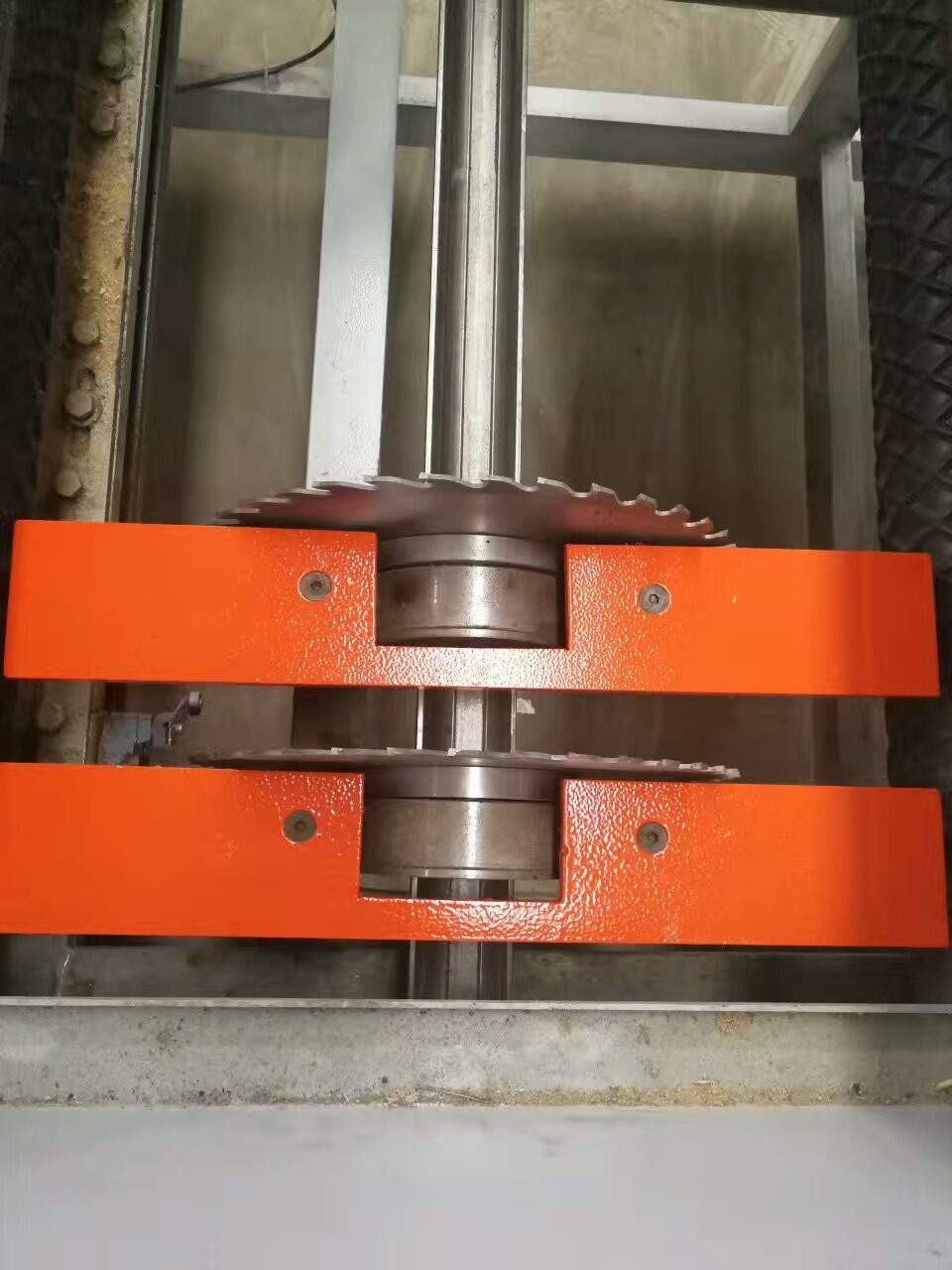

    1. Twin circular blades saw.

    2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.

    3. With tyres, moveable usage is workable

    4. The saw blade moves with infrared light and moves at the same time .



    Technical data :

    Technical parameters EG600A
    cutting max. width 600mm
    cutting min. width 50mm
    sawn max. thickness 70mm
    sawn min. thickness 10mm
    Blade 2*350mm
    Feeding method Automatic feeding conveyor
    Feed Rate 20-25m/ minute
    Power 15KW electric motor
    Positioning Infrared line
    Machine weight 800KG

    Remarks:

    One blade is fixed and another blade is movable.

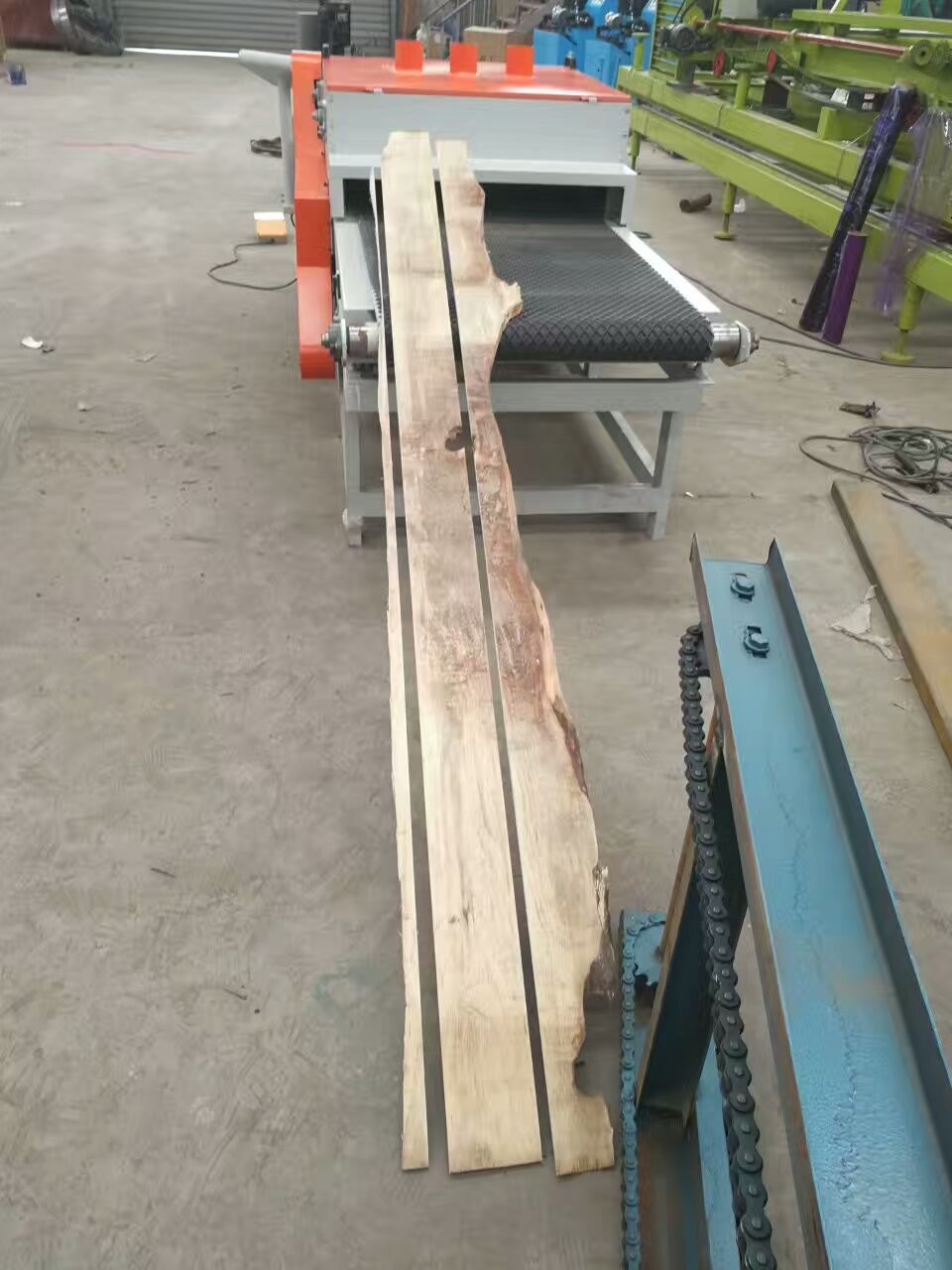

    Can cut both sides at same time.

    Mobile wheels are workable



    https://youtu.be/f9dqaVCXnfg

    Photos:

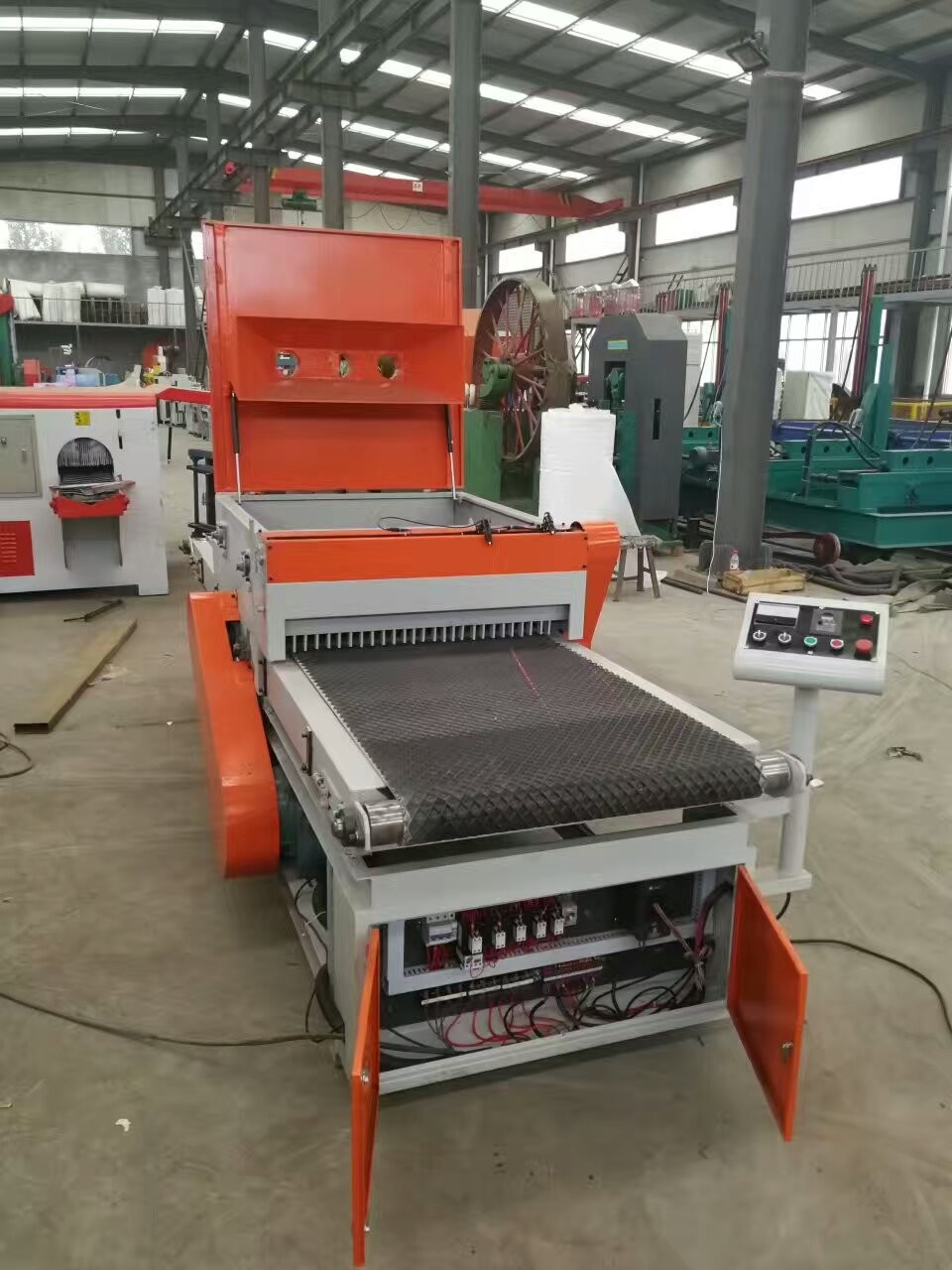

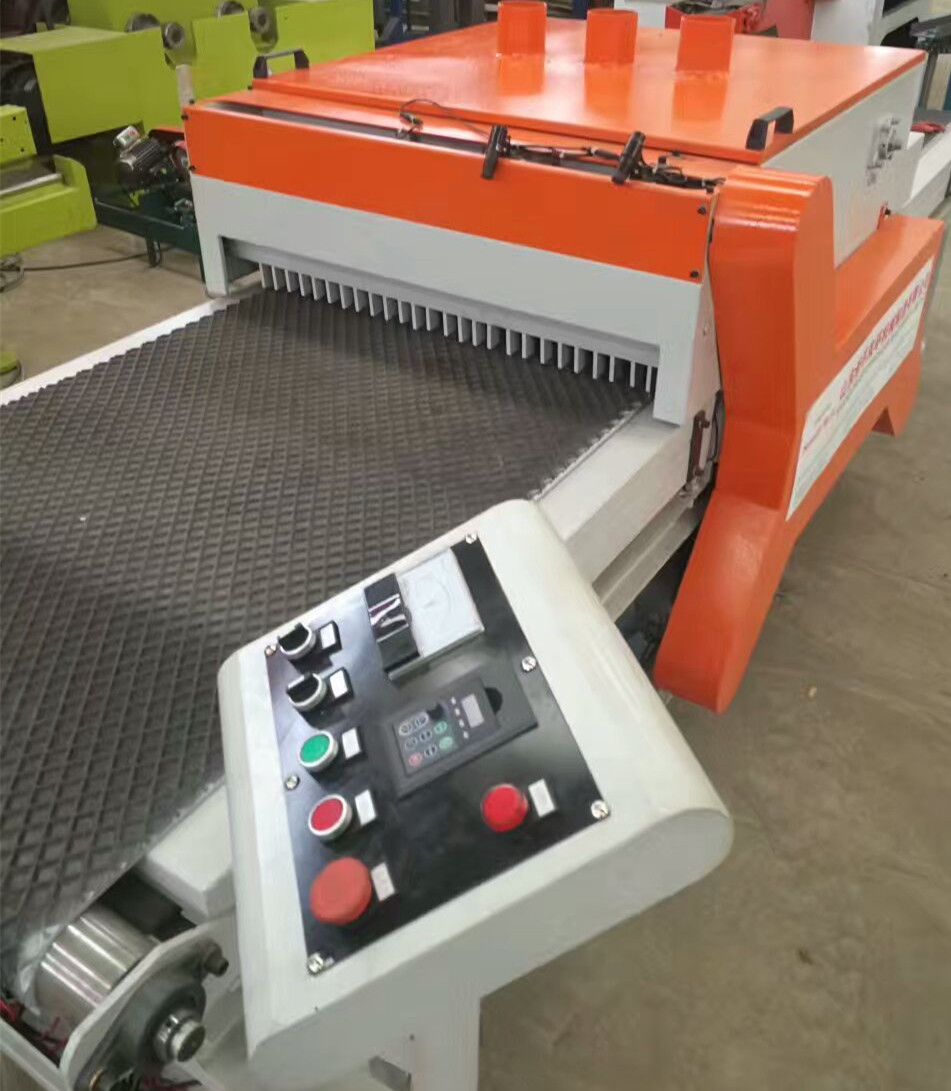

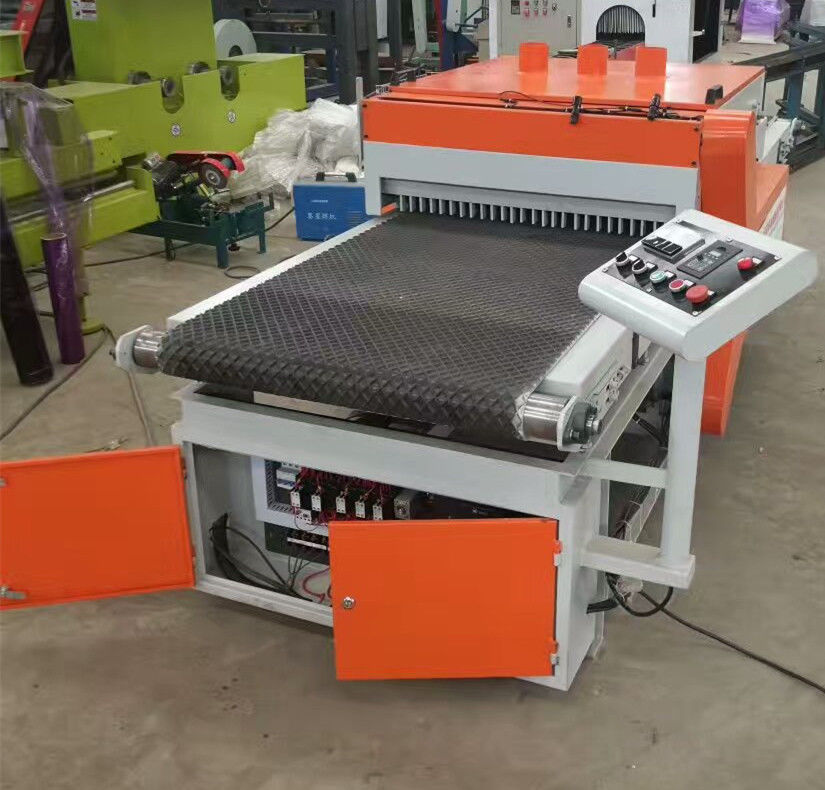

    Edge Trimming Cutting Saw Plywood Edge Saw Circular Saw multi blade ripsaw For Wood

    Edge Trimming Cutting Saw Plywood Edge Saw Circular Saw multi blade ripsaw For Wood
