Name: Forestry equipment horizontal wood portable band saw Hydraulic sawmill
Brand: Weifang Jiuyi Information technology co., LTD
SKU: MJH1000D, MJH1300P, SW1000P
Price: 20.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Hydraulic Band Saw For Cutting Wood Wood Saw Machine

Type: Band Saw

Max. Sawing Log Diameter: 1000mm

Max. Sawing Log Length: 4500mm Or Extend Sawmill Track

Warranty: 12 Month

Engine: 35HP Petrol Engine

Saw Wheel Diameter: 700mm

Feeding: Inverter

Saw Blade Width: 50 To 80mm

Hydraulic Chain Rotation: Yes

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: MJH1000D, MJH1300P, SW1000P

Payment & Shipping Terms

Packaging Details: container loading

Delivery Time: within 20 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 1500sets/year

Gallery

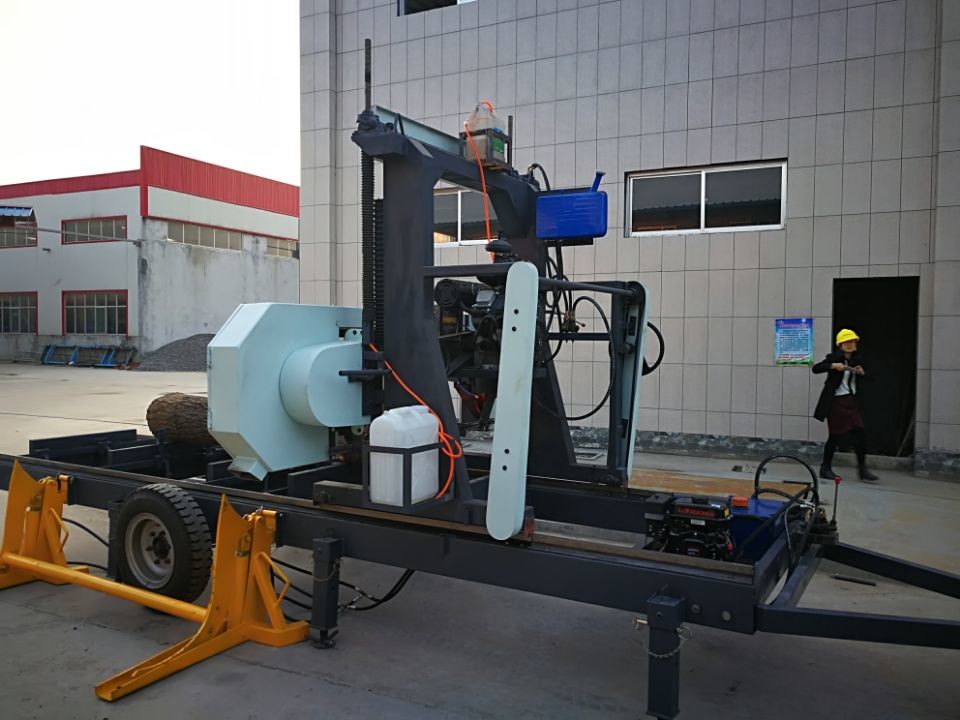

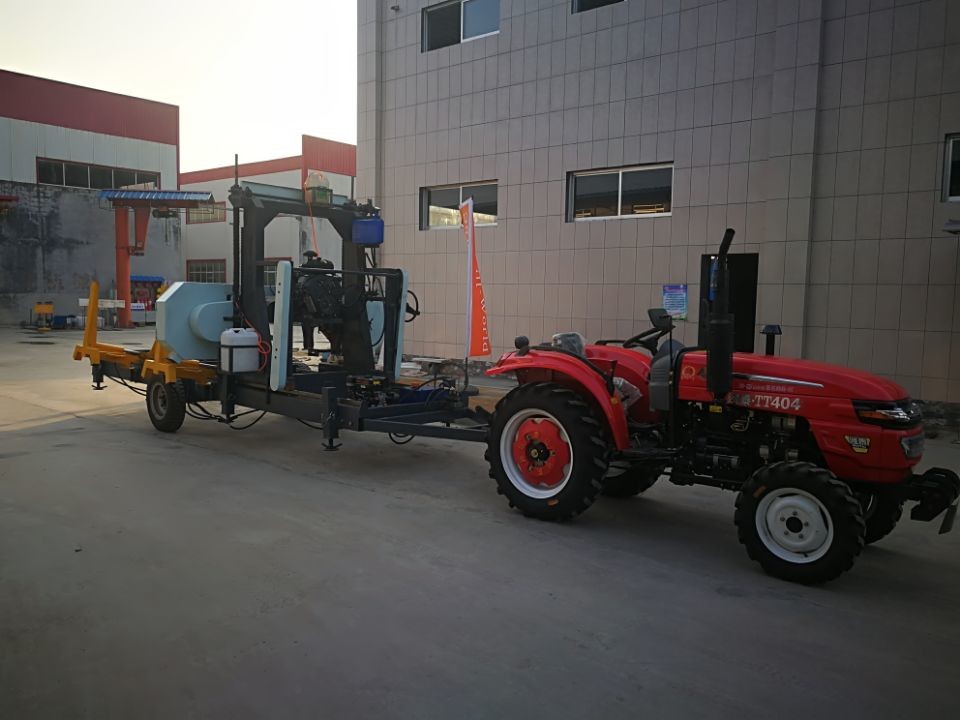

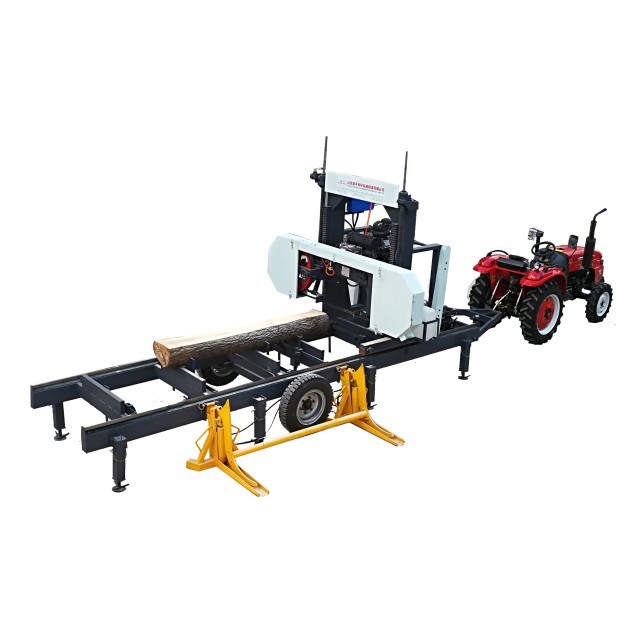

Forestry equipment horizontal wood portable band saw Hydraulic sawmill

Product Description

Hydraulic Horizontal Band Sawmill (Petrol/Diesel Engine type )
1.The sawmill is with hydraulic log loading arm.
2. The sawmill is with hydraulic rotation clamping .
3. The sawmill is with hydraulic wood clamp.
4. The sawmill is with mobile wheel for mobile usage .

Specifications:

Model	MJH1000D	MJH1300P
Max Sawing Wood Diameter	1000mm	1300mm
Saw Wheel Diameter	700mm	700mm
Max Sawing Wood Thickness	300mm	300mm
Standard Sawing Wood Length	4000mm	4000mm
Motor Power	22HP Diesel 2-Cylinder	35HP Petrol 2-Cylinder
Saw Blade Width	27mm-75mm	27mm-75mm
Saw head up/down	Hydraulic	Hydraulic
Machine Length	5800mm	5800mm
Weight	2500kg	2500kg

Standard Configuration
	Hydraulic Log Loading Arm *1			Hydraulic Clamp *1 Secure and stabilize the log
	Hydraulic Wood Clamp*4 Secure and stabilize the log			Hydraulic vertical side supports *4 Secure and stabilize the log
	Mobile Wheels, 8 Adjustable Up/down legs			Board automatic return hook
Optional parts:
		Touch Screen Accuset Setworks Automatically moves head for each cut and head walking speed is Frequency variable	Hydraulic bi-directional Chain log turner*2 For max. log control
		Hydraulic wood adjuster x1	Extend The Rail Length

Hydraulic Horizontal Band Sawmill

型号	Model	SW1000P
锯割木材直径	Max Sawing Wood Diameter	1000mm
锯轮直径	Saw Wheel Diameter	700mm
最大锯割木材厚度	Max Sawing Wood Thickness	350mm
锯割木材长度(标准)	Standard Sawing Wood Length	4500mm
功率	Engine Power	35HP petrol engine or 22HP diesel engine
锯头(升/降)	Up/Down	Electrial
行走方式(前进/倒退)	Forward/Backward	Inverter
锯条宽度范围	Saw Blade width	50-80mm
1,木材上料装置	Hydraulic Log Loading Arms	1
2,液压翻转夹紧顶装置	Hydraulic Rotation Clamping	2
3,10个支架腿+轮胎4个	10pcs legs + tryes 4pcs	1
4,设定锯割尺寸	Sawn sizes setting	touching screen +PLC
5,液压链式翻滚装置	Hydraulic Chain Rotation	2
6,液压档木立桩	Hydraulic lot stop pole	4
机床长度	Machine Length	5800mm
重量	Weight	2800kg

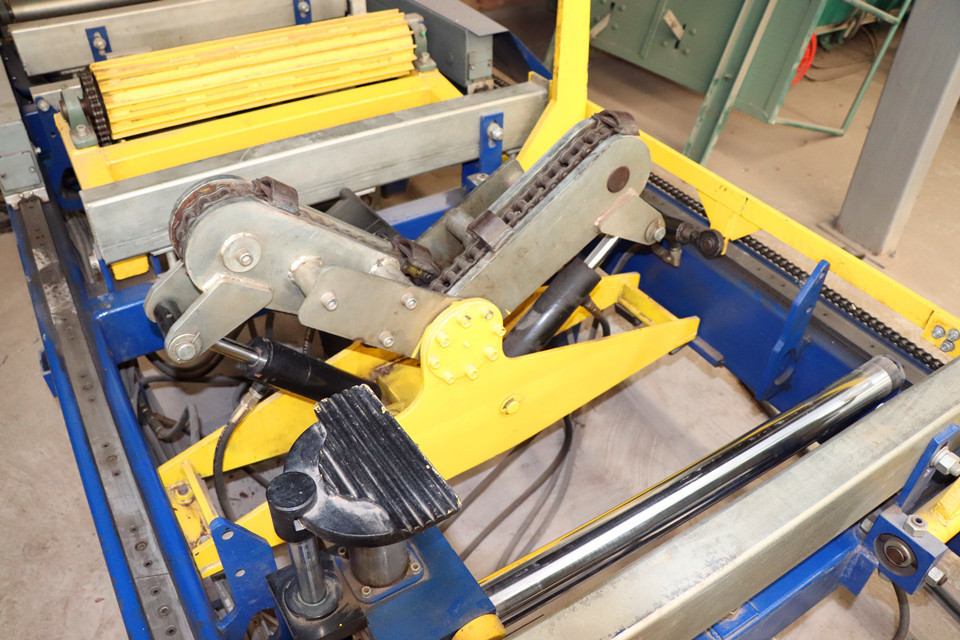

Hydraulic Chain Rotation
Forestry equipment horizontal wood portable band saw Hydraulic sawmill 9

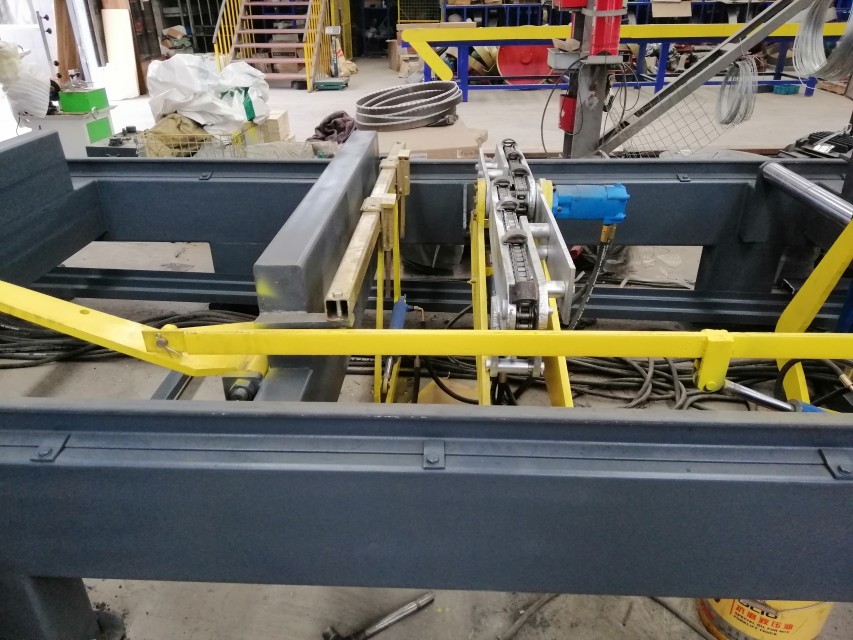

Hydraulic Rotation Clamping
