Woodworking Diesel Portable Sawmill, Electric/Computer type Double Blades Circular Saw with carriage

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number TT1500, TT2000,TT3000, CT1500, CT2000,CT3000
Minimum Order Quantity 1 SET
Price US $3,000 - 9,800 / Set
Packaging Details iron made frame pallet
Delivery Time within 15days
Payment Terms T/T, L/C, Western Union
Supply Ability 2000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Circular Saw
Voltage 380v/3phase/50HZ Or As Customer Needs Usage Wood Cutting
Warranty 12 Months Power(W) 7.5kw X 2 Or 11kw X 2
Style Vertical Cutting Max. Dia. 40CM
Operation Manual Or Digital Auto Control
Leave a Message
Product Description

Twin Blades Circular Sliding Table Sawmill

The round log can slitting naturally,slitting totally,can sawing round wood to square timber.

The circular saw blade can avoid band saw blade bending,or dig hole on wood.

The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.

The production capacity is more than 4 timers than band sawmill.

The specification is adjustable,Convenient to move the running rule,accuracy.

The track use linear guideway,accuracy,no error,wear resistent.

The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.

Wood Sliding Table Sawmill (Manual type )

Introduction:

  • Sawing log max. diameter or height: 40cm
  • Sawing log length: 1.5meter to 3meters or as customer needs
  • Log feeding : manual
  • Log clamping : pneumatic type
  • Main motor power : 7.5kw x 2 sets

Specification:

Model TT1500 TT2000 TT3000
Max Sawing Wood Diameter 400mm 400mm 400mm
Max Sawing Wood Length 1500mm 2000mm 3000mm
Saw Blade Diameter 500mm 500mm 500mm
Motor Power 7.5KW*2 7.5KW*2 7.5KW*2
Rail Length 3500mm 5000mm 6500mm
Wood Fasten Model Pneumatic up/down Pneumatic up/down Pneumatic up/down
Carriage Rail Model Linear Axis Linear Axis Linear Axis

Woodworking  Diesel Portable Sawmill, Electric/Computer type Double Blades Circular Saw with carriage 0

Woodworking  Diesel Portable Sawmill, Electric/Computer type Double Blades Circular Saw with carriage 1

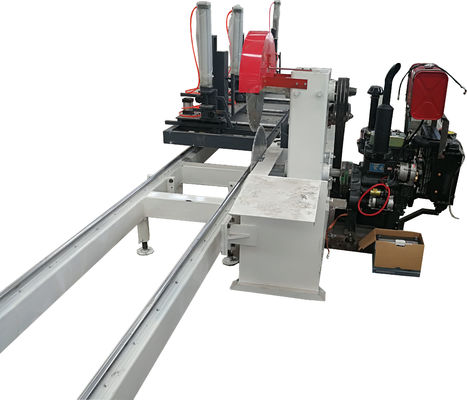

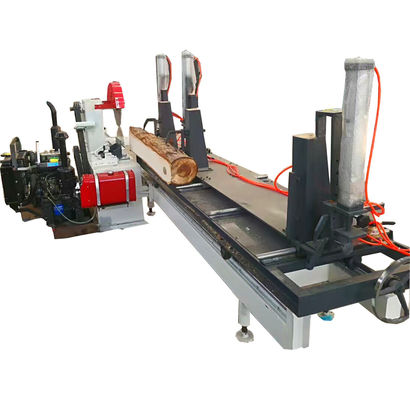

Diesel engine powered circular sawmill:

Woodworking  Diesel Portable Sawmill, Electric/Computer type Double Blades Circular Saw with carriage 2

Automatic Woodworking Twin Blades Circular Sawmill - Computer type



Introduction:

1. Standard model, max. Cutting log diameter is 400mm. If log diameter upto 480mm, we also do it.

2. It is frequency variable auto walking. Feeding speed is adjustable.

3. PLC touching screen set sawing sizes.

4. Can change big motor as customer needs.

  • Technical data
model CT1500 CT2000 CT3000
Cut log max. diameter 400mm 400mm 400mm
Cut length 1.5m 2m 3m
Blade diameter 500mm 500mm 500mm
Main Motor power 7.5KW*2 7.5KW X 2 sets 7.5KW X 2 sets
Track length 3500mm 5000mm 6500mm
Log clamping Pneumatic up/down Pneumatic up/down Pneumatic up/down
Carriage Rail Mode Linear Axis Linear Axis Linear Axis
Feeding mode frequency control frequency control frequency control
Setting size mode Touch screen computer control Touch screen computer control Touch screen computer control
  • Image

Woodworking  Diesel Portable Sawmill, Electric/Computer type Double Blades Circular Saw with carriage 3

Woodworking  Diesel Portable Sawmill, Electric/Computer type Double Blades Circular Saw with carriage 4Woodworking  Diesel Portable Sawmill, Electric/Computer type Double Blades Circular Saw with carriage 5
