Large Log Band Saw, Big Horizontal Saw Sawmill Machines with Electrical or Diesel Power

Place of Origin shandong province, China
Brand Name SH
Certification ISO9001
Model Number MJ1200 MJ1500 MJ2000 MJ2500
Minimum Order Quantity 1 SET
Price US $12,000 - 31,000 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Automatic Band Saw Machine Conditon New
Type Band Saw Application Horizontal Wood Band Saw Sawmill,sawmill Timber Lumber Factory,Furniture Factory,manufacturing Plant
Max. Sawing Wood Width 2500mm Max. Sawing Wood Length 6meters Or 10meters Or As Customer Needs
Saw Wheel Diameter 1070mm Power(w) 55KW
Feeding Speed Frequency Keyword Horizontal Band Saw Machine,horizontal Band Sawmill Wood Cutting
Warranty 1 Year After-sales Service Provided Online Support,commissioning And Training
Leave a Message
Product Description

Heavy Duty Large Size Horizontal Band Sawmill
The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.
Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola, Fiji and Southeast Asian countries .



Technical specifications:



Technical Parameter MJ1200 MJ1500 MJ2000 MJ2500
Max Sawing Wood Diameter (MM) 1200 1500 2000 2500
Saw wheel diameter (MM) 900 1000 1100 1100
Sawing thickness (MM) 400 450 480 480
Max Sawing wood Length (MM) 10000 10000 10000 10000
Main Motor Power (KW) 22 37 45 45
Total Power (6 Motors) (KW) 30 45 53 53
Total Weight (KG) 3800 4500 5000 5500
Electric & Screw Band Saw Blade Tension
Infinitely variable speeds forward and backward
Touch Screen sawing thickness setting
Control Cabinet and Seats built on the sawmill
4 group Mobile card wood file .

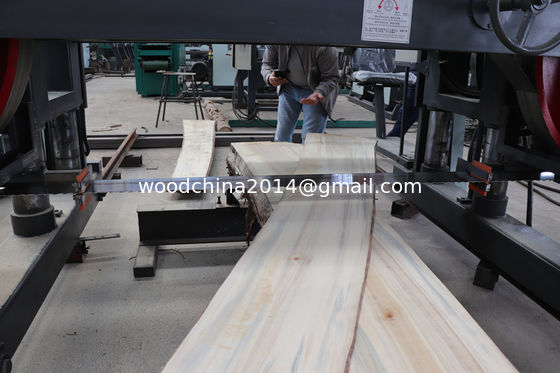

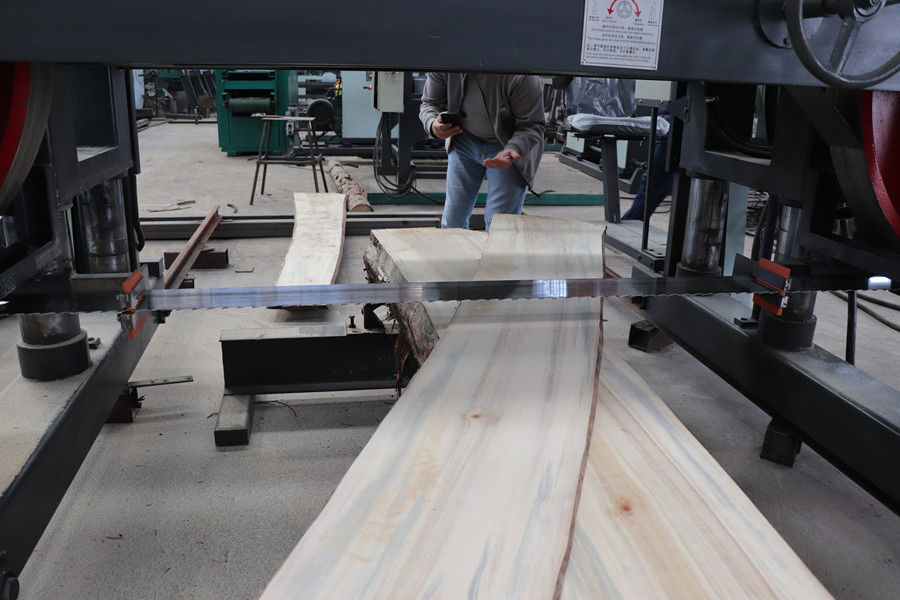

Large Log Band Saw, Big Horizontal Saw Sawmill Machines with Electrical or Diesel Power 0

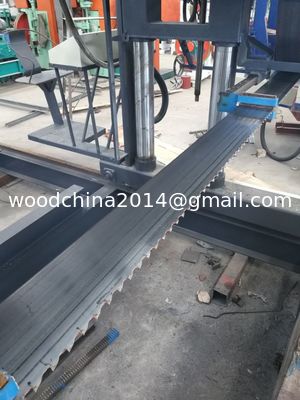

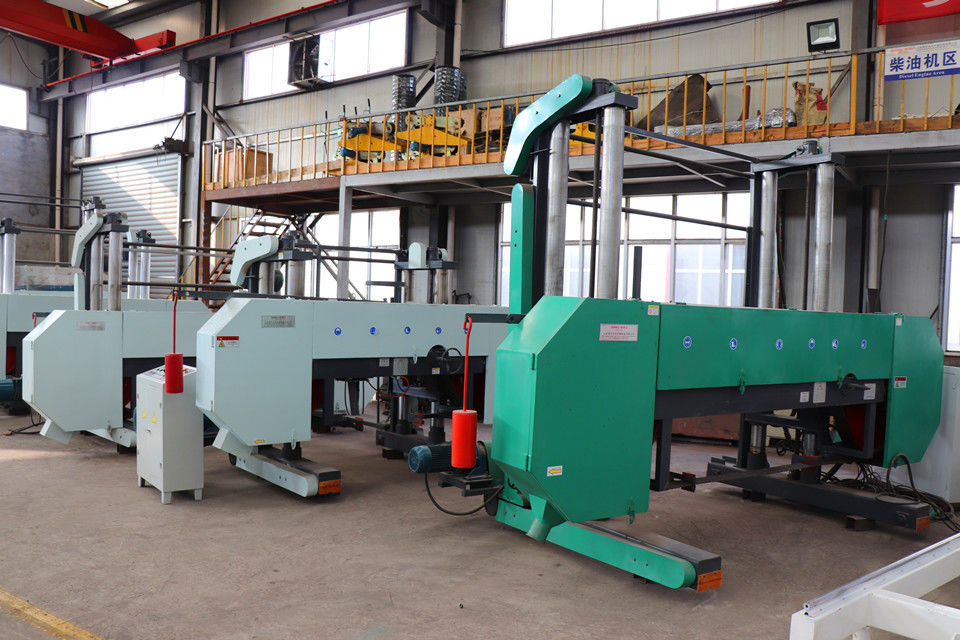

Large Log Band Saw, Big Horizontal Saw Sawmill Machines with Electrical or Diesel Power 1



Diesel Engine Powered Large Size Horizontal Band Sawmill

Technical specification MJ2000D
Cut max. diameter (mm) 2000
Saw wheel diameter (mm) 1070
Cutting thickness (mm) 10-400
Cut length (m) 10m
Band saw blade size (mm) 1.25x125/150x9800
Saw Walking Frequency variable
Saw blade tension electrical
Saw Elevating Electrical
Main motor 60HP Diesel engine
Total weight (kgs) 5500

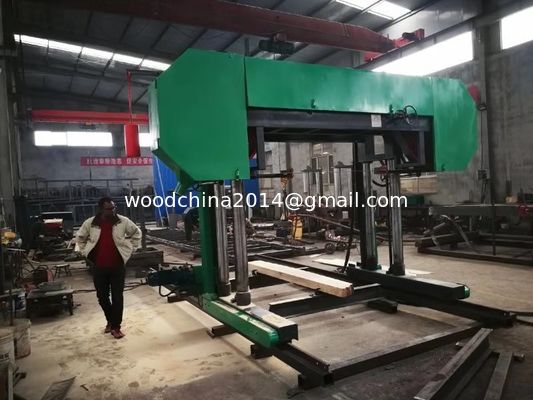

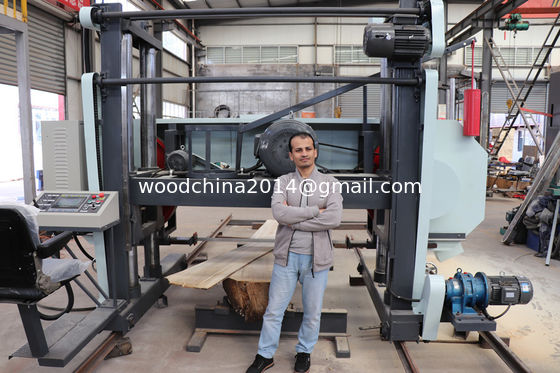

Large Log Band Saw, Big Horizontal Saw Sawmill Machines with Electrical or Diesel Power 2Large Log Band Saw, Big Horizontal Saw Sawmill Machines with Electrical or Diesel Power 3
