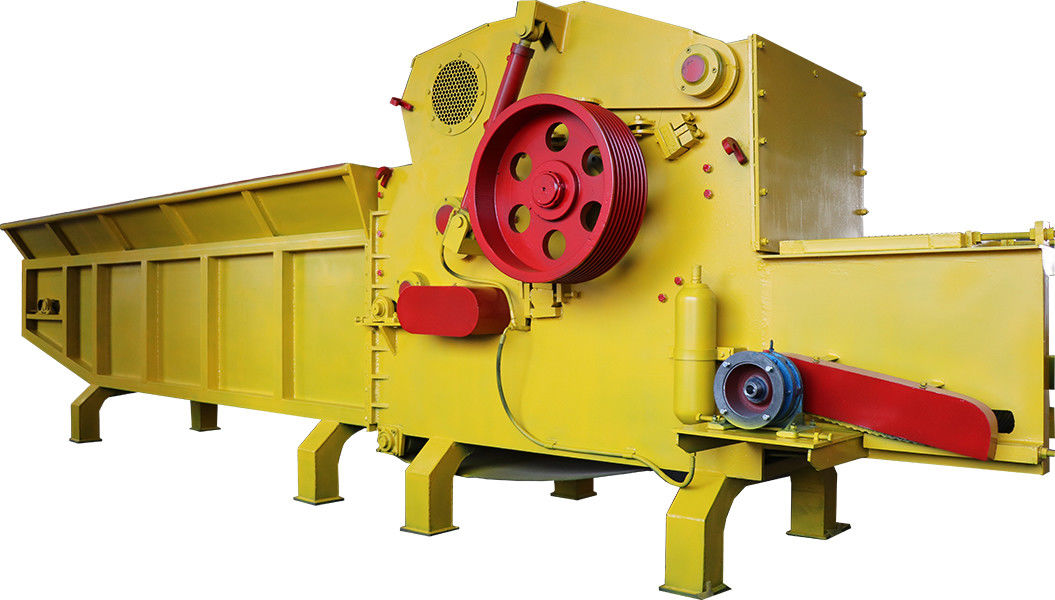

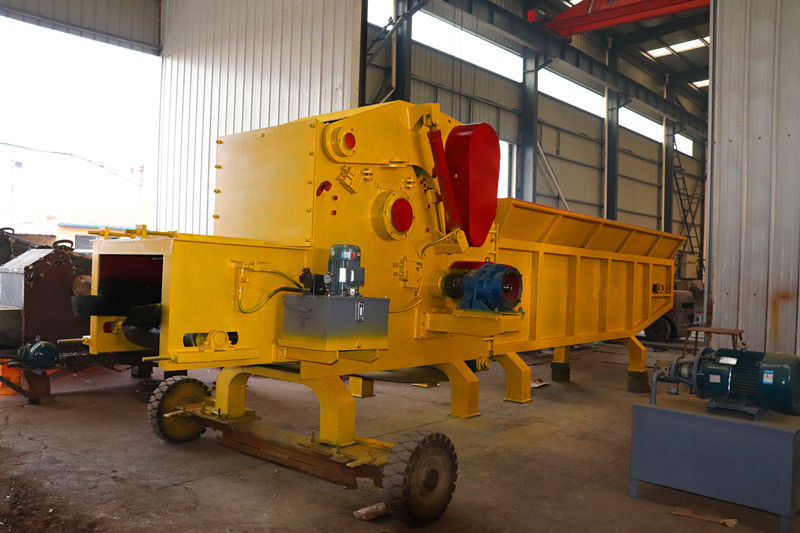

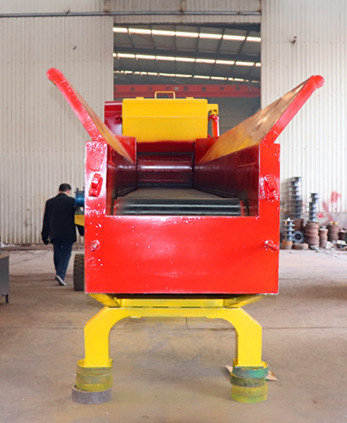

SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor

SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor

    • SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
    • SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
    • SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
    • SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
    • SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
    • SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor
  • SH800-500 Wood pallets crusher machine,wood log crusher with oil pump motor

    Product Details:

    Place of Origin: shandong province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: SH1600-600, SH1400-600, SH1300-600, SH1300-800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $18,000-4,9000 / Sets
    Packaging Details: according to customer needs
    Delivery Time: within 20 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 300 sets/Year
    Contact Now
    Detailed Product Description
    Name: Wood Chipper Crusher Machine Condition: New
    Usage: Crush Logs, Pallets All Wooden Products Into Chippers After-sales Service: Video Technical Support, Online Service, Spare Parts
    Feeding Inlet Size: 800mm X 500mm Feeding Conveyor Length: 5 Meters
    Discharging Conveyor Length: 10 Meters Main Motor Power: 110KW
    Wood Chipper Size: 2cm To 4cm Operation: Automatic Distant Control

    SH800-500 Series Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.

    Technical Parameter Of Host System Equipment



    Model SH800-500 Electric Type
    Feeding Inlet 800*500MM
    Blade Roller Diameter 850MM
    Blade Roller Speed 850RPM
    Capacity 8-10T/Hour
    YG8 Hammer Blade Quantity OR Blades 16 pcs hammers or 2sets blades
    Max Processing Wood Diameter 300MM
    Electric motor Power 110KW
    Wood Chipper Size 20-40MM
    Working Life Of THE Hammer Blades 4000T-6000T





































    Technical Parameter Of Feeding System



    Model SH800-500
    Slot Chain Plate Feeding Conveyor 1 Set
    Feeding Motor Power 7.5KW+11KW
    Chain Plate Width 800MM
    Conveyor Length 5000MM
    Feeding Speed 2-18M/Min
    Chain Material 16Mn
    Position Limited Wheel 5
    Gear Box Hard Teeth Faces





























    Technical Parameter Of Discharging System

    Model SH800-500
    Outlet Conveyor Belt 1Set
    First Outlet Motor 4KW With Gear Box
    Second Outlet Motor 5.5KW With Gear Box
    Conveyor Material 14-16# Channel/ Square Tube
    Conveyor Length*Width 10m*1m
    Conveyor Material Nylon 4 Layer
    Outlet Height 3800-4500MM



























    Intelligent Electronic Control System

    Model SH800-500
    Large Control Cabinet Ground
    Host Start Model Soft Start
    Feeding Speed Control Model Variable Frequency
    Electrical Control Control Cabinet + Remote Control

    High Efficiency Hydraulic System

    Model SH800-500
    Control Model Solenoid Valve
    Hydraulic Oil Pump 3KW
    Hydraulic Oil Tank 120L
