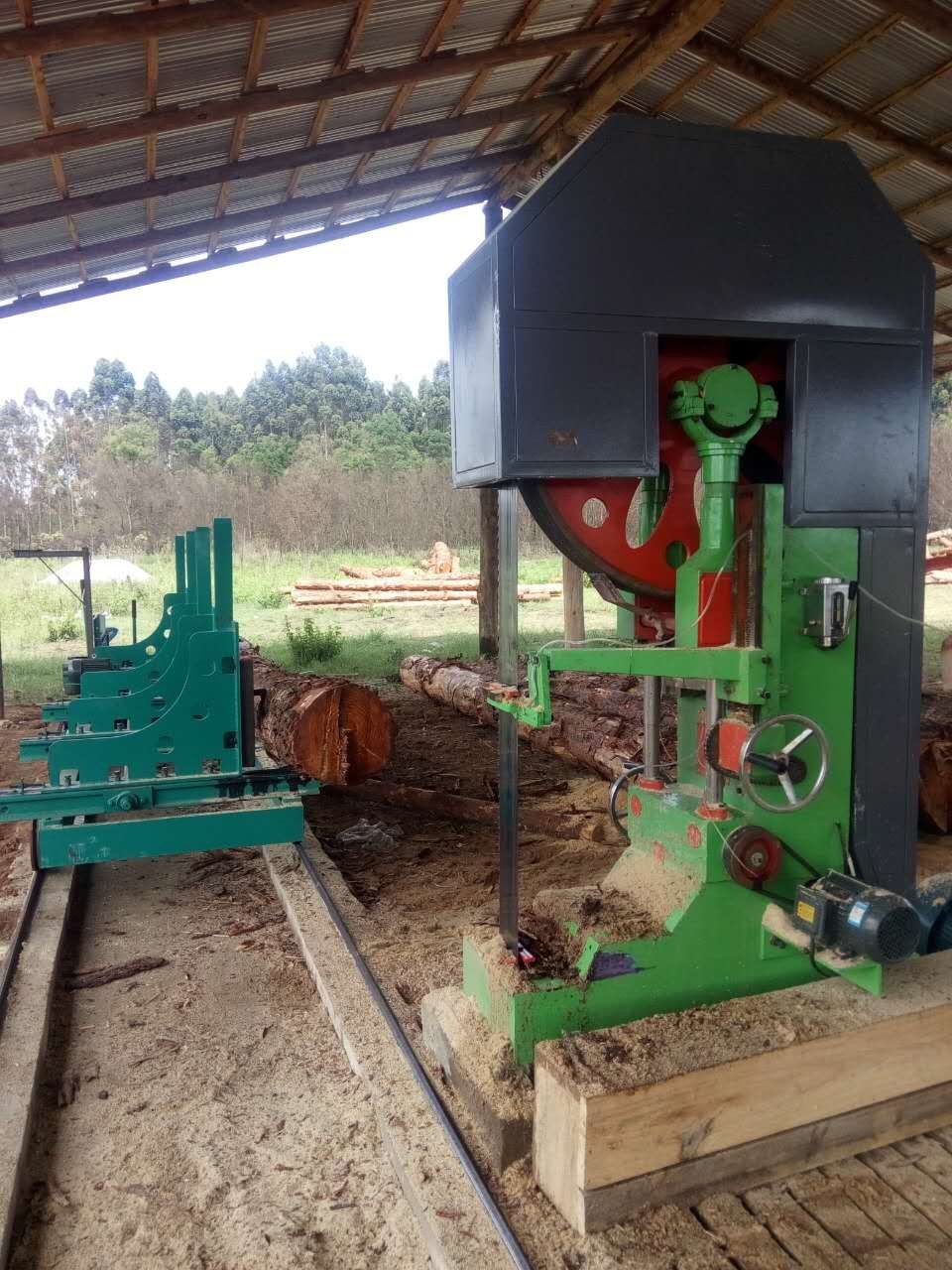

Mobile Vertical Band Sawmill with Table Diesel Engine powered Truck Loading Move

  • Mobile Vertical Band Sawmill with Table Diesel Engine powered Truck Loading Move
  • Mobile Vertical Band Sawmill with Table Diesel Engine powered Truck Loading Move
  • Mobile Vertical Band Sawmill with Table Diesel Engine powered Truck Loading Move
  • Mobile Vertical Band Sawmill with Table Diesel Engine powered Truck Loading Move
  • Mobile Vertical Band Sawmill with Table Diesel Engine powered Truck Loading Move
  • Mobile Vertical Band Sawmill with Table Diesel Engine powered Truck Loading Move
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number MJ3210-3000, MJ3210-5000
Minimum Order Quantity 1 SET
Price US $6,500 - 11,100 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wood Cutting Band Saw Machine Condition New
Style Vertical Usage Wood Cutting
Saw Wheel Diameter 1000mm(40inch) Keyword Band Sawing Machine | Band Saw Machine | Wood Cutting Band Saw Machine,Cnc Cut
Max. Sawing Log Diameter 800mm Carriage Walking Electrical Or Frequency
Sawing Size Setting Electrical Or Touching Screen CNC Applicable Industries Manufacturing Plant
After-sales Service Provided Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support Warranty 12 Months
Leave a Message
Product Description

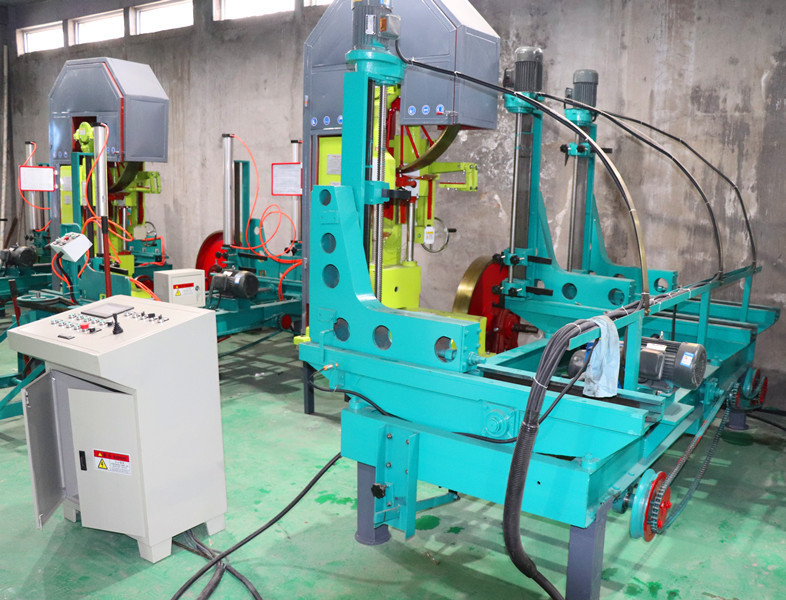

Vertical Band Sawmill with Manual or auto Log Carriage

  • Applications:Processing large and middle logs and square logs together with large-or middle-size wood band saws.
  • Features:Automatic micro-computer control,feeding,and automatic dimensioning;high efficiency and low labor intensity;high precision,and easy operation.

Specification:

Technical data MJ3210-DD3000 MJ3210-DD5000
Saw wheel diameter 1000mm 1000mm
Maximum sawing log diameter 800mm 800mm
Maximum sawing log length 4meters 6meters
Main motor 22KW 22KW
Carriage clip stake quantity 3sets 4sets
Saw blade L*W*T 6850x125x1.05mm 6850x125x1.05mm
Wood grasp mode Manual Manual
Carriage walking/advance Electric Electric
Setting sawn size Electric Electric
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 3000kgs 4000kgs

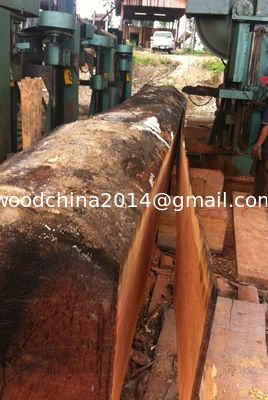

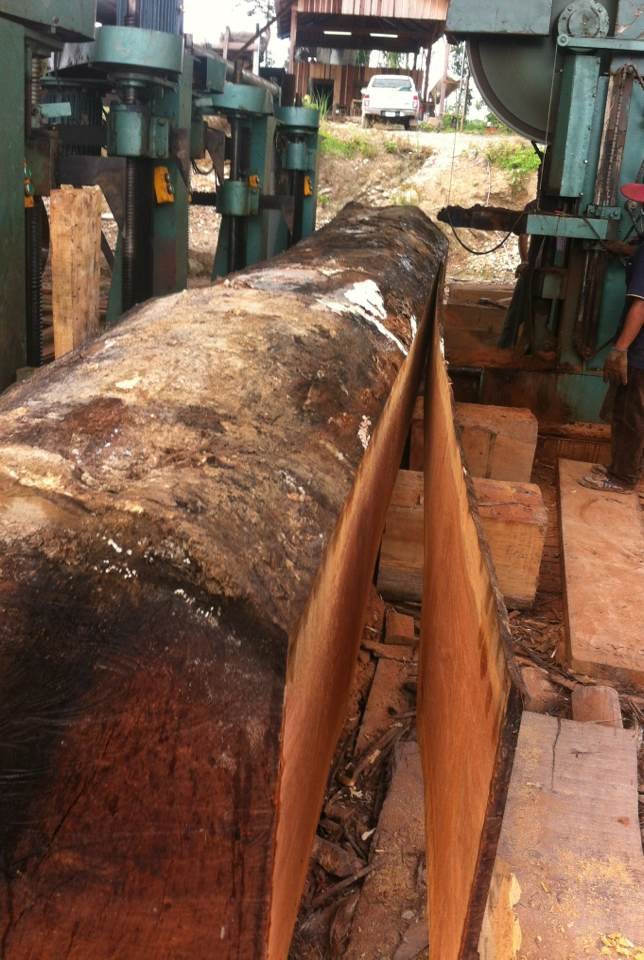

Mobile Vertical Band Sawmill with Table Diesel Engine powered Truck Loading Move 0

Technical data MJ3210-ZD3000 MJ3210-ZD5000
Saw wheel diameter 1000mm 1000mm
Maximum sawing log diameter 800mm 800mm
Maximum sawing log length 4meters 6meters
Main motor 22KW 22KW
Carriage clip stake quantity 3sets 4sets
Saw blade L*W*T 6850x125x1.05mm 6850x125x1.05mm
Wood grasp mode Electric Electric
Carriage walking/advance Frequency converter Frequency converter
Setting sawn size PLC touching screen PLC touching screen
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 3000kgs 4000kgs

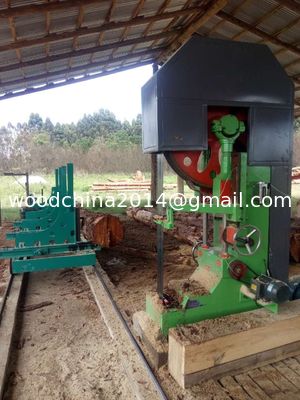

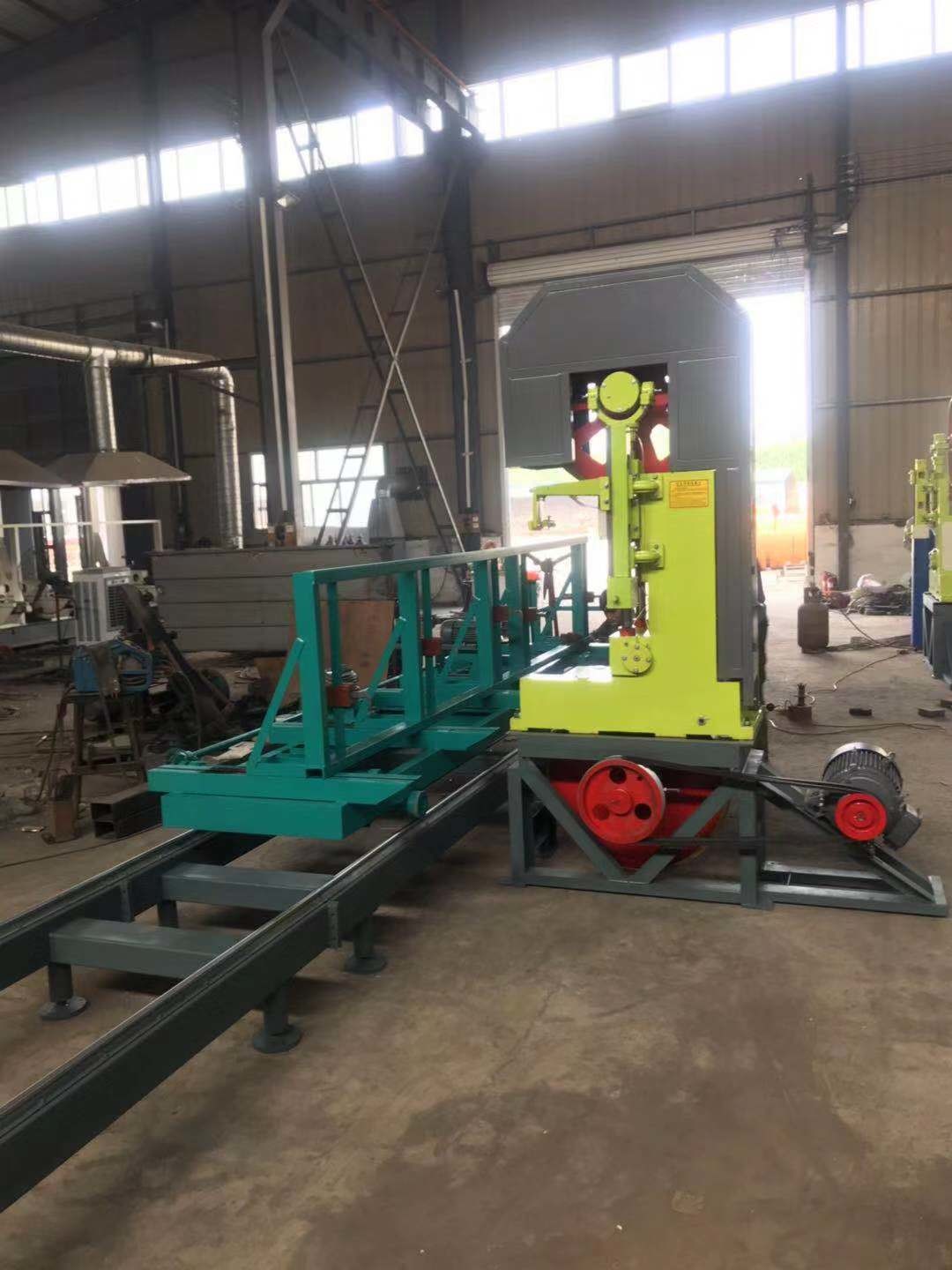

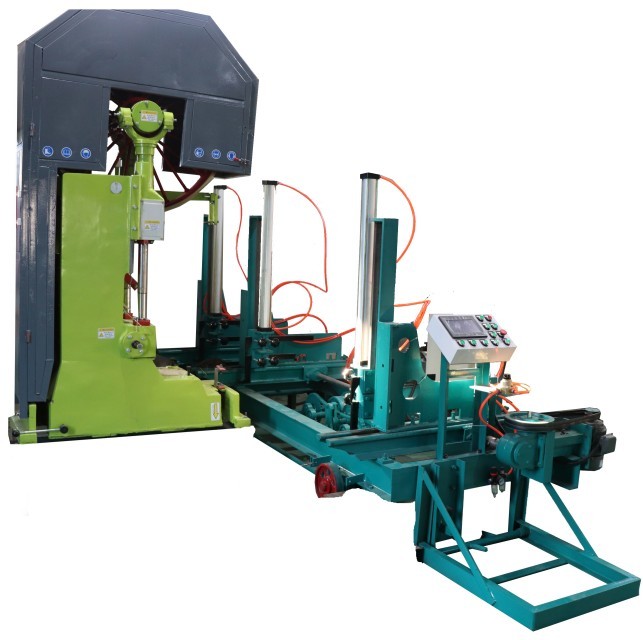

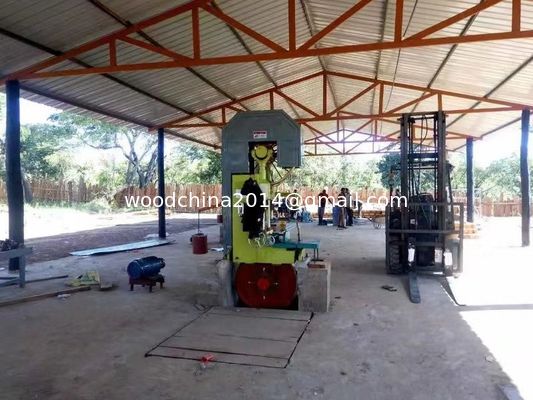

Mobile Vertical Band Sawmill with Table Diesel Engine powered Truck Loading Move 1Mobile Vertical Band Sawmill with Table Diesel Engine powered Truck Loading Move 2

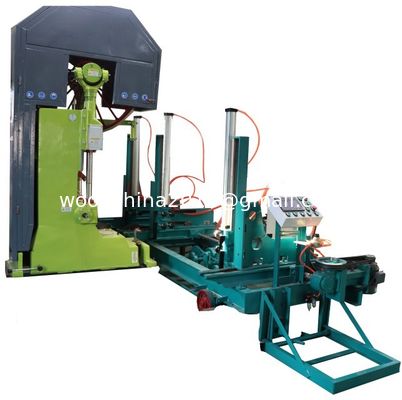

Mobile Vertical Band Sawmill with Table Diesel Engine powered Truck Loading Move 3

Related Saw Machine

Wood Edger Cutting Circular Blade Table Sawmill

Introduction:

1.Used to cut edges of wood boards in high efficiency or cut boards into small timbers.

2.Sawing max width is upto 1.5meters

3.The saw equipped with carbide blade for hardwood cutting .

4.The saw machine is with auto feeding .

Technical data:

Model BT3000-600 BT3000-1000 BT3000-1500
Sawing thickness 10-180mm 10-180mm 10-180mm
Sawing maximum length 3000mm 3000mm 3000mm
Sawing maximum width 600mm 1000mm 1500mm
Circular blade diameter 500mm 500mm 500mm
Motor power 11KW 15KW 15KW
Track length 5800mm 5800mm 5800mm
Wood grasp type Pneumatic Pneumatic Pneumatic
Feeding Manual Manual Manual
Operation Manual Manual Manual

Optional parts:

1.Frequency variable auto feeding ; 2. Saw track can be extended ; 3. Manual operation can be changed to electric type or PLC touching screen auto setworks

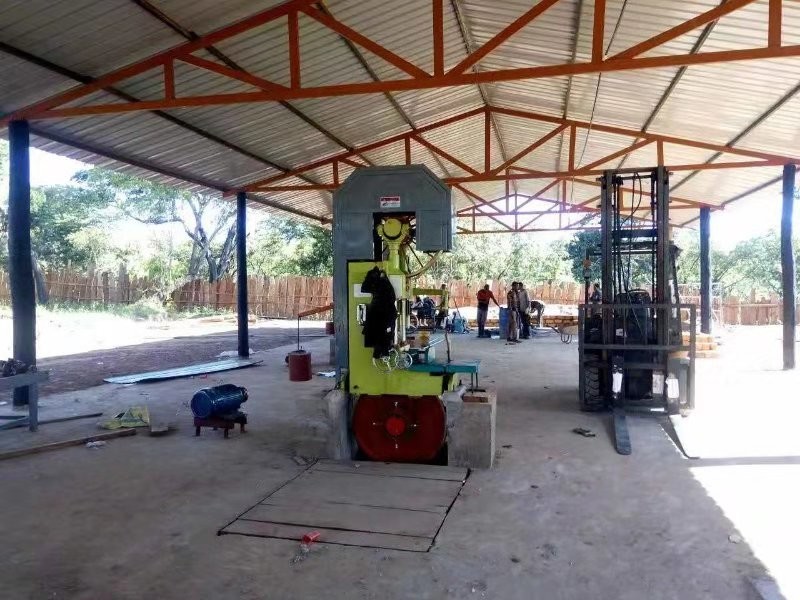

Mobile Vertical Band Sawmill with Table Diesel Engine powered Truck Loading Move 4
