MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage

MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage

    • MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage
    • MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage
    • MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage
    • MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage
    • MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage
    • MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage
  • MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage

    Product Details:

    Place of Origin: shandong province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: MJ3310-Z5000,MJ3310-Z3000, MJ3310-D5000, etc

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $6,000 - 50,000 / Set
    Packaging Details: container loading
    Delivery Time: within 15 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 1500sets/year
    Contact Now
    Detailed Product Description
    Name: Vertical Band Saw Condition: New
    Voltage: 380V/50Hz/3Phase Style: Vertical
    Type: Band Saw Application: Wood Working
    Saw Wheel Diameter: 1000mm(40inch),1070mm Max. Sawing Log Diameter: 40'' Or 1000mm
    Log Clamp: Pneumatic Log Feeding: Electrical Or Frequency
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support Warranty: 1 Year

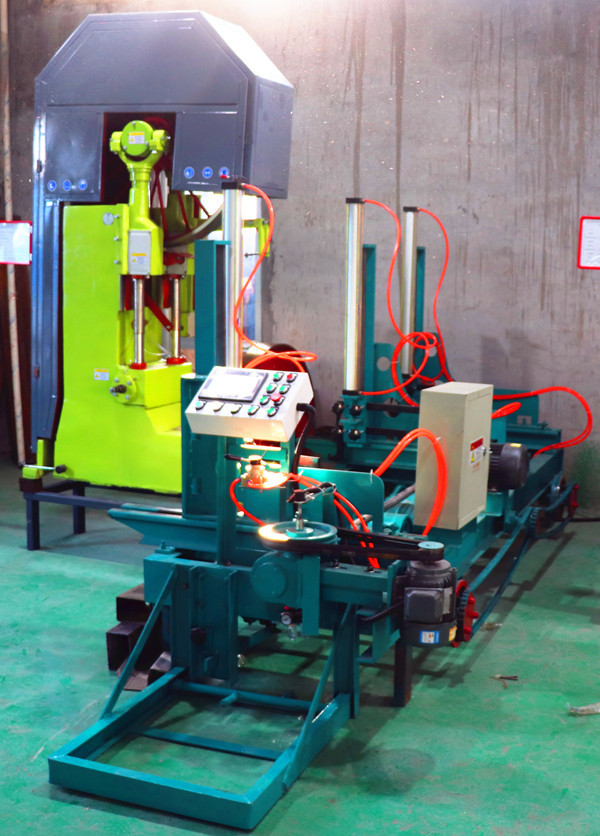

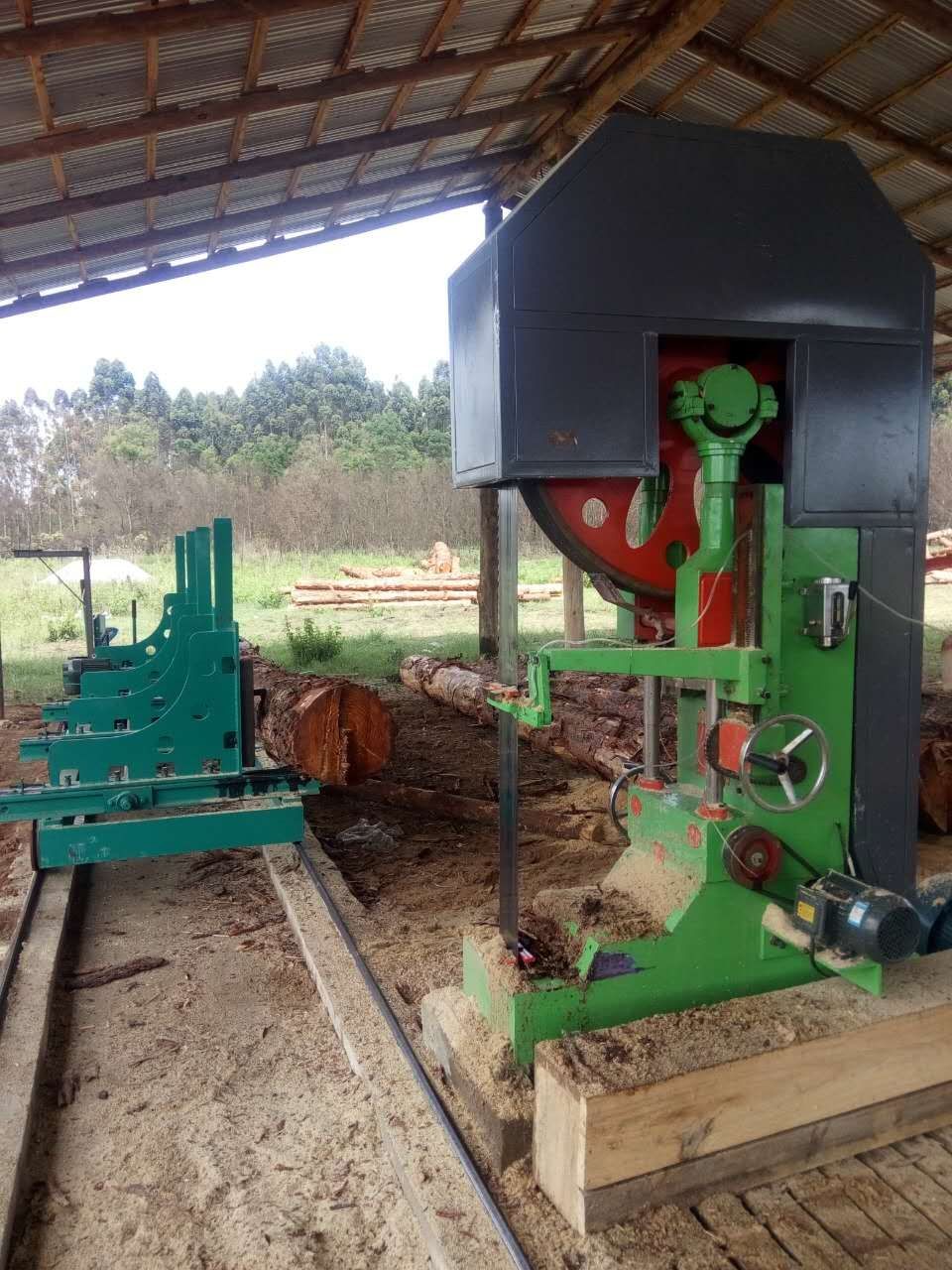

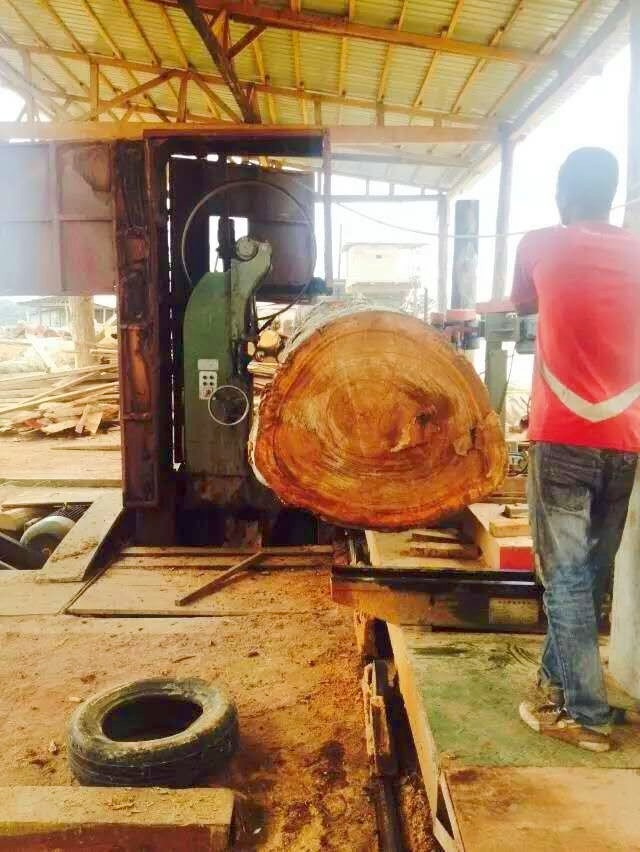

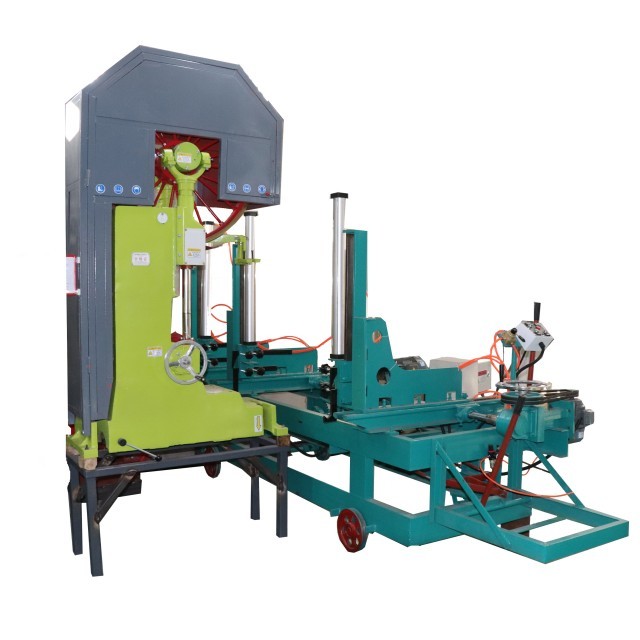

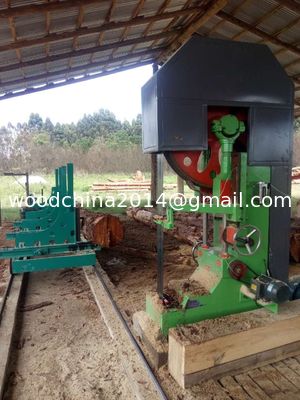

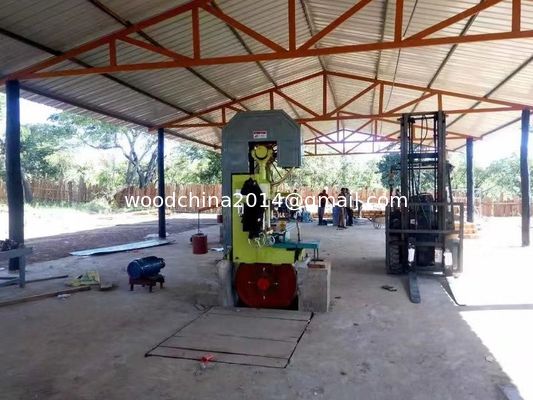

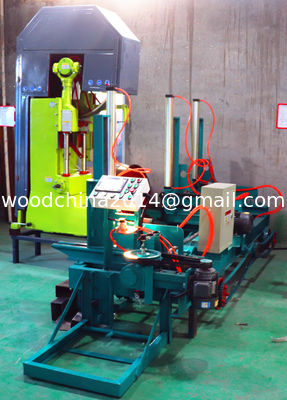

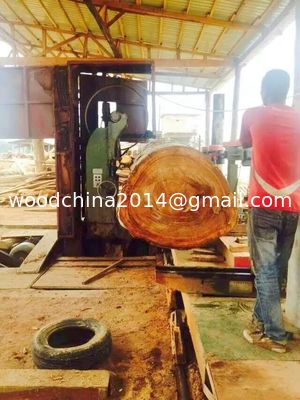

    Vertical Band Sawmill With CNC Log Carriage

    This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.



    Working video link : https://youtu.be/14SY_lef-Wc / https://youtu.be/QGwA5cUeohE

    Electric type carriage: https://youtu.be/rX7VEPHzDxE



    Technical Specifications:

    Technical data MJ3310-DD3000 MJ3310-DD5000
    Saw wheel diameter 1070mm 1070mm
    Maximum sawing log diameter 1000mm 1000mm
    Maximum sawing log length 4meters 6meters
    Main motor 30KW 30KW
    Saw blade L*W*T 7400x150x1.05mm 6850x125x1.05mm
    Carriage clip stake quantity 3sets 4sets
    Wood grasp mode Manual Manual
    Carriage walking/advance Electric Electric
    Setting sawn size Electric Electric
    Carriage length 3meters 5meters
    Rail length 10meters 18meters
    Weight 4500kgs 6000kgs

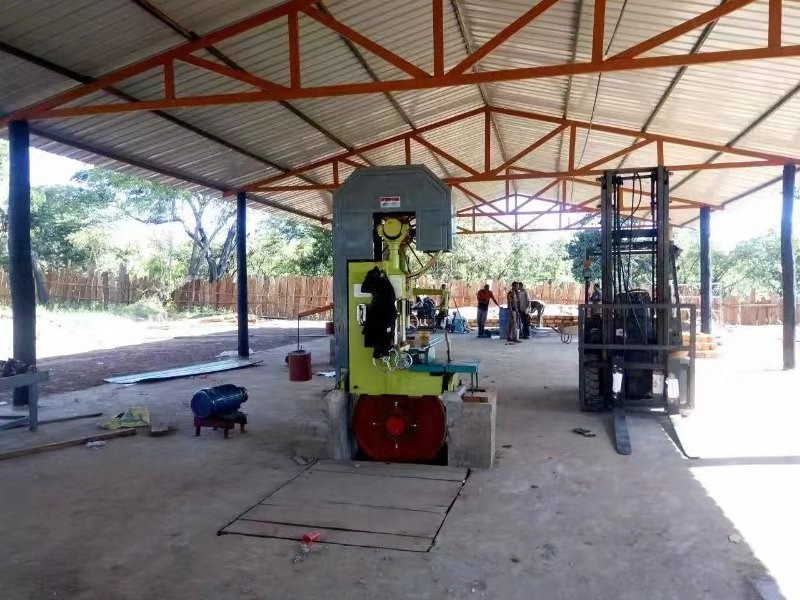

    MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage

    Technical data MJ3310-ZD3000 MJ3310-ZD5000
    Saw wheel diameter 1070mm 1070mm
    Maximum sawing log diameter 1000mm 1000mm
    Maximum sawing log length 4meters 6meters
    Main motor 30KW 30KW
    Saw blade L*W*T 7400x150x1.05mm 7400x150x1.05mm
    Carriage clip stake quantity 3sets 4sets
    Wood grasp mode Electric Electric
    Carriage walking/advance Frequency converter Frequency converter
    Setting sawn size PLC touching screen PLC touching screen
    Carriage length 3meters 5meters
    Rail length 10meters 18meters
    Weight 4500kgs 6000kgs

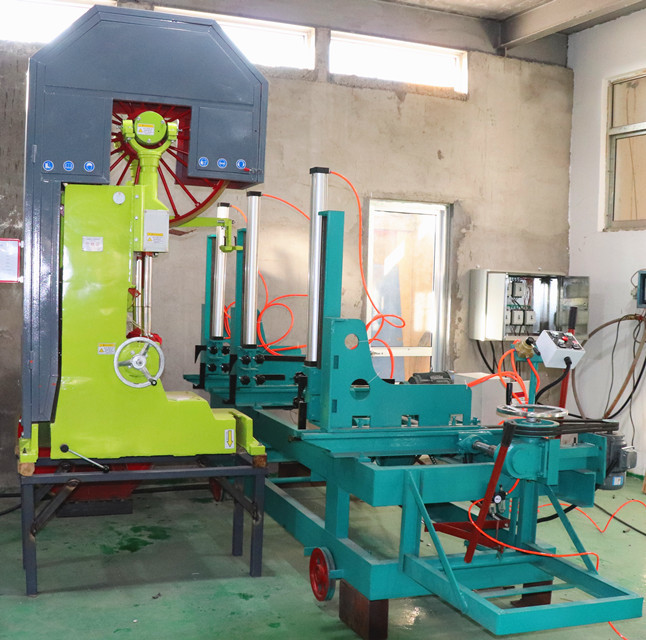

    MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage

    MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage
