Wood cutting Vertical Band Saw Machine with Log Carriage & Working Foundation

Wood cutting Vertical Band Saw Machine with Log Carriage & Working Foundation

    • Wood cutting Vertical Band Saw Machine with Log Carriage & Working Foundation
    • Wood cutting Vertical Band Saw Machine with Log Carriage & Working Foundation
    • Wood cutting Vertical Band Saw Machine with Log Carriage & Working Foundation
    • Wood cutting Vertical Band Saw Machine with Log Carriage & Working Foundation
    • Wood cutting Vertical Band Saw Machine with Log Carriage & Working Foundation
  • Wood cutting Vertical Band Saw Machine with Log Carriage & Working Foundation

    Product Details:

    Place of Origin: shandong province
    Brand Name: SH
    Certification: ISO
    Model Number: MJ329-M3000, MJ329-M5000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $7,990 - 12,000 / Set
    Packaging Details: container loading
    Delivery Time: within 20 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Condition: New Type: Vertical Band Saw
    Use: Woodworking Voltage: 380v,50HZ/3phase Or As Requested
    Power(W): 18.5KW Warranty: 12 Months
    After-sales Service Provided: Engineers Available To Service Machine Overseas Sawing Max. Diameter: 600mm
    Sawing Max. Length: 6meters Feeding Advance: Automatic

    Vertical Band Saw with Log Carriage & Working Foundation

    Technical data MJ329-M3000 MJ329-M5000
    Saw wheel diameter 900mm 900mm
    Maximum sawing log diameter 600mm 600mm
    Maximum sawing log length 4meters 6meters
    Main motor 18.5KW 18.5KW
    Carriage clip stake quantity 3sets 3sets
    Carriage running wheel quantity 2sets 3sets
    Carriage walking/advance Electric Electric
    Setting sawn size Electric CNC
    Log clamping mode Electric Electric
    Rail length 11meters 15meters
    Weight 4000kgs 5500kgs

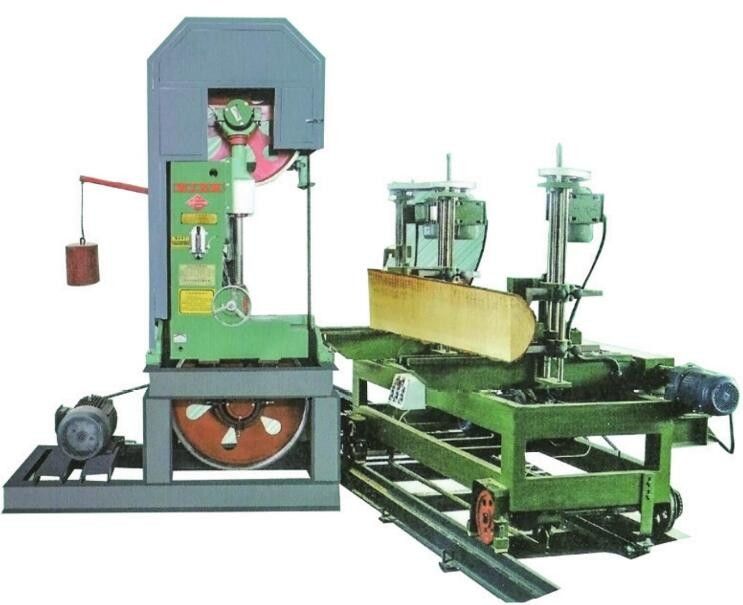

    Vertical Band Sawmill With CNC Log Carriage

    This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.





    Technical Parameter

    MJ3212-Z5000 MJ3212-Z3000 MJ3310-Z5000 MJ3310-Z3000



    Saw Wheel Diameter (MM)

    1250 1250 1070 1000



    Saw Wheel Speed RPM

    650 650 650 650



    Saw Blade Length (MM)

    8600 8600 7400 7400



    Saw Blade Width(MM)

    150 150 150 150



    Saw Clip Movement Motor( KW)

    0.75 0.75 0.75 0.75



    Saw Wheel Movement Motor( KW)

    0.75 0.75 0.75 0.75



    Main Motor Power( KW)

    37 37 30 30



    Carriage Clip Stake Quantity

    4 4 4 3



    Carriage Wheel Quantity

    3 3 3 2



    forward and backward

    Electric Electric Electric Electric



    Sawing Thickness Setting

    Electric Electric Electric Electric



    Max Sawing Wood Diameter(MM)

    1200 1200 1000 1000



    Max Sawing Wood Length(MM)

    6000 4000 6000 4000



    Track Length(MM)

    16000 12000 16000 12000



    Weight (KG)

    7200 6500 4900 4200

    Wood cutting Vertical Band Saw Machine with Log Carriage & Working FoundationWood cutting Vertical Band Saw Machine with Log Carriage & Working Foundation



    Platform Woodwork Band Saw

    Technical parameters MJ328 MJ329 MJ3210 MJ3310 MJ3212
    Diameter of saw wheel 800mm 900mm 1000mm 1070mm 1250mm
    Width of saw wheel 110mm 120mm 120mm 120mm 140mm
    Rotational speed of saw wheel 750r·p·m 750r·p·m 750r·p·m 750r·p·m 750r·p·m
    saw wheel, saw clip elevation Manual Manual Automatic Automatic Automatic
    Length of blade 5700mm 6400mm 6800mm 7400mm 8600mm
    Max. diameter of log sawed 650mm 750mm 900mm 1000mm 1200mm
    Main motor power 11kw 15kw 22kw 30kw 37kw
    weight 1000kg 1300kg 1600kg 1800kg 3200kg
    1,include Main motor power
    2,include band saw blade 1 Article
    3,include Iron-made safe protective casing
    4,include Manual lubrication system
    5,include Foundry work platform

    Wood cutting Vertical Band Saw Machine with Log Carriage & Working Foundation
