CNC Twin Vertical Band Saw sawmill equipment for cutting wood log into square timber

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SLS350, SLS500,SLSP400
Minimum Order Quantity 1 SET
Price US $16,000 - 50,000 / Set
Packaging Details container loading
Delivery Time within 25 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Twin Vertical Electric Band Saw Log Cutting Saw Machine Voltage 380V, 50HZ, 3PH Or As Customer Needs
Power(W) 2*18.5KW, 2*22KW Application Cut Four Side Of Log,produce Timber
Saw Wheel Diameter 700MM Max. Sawing Wood Diameter 500MM
Control CNC Digital Feeding Speed Variable Frequency Speed Adjustable
Conveoyor Length 3500mm X 2 Or As Customer Needs Application Hardwood And Softwood Logs
After-sales Service Video Technical Support, Spare Parts
Leave a Message
Product Description



TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed



Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks



Photos

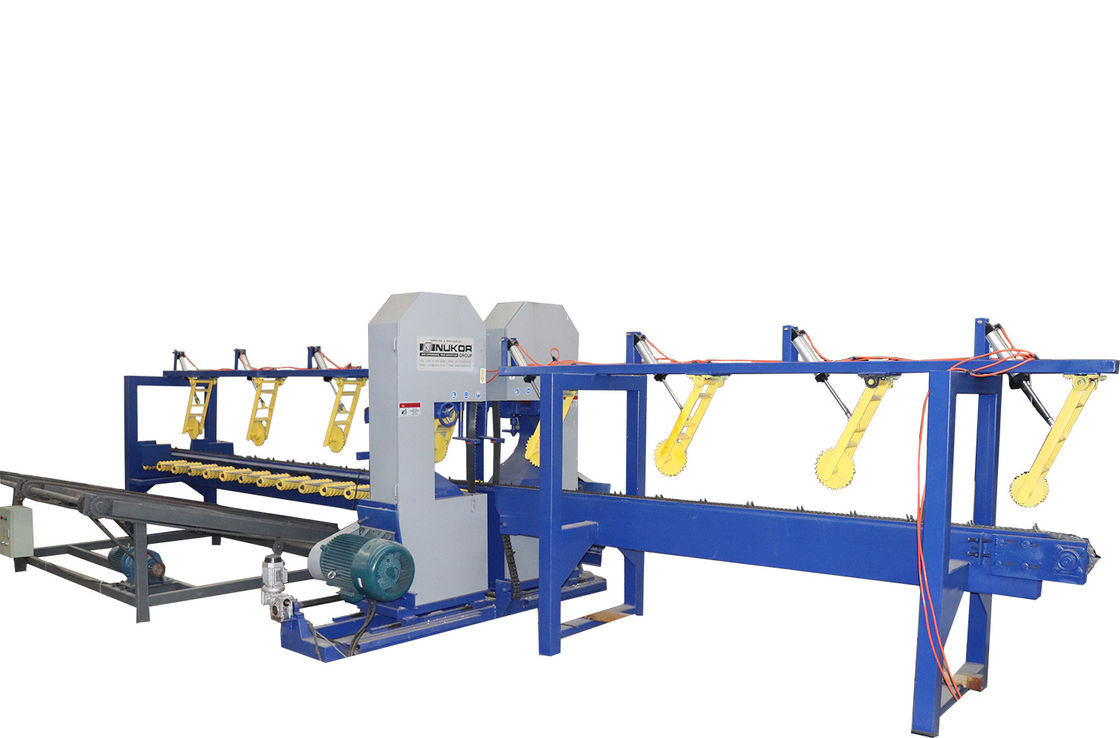

CNC Twin Vertical Band Saw sawmill equipment for cutting wood log into square timber 0

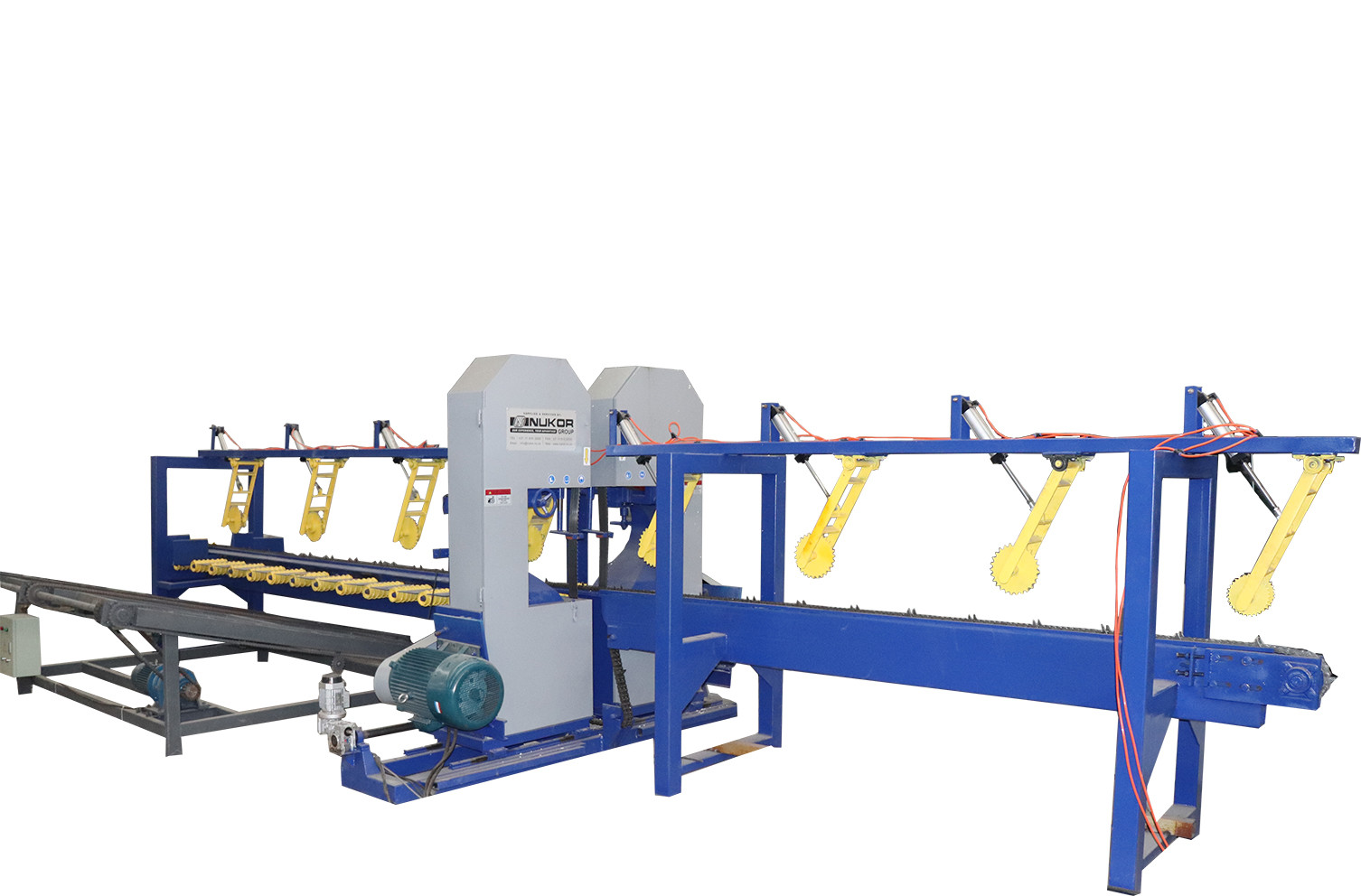

CNC Twin Vertical Band Saw sawmill equipment for cutting wood log into square timber 1

Related Saw Machine



Block Bandsaw/ Twin Vertical Band Saw (Flat bottom)
Designed to receive logs with at least one straight bottom, making two vertical cuts, removing a slab from each side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· Block 100% Square

· High-production continuous feed system.

· Production up to 4,000 m³ per month.

· Highly efficient use of wood, with the thinnest kerf on the market.

· Motorization and automatic electric panel included.

· Automatic feeding, inverter speed adjustable .



Technical data :

Model SLSP400
Maximum log diameter 400mm
Minimum log diameter 100mm
Wood length 1000~3000mm
Feed speed 9~25m/min
Conveyor length 7000mm
Bandwheel diameter 700mm
Blade width 50~80mm
Saw motor 18.5KW X 2
Feed motor 5.5kw
Weight 2500kg



Deatiled Image

CNC Twin Vertical Band Saw sawmill equipment for cutting wood log into square timber 2

CNC Twin Vertical Band Saw sawmill equipment for cutting wood log into square timber 3

Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.


Technical Parameter MJ3212-Z5000 MJ3212-Z3000 MJ3310-Z5000 MJ3310-Z3000
Saw Wheel Diameter (MM) 1250 1250 1070 1000
Saw Wheel Speed RPM 650 650 650 650
Saw Blade Length (MM) 8600 8600 7400 7400
Saw Blade Width(MM) 150 150 150 150
Saw Clip Movement Motor( KW) 0.75 0.75 0.75 0.75
Saw Wheel Movement Motor( KW) 0.75 0.75 0.75 0.75
Main Motor Power( KW) 37 37 30 30
Carriage Clip Stake Quantity 4 4 4 3
Carriage Wheel Quantity 3 3 3 2
forward and backward Electric Electric Electric Electric
Sawing Thickness Setting Electric Electric Electric Electric
Max Sawing Wood Diameter(MM) 1200 1200 1000 1000
Max Sawing Wood Length(MM) 6000 4000 6000 4000
Track Length(MM) 16000 12000 16000 12000
Weight (KG) 7200 6500 4900 4200

CNC Twin Vertical Band Saw sawmill equipment for cutting wood log into square timber 4CNC Twin Vertical Band Saw sawmill equipment for cutting wood log into square timber 5
