    Product Details:

    Place of Origin: shandong province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: SHYM200,SHYM250, SHYM300, SHYM350,SHYM400,SHYM450

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD3000-USD15000/set
    Packaging Details: wooden pallet or iron frame export pallet
    Delivery Time: within 20 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Name: Multi Ripsaw Condition: New
    Usage: Woodworking Type: Rip Saw
    Feeding Type: Auto Feeding Blade Arrange: Up/down
    Voltage: 380V/3phase/50HZ Or As Cusmer Needs Power: 22-45kw
    Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machine Overseas

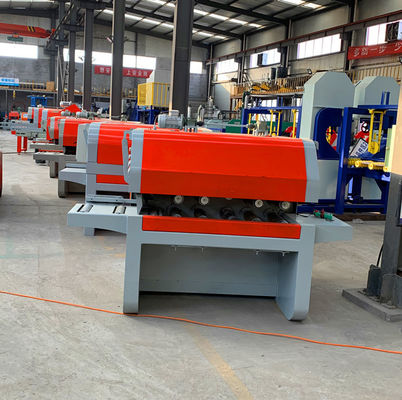

    Log Cutting Multiple Blade Ripsaw

    Multiple Blade Circular Sawmill Multiple Rip Saw Mill for Round Logs or Lumber Cutting

    Specifications:

    Model SHYM200 SHYM250 SHYM300
    Sawing log diameter 80-200mm 120-250mm 150-300mm
    Min sawing log length 600mm 600mm 600mm
    Blade cooling Shaft center spraying water to cool
    Main motor power 22KW X 2 30KW X2 37KW X2
    Feeding motor 1.5KW 1.5KW 2.2KW
    Saw blade diameter 305mm 355mm 405mm
    Weight 2000kg 2500kg 2800kg
    Model SHYM350 SHYM400 SHYM450
    Sawing log diameter 200-350mm 250-400mm 300-450mm
    Min sawing log length 600mm 600mm 600mm
    Cooling method Shaft center spraying water to cool
    Main motor power 45KW X2 55KW X 2 55KW X2
    Feeding motor 2.2KW 2.2KW 2.2KW
    Saw blade diameter 480mm 520mm 600mm
    Weight 3200kg 3500kg 3800kg

    Remarks:

    Main motor power can be changed as customer needs ;

    The multi ripsaw is with inverter auto feeding

    Multiple Blade Circular Sawmill Multiple Rip Saw Mill for Round Logs or Lumber Cutting

    Multiple Blade Circular Sawmill Multiple Rip Saw Mill for Round Logs or Lumber Cutting



    Double Spindle Panel Cutting Multiple Blade Rip Saw

    Multiple Blade Circular Sawmill Multiple Rip Saw Mill for Round Logs or Lumber Cutting

    Specifications:

    Model SH80-300 SH120-250 SH160-250
    Max. sawing width 300mm 250mm 250mm
    Max. sawing thickness 80mm 120mm 160mm
    Min sawing length 600mm 500mm 500mm
    Motor power 15kw x2 22kw x2 30kw x2
    Saw blade diameter 180mm 230mm 255mm
    Machine weight 1200kg 1800kg 2000kg
    Model SH120-300 SH160-300 SH160-400
    Max. sawing width 300mm 300mm 400mm
    Max. sawing thickness 120mm 160mm 160mm
    Min sawing length 600mm 600mm 600mm
    Motor power 22kw x2 30kw x2 37kw x2
    Saw blade diameter 230mm 280mm 280mm
    Machine weight 2500kg 2800kg 3000kg
    Feeding Variable frequency speed adjustable automatic feeding
    Cooling blade Spindle center water cooling blade

    Multiple Blade Circular Sawmill Multiple Rip Saw Mill for Round Logs or Lumber Cutting

    Multiple Blade Circular Sawmill Multiple Rip Saw Mill for Round Logs or Lumber CuttingMultiple Blade Circular Sawmill Multiple Rip Saw Mill for Round Logs or Lumber Cutting
