Detail Information

Name:	Wood Vertical Band Saw Machine	Use:	Woodworking
Voltage:	380V, 50HZ, 3PH Or As Customer Needs	Power(W):	218.5KW-222KW
Application:	Cut Four Side Of Log,produce Cants Or Square Wood	Saw Wheel Diameter:	700mm
Max. Sawing Wood Diameter:	500MM	Control:	CNC Digital
Feeding Speed:	Variable Frequency Speed Adjustable	Warranty:	12 Months
Highlight:	twin heads industrial sawmill , log processing band saw , industrial twin band sawmill

Product Description

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical data	SLS350	SLS500
Maximum log diameter	350mm	500mm
Minimum log diameter	100mm	100mm
Wood length	1000 to 3000mm	1000 to 3000mm
Feed speed	9-25m/min (inverter)	9-25m/min (inverter)
Conveyor length	7000mm	3500mm x 2
Band wheel diameter	700mm	760mm
Width of saw blade	50-80mm	50-100mm
Length of saw blade	4850	5200mm
Thickness of saw blade	0.9mm	0.9mm
Saw motor	2x18.5kw	2x22kw
Feed motor	5.5kw	4kw x 2
Sawn sizing control	Touching screen auto setworks	Touching screen auto setworks

Photos

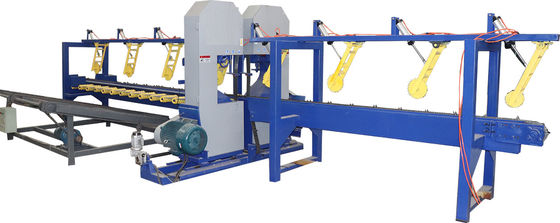

Twin Heads Industrial Saw Mills, Log Processing Euipment Twin Band Saw 0

Twin Heads Industrial Saw Mills, Log Processing Euipment Twin Band Saw 1

Block Bandsaw/ Twin Vertical Band Saw (Flat bottom)
Designed to receive logs with at least one straight bottom, making two vertical cuts, removing a slab from each side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· Block 100% Square

· High-production continuous feed system.

· Production up to 4,000 m³ per month.

· Highly efficient use of wood, with the thinnest kerf on the market.

· Motorization and automatic electric panel included.

· Automatic feeding, inverter speed adjustable .

Technical data :

Model	SLSP400
Maximum log diameter	400mm
Minimum log diameter	100mm
Wood length	1000~3000mm
Feed speed	9~25m/min
Conveyor length	7000mm
Bandwheel diameter	700mm
Blade width	50~80mm
Saw motor	18.5KW X 2
Feed motor	5.5kw
Weight	2500kg

Deatiled Image

Twin Heads Industrial Saw Mills, Log Processing Euipment Twin Band Saw 2
Automatic Twin Band Saw Production Line

Twin Heads Industrial Saw Mills, Log Processing Euipment Twin Band Saw 3

We can also do bigger model as customer needs .

Related Saw Machine - slabs cutting saw

Specifications:

Model Specifications	BPJ200	BPJ250	BPJ300
Cutting width (mm)	200	250	300
Cutting height	100mm	100mm	150mm
Motor power (KW)	7.5kw x 2	7.5kw x 2	11kw x 2
Feeding	Frequency variable auto feeding
Circular blade diameter	305(mm)	355(mm)	405(mm)
Weight (kg)	480	600	750
Overall size	1450x1150x1400mm	1450x1200x1400mm	1750x1250x1550mm

Photos :

Twin Heads Industrial Saw Mills, Log Processing Euipment Twin Band Saw 5

Twin Heads Industrial Saw Mills, Log Processing Euipment Twin Band Saw 6

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SLS350, SLS500

Minimum Order Quantity:	1 SET
Price:	US $12,500 - 18,000 / Set
Packaging Details:	container loading
Delivery Time:	within 20 working days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/Year
