Shandong Wood Crusher Wood Shaving Blade Shavings Making Machine

Shandong Wood Crusher Wood Shaving Blade Shavings Making Machine

    • Shandong Wood Crusher Wood Shaving Blade Shavings Making Machine
    • Shandong Wood Crusher Wood Shaving Blade Shavings Making Machine
    • Shandong Wood Crusher Wood Shaving Blade Shavings Making Machine
    • Shandong Wood Crusher Wood Shaving Blade Shavings Making Machine
    • Shandong Wood Crusher Wood Shaving Blade Shavings Making Machine
    • Shandong Wood Crusher Wood Shaving Blade Shavings Making Machine
  • Shandong Wood Crusher Wood Shaving Blade Shavings Making Machine

    Product Details:

    Place of Origin: Shandong province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: SHBH500-2,SHBH500-4,SHBH500-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: US $3,900 - 15,800 / Set
    Packaging Details: iron frame packing
    Delivery Time: within 15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Name: Wood Shaving Machine,Profession Wood Shaving Machine For Animal Bedding Poultry Farm Condition: New
    Application: Cut The Wood Into Shavings Making Bed For Animal Production Capacity: 500-1500kg/hour
    Voltage: 380V, 3PHASE/50HZ Or As Customer Needs Max.processing Wood Length: 1400mm
    Warranty: 1 Year Shaft Quantity: 2-6pcs
    Blade Quantity: 8pcs To 24pcs Keywords: Wood Shaving Machine,Wood Log Shaver,shaving Mill
    Raw Materials: Wood Logs Branch Waste Plate Material

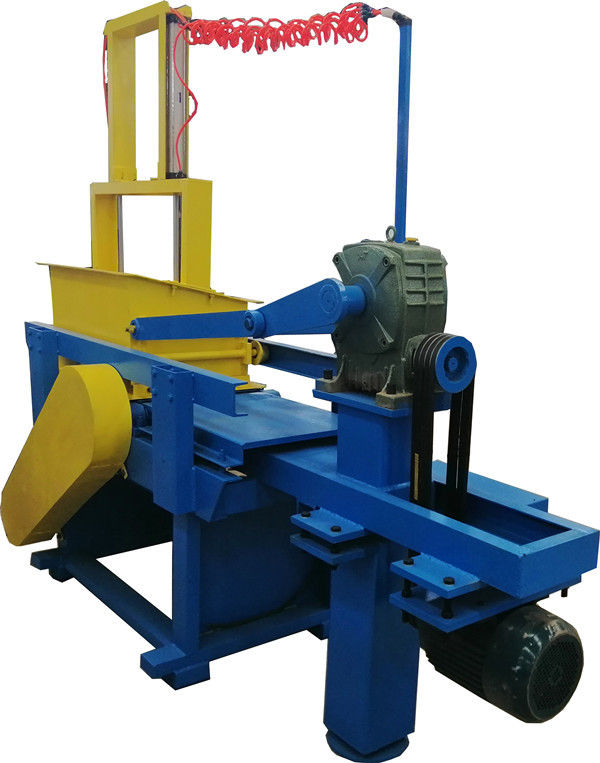

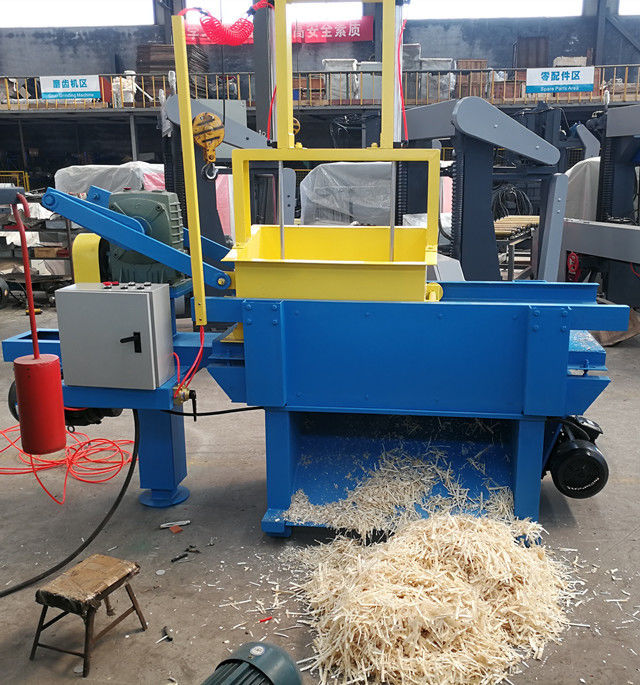

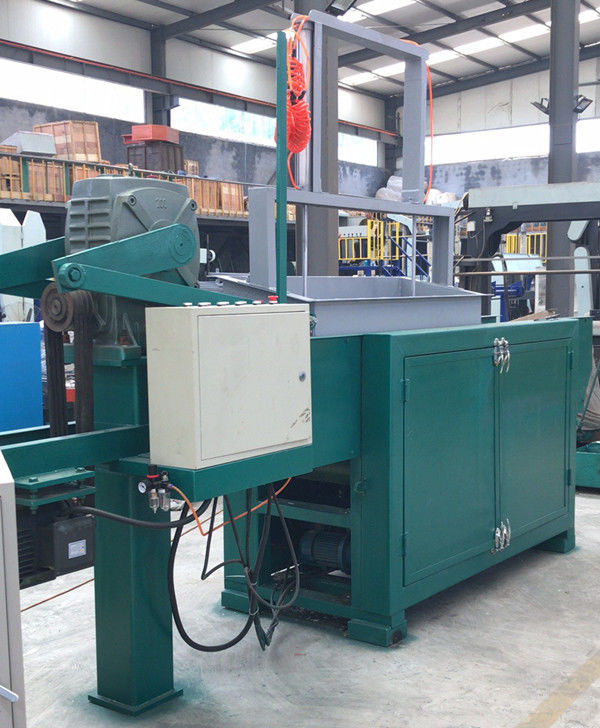

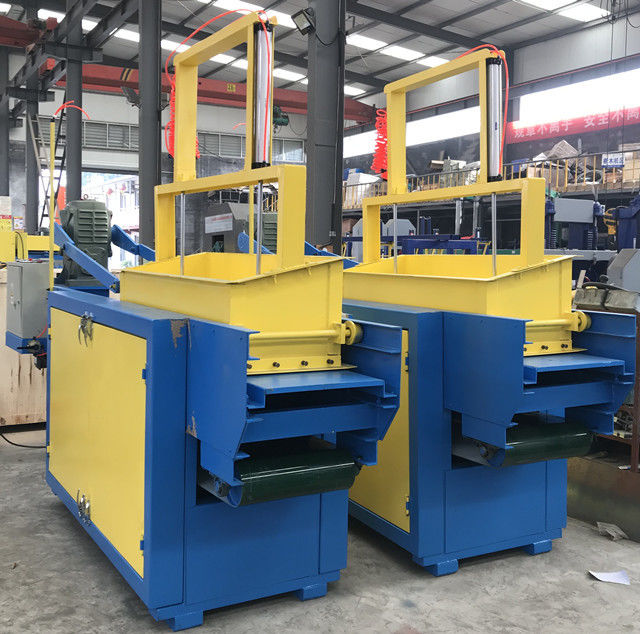

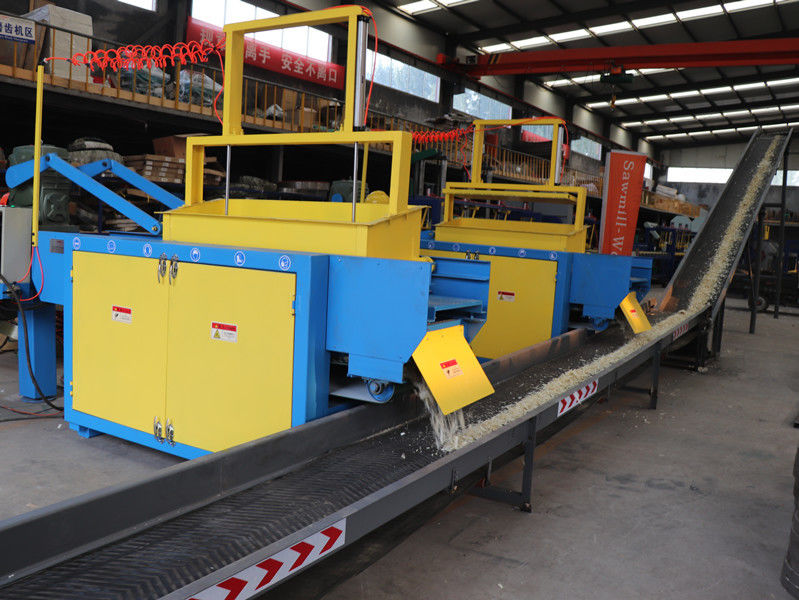

    Wood Shaving Machine
    Process wood sticks,twigs,branches,wood scraps into shaving.
    Adjust the size and thickness of the wood shaving.
    It is the material for Plywood,furniture or paper factory.
    Add as filler to prevent damage when transport some fragile items.
    Use as nest shavings filler in poultry or animal breeding.
    Bio-energy ignition material.



    Working video link : https://youtu.be/hYl98MumWqI

    video link : https://youtu.be/Ls9bCIdzzpU



    Technical Specifications:



    Model SHBH500-2 SHBH500-4 SHBH500-6
    Processing wood max. length(mm) 800 1400 1400
    Processing max. width/diameter(mm) 500 500 500
    Shaft quantity 2 4 6
    Blade (pcs) 8 16 24
    Motor speed (rpm) 3500 3500 3500
    Bin length (mm) 800 1400 1400
    Total Motor power (kw) 10.5KW 23.25KW 30.75KW
    Shaving depth (mm) 0.2-1 0.2-1 0.2-1
    Shavings output 500KG/H 1000KG/H 1500KG/H
    Machine weight 950kgs 1800kgs 2200kgs
    1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;
