Home > Products> Wood Debarker> New design log bark debarking machine pto driven wood log debarker ring type wood debarker

New design log bark debarking machine pto driven wood log debarker ring type wood debarker

New design log bark debarking machine pto driven wood log debarker ring type wood debarker
New design log bark debarking machine pto driven wood log debarker ring type wood debarker
New design log bark debarking machine pto driven wood log debarker ring type wood debarker New design log bark debarking machine pto driven wood log debarker ring type wood debarker New design log bark debarking machine pto driven wood log debarker ring type wood debarker New design log bark debarking machine pto driven wood log debarker ring type wood debarker New design log bark debarking machine pto driven wood log debarker ring type wood debarker New design log bark debarking machine pto driven wood log debarker ring type wood debarker
Basic Information
Place of Origin: shandong province
Brand Name: SH
Certification: ISO9001
Model Number: SHBP6000, SHBP9000,etc
Minimum Order Quantity: 1 SET
Price: US $4,800 - 15,000 / Set
Packaging Details: luo packings
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight
Supply Ability: 200 Set/Sets per Month
Get Best Price Contact Now
Detail Information
Condition: New Spindle Speed: 1500
Wood Diameter Range: 5cm-35cm Peeling Rate: 99.9%
Wood Loss Rate: 0.5% Wood Length Range: 12000mm
Dimension(L*W*H): 9000*1500*1700mm Weight: 5000KG
After-sales Service Provided:: Engineers Available To Service Machine Overseas
Highlight:

PTO driven wood debarker

,

ring type log debarker

,

new design log bark machine

Product Description

Wood Tree Debarking Peeling Log Debark Remove Bark Machine,Wood Debarkers



Single Roll Log Debarker

Introduction:

  • The log debarker machine is used to take off the skins of round logs .
  • Processing log max. diameter : 320mm
  • Processing log max. length: 9meters
  • Peeling rate:98%

Specification:

Model SHBP6000 SHBP9000
Capacity Ton/Hour 5-10 10-15
Motor Power 37KW 45KW
Log Diameter 15-320mm 15-320mm
Debarking Rate 98% 98%
Max Log Length 6000mm 9000mm
Weight 4000kg 5000kgs

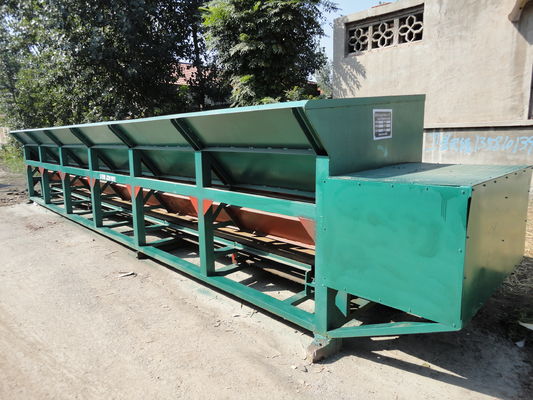

New design log bark debarking machine pto driven wood log debarker ring type wood debarker 0



Double Rolls Log Debarker

Model SHBPD4500 SHBPD6000 SHBPD9000
Capacity TON/HOUR 3-6 5-10 10-15
Motor Power 7.5kw*2 11*2 15*2
Log Diameter 50-250mm 50-250mm 50-250mm
Debarking Rate 98% 98% 98%
Max Log Length 4500mm 6000mm 9000mm
Overall Size 5.8*1.6*2m 7.5*1.6*2m 11*1.6*2m
Weight 4500kgs 5200kgs 6500kgs

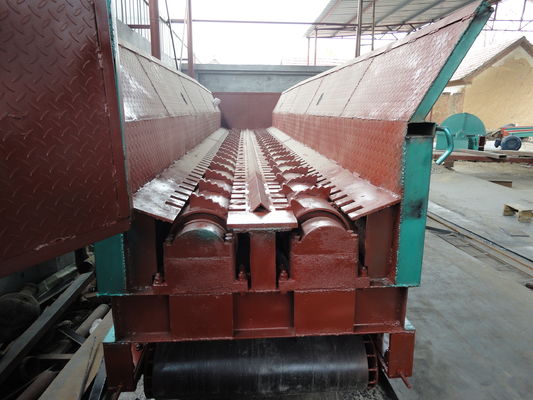

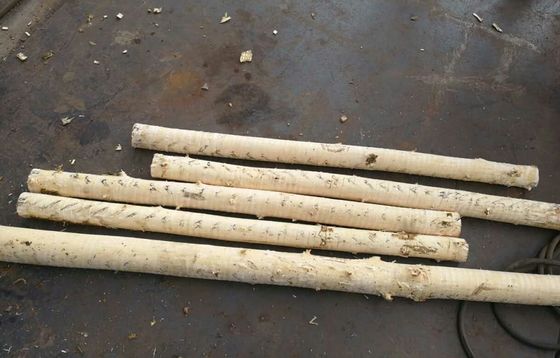

New design log bark debarking machine pto driven wood log debarker ring type wood debarker 1New design log bark debarking machine pto driven wood log debarker ring type wood debarker 2



Related Products

Wood Shaving Machine

Technical Specifications:



Model SHBH500-2 SHBH500-4 SHBH500-6
Processing wood max. length(mm) 800 1400 1400
Processing max. width/diameter(mm) 500 500 500
Shaft quantity 2 4 6
Blade (pcs) 8 16 24
Motor speed (rpm) 3500 3500 3500
Bin length (mm) 800 1400 1400
Total Motor power (kw) 10.5KW 23.25KW 30.75KW
Shaving depth (mm) 0.2-1 0.2-1 0.2-1
Shavings output 500KG/H 1000KG/H 1500KG/H
Machine weight 950kgs 1800kgs 2200kgs

1,With one set of blades includes;

2, with pneumatic capping included, which can improve working capacity;



Detailed Images:

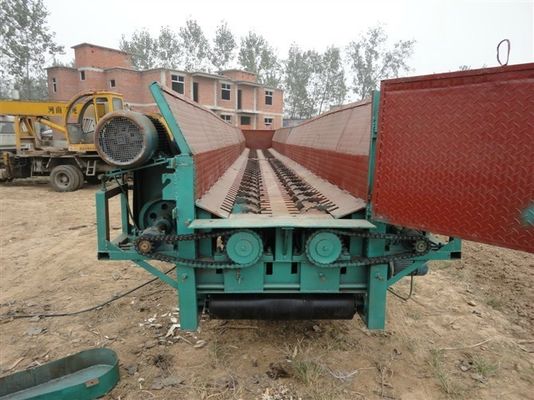

New design log bark debarking machine pto driven wood log debarker ring type wood debarker 3

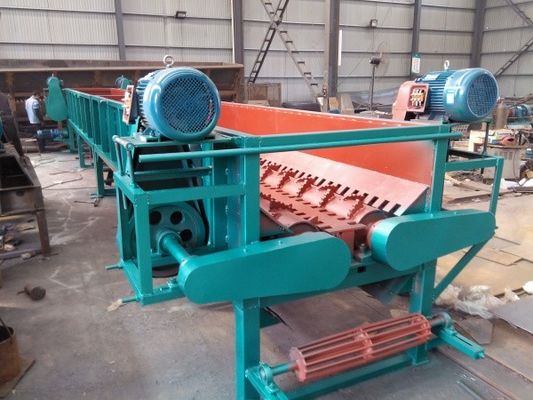

New design log bark debarking machine pto driven wood log debarker ring type wood debarker 4

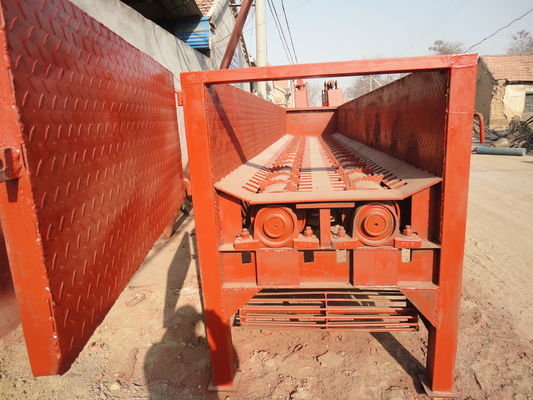

New design log bark debarking machine pto driven wood log debarker ring type wood debarker 5New design log bark debarking machine pto driven wood log debarker ring type wood debarker 6



Wood Wool Machine

Technical Data



Model

 SHMS500-1 SHMS500-2



Processing Log Length
 300-500mm 300-500mm

Max Processing Log Diameter
 160mm 160mm x 2pcs



Blade Quantity
 2 2

Excelsior Width
 1mm-10mm 1mm-10mm



Excelsior Thickness
 0.1mm-1mm 0.1mm-1mm

Excelsior Length
 300-500mm 300-500mm

Total Motor Power
 9kw 16.5KW

Production Capacity
 50-100kg/hour 100-150KG/Hour



Detailed Image

Model SHMS500-2

New design log bark debarking machine pto driven wood log debarker ring type wood debarker 7

New design log bark debarking machine pto driven wood log debarker ring type wood debarker 8

Wood Chipper



New design log bark debarking machine pto driven wood log debarker ring type wood debarker 9New design log bark debarking machine pto driven wood log debarker ring type wood debarker 10
