Automatic Round log cutting Multi Blade Circular Rip Saw Production Line

Automatic Round log cutting Multi Blade Circular Rip Saw Production Line

    • Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
    • Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
    • Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
    • Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
    • Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
    • Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
  • Automatic Round log cutting Multi Blade Circular Rip Saw Production Line

    Product Details:

    Place of Origin: shandong province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: SHYM300, SHYM350,SHYM400,SHYM450,SHYM500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $5,000-150,000 / Set
    Packaging Details: luo packings
    Delivery Time: within 30 days
    Payment Terms: T/T or L/C at sight
    Supply Ability: 100sets/year
    Contact Now
    Detailed Product Description
    Application: Processing Round Logs Sawing Log Max. Diameter: 500mm Or As Customer Needs
    Sawing Log Length: 3meters Or As Customer Needs Operation: Automatic
    Electric Voltage: 380v/3phase Or As Customer Needs Guarantee: 1year

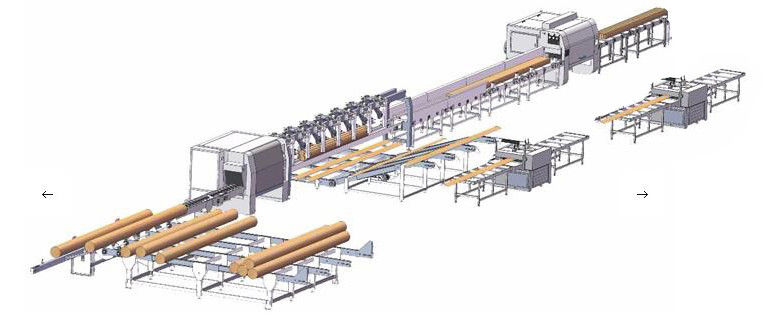

    Multi Blades Ripsaw Production Line

    For Log Diameter 500MM,Length: 3meters

    Design: Automatic operation



    Specification:



    Log Loading Deck
    Log Length 4000mm
    Width 2000mm
    Feeding Speed Variable Frequency Speed Adjustable
    Motor 5.5KW
    Feeding Speed frequency speed adjustable
    Feeding Pneumatic
    Feeding Model Chain
    Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
    Log Rotation And Feeding Belt
    Log Length 4000mm
    Feeding Model Variable Frequency Speed Adjustable
    Feeding Speed

    frequency speed adjustable

    3KW*2

    Motor Power
    Control Model Remote Control
    Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
    SLS500 Muti blades ripsaw for logs
    Max Cutting Log Diameter 500mm
    Min Cutting Log Diameter 200mm
    Log Length 800-3000mm
    Cutting Speed 9-25m/min
    Motor Power 75KW *2
    Centralise Model Touch Screen Digital Control
    Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
    Automatic Rotation Centralise Roller Conveyor
    Conveyor Length 6000mm
    Conveyor Width 1000mm
    Motor Power 2.2KW
    Centralise Model Pneumatic

    200-400 Heavy duty Log Cutting Multiple Blades Sawmill
    max. sawing width 400mm
    Max. sawing thickness 200mm
    sawing speed 10-25m/min
    Main Motor power 45KW*2
    Feeding Motor 2.2KW
    Saw Blade Quantity 2-10 pieces
    Saw Blade Diameter 355mm
    Variable Frequency Speed Adjustable Feeding,
    Axles Center Water Cooling System,
    Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
    Slab Slope Conveyor
    Length 3000mm
    Width 2500mm
    Motor 2.2KW
    Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
    BP300重型 Slab Cutting Multiple Blades Horizontal Circular Saw
    Max Cutting Width 300mm
    Max. sawing thickness 80mm
    feeding frequency speed adjustable
    Motor 15KW*2
    Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
    500 High Speed Multiple Blade Rip Sawmill
    Max Cutting Plank Width 500mm
    Max Cutting Plank Thickness 50mm
    Circular Saw Blade Quantity 1-3 Pieces
    Motor Power 22kw
    Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
    Conveyor Belt
    160-400 Conveyor Belt 600mm*6000mm,3KW
    BP300 Conveyor Belt 600mm*6000mm,3KW
    CB500 Conveyor Belt 600mm*6000mm,3KW

    Automatic Round log cutting Multi Blade Circular Rip Saw Production LineAutomatic Round log cutting Multi Blade Circular Rip Saw Production Line

    Automatic Round log cutting Multi Blade Circular Rip Saw Production Line
