Place of Origin: | Shandong Province, China |
---|---|
Brand Name: | SH |
Certification: | ISO9001 |
Model Number: | 2 heads, 3 heads, 5 heads, 6heads |
Minimum Order Quantity: | 1 SET |
Price: | US $12,000 - 36,000 / Set |
Packaging Details: | container loading |
Delivery Time: | within 20 days |
Payment Terms: | T/T or L/C at sight, Western Union |
Supply Ability: | 1000sets/year |

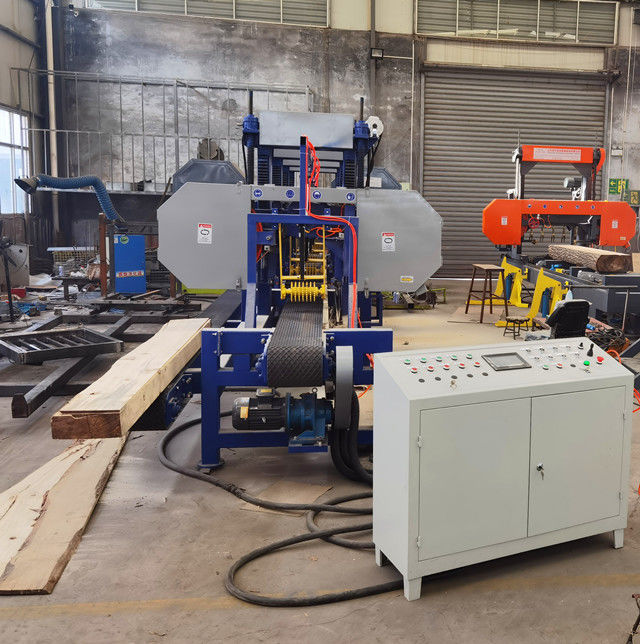

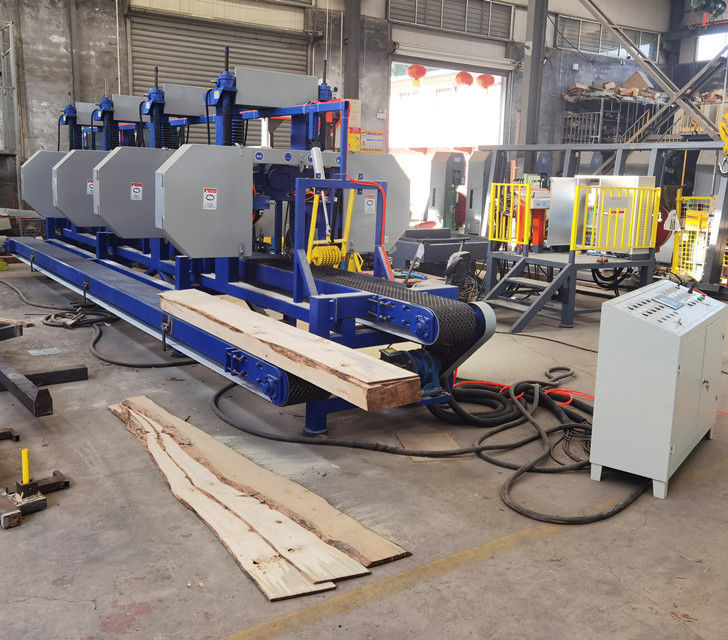

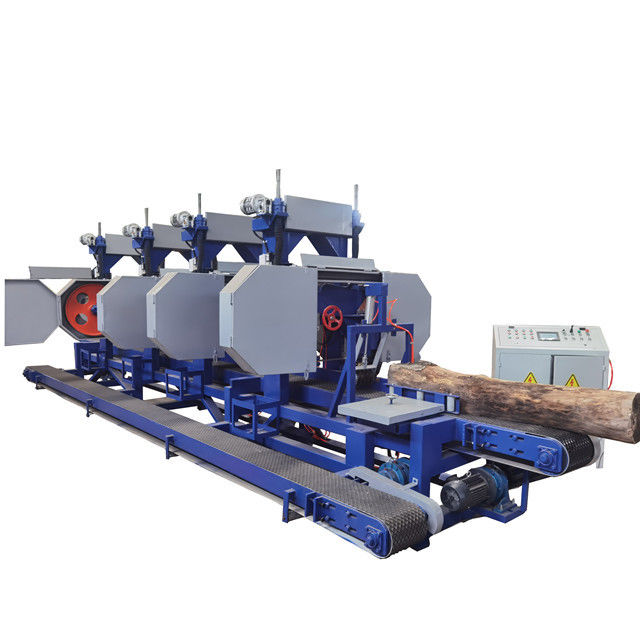

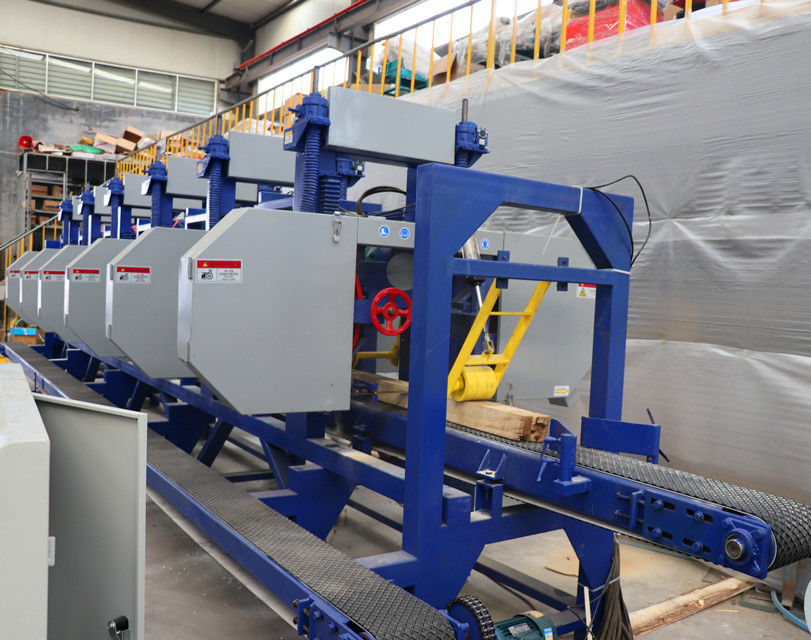

Name: | Multiple Head Horizontal Band Resaw Machine | Condition: | New |
---|---|---|---|
Type: | Band Saw | Application: | Wood Cutting,woodworking |
Applicable Industries: | Manufacturing Plant,woodworking | Weight: | 900 To 4000kgs |
Color: | Customer Actual Requirements | Warranty: | 12 Months |
Highlight: | horizontal band resaw machine,multiple heads band sawmill,industrial band sawmill equipment |
This machine is invented by our company.It is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
Technical specifications | DT300-1 | DT300-2 | DT300-3 | DT300-5 | DT300-6 |
Sawing width | 300mm | 300mm | 300mm | 300mm | 300mm |
Minimum wood thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
Maximum wood height | 260mm | 260mm | 260mm | 260mm | 260mm |
Band wheel diameter | 700mm | 700mm | 700mm | 700mm | 700mm |
Saw motor | 15kw | 15kw x 2 | 15kw x 3 | 15kw x 5 | 15kw x 6 |
Saw machine length | 3500mm | 4500mm | 5800mm | 8500mm | 11000 |
Weight | 900kg | 1500kg | 2200kg | 3500kg | 5000kg |
Feeding | Variable frequency speed adjustable conveyor | ||||
Operation | Touching screen auto setworks for sawn thickness |
