Dia 20mm-320mm Wood Debarker 37Kw Tree Debarking Equipment
Place of Origin | Shandong Province, China |
---|---|
Brand Name | SH |
Certification | ISO9001 |
Model Number | SHBP6000, SHBP9000,etc |
Minimum Order Quantity | 1 SET |
Price | US $4,800 - 15,000 / Set |
Packaging Details | luo packings |
Delivery Time | within 15 days |
Payment Terms | T/T or L/C at sight |
Supply Ability | 200 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Wood Debarkers | Spindle Speed | 650r.min |
---|---|---|---|
Wood Diameter Range | 20-320mm | Peeling Rate | 98% |
Wood Loss Rate | 2% Wood Log Debarker | Wood Length Range | Over 1400mm |
Main Motor Power | 37kw, 45kw, Etc | Usage | Removing Tree Skins Of Logs |
After-sales Service Provided | Video Technical Support,Online Support,Free Spare Parts | ||
High Light | Dia 20mm Wood Debarker,320mm Wood Debarker,37Kw Tree Debarking Equipment |
Wood Ring Debarker Machine Wood Tree Debarker For Sale, Log debarking Machine
Single Roll Log Debarker
Introduction:
- The log debarker machine is used to take off the skins of round logs .
- Processing log max. diameter : 320mm
- Processing log max. length: 9meters
- Peeling rate:98%
Specification:
Model | SHBP6000 | SHBP9000 |
Capacity Ton/Hour | 5-10 | 10-15 |
Motor Power | 37KW | 45KW |
Log Diameter | 15-320mm | 15-320mm |
Debarking Rate | 98% | 98% |
Max Log Length | 6000mm | 9000mm |
Weight | 4 | 5 |
Double Rolls Log Debarker
Model | SHBPD4500 | SHBPD6000 | SHBPD9000 |
Capacity TON/HOUR | 3-6 | 5-10 | 10-15 |
Motor Power | 7.5kw*2 | 11*2 | 15*2 |
Log Diameter | 50-250mm | 50-250mm | 50-250mm |
Debarking Rate | 98% | 98% | 98% |
Max Log Length | 4500mm | 6000mm | 9000mm |
Overall Size | 5.8*1.6*2 | 7.5*1.6*2 | 11*1.6*2 |
Weight | 4 | 4 | 5 |
Ring Type Log Debarker
Model | SHHB220 | SHHB260 | SHHB320 |
Blade Disk Diameter | 560MM | 560MM | 560MM |
Blade Quantity | 4 | 4 | 4 |
Log Diameter | 60-220MM | 100-260MM | 150-320MM |
Feeding Speed M/MIN | 8.3 | 8.3 | 8.3 |
Debarking Rate | 98% | 98% | 98% |
Motor Power | 6.2KW | 6.2KW | 6.2KW |
Related Products
Wood Shaving Machine
Technical Specifications:
Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
Processing wood max. length(mm) | 800 | 1400 | 1400 |
Processing max. width/diameter(mm) | 500 | 500 | 500 |
Shaft quantity | 2 | 4 | 6 |
Blade (pcs) | 8 | 16 | 24 |
Motor speed (rpm) | 3500 | 3500 | 3500 |
Bin length (mm) | 800 | 1400 | 1400 |
Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
Shaving depth (mm) | 0.2-1 | 0.2-1 | 0.2-1 |
Shavings output | 500KG/H | 1000KG/H | 1500KG/H |
Machine weight | 950kgs | 1800kgs | 2200kgs |
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; |

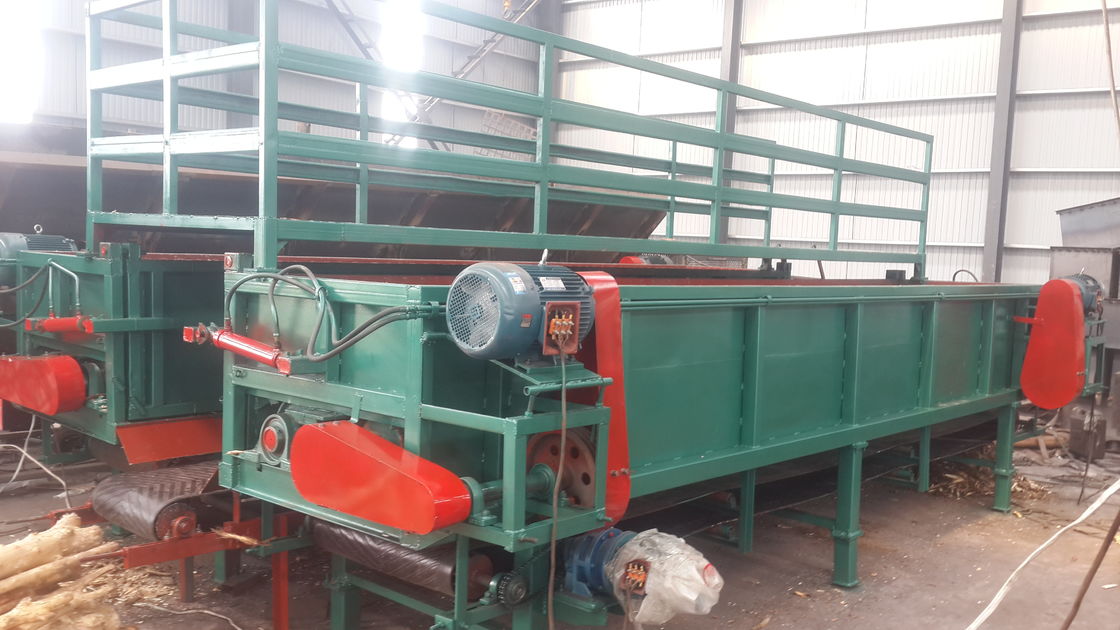

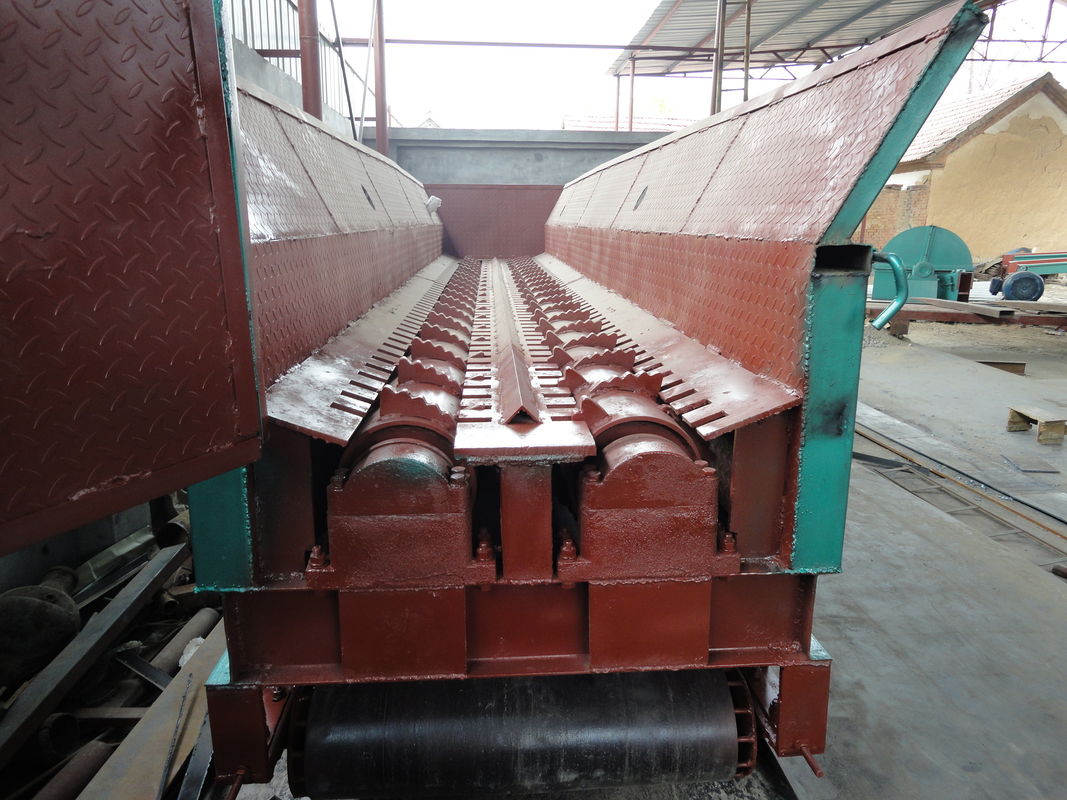

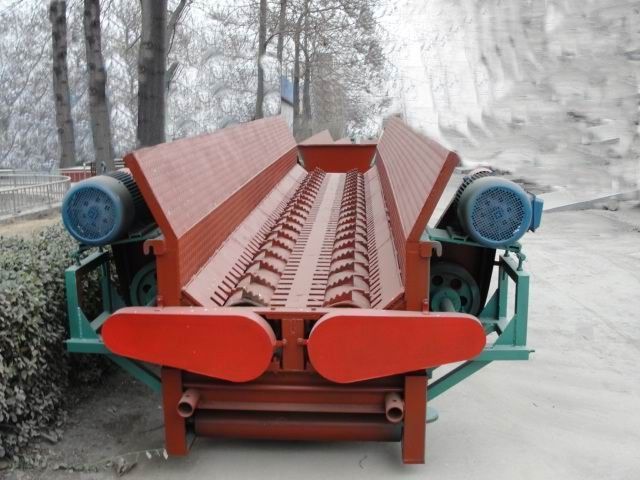

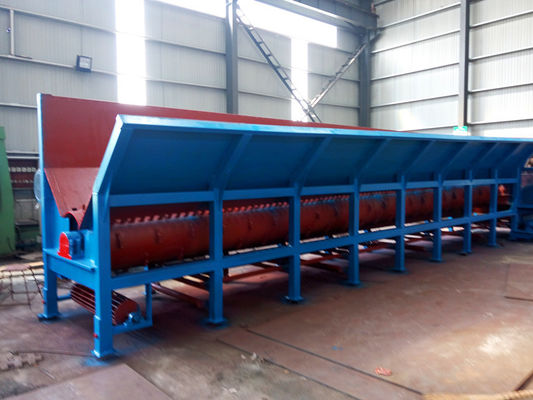

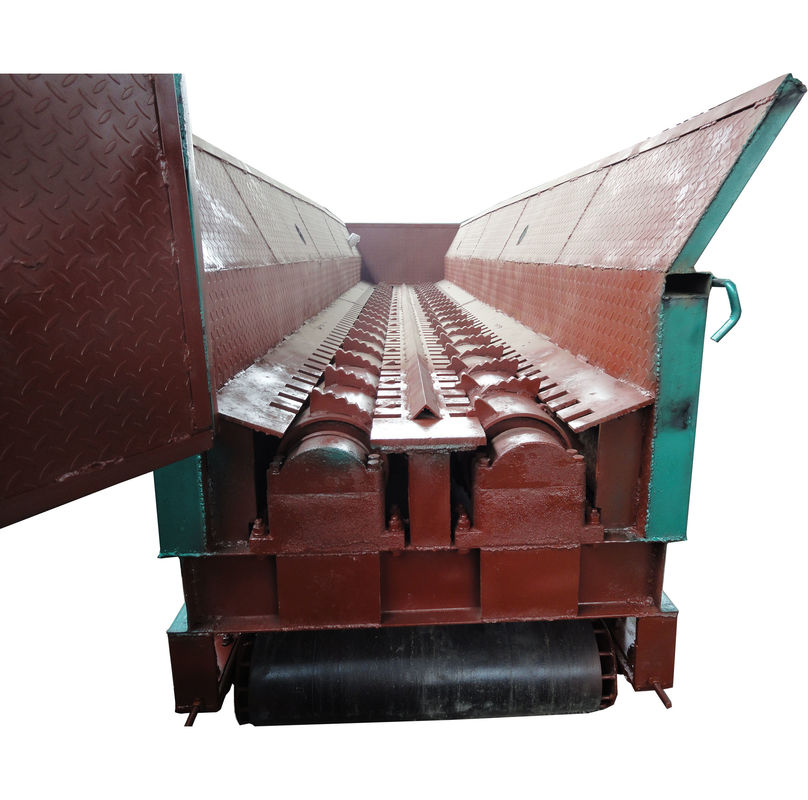

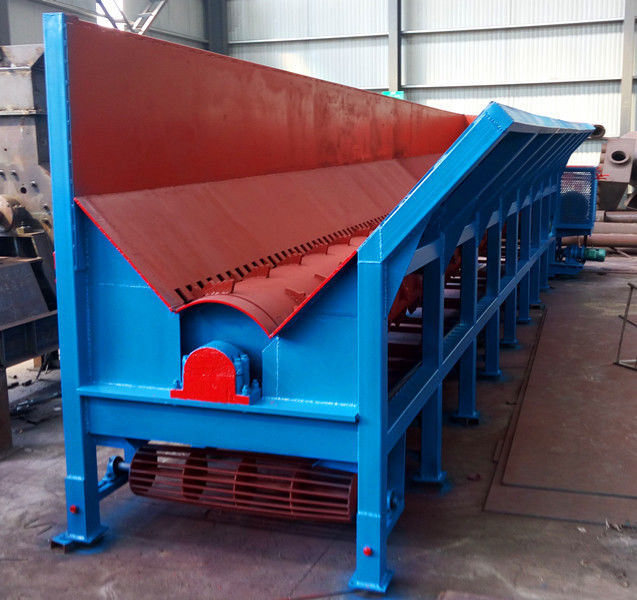

Detailed Images:
