double edge trimming machine, double edger trimming saw with auto feeding

Basic Information

Place of Origin:	shandong province
Brand Name:	SH
Certification:	ISO9001
Model Number:	EG600A

Minimum Order Quantity:	1 SET
Price:	US $4,200 - 9,000 / Set
Packaging Details:	iron made frame pallet
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets per year

Get Best Price Contact Now

Detail Information

Condition:	New	Name:	Twin Blade Board Edger
Motor Power:	15KW Electric Engine	Feeding Speed:	20-25m/minute
Blade Diameter:	350mm	Usage:	Cutting Both Edges Of Wood Boards

Product Description

Twin Blades Wood Board Edger/border cutting machine

1. Twin circular blades saw.

2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.

3. With tyres, moveable usage is workable

4. The saw blade moves with infrared light and moves at the same time .

https://youtu.be/f9dqaVCXnfg

Technical data :

Technical parameters	EG600A
cutting max. width	600mm
cutting min. width	50mm
sawn max. thickness	70mm
sawn min. thickness	10mm
Blade	2*350mm
Feeding method	Automatic feeding conveyor
Feed Rate	20-25m/ minute
Power	15KW electric motor
Positioning	Infrared line
Machine weight	800KG
Remarks: One blade is fixed and another blade is movable. Can cut both sides at same time. Mobile wheels are workable

Photos:

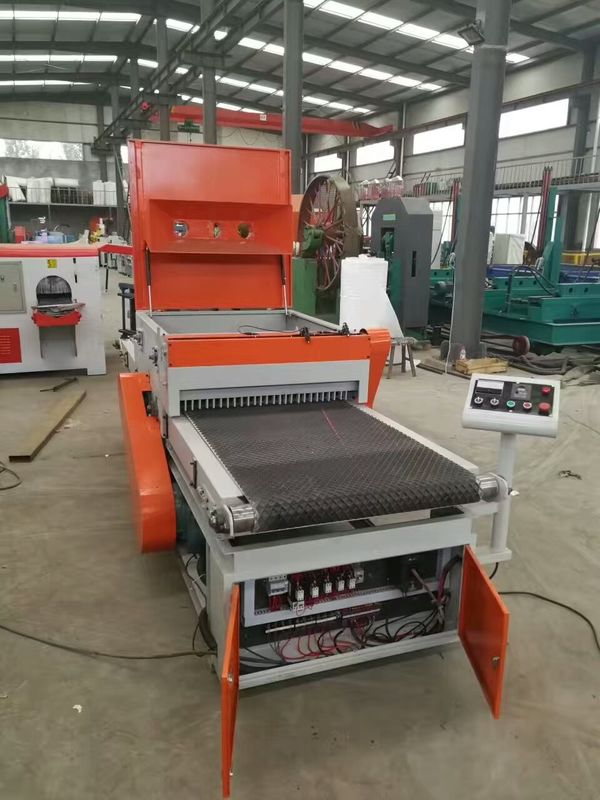

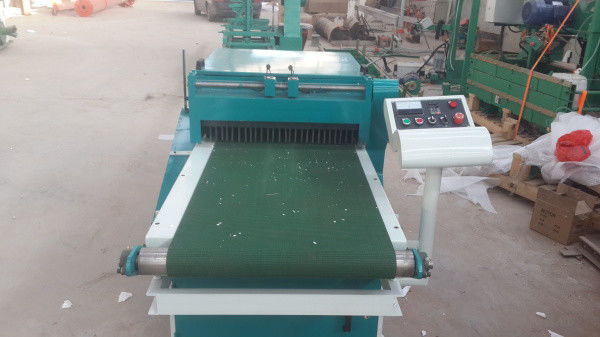

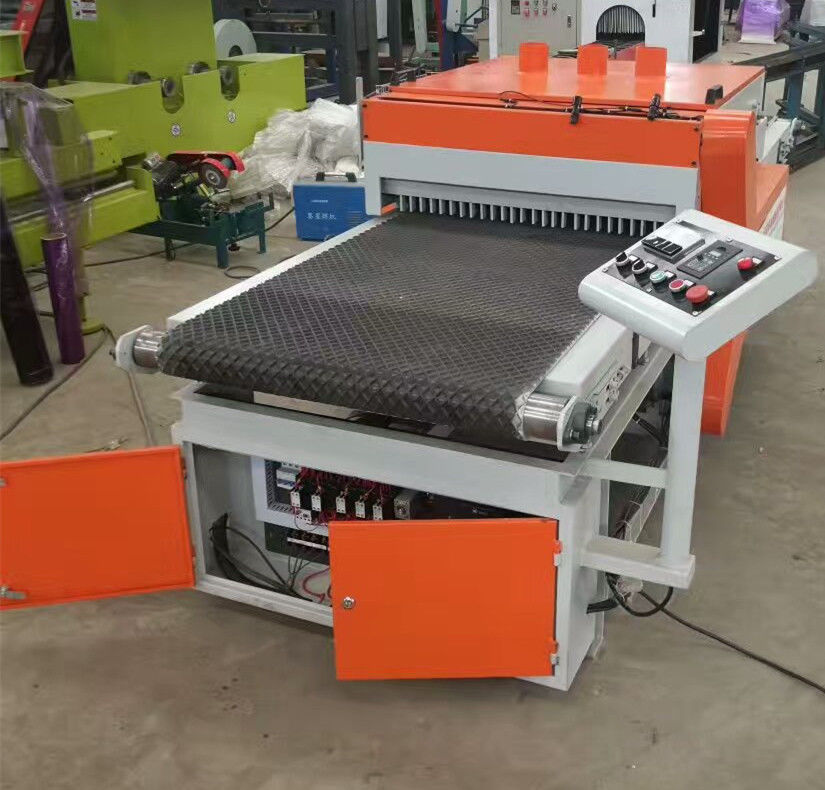

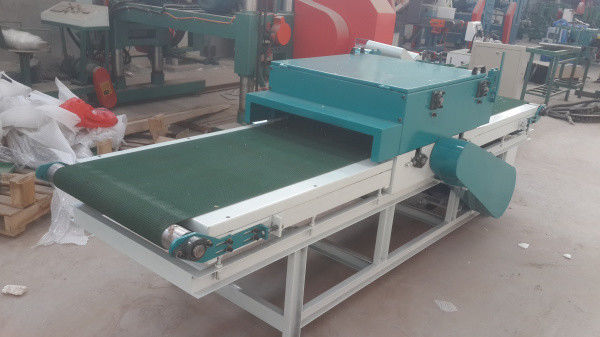

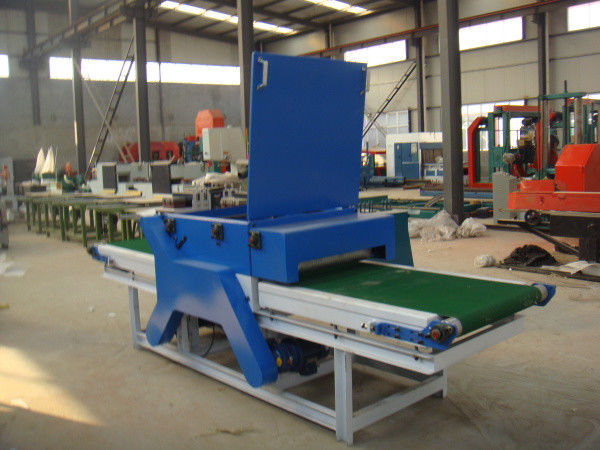

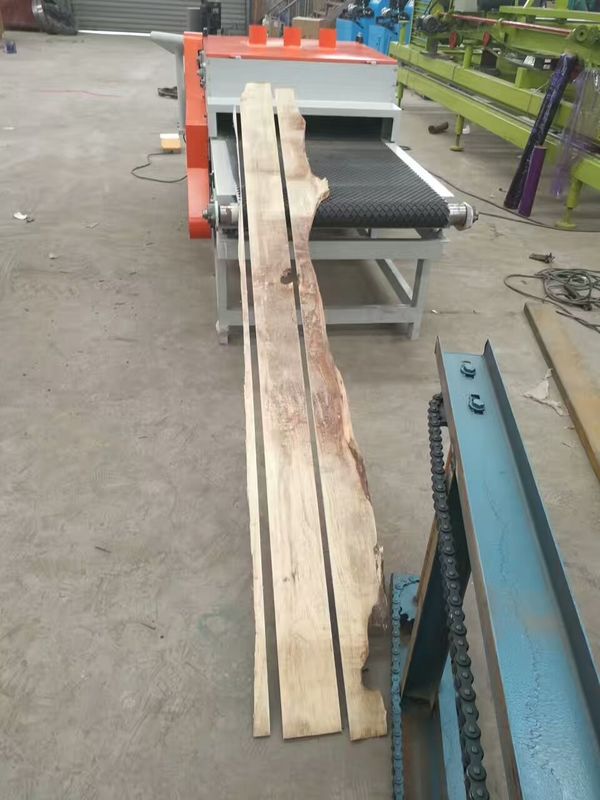

double edge trimming machine, double edger trimming saw with auto feeding 0

double edge trimming machine, double edger trimming saw with auto feeding 1
