Furniture Horizontal Band Resaw 400mm-800mm Width Wood Resaw Bandsaw

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SHJM400,SHJM650,SHJM800

Minimum Order Quantity:	1 SET
Price:	US $5,600-8,100 / Set
Packaging Details:	iron frame packing
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	200 Sets/month

Get Best Price Contact Now

Detail Information

Name:	High Precision Horizontal Band Saw Mill Thin Slices Resaw Machine	Type:	Band Saw
Use:	Woodworking	Voltage:	380vV, 3PH,50HZ Or As Customer Needs
Power(W):	15KW-22KW	Weight:	1850-2750kg
Max. Sawing Width:	400mm, 650mm, 800mm	Max. Sawing Height:	110mm
Feeding Motor:	0.75kw, 1.5kw	Feeding Speed:	0.1 To 30meter/min
Keyword:	Resaw, Thin Cutting Frame Saw Machine
Highlight:	Furniture Horizontal Band Resaw , 800mm Width Wood Resaw Bandsaw , 400mm Width Wood Resaw Bandsaw

Product Description

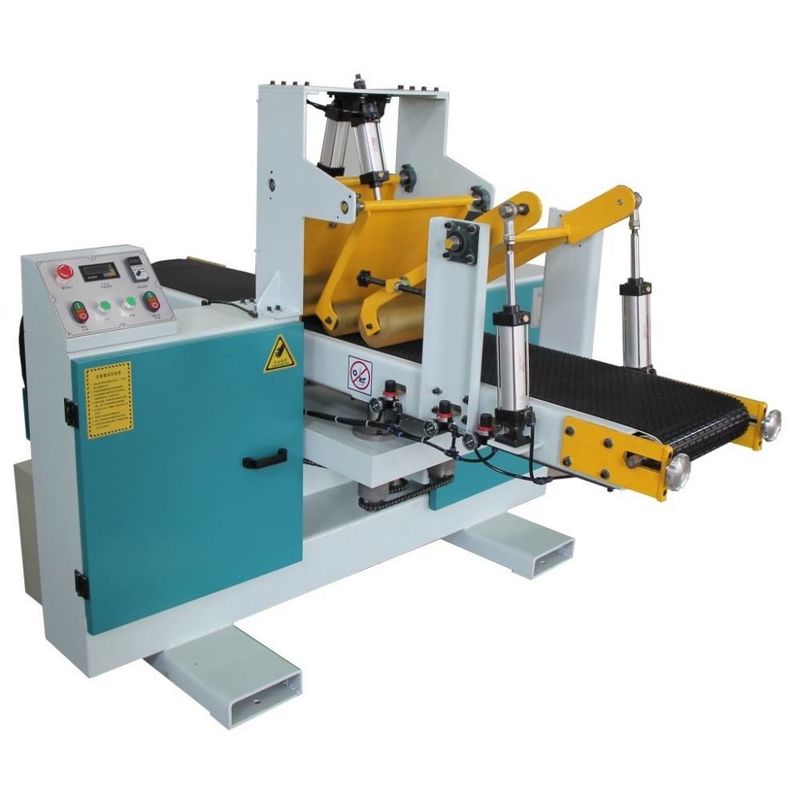

Horizontal Band Resaw Band Saw Machine For Wood Working/ Furniture Band Sawmill

Horizontal Band Resaw Band Saw Machine For Wood Working

Digital Control Sawing Thickness Setting
Max. sawing wood width: 1300mm
Saw wheel diameter : 600mm or 700mm or 800mm
With board returning conveyor
Specifications:

Model	SHJM400	SHJM650	SHJM800
Saw Wheel Diameter	600MM	700MM	700MM
Max Sawing Wood Width	400MM	650MM	800MM
Max Sawing Wood Height	110 MM
Min Sawing Thickness	2 MM
Feeding Speed	0.1-30 Meters/Minute
Motor Power	15KW	18.5KW	22KW
Feeding Motor	0.75KW	0.75KW	1.5KW
Band Saw Blade Length	4300MM	4900MM	5300MM
Machine Weight	1850KG	2550KG	2750KG

Furniture Horizontal Band Resaw 400mm-800mm Width Wood Resaw Bandsaw 0

Furniture Horizontal Band Resaw 400mm-800mm Width Wood Resaw Bandsaw 1

Multi Blades Rip Saw

Introduction:

with Infrared positioning
for board edges cutting
sawing planks into small pcs
easy usage, no installation

Technical data :

Model	HW500	HW800
Sawing thickness	15-50mm	15-50mm
Sawing width	500mm	800mm
Circular blade diameter	210mm	210mm
Electric motor	15KW	18.5KW
Blade qty	1P-6P	1P-10P
Rotation speed	3500/min	3500/min

Photos:

Furniture Horizontal Band Resaw 400mm-800mm Width Wood Resaw Bandsaw 3

Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine

Introduction:

with Infrared positioning
for big thickness board edger cutting
high working efficiency, low cost ,fulfil the max. value of the wood
easy usage, no installation

Technical data :

Model	ZHW800-70	ZHW800-80	ZHW800-100
Sawing wood height	10-70mm	10-80mm	20-100mm
Sawing wood width	800mm	800mm	800mm
Carbide blade diameter	280mm	305mm	355mm
Main motor	22KW	30KW	37KW
Blade quantity	1P-10P	1P-10P	1P-10P
Rotation speed	3500/min	3500/min	3500/min
