Lumber Edger Twin Blade Board Edger Woodworking Saw, Circular Blade Table Saw

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SH600, EG600A，etc

Minimum Order Quantity:	1 set
Price:	US $2,900 - 15,000 / Set
Packaging Details:	iron made frame wooden pallet
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000 Set/Sets per Year

Get Best Price Contact Now

Detail Information

Product Description

Twin Blades Wood Board Edger/border cutting machine

1. Twin circular blades saw.

2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.

3. With tyres, moveable usage is workable

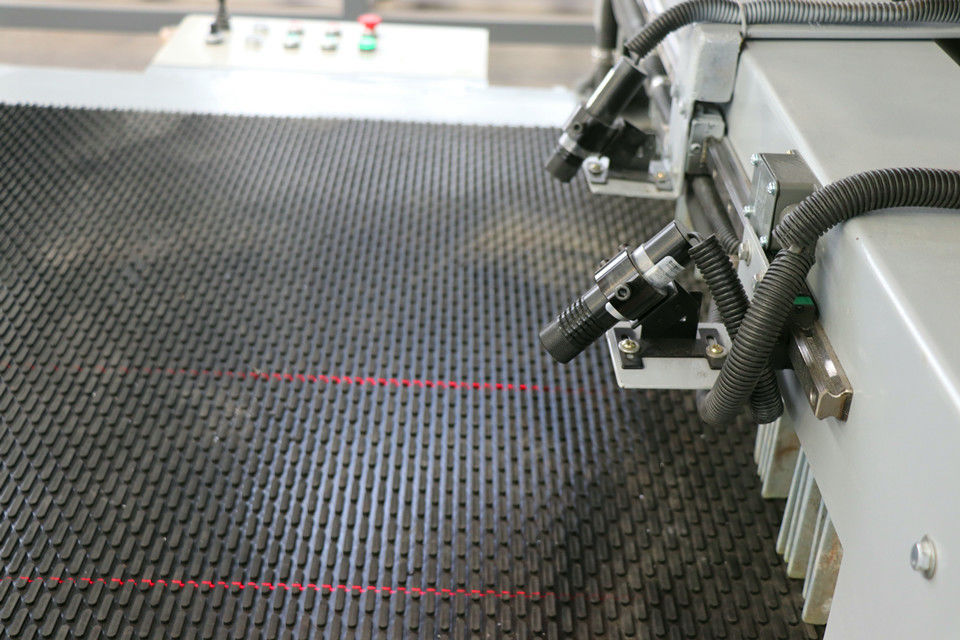

4. The saw blade moves with infrared light and moves at the same time .

Technical data :

Technical parameters	EG600A
cutting max. width	600mm
cutting min. width	50mm
sawn max. thickness	70mm
sawn min. thickness	10mm
Blade	2*350mm
Feeding method	Automatic feeding conveyor
Feed Rate	20-25m/ minute
Power	15KW electric motor
Positioning	Infrared line
Machine weight	800KG
Remarks: One blade is fixed and another blade is movable. Can cut both sides at same time. Mobile wheels are workable

Working video link : https://youtu.be/f9dqaVCXnfg

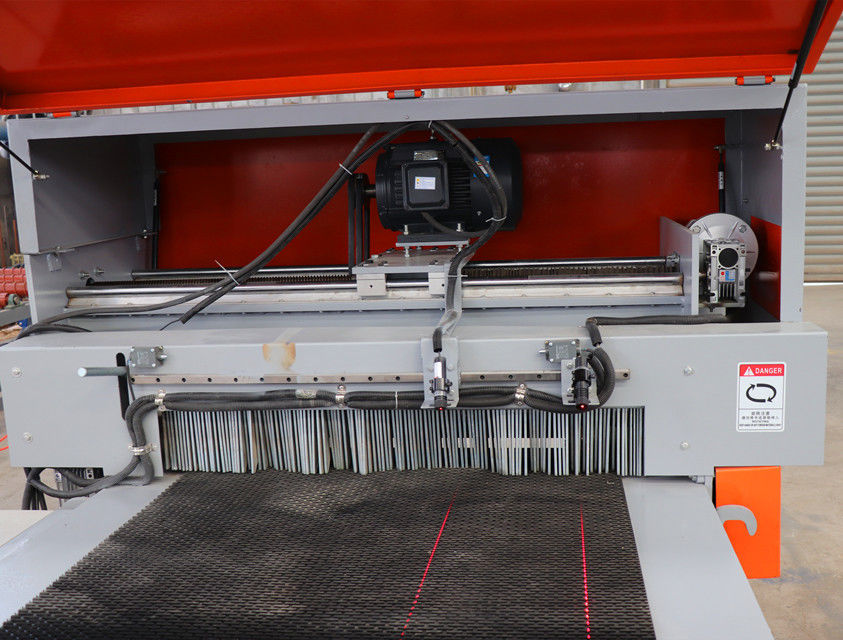

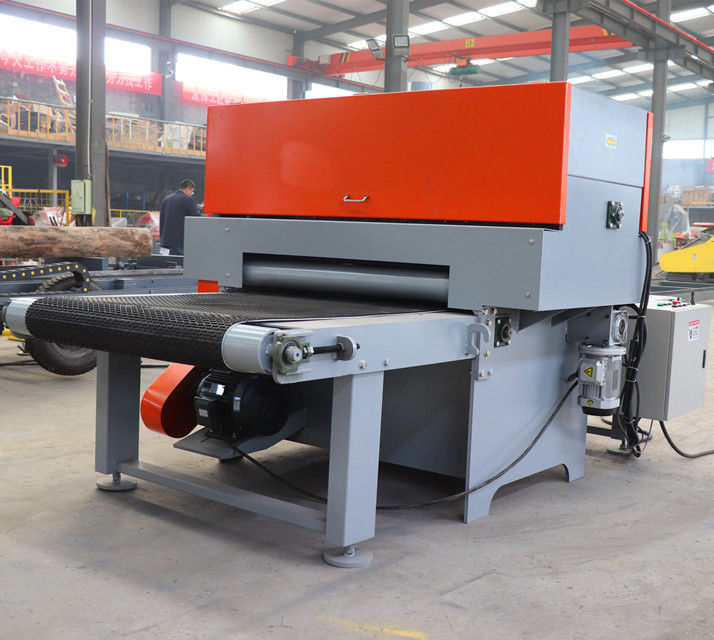

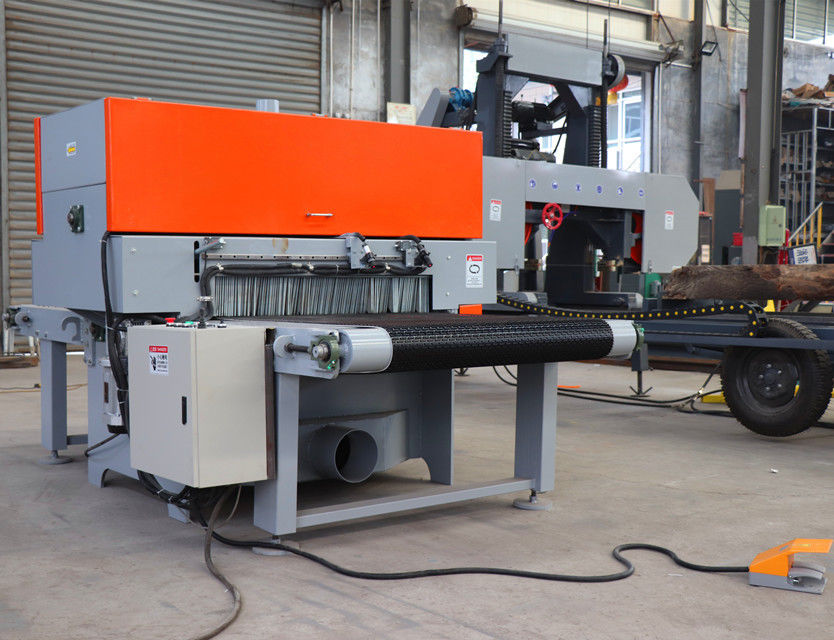

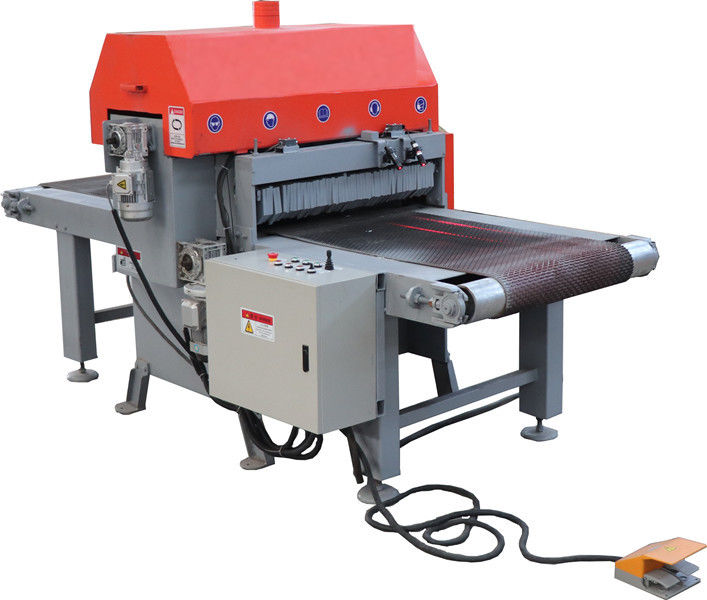

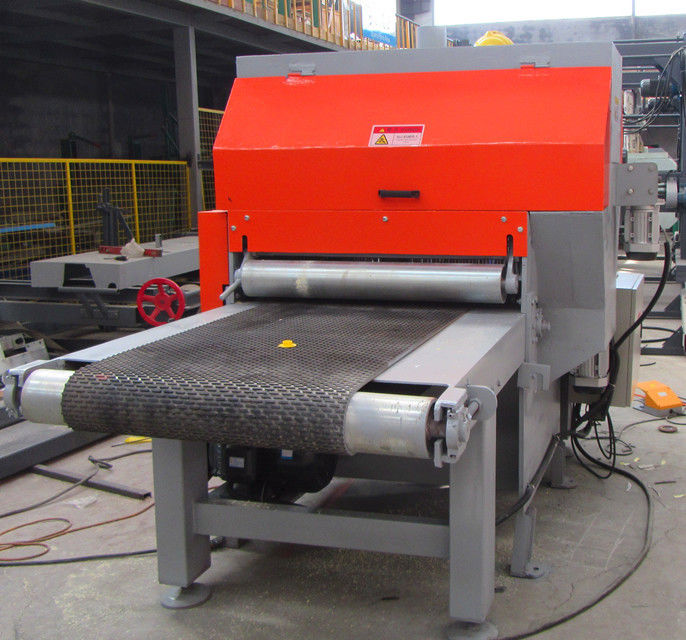

Photos:

Lumber Edger Twin Blade Board Edger Woodworking Saw, Circular Blade Table Saw 0

Lumber Edger Twin Blade Board Edger Woodworking Saw, Circular Blade Table Saw 1

Lumber Edger Twin Blade Board Edger Woodworking Saw, Circular Blade Table Saw 2

Single Blade Board Edger

1. With one piece circular blade fixed .

2. With 13HP USA Kolher gasoline engine powered.

3. Easy usage and transportable

4. Cutting length is as customer needs

5. Roller conveyor is easy for wood feeding and discharing .

Specifications:

Single blade board edger (blade fixed)
Max. sawing width with baffle rising	350mm
Max. sawing width with baffle down	500mm
Circular blade diameter	355mm
Feeding roller length	1500mm
Discharging roller length	1500mm
Engine	13HP Kolher petrol engine

Working video link : https://youtu.be/wwB7MJA02nU

Photos:

Lumber Edger Twin Blade Board Edger Woodworking Saw, Circular Blade Table Saw 3
