| Place of Origin: | shandong province, China |
|---|---|
| Brand Name: | SH |
| Certification: | ISO9001 |
| Model Number: | BC380 BC400 BC500,BC150,BC200,BC300 |
| Minimum Order Quantity: | 1 SET |
| Price: | US $1,100-4,500 / Set |
| Packaging Details: | iron frame pallet |
| Delivery Time: | within 7 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 1000sets/year |
| Condition: | New | Usage: | Woodworking |
|---|---|---|---|
| Type: | Circular Saw | Voltage: | 380V /3PH Or As Customer Needs |
| Power: | 11KW To 18.5KW | Warranty: | 12 Months |
| Max. Sawing Board Width: | 300mm | Max. Sawing Board Thickness: | 65mm |
| Circular Blade Diameter: | 250mm | Feeding Mode: | Frequency Auto Feeding |
| Highlight: | multi blade circular saw wood cutting,rip saw machine for wood boards,circular saw wood cutting machine | ||
Single Spindle Multiple Blades Rip Saw Machine
1.Fit for thinner board cutting into many pcs without broken ;
2.With Pneumatic press roller
3.Auto feeding
Technical data :
| Model /Specifications
 | BC150 | BC200 | BC300 |
| Max. cutting width (mm) | 150 | 200 | 300 |
| Cutting thickness (mm) | 2 to 65 | 2 to 65 | 2 to 65 |
| Min cutting length (mm) | 200 | 200 | 200 |
| Circular blade diameter | 250 | 250 | 250 |
| Motor power (kw) | 11 | 5 | 18.5 |
| Press model | Pneumatic press roller | ||
| Feeding mode | Variable frequency feeding | ||

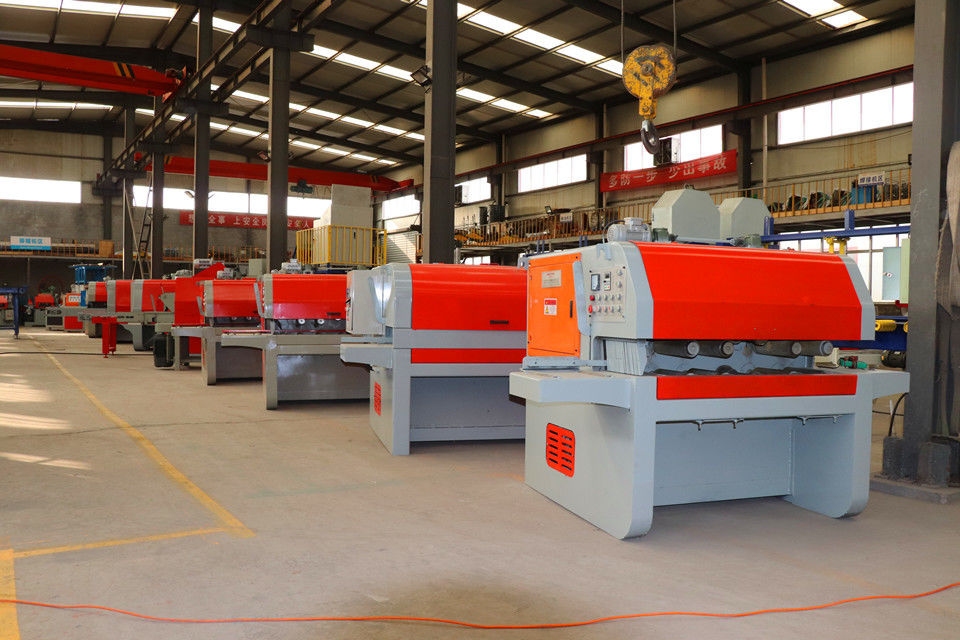

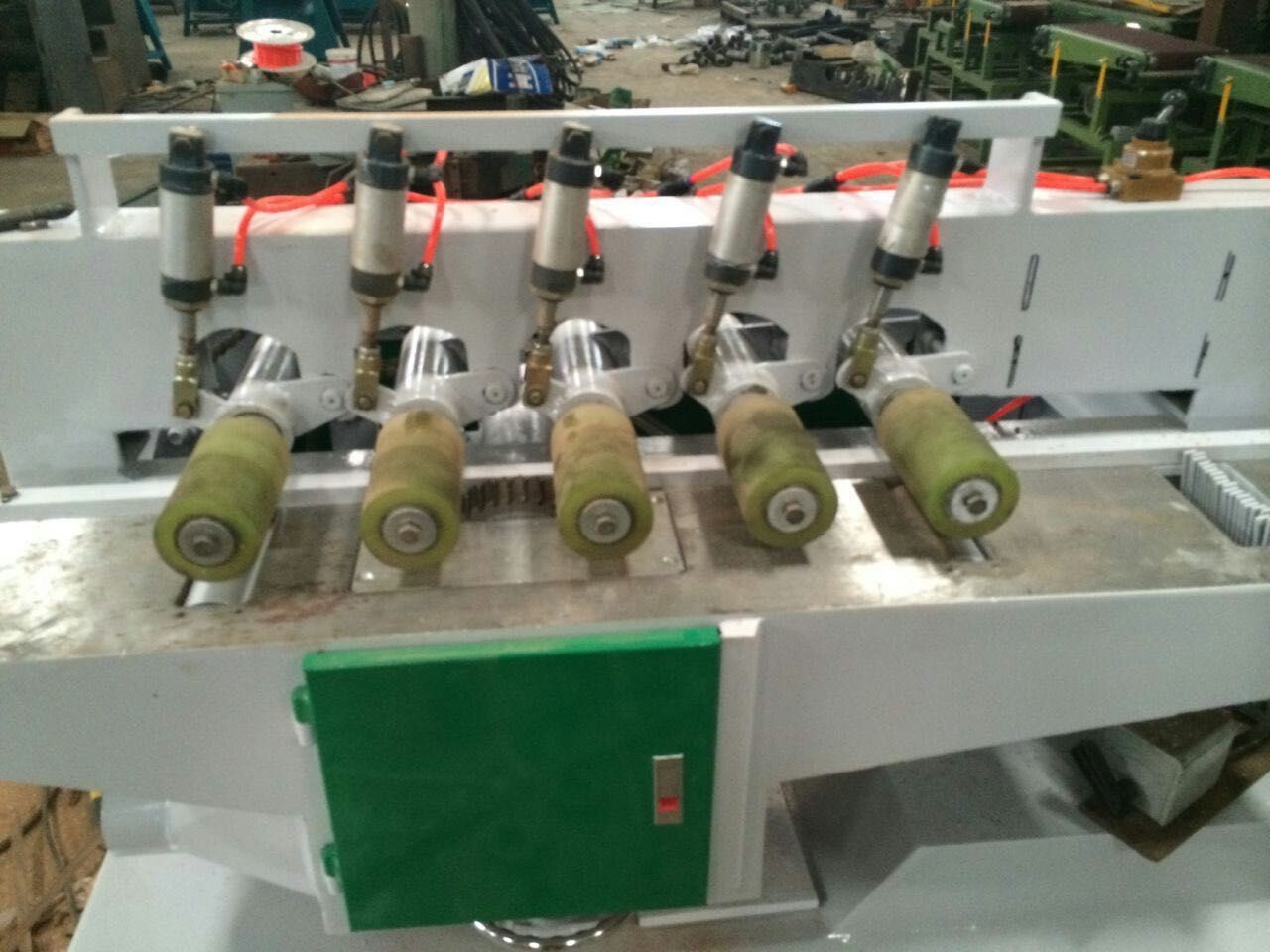

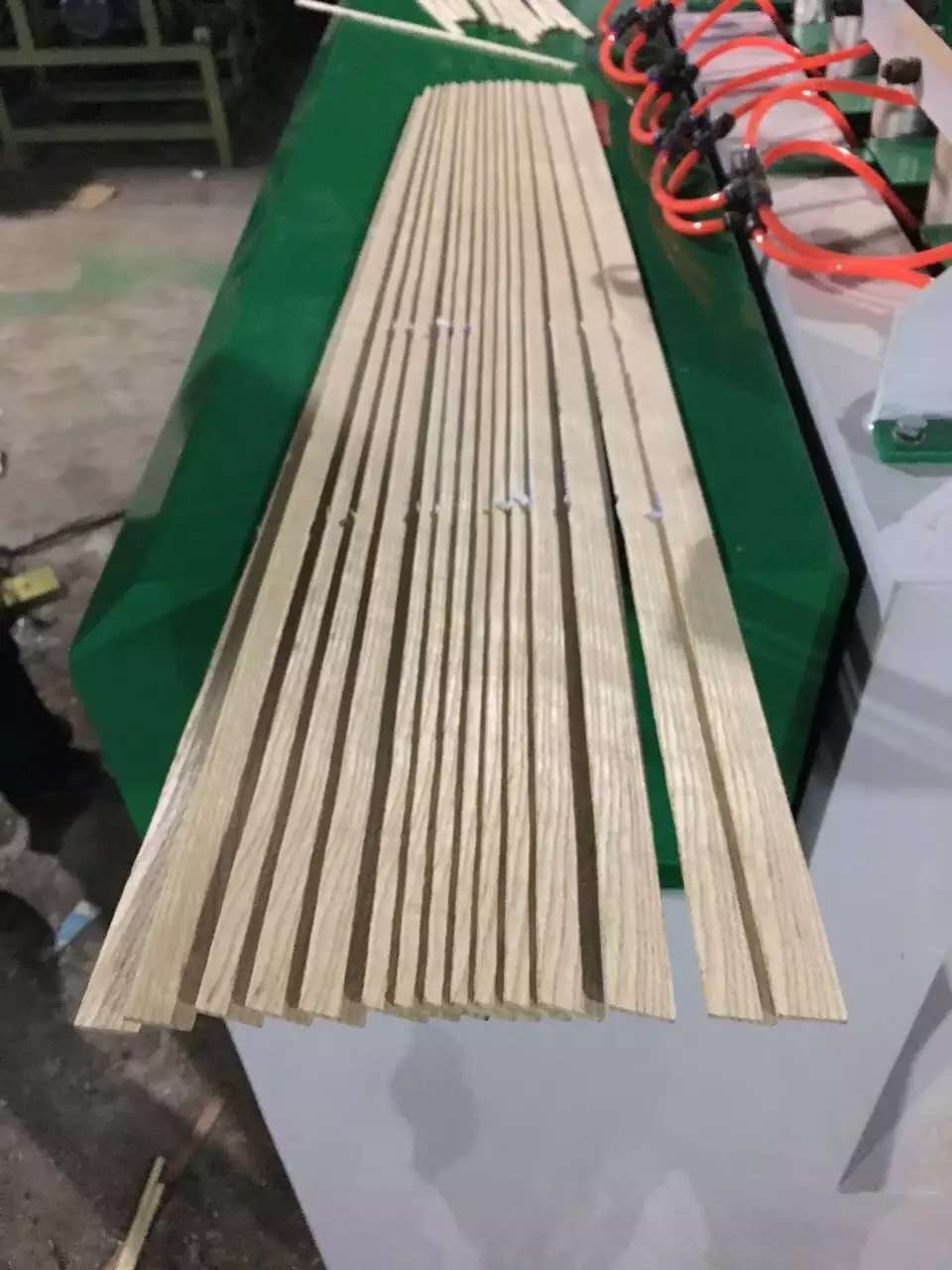

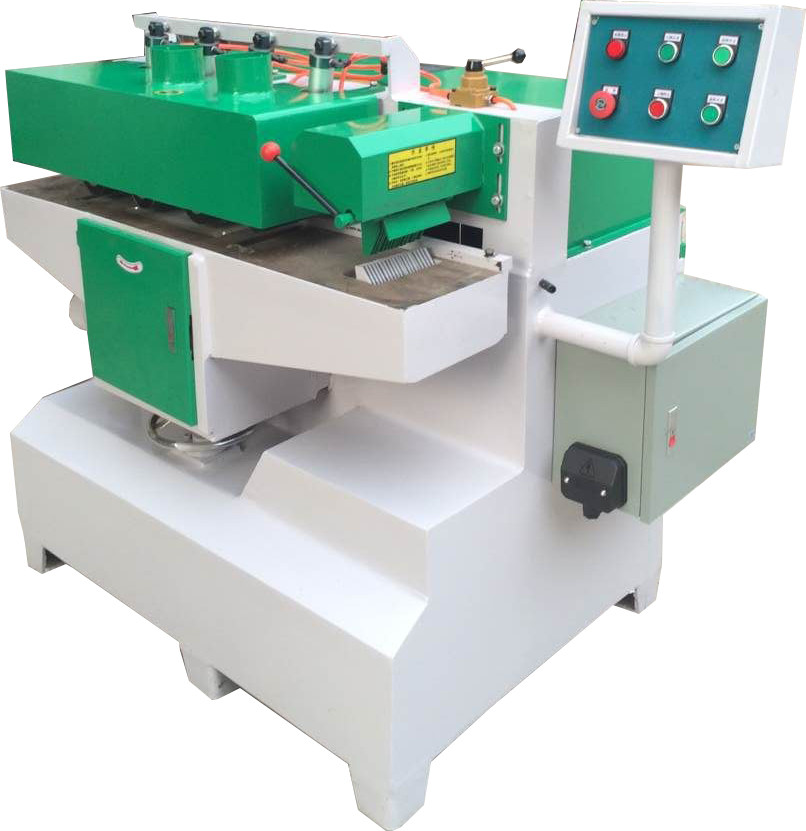

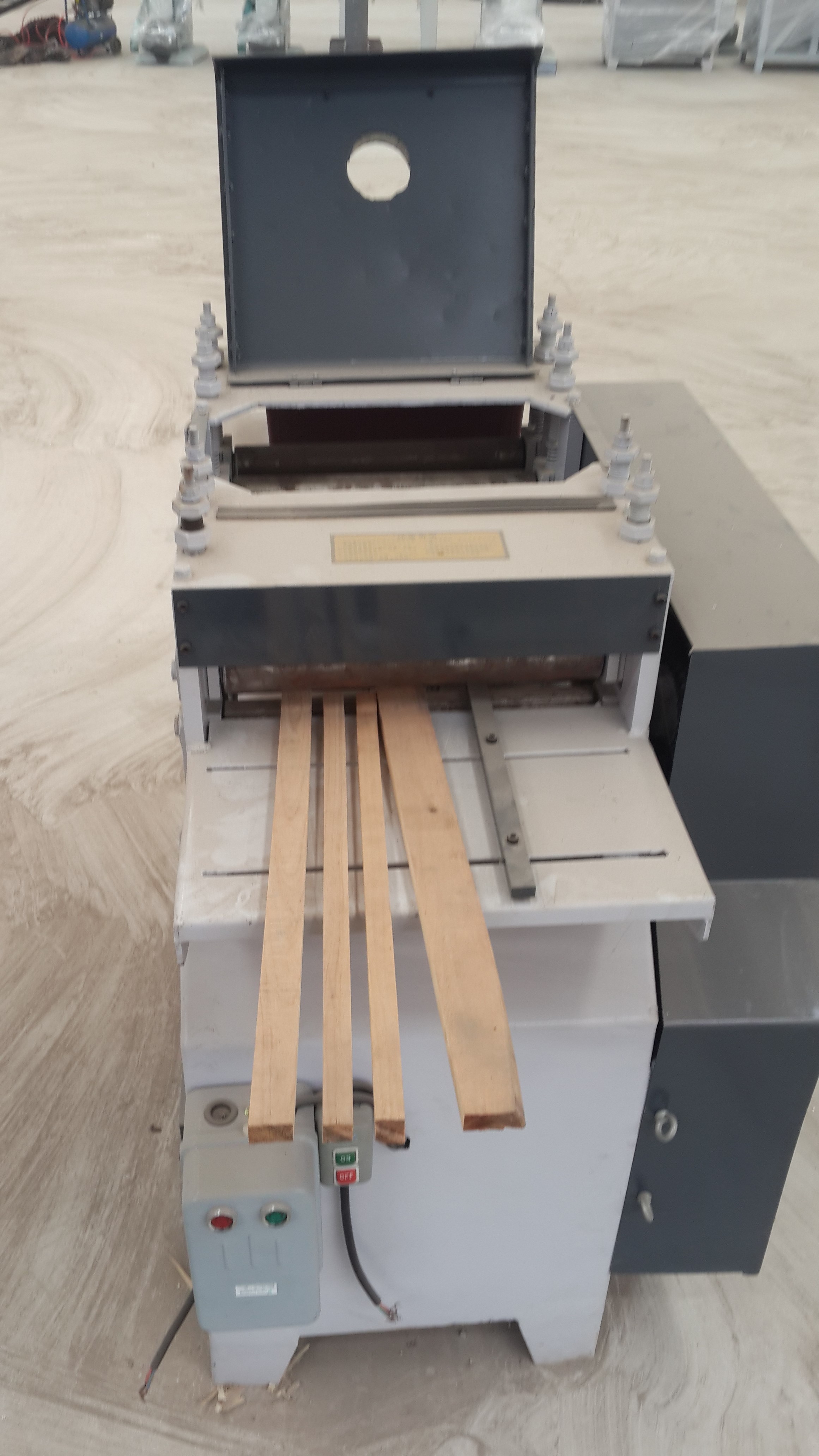

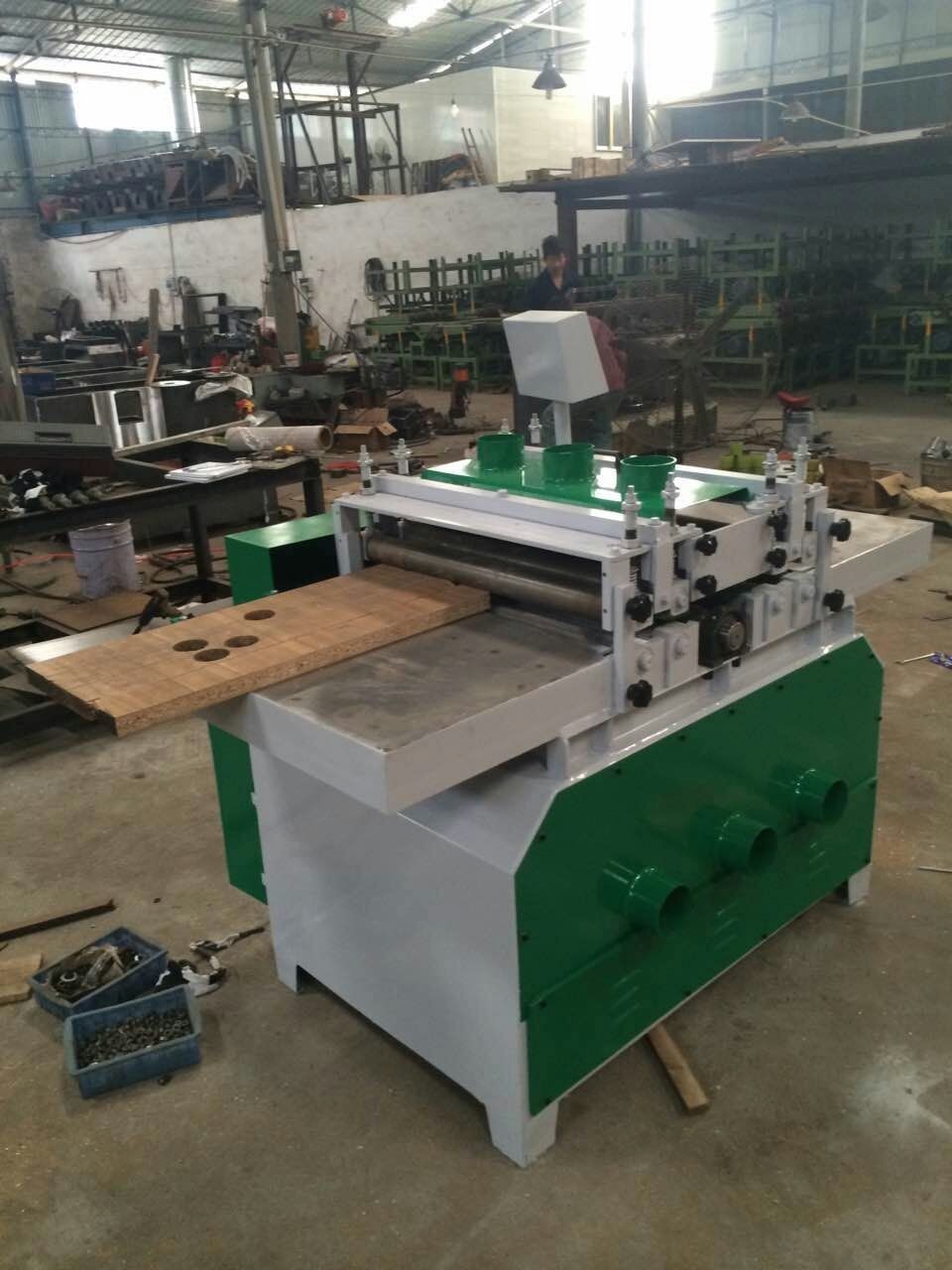

Photos:


Easy Usage Multi Blades Ripsaw
1.Infrared positioning is workable
2.Easy operation with cheap price
Technical Data:
| Specifications | BC380 | BC400 | BC600 |
| Max. cutting width (mm) | 380 | 400 | 600 |
| Cutting thickness (mm) | 15 to 50 | 8 to 30 | 15 to 50 |
| Min cutting length (mm) | 450 | 450 | 450 |
| Circular blade diameter | 230x50 | 150x35 | 230x60 |
| Motor power (kw) | 7.5 | 4 | 18.5 |
| Blade quantity (pcs) | 1-5 | 2-5 | 2-10 |
