popular!!! Double Saw blade Angle Circular saw mill industrial wood saws
| Place of Origin | shandong province |
|---|---|
| Brand Name | SH |
| Certification | ISO |
| Model Number | DS700 D1300,DS2000 |
| Minimum Order Quantity | 1 SET |
| Price | US $7,500 - 13,500 / Set |
| Packaging Details | container loading |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Circular Saw |
|---|---|---|---|
| Use | Woodworking | Voltage | 380V,50HZ, 3phase Or As Customer Needs |
| Power | 25HP | Dimension(L*W*H) | 2300*2300*2500mm |
| Warranty | 12 Months | After-sales Service Provided | Engineers Available To Service Machines Overseas |
Product Description

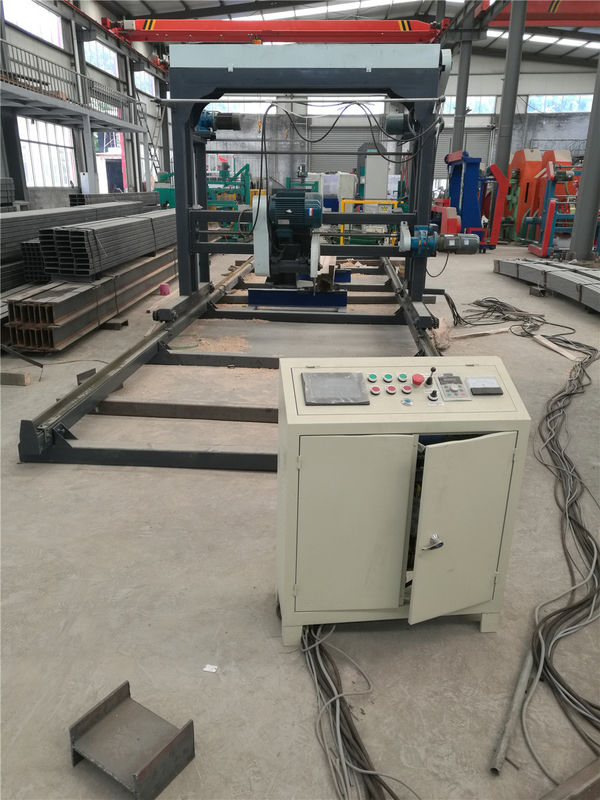

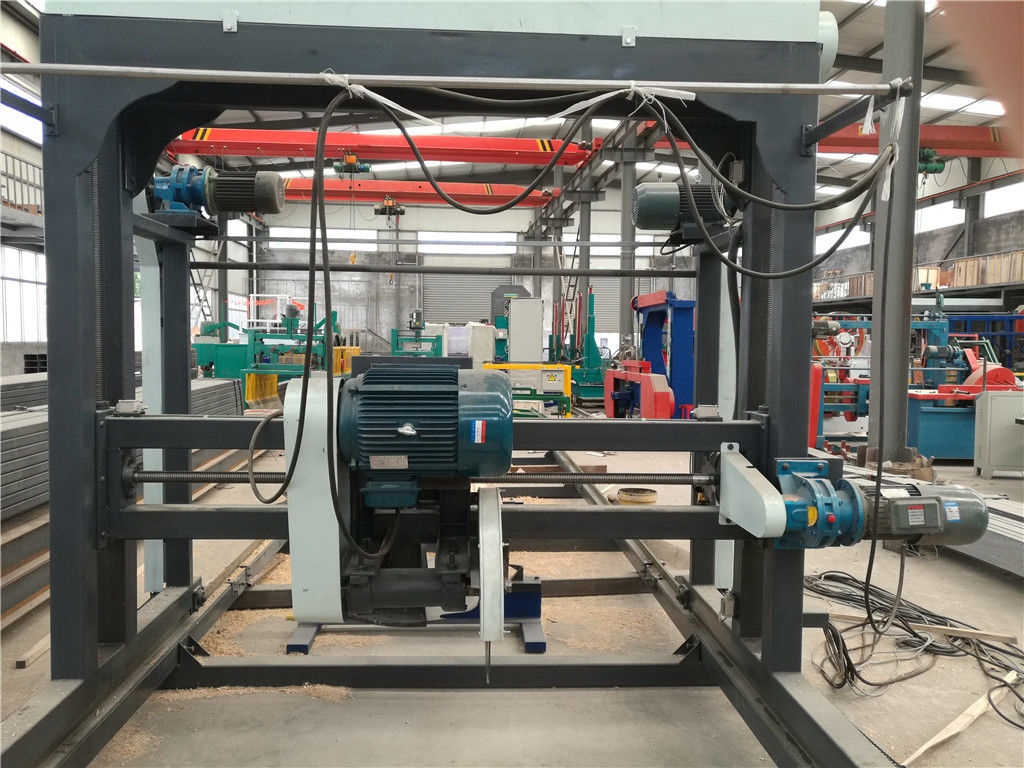

Double Saw blade Angle Saw
The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
The Blades enables cutting in both directions,which considerably increases the cutting capacity.
Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
The angle circular saw is a machinethat:
Produces lumber with saw-cut dimension accuracy up to ± 1mm
Produces lumber of excellent surface quality
Results in very low operational costs
Electric invertor crane, computer touch screen for length calculation and remote control.
| Technical Parameter | DS700 | DS1300 | DS1300A | DS2000 | DS2000A |
| Max Sawing Wood Diameter | 700MM | 1300MM | 1300MM | 2000MM | 2000MM |
| Max Sawing Wood Size | 150*150MM | 210 * 210MM | 300*210MM | 210*210MM | 300*210MM |
| Saw Blade Diameter | 2*424MM | 2*546MM |
1*760mm, 1*546mm |
2*546MM |
1*760mm 1*546mm |
| Motors Power(KW) |
5.5KW*2, 1.1KW*3 |
15KW*2, 1.1KW*3 |
22KW*1, 15 KW*1 1.1KW*3 |
15KW*2, 1.1KW*3 |
22KW*1, 15KW*1 1.1KW*3 |
| Max Swing Wood Length | 6 Meters | 6 Meters | 6 Meters | 6 Meters | 6 Meters |
| Machine weight | 1500KG | 2000KG | 2500KG | 2700KG | 3000KG |
