SHYM450 multi rip saw machine, Shandong Multi Blade Saw Machine, Log Saw Machine

Basic Information

Place of Origin:	shandong province
Brand Name:	SH
Certification:	ISO
Model Number:	SHYM200,SHYM250, SHYM300, SHYM350,SHYM400,SHYM450

Minimum Order Quantity:	1 SET
Price:	USD3000-USD15000/set
Packaging Details:	iron made frame packing
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	100sets/month

Get Best Price Contact Now

Detail Information

Condition:	New	Type:	Circular Saw
Use:	Woodworking	Style:	Vertical
Voltage:	380V,440V, 3phase, 50HZ Or As Cusmer Needs	Power(W)::	22-45kw
Weight:	2200-3200kg	Warranty::	12 Months
After-sales Service Provided:	Engineers Available To Service Machine Overseas

Product Description

1.Cut logs into planks at several pieces per time.

2.With log centering feeding conveyor

3.Automatic controlling

Technical data	SHYM200	SHYM250	SHYM300	SHYM350	SHYM400	SHYM450
Cutting diameter (mm)	200	250	300	350	400	450
Cutting length (mm)	>600	>600	>600	>600	>600	>600
Spindle speed (r/min)	2800
Main motor power (KW)	22kw *2	22kw *2	30kw *2	37kw *2	45kw *2	50kw *2
Feeding motor power (KW)	1.5	1.5	2.2	2.2	3	3
Diameter of blade (mm)	305	366	405	480	550	600
Blade No. (pcs)	2-10	2-10	2-10	2-10	2-10	2-10
Blade arrangement	Up/down	Up/down	Up/down	Up/down	Up/down	Up/down
Feeding speed	frequency adjustable feeding control
Cooling water pressure	0.3-0.6PA
Cooling mode	Axial watering

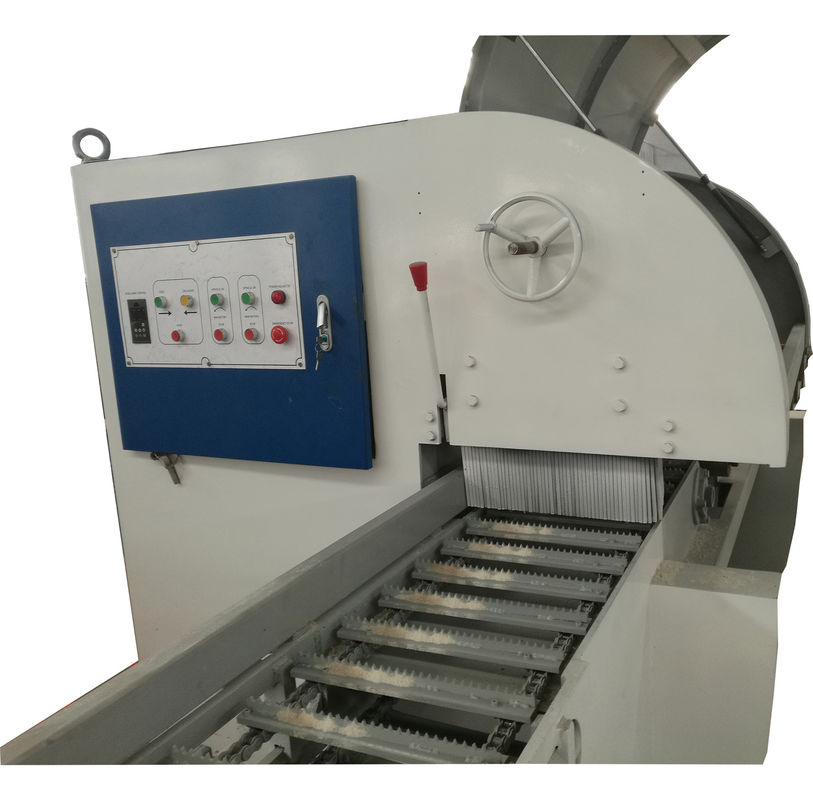

SHYM450 multi rip saw machine, Shandong Multi Blade Saw Machine, Log Saw Machine 1

1.Cut planks into smaller wood boards at several pieces per time.

2.Automatic controlling

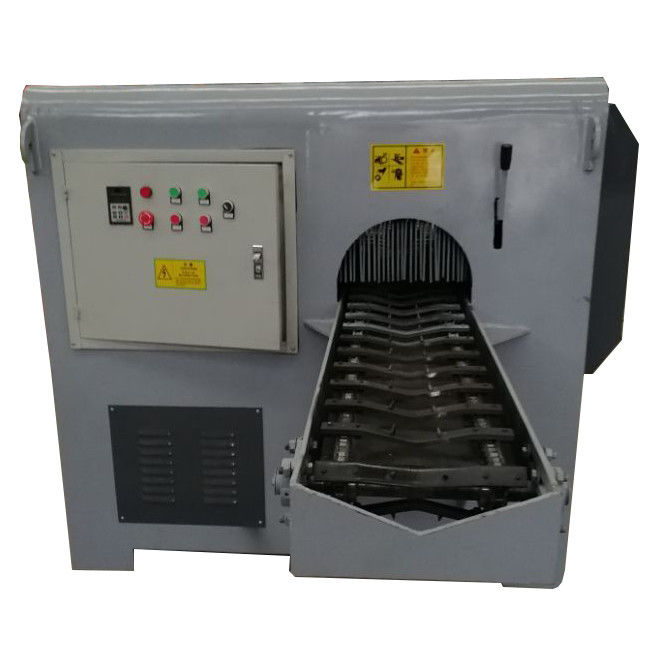

SHYM450 multi rip saw machine, Shandong Multi Blade Saw Machine, Log Saw Machine 2
