Swing Blade Sawmill Double Saw Blades Angle Circular Saw Circular Wood Portable Sawmill
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | DS700 D1300,DS2000 |
| Minimum Order Quantity | 1 SET |
| Price | US $8,700 - 14,800 / Set |
| Packaging Details | container loading |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight |
| Supply Ability | 500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Sawing Log Max. Diameter | 2000mm |
|---|---|---|---|
| Sawing Timber Max. Size | 300x210mm | Saw Walking Forward | Frequency Variable |
| Sawing Size Setting | Touching Screen Auto Setworks | Blade Diameter | 424mm, 546mm, 760mm |
| Blades Installation | Horizontal And Vertical Blade In 90 Degree | Usage | Square Timber Cutting Directly |
Product Description

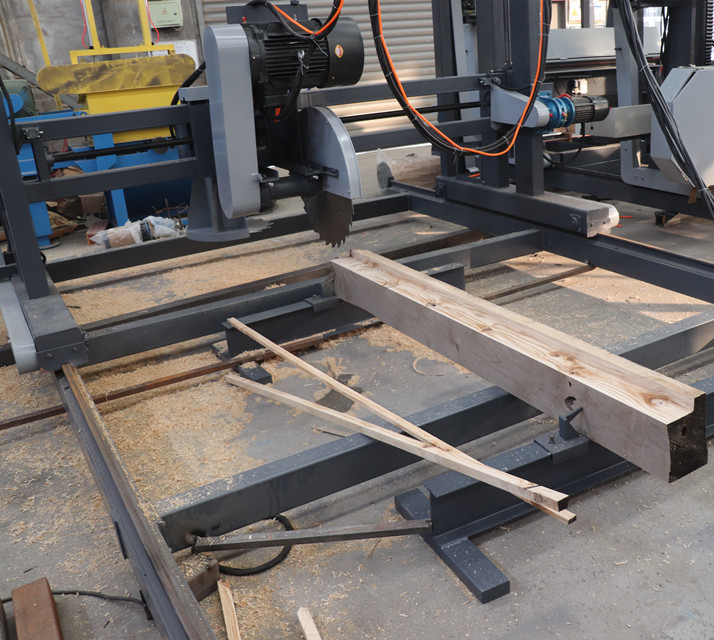

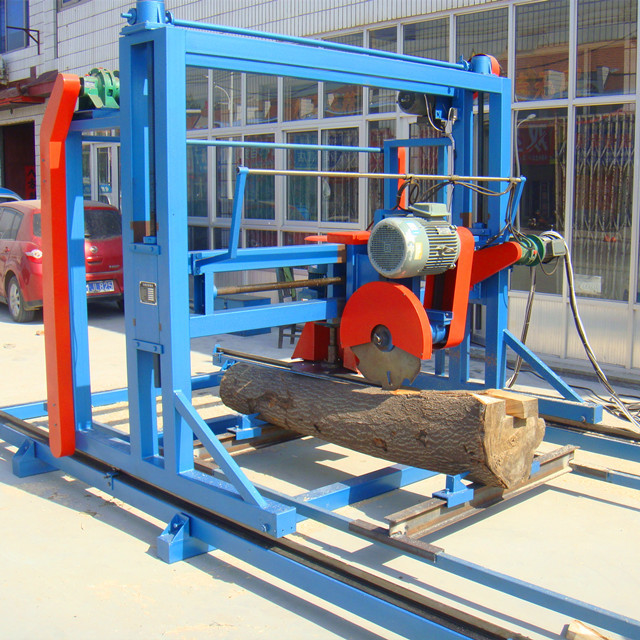

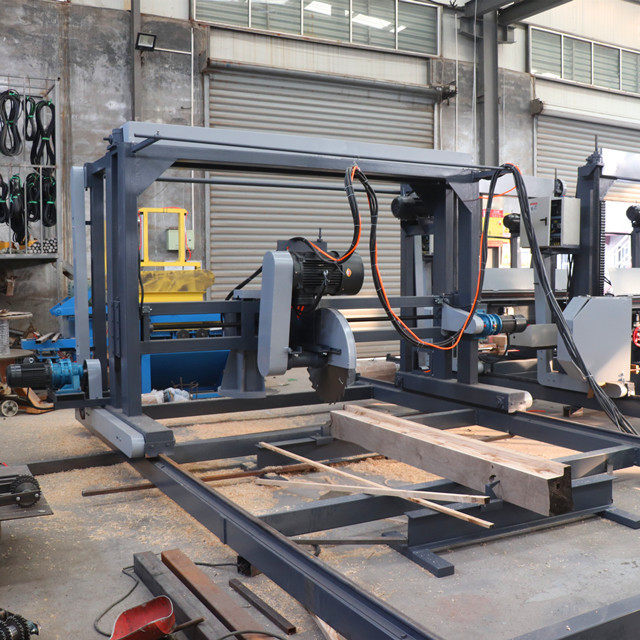

Double Blades Angle Circular Saw Mill
The Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
The Blades enables cutting in both directions,which considerably increases the cutting capacity.
Quick and accurate electronic positioning guarantee invariable high productivity and safety.
The angle circular saw is a machine that:
Produces lumber with saw-cut dimension accuracy up to ± 1mm
Produces lumber of excellent surface quality
Results in very low operational costs

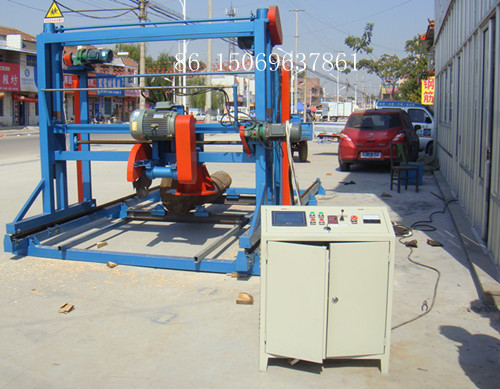

Electric inverter crane,touch screen for length calculation and remote control.
Working video link : https://youtu.be/HZ9SHLVnE8I
Technical Specifications:
|
Model |
DS700 |
DS1300 |
DS1300A |
DS2000 |
DS2000A |
|
Max Sawing Wood Diameter |
700MM |
1300MM |
1300MM |
2000MM |
2000MM |
|
Max Sawing Wood Size |
150*150MM |
210 * 210MM |
300*210MM |
210*210MM |
300*210MM |
|
Saw Blade Diameter |
2*424MM |
2*546MM |
1*760mm, 1*546mm |
2*546MM |
1*760mm 1*546mm |
|
Motors Power(KW) |
5.5KW*2, 1.1KW*3 |
15KW*2, 1.1KW*3 |
22KW*1, 15 KW*1 1.1KW*3 |
15KW*2, 1.1KW*3 |
22KW*1, 15KW*1 1.1KW*3 |
|
Max Swing Wood Length |
6 Meters |
6 Meters |
6 Meters |
6 Meters |
6 Meters |
|
Machine weight |
1500KG |
2000KG |
2500KG |
2700KG |
3000KG |
