    Product Details:

    Place of Origin: shandong province
    Brand Name: SH
    Certification: ISO
    Model Number: MJ3212-Z5000,MJ3212-Z3000,MJ3210-Z5000,MJ3310-Z3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $6,000 - 50,000 / Set
    Packaging Details: container loading
    Delivery Time: within 25 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 1500sets/year
    Contact Now
    Detailed Product Description
    Condition: New Type: Vertical Band Saw
    Usage: Woodcutting Voltage: 380v/3phase/50HZ Or As Customer Needs
    Warranty: 1 YEAR After-sale Service Provided: Engineers Available To Service Machines Overseas

    Descriptions of vertical band saw wood machine

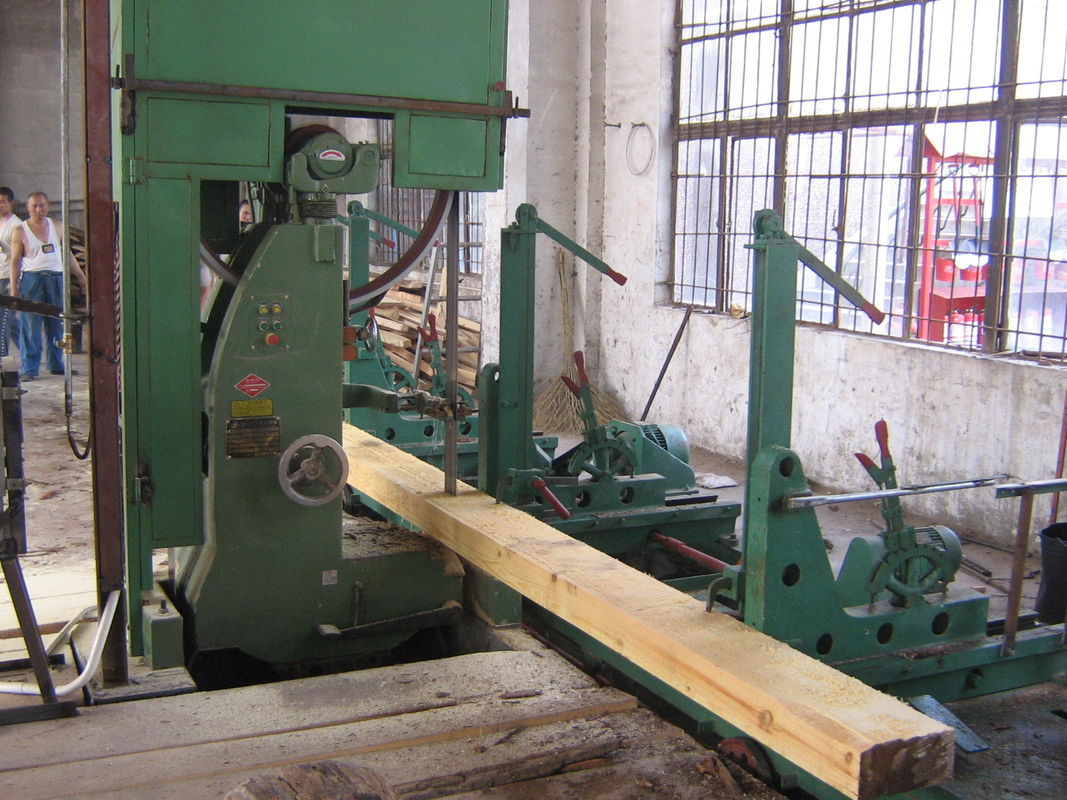

    Vertical Band Sawmill With CNC Log Carriage

    This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

    Applications:Processing large and middle logs and square logs together with large-or middle-size wood band saws.
    Features:Automatic micro-computer control,feeding,and automatic dimensioning;high efficiency and low labor intensity;high precision,and easy operation.

    Technical Parameter MJ3212-Z5000 MJ3212-Z3000 MJ3310-Z5000 MJ3310-Z3000
    Saw Wheel Diameter (MM) 1250 1250 1070 1000
    Saw Wheel Speed RPM 650 650 650 650
    Saw Blade Length (MM) 8600 8600 7400 7400
    Saw Blade Width(MM) 150 150 150 150
    Saw Clip Movement Motor( KW) 0.75 0.75 0.75 0.75
    Saw Wheel Movement Motor( KW) 0.75 0.75 0.75 0.75
    Main Motor Power( KW) 37 37 30 30
    Carriage Clip Stake Quantity 4 4 4 3
    Carriage Wheel Quantity 3 3 3 2
    forward and backward Electric Electric Electric Electric
    Sawing Thickness Setting Electric Electric Electric Electric
    Max Sawing Wood Diameter(MM) 1200 1200 1000 1000
    Max Sawing Wood Length(MM) 6000 4000 6000 4000
    Track Length(MM) 16000 12000 16000 12000
    Weight (KG) 7200 6500 4900 4200

    timber plank cutting saw machine / wood band saw machine / lumber sawtimber plank cutting saw machine / wood band saw machine / lumber saw

    Technical Parameter MJ328 MJ329 MJ3210 MJ3310 MJ3212
    Saw Wheel Diameter 800mm 900mm 1000mm 1070mm 1250mm
    Saw Wheel Width 110mm 120mm 120mm 120mm 140mm
    Saw Wheel Speed 750r·p·m 750r·p·m 750r·p·m 750r·p·m 750r·p·m
    Saw Wheel& Clip Model Manual Manual Automatic Automatic Automatic
    Saw Wheel Length 5700mm 6400mm 6800mm 7400mm 8600mm
    Max Sawing Wood Diameter 650mm 750mm 900mm 1000mm 1200mm
    Main Motor Power 11kw 15kw 22kw 30kw 37kw
    Weight 1000kg 1300kg 1600kg 1800kg 3200kg

    Include main motor

    Include iron-made safe protective casing

    Include manual lubrication

    Include foundry work platform

    timber plank cutting saw machine / wood band saw machine / lumber sawtimber plank cutting saw machine / wood band saw machine / lumber saw
