Twin vertical bandsaw mill double cut sawmill Equipment for log edges cutting

Basic Information
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: SLS350, SLS500
Minimum Order Quantity: 1 SET
Price: US $13,000 - 50,000 / Set
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 500sets/year
Detail Information
Condition: New Type: Band Saw
Style: Vertical Use: Woodworking
Power(W): 2*18.5KW Dimension: 12000*2300*3500mm
Application: Cut Four Sides Of Log,produce Cants Max. Sawing Wood Diameter: 500MM
Control: CNC Digital Feeding Speed: Variable Frequency Speed Adjustable

Product Description

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Working video link: https://youtu.be/r_9EEWxRlKk

Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks



Photos

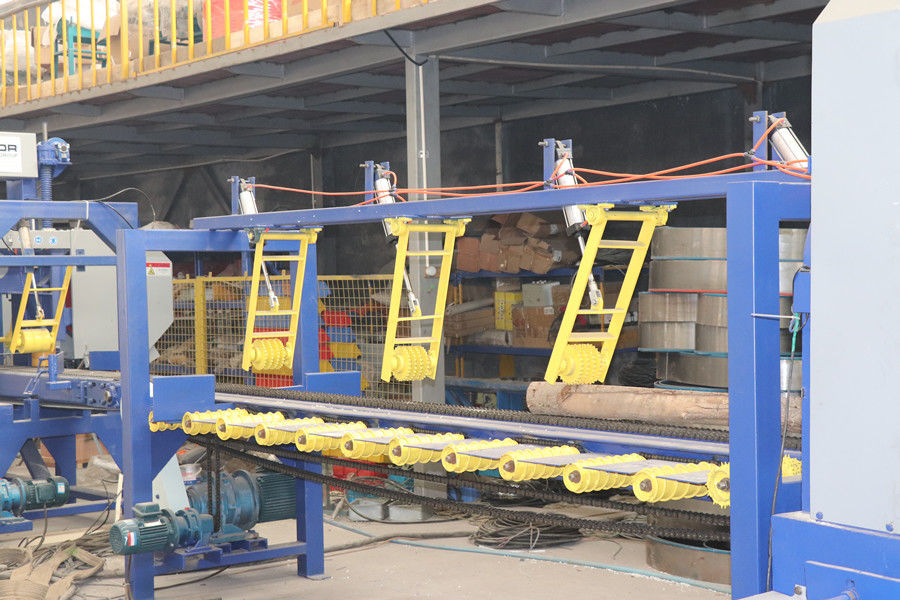

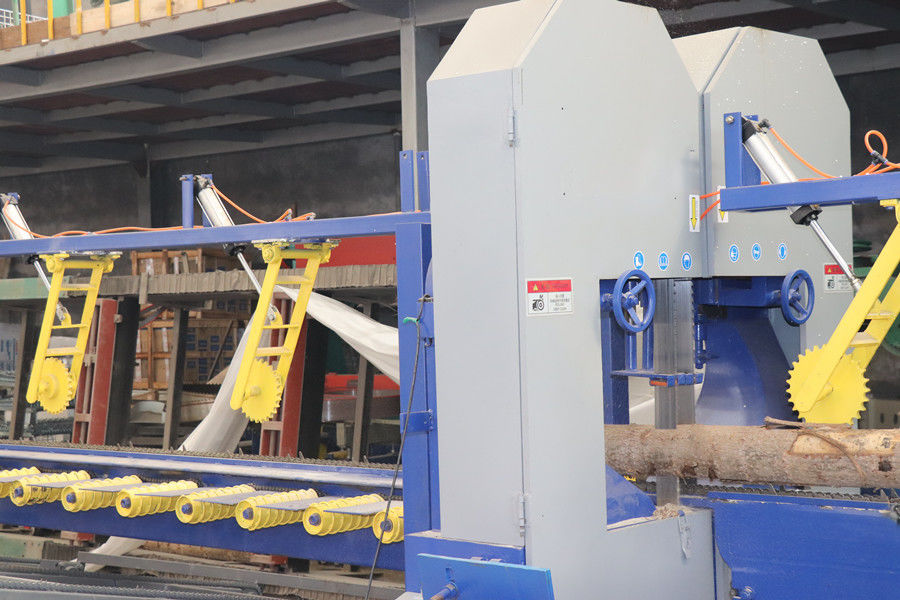

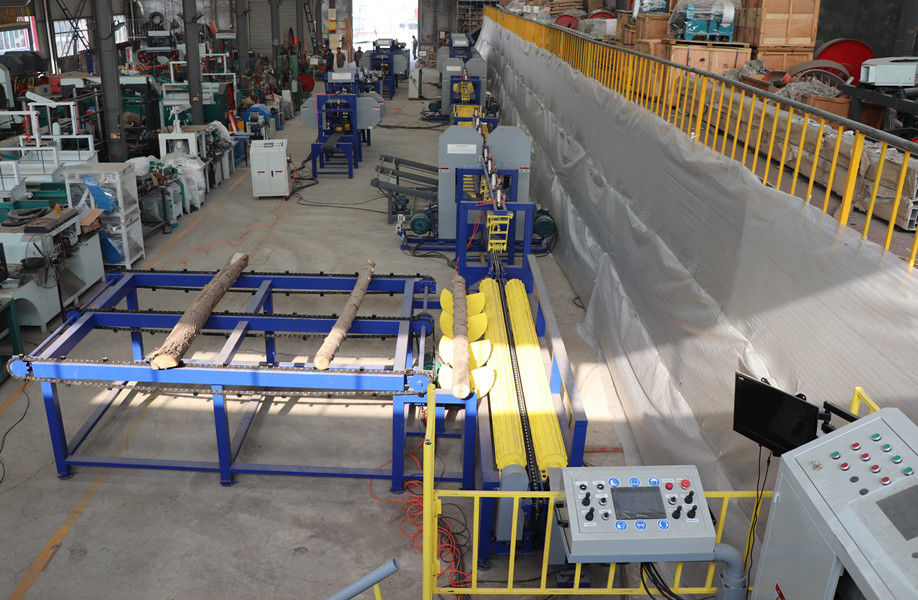

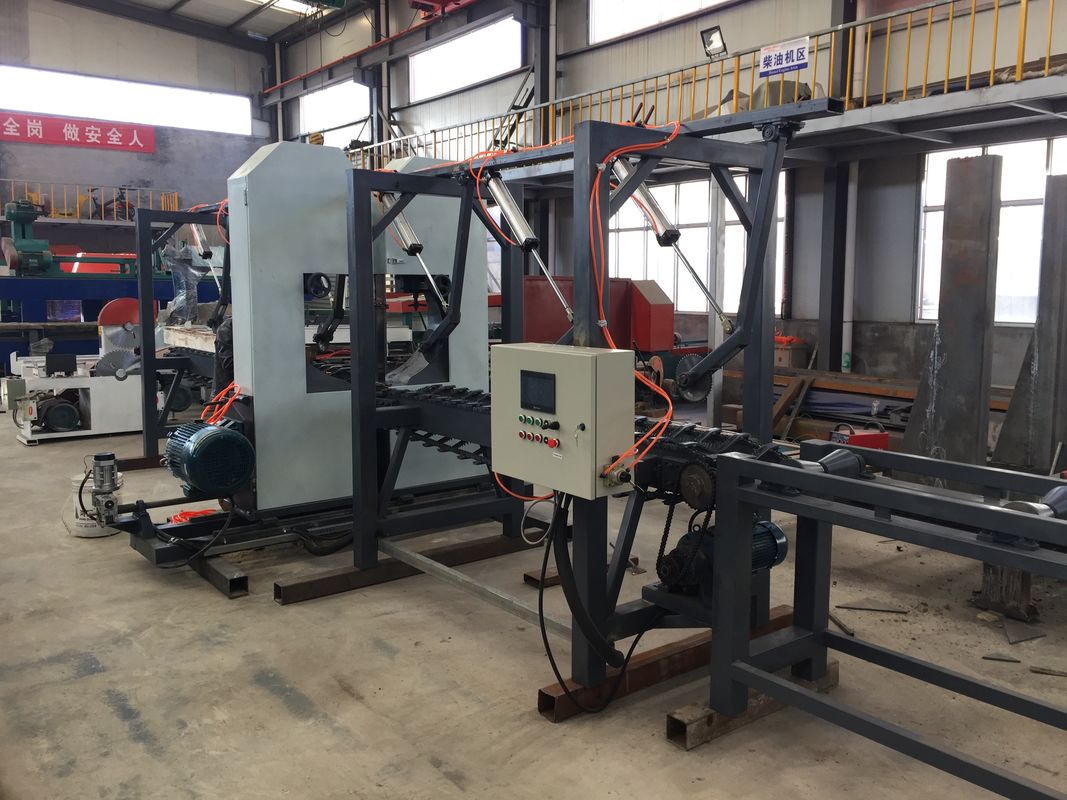

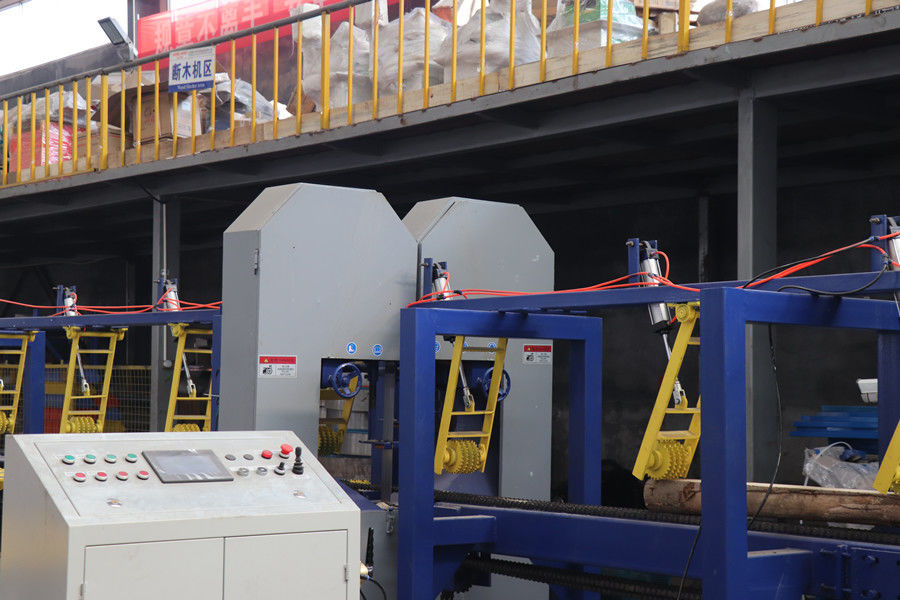

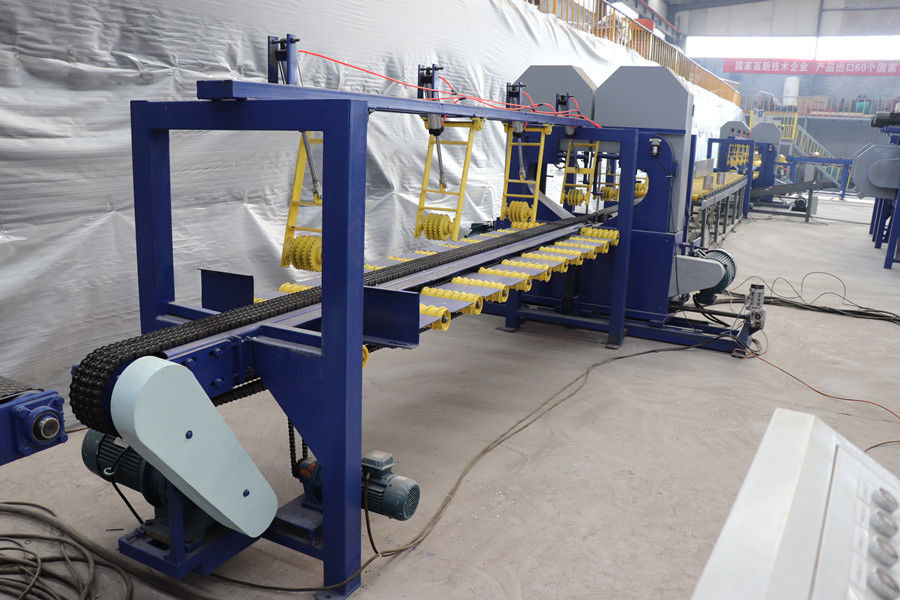

Twin vertical bandsaw mill double cut sawmill Equipment for log edges cutting 0



Twin vertical bandsaw mill double cut sawmill Equipment for log edges cutting 1

Twin vertical bandsaw mill double cut sawmill Equipment for log edges cutting 2
