Vertical band sawmill with CNC carriage automatic wood cutting machine
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001:2008 |
| Model Number | MJ3212B-Z5000,MJ3212B-Z3000,MJ3210-Z5000,MJ3310-Z3000 |
| Minimum Order Quantity | 1 SET |
| Price | US $5,000 - 35,000 / Set |
| Packaging Details | container loading |
| Delivery Time | within 20 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | Vertical Bandsaw With Carriage | Type | Band Saw |
|---|---|---|---|
| Usage | Woodworking | Max. Sawing Log Diameter | 1500mm |
| Carriage Walking Forward/back | Frequency Variable | Saw Wheel Diameter | 1250mm Or 50'' |
| Voltage | 380V/3PH/50HZ Or As Customer Needs | Warranty | 12 Months |
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,Video Technical Support | Keyword | Band Sawing Machine | Band Saw Machine | Wood Cutting Band Saw Machine,Cnc Cut |
Product Description

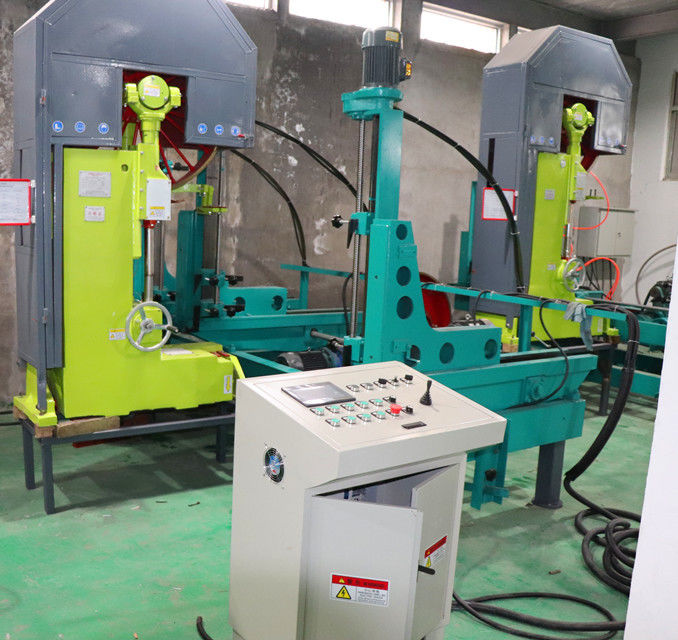

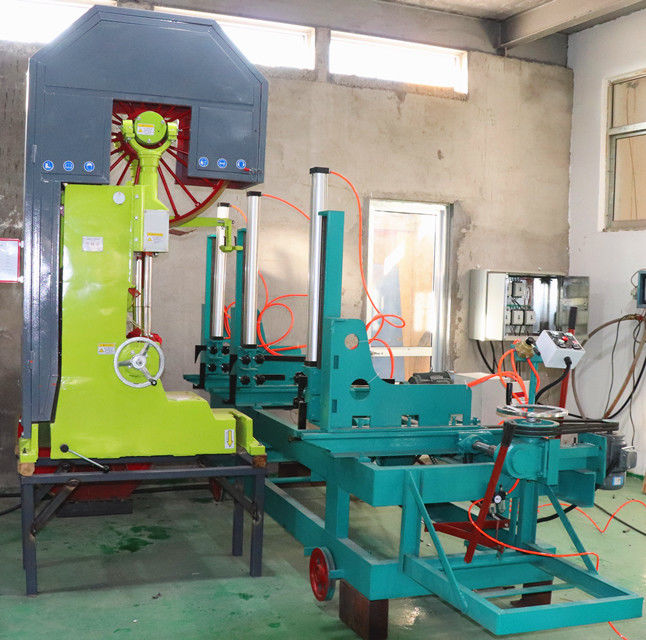

MJ3212 &MJ3212B Vertical Band Sawmill With CNC Log Carriage
- This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.
- In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
1.MJ3212 CNC vertical band sawmill with automatic log carriage
| Technical data | MJ3212-ZD3000 | MJ3212-ZD5000 |
| Saw wheel diameter | 1250mm | 1250mm |
| Maximum sawing log diameter | 1200mm | 1200mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 37KW | 37KW |
| Saw blade L*W*T | 8600x150x1.25mm | 8600x150x1.25mm |
| Carriage clip stake quantity | 3sets | 4sets |
| Wood grasp mode | Electric | Electric |
| Carriage walking/advance | Frequency converter | Frequency converter |
| Setting sawn size | PLC touching screen | PLC touching screen |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 7500kgs | 8000kgs |
2. MJ3212B Vertical Band Saw with CNC Automatic Log Carriage
| Technical data | MJ3212B-ZD3000 | MJ3212B-ZD5000 |
| Saw wheel diameter | 1250mm | 1250mm |
| Maximum sawing log diameter | 1500mm | 1500mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 45KW | 45KW |
| Saw blade L*W*T | 9200x150x1.25mm | 9200x150x1.25mm |
| Carriage clip stake quantity | 3sets | 4sets |
| Wood grasp mode | Electric | Electric |
| Carriage walking/advance | Frequency converter | Frequency converter |
| Setting sawn size | PLC touching screen | PLC touching screen |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 11000kgs | 12000kgs |
Working video link: Video link : https://youtu.be/IMPfTBpJqh0
Optional Parts - Log loading deck
