BT300 11KW Portable Lumber Edger Circular Cutting Edge Sawmill Machine
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001:2008 |
| Model Number | BT300-3500, BT250-3500, etc |
| Minimum Order Quantity | 1 SET |
| Price | US $3,800 - 6,500 / Set |
| Packaging Details | iron made frame pallet or container loading |
| Delivery Time | within 19 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Product Name | Wood Board Edger Cutting Saw |
|---|---|---|---|
| Application | Cutting Both Edges Of Board | Warranty | 12 Months |
| Power | 11KW X 2 Sets | Type | Auto Edger |
| Max. Sawing Width | 1500mm | Max. Sawing Thickness | 300mm |
| Wood Grasp | Pneumatic | Feeding | Electrical |
| High Light | 11KW Portable Lumber Edger,BT300 Circular Cutting Edge Sawmill,Cutting Edge Sawmill Machine |
||
Product Description
Big Wood Board Edger Circular Saw, Circular Disc Edges Cutting Sawmill
Big Width Wood Board Edger Saw
1.Fit for wider and thicker board edges cutting
2.Electrical wood feeding
3.Pneumatic wood grasp
Technical specifications:
| Model | BT300-6-3500 | BT250-10-3500 | BT250-15-3500 | BT250-15-3500 |
| Sawing max. thickness | 10-300mm | 10-250mm | 10-250mm | 10-100mm |
| Sawing max. length | 3500mm | 3500mm | 3500mm | 3500mm |
| Sawing max. width | 600mm | 1000mm | 1500mm | 600mm |
| Circular blade dia. | 405mm | 355mm | 355mm | 355mm |
| Main motor power | 11KW*2 | 11KW*2 | 11KW*2 | 11KW |
| Rail length | 7000mm | 7000mm | 7000mm | 7000mm |
| Grasp wood type | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Feeding | Electrical | Electrical | Electrical | Electrical |
| Size setting | Manual | Manual | Manual | Manual |

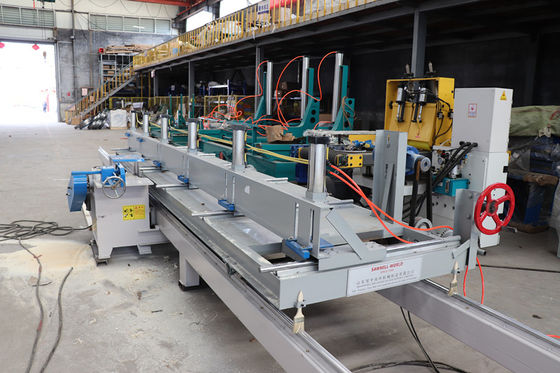

Photos:
Related Saw Machine
Portable Horizontal Band Sawmill (Electric Model )
- Portable horizontal band saw which is easy to install and operate.
- Finished with Carbide band saw blade for hard wood cutting .
- The sawing kerf is small, reduce the waste to high output.
- The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .
| Specifications: | ||||
|
Model |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
|
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
|
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
|
Sawn Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
|
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
|
Lifting Motor Power |
1.5KW | 1.5KW | 1.5KW | 1.5KW |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
Detailed Images of stanard model:
Heavy Duty Large Size Horizontal Band Sawmill
- The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
- It have large saw wheel and high power.
- Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola, Fiji and Southeast Asian countries .
Technical specifications:
| Model | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max. sawing width | 1200mm | 1500mm | 2000mm | 2500mm |
| Height from blade to track | 1100mm | 1200mm | 1700mm | 2200mm |
| Saw wheel diameter | 1070mm | 1070mm | 1070mm | 1070mm |
| Max.sawn thickness | 350mm | 350mm | 400mm | 400mm |
| Sawing wood length max. | 6meters | 6meters | 6meters | 6meters |
| Saw blade length & width | 7900 &125mm | 8600&125mm | 9700&125mm | 10500&125,150mm |
| Main motor power | 30kw | 37kw | 45kw | 55kw |
| Weight | 3800kgs | 4500kg | 5000kg | 5500kg |
