Twin Vertical Double Slabber Sawmill Machine SLS350, Automatic Twin Heads Band Saw Machine

Basic Information
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: SLS350, SLS500
Minimum Order Quantity: 1 set
Price: US $13,000 - 50,000 / Set
Packaging Details: container loading
Delivery Time: within 25 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1000 Set/Sets per Year
Detail Information
Name: Twin Vertical Double Slabber Sawmill Sawing Log Diameter: 100mm To 350mm
Sawing Log Lenght: 1m To 3meters Or As Customer Needs Main Electric Motor: 2 X 18.5kw, 3phase
Feeding Motor: 5.5kw Feeding Speed: Frequency Speed Adjustable
Sawn Sizes Setting: PLC Touching Screen Auto Setworks Saw Wheel Diameter: 700mm &75mm Width
Highlight:

atv log trailer with crane

,

log trailers with grapple

,

timber wood trailer with crane


Product Description

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed



Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks



Photos

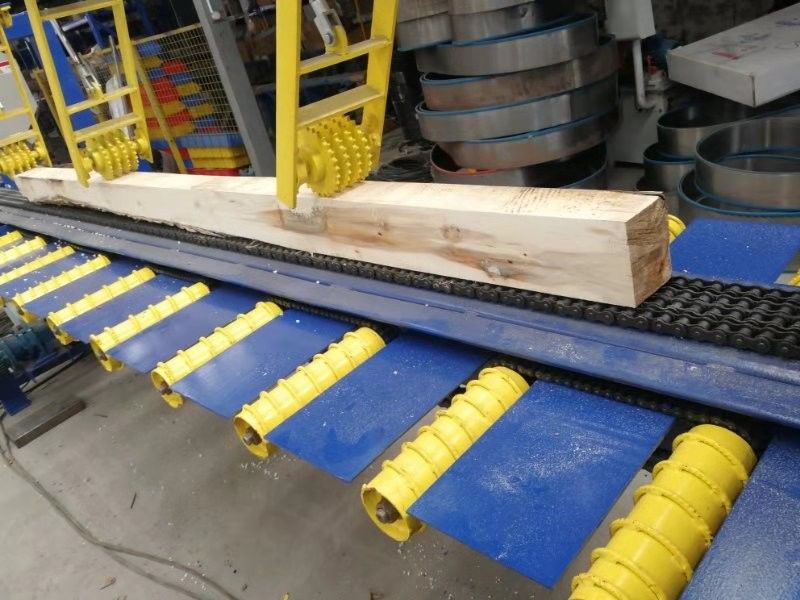

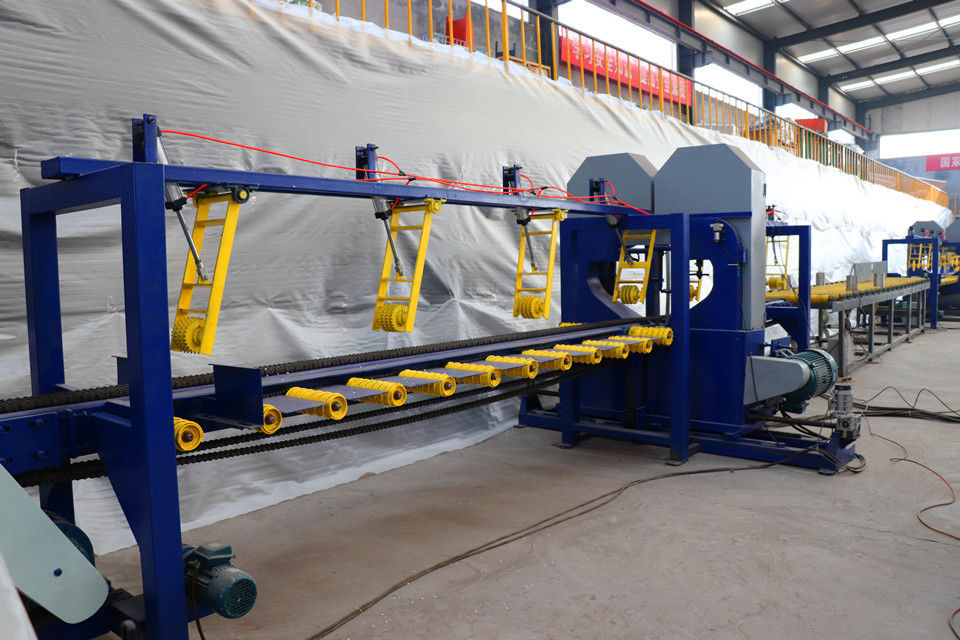

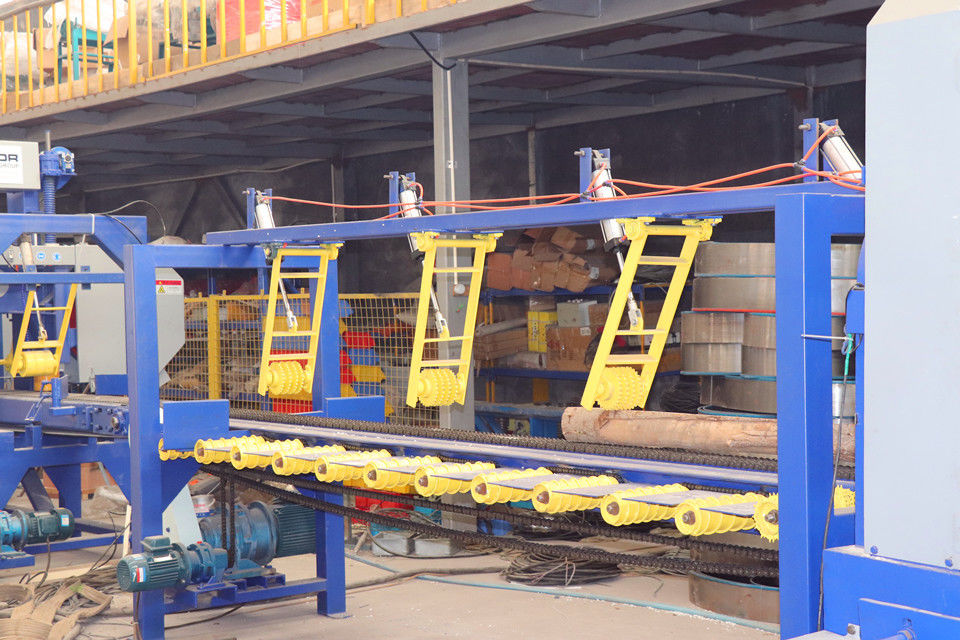

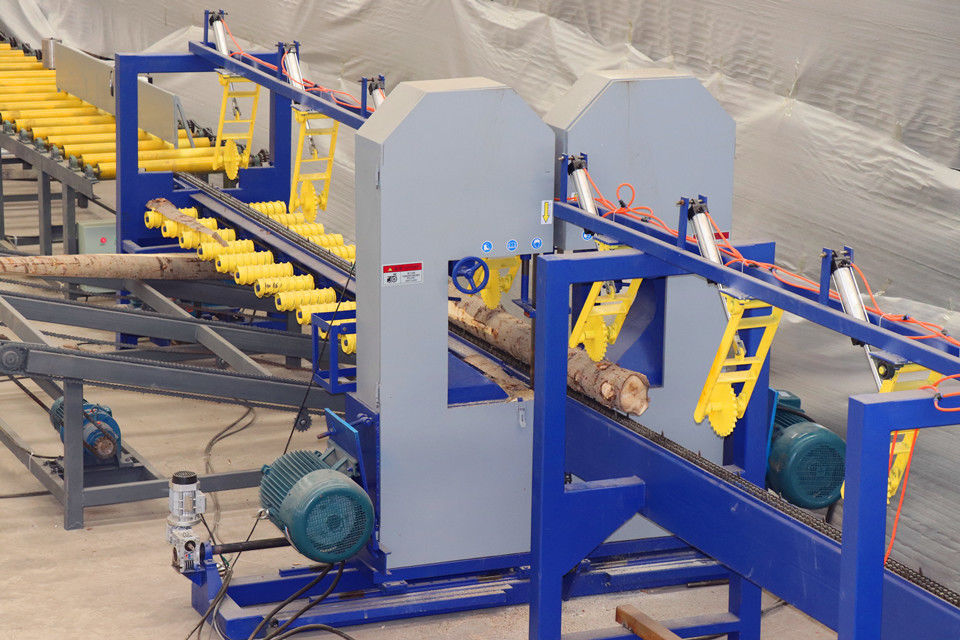

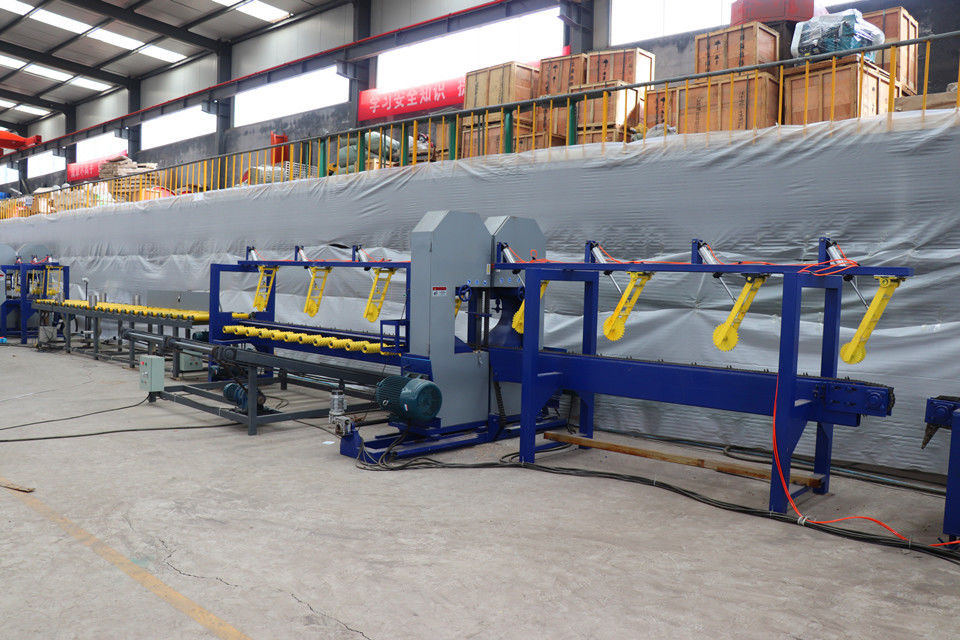

Twin Vertical Double Slabber Sawmill Machine SLS350, Automatic Twin Heads Band Saw Machine 0Twin Vertical Double Slabber Sawmill Machine SLS350, Automatic Twin Heads Band Saw Machine 1Twin Vertical Double Slabber Sawmill Machine SLS350, Automatic Twin Heads Band Saw Machine 2Twin Vertical Double Slabber Sawmill Machine SLS350, Automatic Twin Heads Band Saw Machine 3
