5 Heads Pine Wood Industrial Sawmill Equipment Horizontal Resaw Bandsaw For Wood

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	DT300-1,DT300-2,DT300-3,DT300-5,DT300-6

Minimum Order Quantity:	1 SET
Price:	US $14,200-37,700 / Set
Packaging Details:	container loading
Delivery Time:	within 25 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/year

Get Best Price Contact Now

Detail Information

Name:	Resaw Wood Band Sawmill	Style:	Horizontal
Motor Power:	15kw X 2set, 3sets, 5sets...	Max. Wood Width:	300mm Or As Customer Needs
Sawing Wood Height:	2 To 260mm	Blade Size:	75x4750mm
Saw Wheel Diameter:	700mm Or 600mm	Machine Length:	3500mm To 10500mm
Keyword:	Wood Cutting Band Saw,Wood Table Saw Machine,Horizontal Band Saw	Feeding:	Frequency Speed Adjustable
Warranty:	1 Year	After-sales Service:	Video Technical Support, Spare Parts
Highlight:	5 Heads Pine Wood Industrial Sawmill , Pine Wood Industrial Sawmill Equipment , Horizontal Resaw Bandsaw For Wood

Product Description

The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.

1.The head quantity from one to six is available.

2.Touch screen setting sawing thickness.

3.Variable Frequency Speed Adjustable Feeding Speed.

Technical data:

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

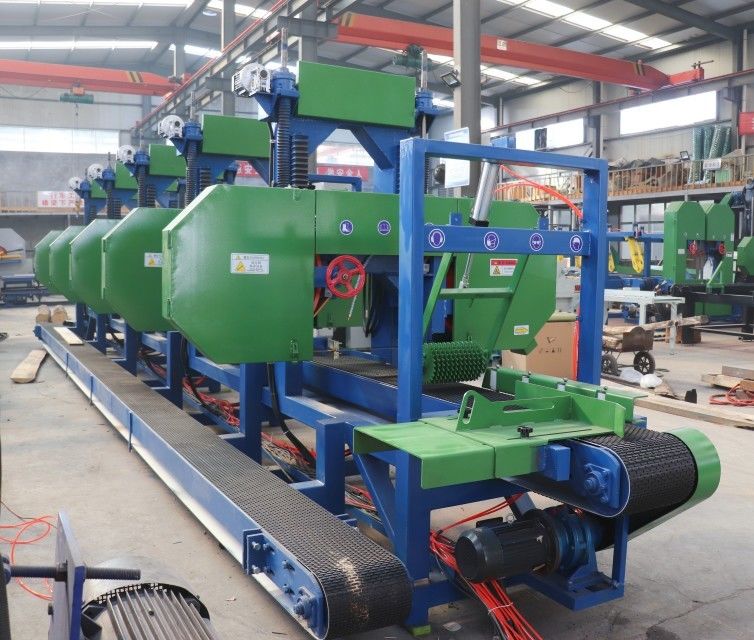

Detailed Image --4heads type

Container loading

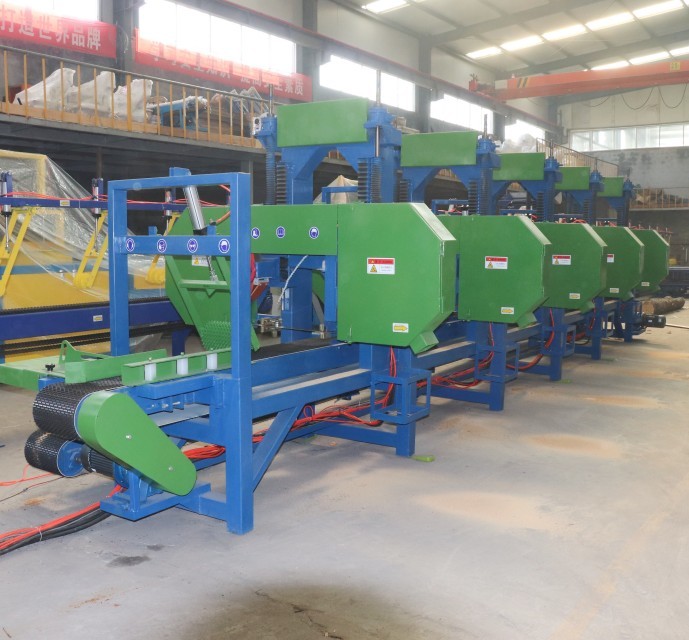

5 Heads Pine Wood Industrial Sawmill Equipment Horizontal Resaw Bandsaw For Wood 1

5heads resaw equipment

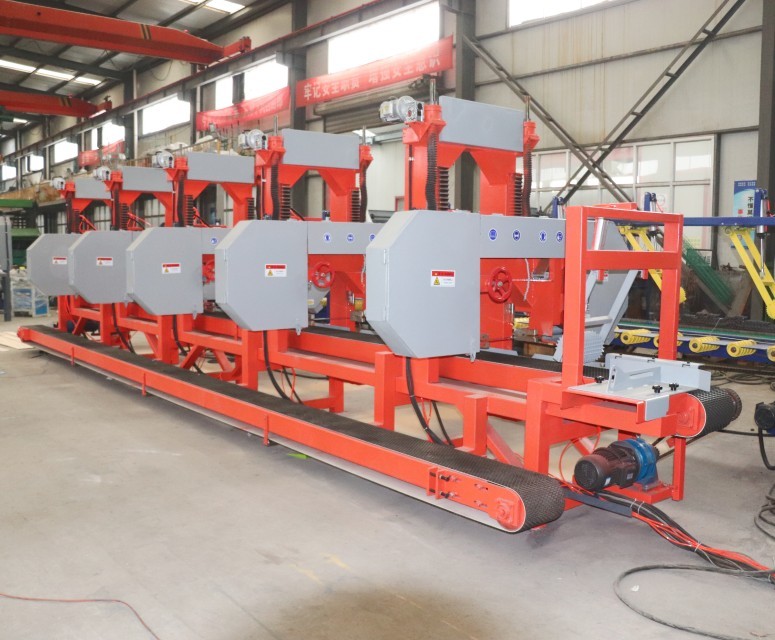

5 Heads Pine Wood Industrial Sawmill Equipment Horizontal Resaw Bandsaw For Wood 2

3heads resaw equipment

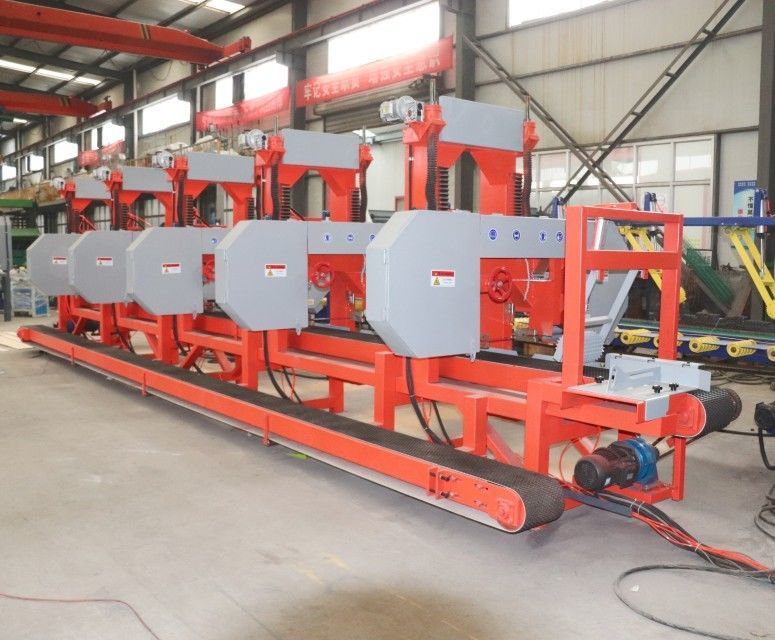

5 Heads Pine Wood Industrial Sawmill Equipment Horizontal Resaw Bandsaw For Wood 3

Related Saw Machine

Automatic twin bandsaw log processing production line

sawing log max. diameter 500mm, log length is as customer needs . Production capacity 150 to200m3 per 8hours

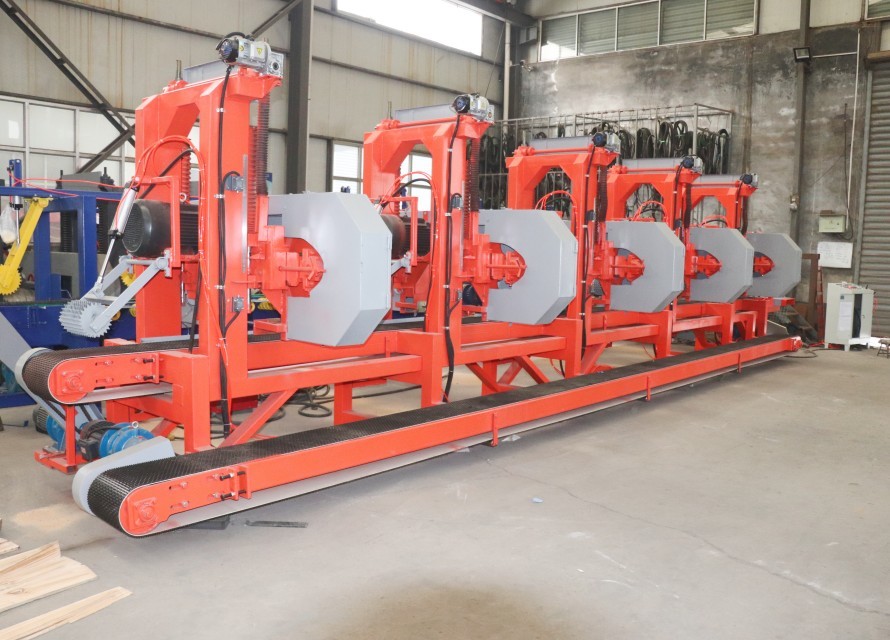

5 Heads Pine Wood Industrial Sawmill Equipment Horizontal Resaw Bandsaw For Wood 4

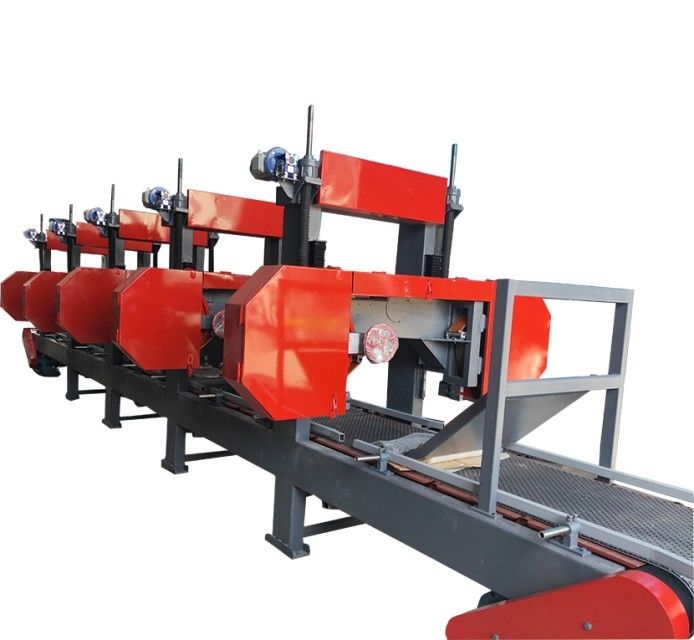

5 Heads Pine Wood Industrial Sawmill Equipment Horizontal Resaw Bandsaw For Wood 5
