    Product Details:

    Place of Origin: shandong province
    Brand Name: SH
    Certification: ISO
    Model Number: SHYM200,SHYM250, SHYM300, SHYM350,SHYM400,SHYM450

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD3000-USD15000/set
    Packaging Details: wooden pallet or iron frame export pallet
    Delivery Time: within 15 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Condition: New Usage: Woodworking
    Type: Circular Saw Voltage: 380V/3phase/50HZ Or As Cusmer Needs
    Power: 22-55kw X 2 Sets Sawing Log Max. Diameter: 450mm
    Feeding Type: Frequency Variable Automatic Feeding Warranty: 1 Year

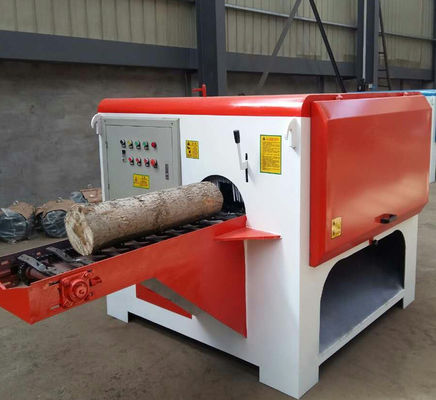

    Multi blades Ripsaw for Round Log Cutting

    1.Cut logs into planks at several pieces per time.
    2.With log centering feeding conveyor
    3.Automatic controlling



    Specifications:

    Model SHYM200 SHYM250 SHYM300
    Sawing log diameter 80-200mm 120-250mm 150-300mm
    Min sawing log length 600mm 600mm 600mm
    Blade cooling Shaft center spraying water to cool
    Main motor power 22KW X 2 30KW X2 37KW X2
    Feeding motor 1.5KW 1.5KW 2.2KW
    Saw blade diameter 305mm 355mm 405mm
    Weight 2000kg 2500kg 2800kg
    Model SHYM350 SHYM400 SHYM450
    Sawing log diameter 200-350mm 250-400mm 300-450mm
    Min sawing log length 600mm 600mm 600mm
    Cooling method Shaft center spraying water to cool
    Main motor power 45KW X2 55KW X 2 55KW X2
    Feeding motor 2.2KW 2.2KW 2.2KW
    Saw blade diameter 480mm 520mm 600mm
    Weight 3200kg 3500kg 3800kg

    Remarks:

    Main motor power can be changed as customer needs ;

    The multi ripsaw is with inverter auto feeding



    Double Spindle Multiple Blades Rip Saw, Round log Cutting Multi RipSaw Production Line



    Production line of Round Log Multi Blades Ripsaw and Lumber Multi Ripsaw

    Log Cutting Multiple Blades Sawmill
    Max Cutting Log Diameter 450mm
    Min Cutting Log Diameter 200mm
    Log Length 800-3000mm
    Cutting Speed 9-25m/min
    Motor power 75KW *2
    Centralise Model Touch Screen Digital Control



    Double Spindle Multiple Blades Rip Saw, Round log Cutting Multi RipSaw Production Line

    Automatic Rotation Centralise Roller Conveyor
    Conveyor Length 6000mm
    Conveyor Width 1000mm
    Motor Power 2.2KW
    Centralise Model Pneumatic

    Double Spindle Multiple Blades Rip Saw, Round log Cutting Multi RipSaw Production Line

    SH200-400 Log Cutting Multiple Blades Sawmill
    Sawing max. width 400mm
    Sawing max. thickness 200mm
    Sawing speed 10-25Meter/minute
    Main Motor power 45KW*2
    Feeding Motor 2.2KW
    Saw blade quantity 2-10 pieces
    Saw Blade Diameter 355mm
    Variable Frequency Speed Adjustable Feeding,
    Axles Center Water Cooling System,

    Double Spindle Multiple Blades Rip Saw, Round log Cutting Multi RipSaw Production Line

    Slab Slop Conveyor
    Length 3000mm
    Width 2500mm
    Motor 2.2KW

    Double Spindle Multiple Blades Rip Saw, Round log Cutting Multi RipSaw Production Line

    Slab Cutting Multiple Blades Horizontal Circular Saw
    Max Cutting Width 300mm
    Max. sawing thickness 80mm
    Feeding Frequency variable auto feeding
    Motor 15KW*2

    Double Spindle Multiple Blades Rip Saw, Round log Cutting Multi RipSaw Production Line

    500 High Speed Multiple Blade Rip Sawmill
    Max Cutting Plank Width 500mm
    Max Cutting Plank Thickness 50mm
    Circular Saw Blade Quantity 1-3 Pieces
    Motor Power 22kw

    Double Spindle Multiple Blades Rip Saw, Round log Cutting Multi RipSaw Production Line

    Conveyor Belt
    160-400 Conveyor Belt 600mm*8000mm,3KW
    BP300 Conveyor Belt 600mm*12000mm,3KW

    Double Spindle Multiple Blades Rip Saw, Round log Cutting Multi RipSaw Production Line

    Chain Conveyor
    Length 20000mm
    Width 1800mm
    Motor power 5.5KW

    Double Spindle Multiple Blades Rip Saw, Round log Cutting Multi RipSaw Production Line
