Detail Information

Name:	Circular Saw Multi Blades Ripsaw Production Line	Application:	Log Processing
Production Capacity:	150m3/day	Voltage:	380V, 3PHASE/50HZ Or As Customer Needs
Sawing Log Maximum Diameter:	50cm	Carbide Blade Diameter:	255mm, 305mm, 500mm, 650mm, Etc
Sawing Log Length:	Can Customise Machine As Customer Needs	Warranty:	12 Months
After-sales Service:	Video Technical Support, Spare Parts
Highlight:	Woodworking Multi Rip Saw Machine , Ripsaw Wood Ripping Machine , 50cm Ripsaw Woodworking

Product Description

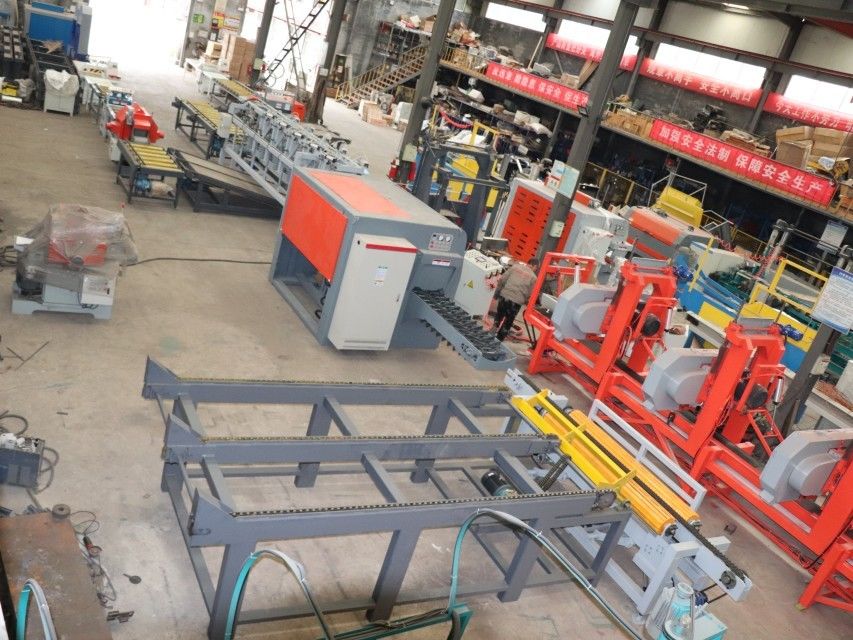

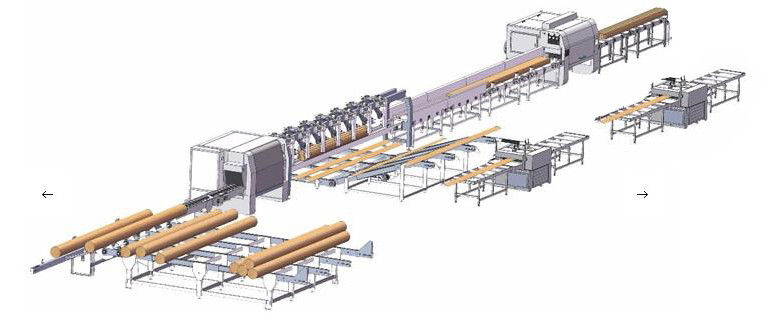

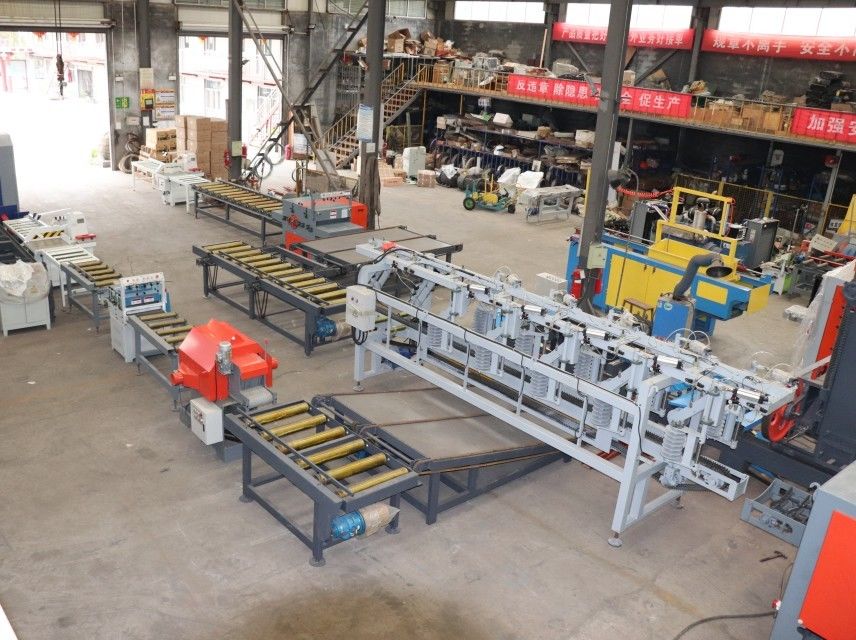

Automatic Wood Sawmill Production Line Log Process Multiple Blades Ripsaw

Multi Blades Ripsaw Production Line(Diameter 500MM,Length: 3meters)

50cm Ripsaw Woodworking Multi Rip Saw Machine Wood Ripping Machine 0

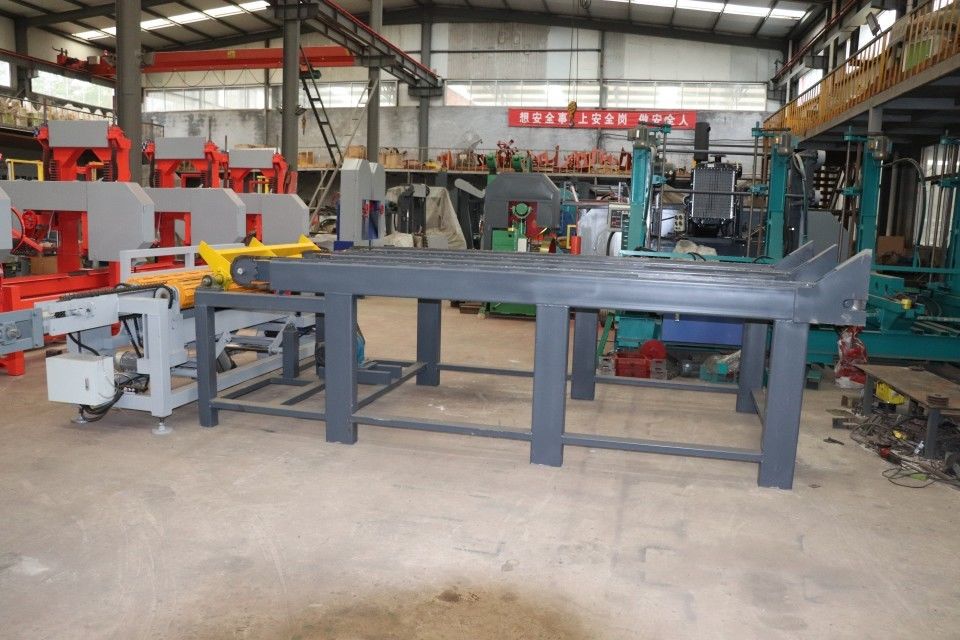

Log Loading Deck
Log Length	4000mm
Width	2000mm
Feeding Speed	Variable Frequency Speed Adjustable
Motor	5.5KW
Feeding Speed	frequency speed adjustable
Feeding	Pneumatic
Feeding Model	Chain

Log Rotation And Feeding Belt
Log Length	4000mm
Feeding Model	Variable Frequency Speed Adjustable
Feeding Speed	frequency speed adjustable *3KW2**
Motor Power
Control Model	Remote Control

SLS500 Muti blades ripsaw for logs
Max Cutting Log Diameter		500mm
Min Cutting Log Diameter		200mm
Log Length		800-3000mm
Cutting Speed		9-25m/min
Motor Power		*75KW 2**
Centralise Model		Touch Screen Digital Control

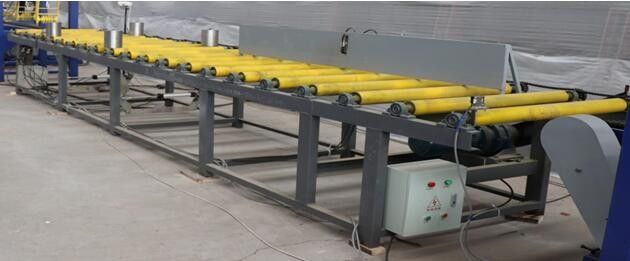

Automatic Rotation Centralise Roller Conveyor
Conveyor Length		6000mm
Conveyor Width		1000mm
Motor Power		2.2KW
Centralise Model		Pneumatic

200-400 Heavy duty Log Cutting Multiple Blades Sawmill
max. sawing width		400mm
Max. sawing thickness		200mm
sawing speed		10-25m/min
Main Motor power		*45KW2**
Feeding Motor		2.2KW
Saw Blade Quantity		2-10 pieces
Saw Blade Diameter		355mm
Variable Frequency Speed Adjustable Feeding,
Axles Center Water Cooling System,

Slab Slope Conveyor
Length		3000mm
Width		2500mm
Motor		2.2KW

BP300重型 Slab Cutting Multiple Blades Horizontal Circular Saw
Max Cutting Width		300mm
Max. sawing thickness		80mm
feeding		frequency speed adjustable
Motor		*15KW2**

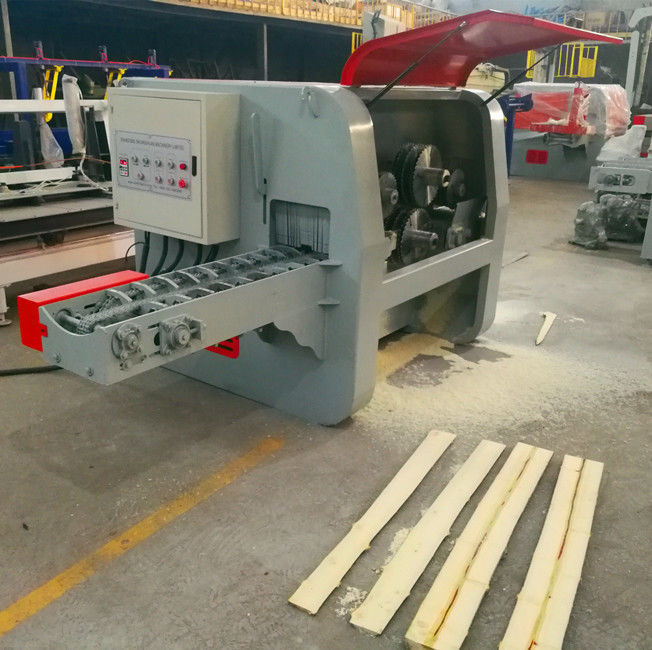

500 High Speed Multiple Blade Rip Sawmill
Max Cutting Plank Width			500mm
Max Cutting Plank Thickness			50mm
Circular Saw Blade Quantity			1-3 Pieces
Motor Power			22kw

Conveyor Belt
160-400 Conveyor Belt		*600mm6000mm,3KW**
BP300 Conveyor Belt		*600mm6000mm,3KW**
CB500 Conveyor Belt		*600mm6000mm,3KW**

50cm Ripsaw Woodworking Multi Rip Saw Machine Wood Ripping Machine 9

50cm Ripsaw Woodworking Multi Rip Saw Machine Wood Ripping Machine 10

50cm Ripsaw Woodworking Multi Rip Saw Machine Wood Ripping Machine 11

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SHYM200,SHYM250, SHYM300, SHYM350,SHYM400,SHYM450

Minimum Order Quantity:	1 SET
Price:	US $5,000-150,000 / Set
Packaging Details:	wooden pallet or iron frame packings
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/year
