Wood Gang Rip Saw Machine Circular Sawmill Multi Rip Saw Machine For Panel Cutting

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SH80-300, SH120-300,SH250-400,SH290-400,SH150-400, etc
Minimum Order Quantity 1 SET Multi Rip Saw
Price US $3,300 - 12,000 / Set
Packaging Details Iron frame packing or luo packings for multi rip saw
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Multi Rip Saw Power 18.5kw X 2sets To 75kw X 2sets
Max. Sawing Width 400mm Max. Sawing Height 300mm
Feeding Variable Frequency Speed Adjustable Auto Feeding Blade Cooling Spindle Center Watering For Blade Cool
Blade Arrangement Up/down Main Shaft Diameter 50mm To 100mm
Warranty 12 Months
High Light

Circular Sawmill Multi Rip Saw Machine

,

18.5Kw Multi Rip Saw Machine

,

18.5Kw Sawmill Multi Rip Saw

Leave a Message
Product Description

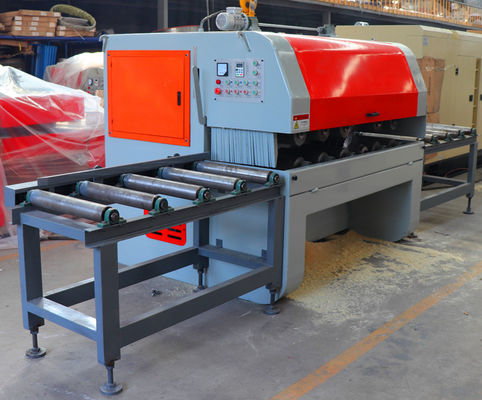

Multiple Blade Circular Sawmill Wood Saw Machine for Panel Cutting

Double Spindle Panel Cutting Multiple Blades Rip Saw

1.Used for Lumber/Panels/Planks Cutting

2.Max. cutting depth/thciness is upto 160mm

3.Max. cutting width is upto 400mm

4.Big motor power, fit for hardwood cutting

5.Blades is placed on up/down abrod/spindle .

6.We present one set discs on your cutting thickness



Specifications:

Multi Blades Rip Saw- For wood panels/pkank cutting

Model
SH60-300
SH80-300
SH100-300
SH120-300
SH150-300
Max. Sawing width
250-300mm
250-300mm
250-300mm
250-300mm
250-300mm
Max. Sawing thickness
60mm
30-80mm
40-100mm
50-120mm
60-150mm
Motor
18.5KW/22KW
22KW*2
22KW*2
22KW*2
30KW*2
Saw Blade Diameter
150MM
180mm
210mm
230mm
255mm
Spindle Diameter
50mm
50mm
50mm
50mm
50mm
Weight
1190kg
1260kg
1420kg
1560kg
1620kg

Wood Gang Rip Saw Machine Circular Sawmill Multi Rip Saw Machine For Panel Cutting 0

Wood Gang Rip Saw Machine Circular Sawmill Multi Rip Saw Machine For Panel Cutting 1

Wood Gang Rip Saw Machine Circular Sawmill Multi Rip Saw Machine For Panel Cutting 2

Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type

Model
SH100-400
SH120-400
SH160-400
SH200-400
SH250-400
SH270-400
SH290-400
Sawing width
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
Sawing thickness
40-100mm
50-120mm
70-160mm
90-200mm
110-250mm
130-270mm
150-290mm
Motor
30kw*2
37kw*2
37/45kw
37/45kw
45kw*2
45/55kw
55KW*2
Saw Blade Diameter
180MM
230mm
255mm
230mm
280mm
280mm
380mm
Spindle Diameter
70mm
70mm
70mm
80mm
80mm
80mm
100mm
Weight
2330kg
2450kg
2480kg
2550kg
2580kg
2620kg
2700kg



Wood Gang Rip Saw Machine Circular Sawmill Multi Rip Saw Machine For Panel Cutting 3Wood Gang Rip Saw Machine Circular Sawmill Multi Rip Saw Machine For Panel Cutting 4

Related Ripsaw Machine

Single Spindle Multi Rip Saw

  • Technical data
Model BC150 BC200 BC300
Max Sawing Wood Width 150mm 200mm 300mm
Max Sawing Wood Thickness 2-65mm 2-65mm 2-65mm
Min Sawing Wood Length 200mm 200mm 200mm
Saw Blade Diameter 250mm 250mm 250mm
Main Motor Power 11kw 15kw 18.5kw
Pneumatic Press Roller,Variable Frequency Speed Adjustable Feeding

Wood Gang Rip Saw Machine Circular Sawmill Multi Rip Saw Machine For Panel Cutting 5Wood Gang Rip Saw Machine Circular Sawmill Multi Rip Saw Machine For Panel Cutting 6

Model BC380 BC400 BC600
Max Sawing Wood Thickness 15-50mm 8-30mm 15-50mm
Max Sawing Wood Width 380mm 400mm 600mm
Min Sawing Wood Length 450mm 450mm 450mm
Saw Blade Diameter 230*50mm 150*35mm 230*60mm
Motor Power 7.5KW 4KW 18.5KW

Wood Gang Rip Saw Machine Circular Sawmill Multi Rip Saw Machine For Panel Cutting 7
