Home /Products/Circular Sawmill/BT300 11KW Portable Lumber Edger Circular Cutting Edge Sawmill Machine

BT300 11KW Portable Lumber Edger Circular Cutting Edge Sawmill Machine

1 SET
MOQ
US $3,800 - 6,500 / Set
Price
BT300 11KW Portable Lumber Edger Circular Cutting Edge Sawmill Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Product Name: Wood Board Edger Cutting Saw
Application: Cutting Both Edges Of Board
Warranty: 12 Months
Power: 11KW X 2 Sets
Type: Auto Edger
Max. Sawing Width: 1500mm
Max. Sawing Thickness: 300mm
Wood Grasp: Pneumatic
Feeding: Electrical
Highlight:

11KW Portable Lumber Edger

,

BT300 Circular Cutting Edge Sawmill

,

Cutting Edge Sawmill Machine
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001:2008
Model Number: BT300-3500, BT250-3500, etc
Payment & Shipping Terms
Packaging Details: iron made frame pallet or container loading
Delivery Time: within 19 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1000sets per year
Product Description

Big Wood Board Edger Circular Saw, Circular Disc Edges Cutting Sawmill



Big Width Wood Board Edger Saw

1.Fit for wider and thicker board edges cutting

2.Electrical wood feeding

3.Pneumatic wood grasp

Technical specifications:

Model BT300-6-3500 BT250-10-3500 BT250-15-3500 BT250-15-3500
Sawing max. thickness 10-300mm 10-250mm 10-250mm 10-100mm
Sawing max. length 3500mm 3500mm 3500mm 3500mm
Sawing max. width 600mm 1000mm 1500mm 600mm
Circular blade dia. 405mm 355mm 355mm 355mm
Main motor power 11KW*2 11KW*2 11KW*2 11KW
Rail length 7000mm 7000mm 7000mm 7000mm
Grasp wood type Pneumatic Pneumatic Pneumatic Pneumatic
Feeding Electrical Electrical Electrical Electrical
Size setting Manual Manual Manual Manual



Photos:

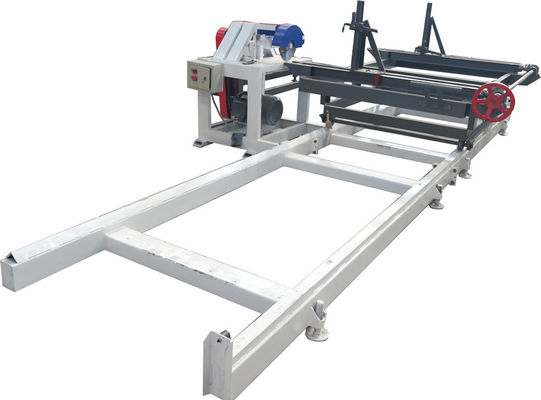

BT300 11KW Portable Lumber Edger Circular Cutting Edge Sawmill Machine 0

BT300 11KW Portable Lumber Edger Circular Cutting Edge Sawmill Machine 1BT300 11KW Portable Lumber Edger Circular Cutting Edge Sawmill Machine 2

Related Saw Machine



Portable Horizontal Band Sawmill (Electric Model )

  • Portable horizontal band saw which is easy to install and operate.
  • Finished with Carbide band saw blade for hard wood cutting .
  • The sawing kerf is small, reduce the waste to high output.
  • The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .
Specifications:



Model

 MJ700E MJ1000E MJ1300E MJ1600E



Max. Sawing Wood Diameter

 700MM 1000MM 1300MM 1600MM



Saw Wheel Diameter

 600MM 700MM 700MM 700MM



Sawn Thickness

 2-250MM 2-300MM 2-300MM 2-300MM



Sawing Wood Length MM

 1300-4500 1300-4500 1300-4500 1300-4500



Main Motor Power

 15KW 18.5KW 22KW 30KW



Lifting Motor Power

 1.5KW 1.5KW 1.5KW 1.5KW



Total Weight (KG)

 1100 1100 1300 1500



Detailed Images of stanard model:

BT300 11KW Portable Lumber Edger Circular Cutting Edge Sawmill Machine 3



Heavy Duty Large Size Horizontal Band Sawmill

  • The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
  • It have large saw wheel and high power.
  • Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola, Fiji and Southeast Asian countries .

Technical specifications:



Model MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width 1200mm 1500mm 2000mm 2500mm
Height from blade to track 1100mm 1200mm 1700mm 2200mm
Saw wheel diameter 1070mm 1070mm 1070mm 1070mm
Max.sawn thickness 350mm 350mm 400mm 400mm
Sawing wood length max. 6meters 6meters 6meters 6meters
Saw blade length & width 7900 &125mm 8600&125mm 9700&125mm 10500&125,150mm
Main motor power 30kw 37kw 45kw 55kw
Weight 3800kgs 4500kg 5000kg 5500kg

BT300 11KW Portable Lumber Edger Circular Cutting Edge Sawmill Machine 4
