Place of Origin: | Shandong Province, China |
Brand Name: | SH |
Certification: | ISO9001 |
Model Number: | EG600, EG800, EG1000 |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | US $4,200 - 9,000 / Set |
Packaging Details: | iron made frame |
Delivery Time: | within 20 days |
Payment Terms: | T/T or L/C at sight, Western Union |
Supply Ability: | 50 Set/Sets per Month |
Condition: | New | Sawing Width: | 50mm To 1000mm |
---|---|---|---|
Sawing Thickness: | 10mm To 70mm | Blade Diameter: | 2pc X 350mm |
Feeding: | Inveter Feeding Conveyor | Feeding Speed: | 20-25m/min |
Engine: | 15KW, 380V/3PH Or As Customer Needs | Configuration: | One Blade Movable |
Twin Blades Wood Board Edger/border cutting machine
1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable
4. The saw blade moves with infrared light and moves at the same time .
Technical data :
Technical parameters | EG600A |
cutting max. width | 600mm |
cutting min. width | 50mm |
sawn max. thickness | 70mm |
sawn min. thickness | 10mm |
Blade | 2*350mm |
Feeding method | Automatic feeding conveyor |
Feed Rate | 20-25m/ minute |
Power | 15KW electric motor |
Positioning | Infrared line |
Machine weight | 800KG |
Remarks: One blade is fixed and another blade is movable. Can cut both sides at same time. Mobile wheels are workable |

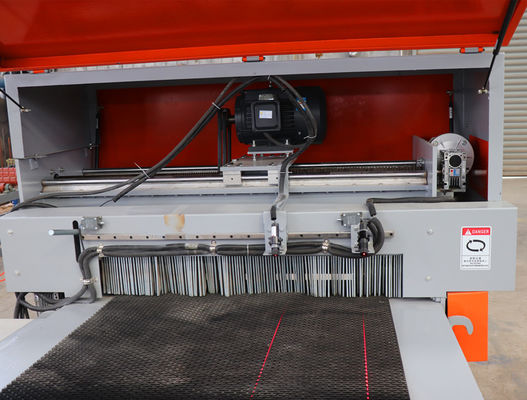

Photos:
