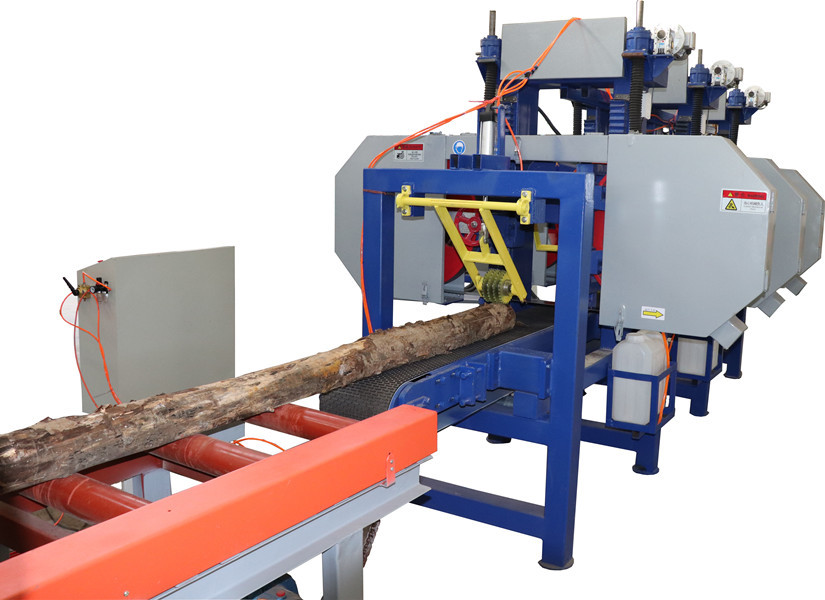

300mm Width Bandsaw Industrial Sawmill Equipment With Multiple Heads
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | DT300-1,DT300-2,DT300-3,DT300-5,DT300-6 |
| Minimum Order Quantity | 1 SET |
| Price | US $14,200-37,700 / Set |
| Packaging Details | container loading |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Multiple Head Horizontal Band Resaw Machine | Type | Band Saw |
|---|---|---|---|
| Voltage | 380v,50HZ/3phase Or As Customer Nee | Power(w) | 15kw X2sets, 3sets, 5sets..... |
| Saw Wheel Diameter | 700MM | Sawing Wood Max. Width | 300mm |
| Feeding | Variable Frequency Speed Adjustable | Warranty | 1 Year |
| After-sales Service Provided | Online Support,Video Technical Support,commissioning And Training | Keyword | Wood Cutting Band Saw,Wood Table Saw Machine |
| High Light | Bandsaw Industrial Sawmill Equipment,300mm Width Bandsaw Sawmill,300mm Width Industrial Sawmill Equipment |
||
Product Description
Chinese maufacture Multiple heads horizontal band sawmill machine
Multiple Heads Horizontal Resaw Band Saws
This machine is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
Technical Data:
| Technical specifications | DT300-1 | DT300-2 | DT300-3 | DT300-5 | DT300-6 |
| Sawing width | 300mm | 300mm | 300mm | 300mm | 300mm |
| Minimum wood thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Maximum wood height | 260mm | 260mm | 260mm | 260mm | 260mm |
| Band wheel diameter | 700mm | 700mm | 700mm | 700mm | 700mm |
| Saw motor | 15kw | 15kw x 2 | 15kw x 3 | 15kw x 5 | 15kw x 6 |
| Saw machine length | 3500mm | 4500mm | 5800mm | 8500mm | 11000 |
| Weight | 900kg | 1500kg | 2200kg | 3500kg | 5000kg |
| Feeding | Variable frequency speed adjustable conveyor | ||||
| Operation | Touching screen auto setworks for sawn thickness | ||||
Detailed Image

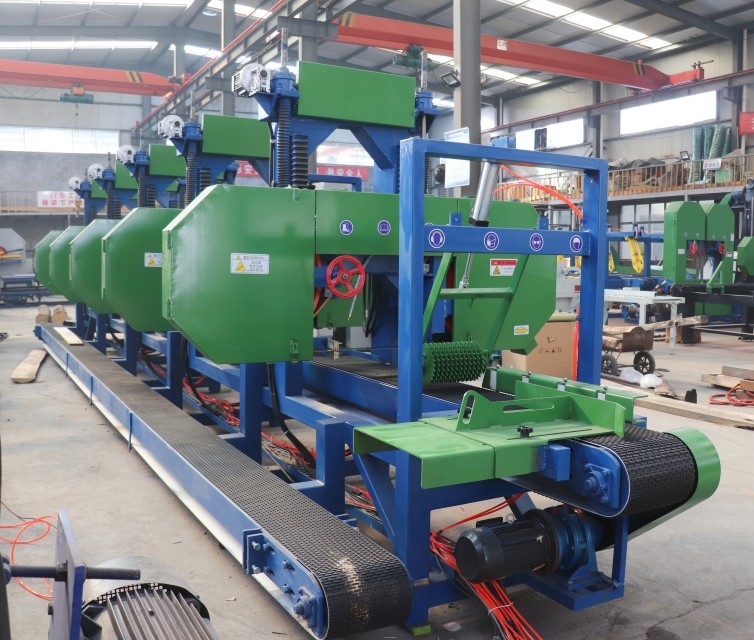

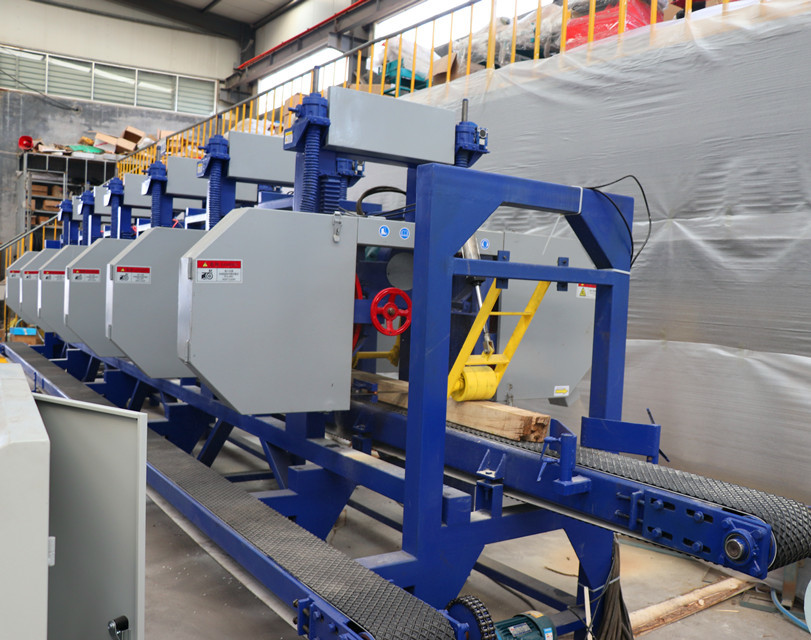

3heads band resaw

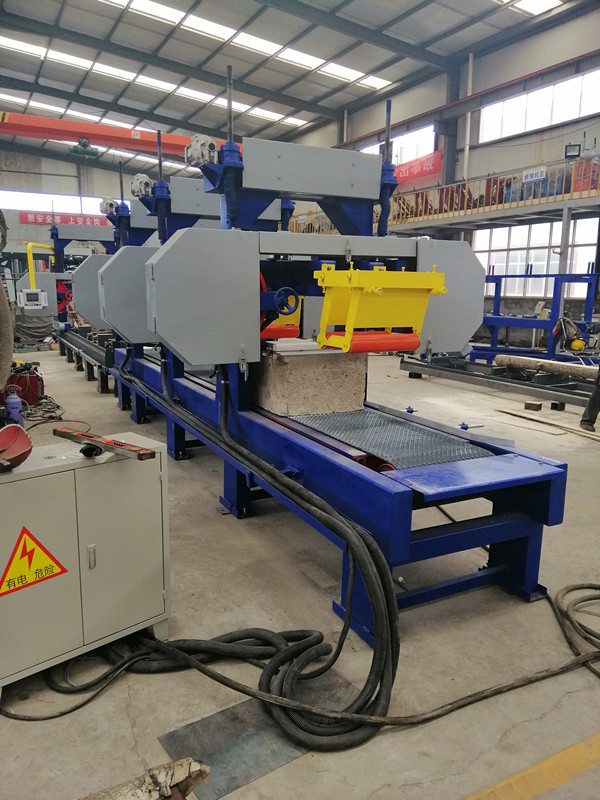

For foam plate cutting

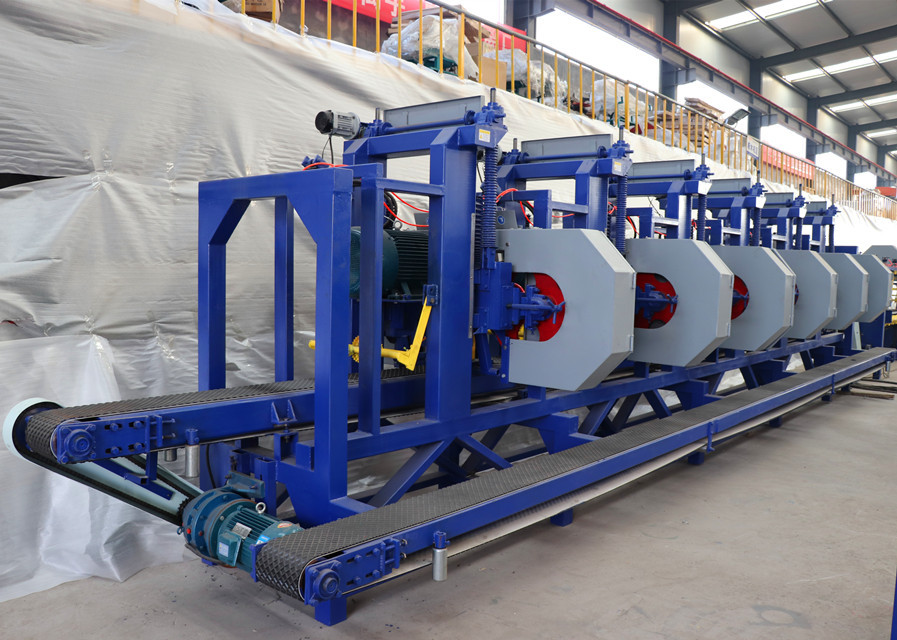

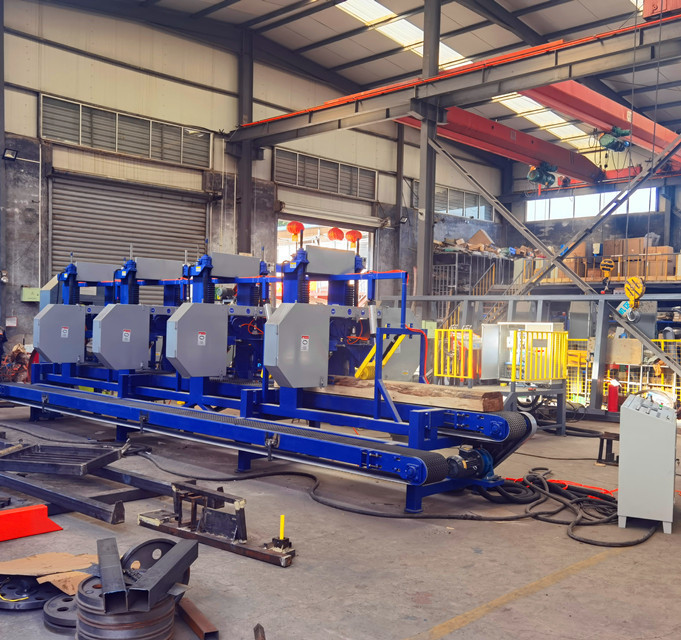

5heads band resaw
Optional - board returning conveyor
Multi Blades Rip Saw
Introduction:
- with Infrared positioning
- for board edges cutting
- sawing planks into small pcs
- easy usage, no installation
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 210mm | 210mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |
Photos:
Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:
- with Infrared positioning
- for big thickness board edger cutting
- high working efficiency, low cost ,fulfil the max. value of the wood
- easy usage, no installation
Technical data :
| Model | ZHW800-70 | ZHW800-80 | ZHW800-100 |
| Sawing wood height | 10-70mm | 10-80mm | 20-100mm |
| Sawing wood width | 800mm | 800mm | 800mm |
| Carbide blade diameter | 280mm | 305mm | 355mm |
| Main motor | 22KW | 30KW | 37KW |
| Blade quantity | 1P-10P | 1P-10P | 1P-10P |
| Rotation speed | 3500/min | 3500/min | 3500/min |
