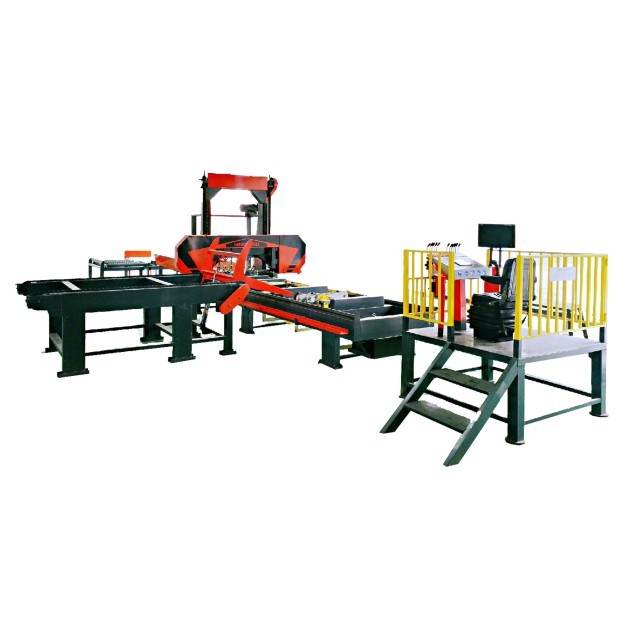

Hydraulic 160cm Wood Portable Sawmill Horizontal Band Saw Mill
Place of Origin | Shandong Province, China |
---|---|
Brand Name | SH |
Certification | ISO9001 |
Model Number | MJH700, MJH1000, MJH1300, MJH1600 |
Minimum Order Quantity | 1 SET |
Price | US $4,200 - 15,800 / set |
Packaging Details | iron frame packing or wooden crates |
Delivery Time | within 20 days |
Payment Terms | T/T or L/C at sight, Western Union |
Supply Ability | 1000sets/year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Portable Sawmill | Power Type | Diesel / Petrol Engine, Electric Start |
---|---|---|---|
Max. Sawing Log Diameter | 160cm | Sawing Length | 4.5Meters Or Extend Sawmill Track |
Saw Wheel Diameter | 700mm | Sawn Thickness | 2-300mm |
Saw Blade Width | 50mm To 80mm | Automatic Log Rotation | Hydraulic Chain Rotation |
Warranty | 12 Months | After-sales Service Provided | Video Technical Support |
High Light | 160cm Wood Portable Sawmill,Hydraulic 160cm Sawmill,160cm Horizontal Band Saw Mill |
Hydraulic Horizontal Wood Working Band Saw Mills, Automatic Portable Wood Sawmill Price
Hydraulic Automatic Horizontal Band Sawmill
Combined with hydraulic automation technology, the hydraulic automatic horizontal band sawmill realizes all digital intelligent control. Chinese and English operating systems, automatic wood rotation, sawing and cutting of large diameter wood, simple operation, precise cutting thickness to improve wood usage rate .
Technical Specifications:
Model | MJH1000A | MJH700A |
Max Sawing Wood Diameter | 1000mm | 700mm |
Saw Wheel Diameter | 700mm | 700mm |
Max Sawn Thickness | 300mm | 300mm |
Standard Sawing Wood Length | 4.5 meters | 4.5meters |
Main Motor Power | 22kw | 18.5KW |
Hydraulic motor power | 4kw | 3kw |
Saw Blade Width | 40mm-80mm | 40mm-80mm |
Machine Length | 6000mm | 6000mm |
Weight | 3500kg | 3000kg |
型 号 | Model | MJH1300E |
锯割木材直径 | Max Sawing Wood Diameter | 1300mm |
锯轮直径 | Saw Wheel Diameter | 700mm |
最大锯割木材厚度 | Max Sawing Wood Thickness | 300mm |
锯割木材长度(标准) | Standard Sawing Wood Length | 4000mm |
电机功率 | Electric Motor Power | 30kw |
升降电机 | Up/Down Electric Motor | 1.5kw |
行走电机 | Forward/backward Electric Motor | 2.2kw |
锯条宽度范围 | Saw Blade Width | 27mm-75mm |
涨紧锯条 | Blade Tension | Hydraulic |
机床长度 | Machine Length | 5800mm |
重量 | Weight | 2500kg |
Related Products:
Heavy duty big log cutting hydraulic sawmill machine
Technical Data:
Model
|
MJH1200E
|
MJH1500E
|
Max Sawing Wood Diameter
|
1200mm
|
1500mm
|
Saw Wheel Diameter
|
1000mm
|
1070mm
|
Max Sawing Wood Thickness
|
400mm
|
400mm
|
Standard Sawing Wood Length
|
4500mm
|
4500mm
|
Electric Motor Power
|
37kw
|
45kw
|
Up/Down Electric Motor
|
2.2kw
|
2.2kw
|
Forward/Backward Electric Motor
|
3kw
|
3kw
|
Band Saw Blade Width
|
125-150mm
|
125-150mm
|
Band Saw Blade Tension
|
Electric
|
|
Machine Length
|
7000mm
|
7000mm
|
Weight
|
7000kg
|
8500kg
|
Board Edger Saw
Technical data :
Model | EG600 | EG800 | EG1000 |
Sawing width | 50-600MM | 50-800MM | 50-1000MM |
Sawing height | 10-70mm | 10-70mm | 10-70mm |
Blade diameter | 2*350MM | 2*350MM | 2*350MM |
Feeding speed | 20-25m/ minute | 20-25m/ minute | 20-25m/ minute |
Main motor power | 7.5KW*2 | 7.5KW*2 | 7.5KW*2 |
