High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | DP500 |
| Minimum Order Quantity | 1 SET |
| Price | US $14,600-18,000 / Set |
| Packaging Details | container loading |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 500 sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Bottom Slab Horizontal Band Saw | Type | Band Saw |
|---|---|---|---|
| Use | Woodworking | Power(W) | 22kw, 380v/30h/50HZ |
| Feeding Motor | 5.5KW | Sawing Log Diameter | 100mm To 500mm |
| Sawing Wood Length | 1000mm To 3000mm | Saw Blade Width | 50mm To 80mm |
| Operation | CNC Digital | Warranty | 1 Year |
| High Light | Single Head 22Kw Wood Resaw,Woodworking Slab Saw Mill,22Kw Slab Saw Mill |
||
Product Description
Woodworking Slabs Cutting Saw Mill, Horizontal band saw, single head resaws

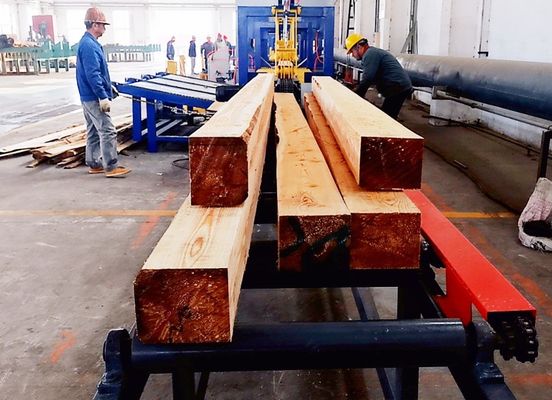

Bottom Slab Cutting Horizontal Band Saw
Designed to make the first cut at the bottom of the log, providing a flat surface for further processing.
• Ideal to cut pine.
• Base blocks 100% square.
• High production, continuous feed system.
• Produces up to 4,000 m3 per month.
• Efficient wood utilization with the thinnest cut on the market.
• Motorization and automatic electrical panel included.
• Automatic in-feed
Technical Data:
| Technical specifications | DP500 |
| Maximum log diameter | 500mm |
| Minimum log diameter | 100mm |
| Wood length | 1000-3000mm |
| Feed speed | 9-25m/min |
| Conveyor length | 7000mm |
| Band wheel diameter | 700mm |
| Saw blade width | 50mm-80mms |
| Saw motor | 22kw |
| Feed motor | 5.5kw |
| Weight | 2500kgs |
Related Saw Machine
Block Bandsaw/ Twin Vertical Band Saw (Flat bottom)
Designed to receive logs with at least one straight bottom, making two vertical cuts, removing a slab from each side of the log.
· Ideal to cut pine, eucalyptus, and teak.
· Block 100% Square
· High-production continuous feed system.
· Production up to 4,000 m³ per month.
· Highly efficient use of wood, with the thinnest kerf on the market.
· Motorization and automatic electric panel included.
· Automatic feeding, inverter speed adjustable .
Technical data :
| Model | SLSP400 |
| Maximum log diameter | 400mm |
| Minimum log diameter | 100mm |
| Wood length | 1000~3000mm |
| Feed speed | 9~25m/min |
| Conveyor length | 7000mm |
| Bandwheel diameter | 700mm |
| Blade width | 50~80mm |
| Saw motor | 18.5KW X 2 |
| Feed motor | 5.5kw |
| Weight | 2500kg |
Deatiled Image
Multiple Heads Horizontal Resaw Band Saws
This machine is invented by our company.It is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
| Technical specifications | DT300-1 | DT300-2 | DT300-3 | DT300-5 | DT300-6 |
| Sawing width | 300mm | 300mm | 300mm | 300mm | 300mm |
| Minimum wood thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Maximum wood height | 260mm | 260mm | 260mm | 260mm | 260mm |
| Band wheel diameter | 700mm | 700mm | 700mm | 700mm | 700mm |
| Saw motor | 15kw | 15kw x 2 | 15kw x 3 | 15kw x 5 | 15kw x 6 |
| Saw machine length | 3500mm | 4500mm | 5800mm | 8500mm | 11000 |
| Weight | 900kg | 1500kg | 2200kg | 3500kg | 5000kg |
| Feeding | Variable frequency speed adjustable conveyor | ||||
| Operation | Touching screen auto setworks for sawn thickness | ||||
