Timber Vertical Band Sawmill 700mm Wood Resaw Bandsaw With Touch Screen
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | SLS350, SLSP400, SLS500 |
| Minimum Order Quantity | 1 SET |
| Price | US $14,300 - 124,000 / Set |
| Packaging Details | luo packings |
| Delivery Time | within 20 days |
| Payment Terms | T/T or L/C at sight |
| Supply Ability | 1000sets/year of vertical sawmill machine |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Twin Heads Vertical Sawmill Machine | Sawing Wood Diameter | 100 To 500mm |
|---|---|---|---|
| Sawing Wood Length | 1meter To 5meters | Saw Wheel Diameter | 700mm |
| Feeding Speed | 14-20Meters /Min | Dimension(L*W*H) | 6000*2200*2500MM |
| Application | Saw Edges Of Round Logs Into Square Timber | Feeding Motor | 5.5kw, 4kw X 2sets Frequency Speed Adjustable |
| Main Motor Power | 18.5kw X 2, 22kw X 2sets | After-sales Service Provided | Video Technical Support, Spare Parts |
| High Light | Timber Vertical Band Sawmill,Timber Wood Resaw Bandsaw,700mm Wood Resaw Bandsaw |
||
Product Description
Timber Vertical Band Sawmill Machine, Twin Vertical Wood Resaw Band Saw with touching screen
TWIN BANDSAW FOR LOG EDGES CUTTING
Designed to receive logs and make two vertical cuts removing a slab from either side of the log.
· Ideal to cut pine, eucalyptus, and teak.
· High-precision cutting.
· Laterally-supported chain.
· High-production continuous feed system.
· Produces up to 4,000 m³ per month.
· Highly efficient use of wood, with the finest cut on the market.
· Motorization and control panel included.
· Automatic feed
Technical Specifications:
| Technical data | SLS350 | SLS500 |
| Maximum log diameter | 350mm | 500mm |
| Minimum log diameter | 100mm | 100mm |
| Wood length | 1000 to 3000mm | 1000 to 3000mm |
| Feed speed | 9-25m/min (inverter) | 9-25m/min (inverter) |
| Conveyor length | 7000mm | 3500mm x 2 |
| Band wheel diameter | 700mm | 760mm |
| Width of saw blade | 50-80mm | 50-100mm |
| Length of saw blade | 4850 | 5200mm |
| Thickness of saw blade | 0.9mm | 0.9mm |
| Saw motor | 2x18.5kw | 2x22kw |
| Feed motor | 5.5kw | 4kw x 2 |
| Sawn sizing control | Touching screen auto setworks | Touching screen auto setworks |
Photos

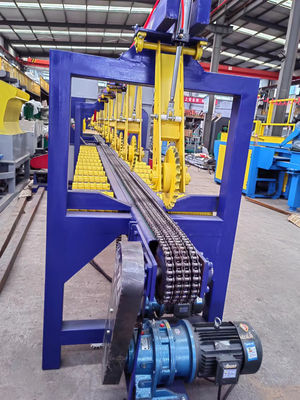

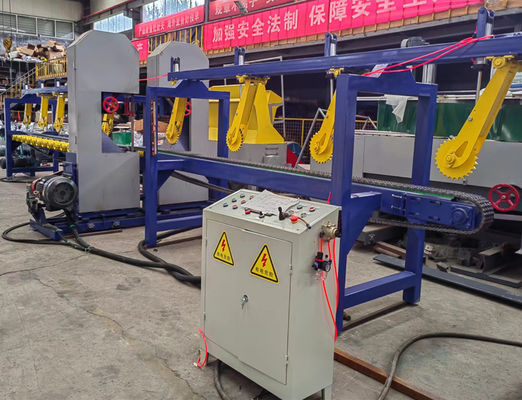

Twin Bandsaw Production Line
Related Products
Multiple Heads Horizontal Resaw Band Saws
- This machine is easy-operated,high efficiency and easy-installed.
- The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
- Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
Technical data
| Technical specifications | DT300-1 | DT300-2 | DT300-3 | DT300-5 | DT300-6 |
| Sawing width | 300mm | 300mm | 300mm | 300mm | 300mm |
| Minimum wood thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Maximum wood height | 260mm | 260mm | 260mm | 260mm | 260mm |
| Band wheel diameter | 700mm | 700mm | 700mm | 700mm | 700mm |
| Saw motor | 15kw | 15kw x 2 | 15kw x 3 | 15kw x 5 | 15kw x 6 |
| Saw machine length | 3500mm | 4500mm | 5800mm | 8500mm | 11000 |
| Weight | 900kg | 1500kg | 2200kg | 3500kg | 5000kg |
| Feeding | Variable frequency speed adjustable conveyor | ||||
| Operation | Touching screen auto setworks for sawn thickness | ||||
Detailed Image -6heads reaw equipment
Optional - board returning conveyor
5heads reaw equipment
Multi Blades Rip Saw
Multi Blades Rip Saw- For wood panels/plank cutting
Multi Blades Wood Slabs Cutting Saw
