| Place of Origin: | Shandong Province, China |
| Brand Name: | SH |
| Certification: | ISO9001 |
| Model Number: | SLS350, SLS500 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $12,000 - 140,000 / Set |
| Packaging Details: | container loading |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 500sets/year |
| Name: | Twin Vertical Saw | Condition: | New |
|---|---|---|---|
| Type: | Band Saw | Style: | Vertical |
| Warranty: | 12 Months | Voltage: | 380V, 50HZ, 3PH Or As Customer Needs |
| Power(W): | 2*18.5KW | Dimension: | 12000*2300*3500mm |
| Weight: | 1500KG | Application: | Cut Four Side Of Log,produce Timber |
| Saw Wheel Diameter: | 700MM | Max. Sawing Wood Diameter: | 500MM |
| Control: | CNC Digital | Feeding Speed: | Variable Frequency Speed Adjustable |

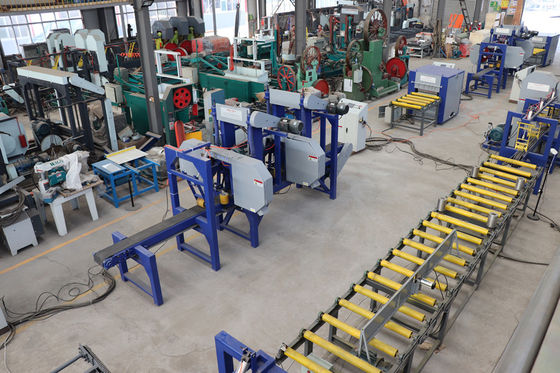

This line is deigned for Cutting log diameter 100-400MM,Log length 3500MM
 |
Control platform | |
| Overall size | 3000*1500mm | |
| display | LCD Monitor | |
| Operation | distant control | |
| Wood loading rack | ||
| length of conveyor | 4000mm | |
| width of conveyor | 2500mm | |
| feeding mode | inverter feeding by chain | |
| motor power | 3KW | |
| log loading | Pneumatic | |
| Log rolling & guiding conveyor belt | ||
| rolling log max. length | 4000mm | |
| feeding mode | inverter speed adjustable | |
| motor power | 6kw | |
| Operation | distant control | |
Twin Vertical Saw for round logs
1. Vertical cutting to process wood logs into square wood log.
2. Frequency variable feeding speed
3. Big size band wheel to saw wood logs
| Model | SLS350 | SLS500 |
| Maximum sawing log diameter (mm) | 350 | 500 |
| Minimum sawing log diameter (mm) | 100 | 100 |
| Cutting length (mm) | 1000-3000 | 1000-3000 |
| Band wheel dia.(mm) | 700mm | 760mm |
| Feeding speed | 9-25m/min | 9-25m/min |
| Feeding conveyor length | 3500mm | 3500mm |
| Outlet conveyor length | 3500mm | 3500mm |
| Main motor of saw | 2x 18.5kw | 2x22kw |
| Feeding motor | 5.5kw | 4kw x2 |
| Band saw blade width | 50-80mm | 50-100mm |
| Band saw blade thickness | 0.9-1.1mm | 0.9-1.1mm |
| Touching screen sets sawn sizes and digital display; Variable frequency speed adjustable feeding speed | ||
| Roller Conveyor with Centralize Adjustment | ||
|
length | 6000mm |
| width | 1000mm | |
| power | 2.2kw | |
| Centeralise control | pneumatic | |
| SLSP400 Twin Bandsaw for log in plat bottom | ||
|
sawing max. diameter | 400mm |
| sawing min. diameter | 150mm | |
| sawing length | 800-3000mm | |
| saw wheel diameter | 700mm | |
| sawing speed | 9-25meters/min | |
| main motor power | 18.5kw x 2sets | |
| sawn size settting | CNC touching screen | |
| Wood Slabs Conveyor | ||
|
conveyor length | 3000mm |
| conveyor width | 2500mm | |
| motor power | 2.5kw | |
| DT300-5 Multiple Heads Band Saw Machine | ||
|
sawing max. width | 300mm |
| sawing max. thickness | 300mm | |
| main motor power | 15KW X 5 sets | |
| feeding | Inverter speed adjustable | |
| control | control cabinet | |
| BPJ300 Wood Slabs Cutting Saw | ||
|
sawing max. width | 300MM |
| sawing max. thickness | 80mm | |
| main motor power | 7.5kw x 2 sets | |
| feeding | inverter speed adjustable | |
| saw blade diameter | 405mm | |
| CB600 High Speed Board Edger Saw | ||
|
sawing max. width | 600mm |
| sawing max. thickness | 80mm | |
| blade quantity | 1-5pcs | |
| motor power | 22KW | |
