Log Diesel/Petrol Engine Sawmill Wood Machine Portable Band Sawmill With Trailer Saw Mill Machine
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001,CE |
| Model Number | MJ700P,MJ1000D,MJ1300D,MJ1600D |
| Minimum Order Quantity | 1 SET |
| Price | US $4,200 - 9,200 / Set |
| Packaging Details | wooden crates or iron frame packings |
| Delivery Time | within 20 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Portable Sawmill | Condition | New |
|---|---|---|---|
| Use | Wood Cutting | Power | 22HP,25HP,27HP Diesel Engine Or Petrol Engine |
| Motor Start | Electric Start | Saw Head Lift | Hydraulic Easy Operation |
| Feeding | Manual Or Fequency Auto Feeding | Bearing | SKF GUIDE BEARINGS STANDARD |
| Log Clamp | DUAL LOG CLAMPS |
Product Description
The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.
- It is simple installation,easy operation,labor saving,and high productivity.
- This machine can be drived by either electric motor or diesel engine.
- It is widely used by the timber processing enterprises in the virgin forests areas.

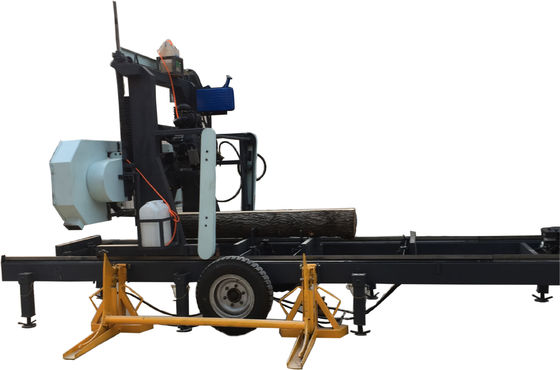

Horizontal Portable Band Sawmill With Diesel Engine
|
Technical Parameter |
MJ700P | MJ1000D | MJ1300D | MJ1600D |
|
Sawing Wood Diameter |
700MM | 1000 | 1300 | 1600 |
|
Saw Wheel Diameter(MM) |
600 | 700 | 700 | 700 |
|
Sawn Thicknes |
2-250 | 2-300 | 2-300 | 2-300 |
|
Sawing Wood Length (MM) |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Engine |
22HP Petrol | 22HP Diesel | 25HP Diesel | 27HP Diesel |
|
Band Saw Blade Length |
5500 | 6100 | 6600 | 7100 |
|
Machine Length(MM) |
5800 | 5800 | 5800 | 5800 |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
Image :
|
Image- Mobile Usage -optional
Image- Mobile Usage with hydraulic log loading arm - optional
Image- Mobile Usage with hydraulic log loading arm and inverter feeding and Touching screen setting sawn sizes - optional
PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL |
||||
|
Technical Parameter |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
|
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
|
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
|
Sawn Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
|
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
|
Lifting Motor Power |
1.1KW | 1.1KW | 1.1KW | 1.1KW |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
Image -standard model
Image- extended sawmill track - optional
Image- CNC type - pneumatic log clamping - optional
Image- CNC type - board returning hook - optional
Image- feedback from abroad users
