New design log bark debarking machine pto driven wood log debarker ring type wood debarker
| Place of Origin | shandong province |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | SHBP6000, SHBP9000,etc |
| Minimum Order Quantity | 1 SET |
| Price | US $4,800 - 15,000 / Set |
| Packaging Details | luo packings |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight |
| Supply Ability | 200 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Spindle Speed | 1500 |
|---|---|---|---|
| Wood Diameter Range | 5cm-35cm | Peeling Rate | 99.9% |
| Wood Loss Rate | 0.5% | Wood Length Range | 12000mm |
| Dimension(L*W*H) | 9000*1500*1700mm | Weight | 5000KG |
| After-sales Service Provided | Engineers Available To Service Machine Overseas |
Product Description

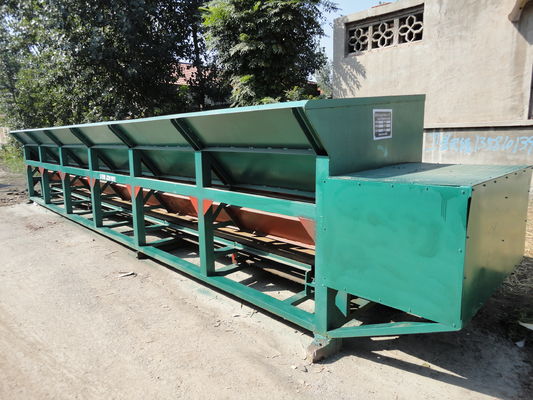

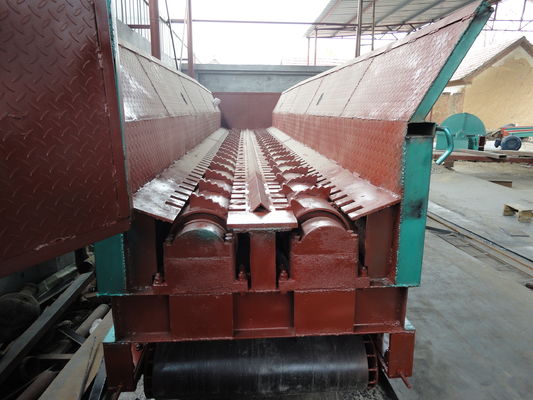

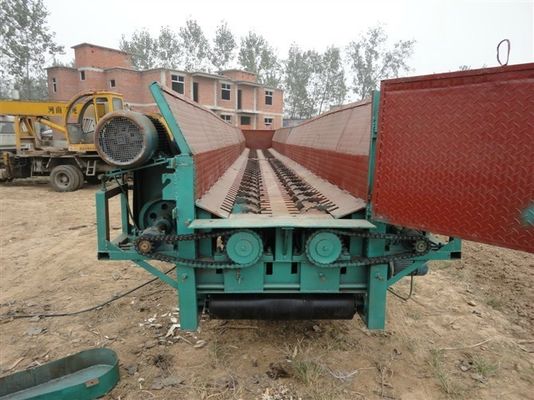

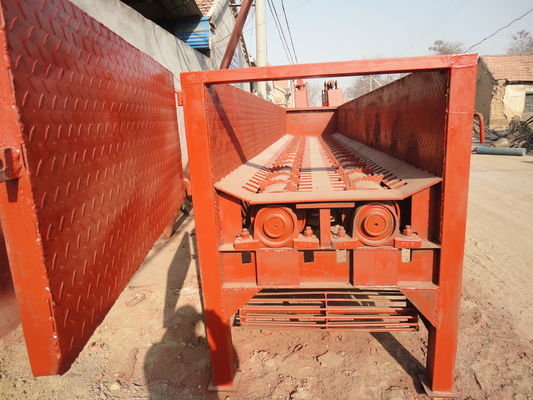

Wood Tree Debarking Peeling Log Debark Remove Bark Machine,Wood Debarkers
Single Roll Log Debarker
Introduction:
- The log debarker machine is used to take off the skins of round logs .
- Processing log max. diameter : 320mm
- Processing log max. length: 9meters
- Peeling rate:98%
Specification:
| Model | SHBP6000 | SHBP9000 |
| Capacity Ton/Hour | 5-10 | 10-15 |
| Motor Power | 37KW | 45KW |
| Log Diameter | 15-320mm | 15-320mm |
| Debarking Rate | 98% | 98% |
| Max Log Length | 6000mm | 9000mm |
| Weight | 4000kg | 5000kgs |

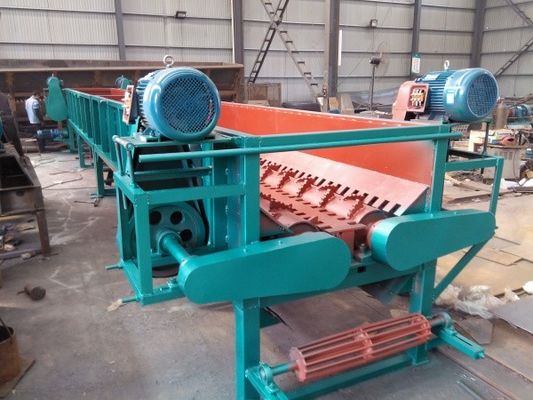

Double Rolls Log Debarker
| Model | SHBPD4500 | SHBPD6000 | SHBPD9000 |
| Capacity TON/HOUR | 3-6 | 5-10 | 10-15 |
| Motor Power | 7.5kw*2 | 11*2 | 15*2 |
| Log Diameter | 50-250mm | 50-250mm | 50-250mm |
| Debarking Rate | 98% | 98% | 98% |
| Max Log Length | 4500mm | 6000mm | 9000mm |
| Overall Size | 5.8*1.6*2m | 7.5*1.6*2m | 11*1.6*2m |
| Weight | 4500kgs | 5200kgs | 6500kgs |
Related Products
Wood Shaving Machine
Technical Specifications:
| Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
| Processing wood max. length(mm) | 800 | 1400 | 1400 |
| Processing max. width/diameter(mm) | 500 | 500 | 500 |
| Shaft quantity | 2 | 4 | 6 |
| Blade (pcs) | 8 | 16 | 24 |
| Motor speed (rpm) | 3500 | 3500 | 3500 |
| Bin length (mm) | 800 | 1400 | 1400 |
| Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
| Shaving depth (mm) | 0.2-1 | 0.2-1 | 0.2-1 |
| Shavings output | 500KG/H | 1000KG/H | 1500KG/H |
| Machine weight | 950kgs | 1800kgs | 2200kgs |
|
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; |
|||
Detailed Images:
Wood Wool Machine
Technical Data
|
Model |
SHMS500-1 | SHMS500-2 | |
|
Processing Log Length
|
300-500mm | 300-500mm | |
|
Max Processing Log Diameter
|
160mm | 160mm x 2pcs | |
|
Blade Quantity
|
2 | 2 | |
|
Excelsior Width
|
1mm-10mm | 1mm-10mm | |
|
Excelsior Thickness
|
0.1mm-1mm | 0.1mm-1mm | |
|
Excelsior Length
|
300-500mm | 300-500mm | |
|
Total Motor Power
|
9kw | 16.5KW | |
|
Production Capacity
|
50-100kg/hour | 100-150KG/Hour | |
Detailed Image
Model SHMS500-2
Wood Chipper
